Bushing for Model B crank opening?
 Post Reply Post Reply
Author
Message
  Topic Search Topic Search  Topic Options Topic Options
Tgtack View Drop Down
Bronze Level
Bronze Level


Joined: 15 Apr 2019
Location: NW Ohio
Points: 42 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Tgtack Quote  Post ReplyReply Direct Link To This Post Topic: Bushing for Model B crank opening?
    Posted: 30 Apr 2019 at 11:24am
My 1939 B is a crank start only model. I have no desire to change that, but it does bug me that the crank handle basically rubs up against the nose sheet metal Everytime it is cranked over. I was wondering if anyone has done anything to protect the metal and the finish?

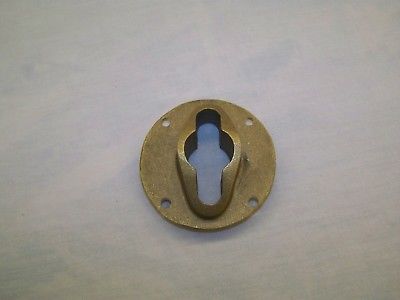

I have ordered a crank hole casting in brass that is originally for the model G and I am looking to fit it on to the B.

What are your thoughts? Anyone done this or something similar?
1939 AC Model B, 1952 AC Model G, Case 195, numerous Wheel Horse, Hit Miss Engines, currently looking for a AC B10 garden tractor
Back to Top
Sponsored Links


Back to Top
Dick L View Drop Down
Orange Level
Orange Level
Avatar

Joined: 12 Sep 2009
Location: Edon Ohio
Points: 5093 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Dick L Quote  Post ReplyReply Direct Link To This Post Posted: 30 Apr 2019 at 3:27pm
They came with a flat metal piece spot welded on the inside. Most of mine were wore thru by the time I bought the tractor. I like the idea of the G part being used.
Back to Top
Sugarmaker View Drop Down
Orange Level
Orange Level
Avatar

Joined: 12 Jul 2013
Location: Albion PA
Points: 8662 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Sugarmaker Quote  Post ReplyReply Direct Link To This Post Posted: 30 Apr 2019 at 3:29pm
That looks like a great idea!
Regards,
Chris
D17 1958 (NFE), WD45 1954 (NFE), WD 1952 (NFE), WD 1950 (WFE), Allis F-40 forklift, Allis CA, Allis D14, Ford Jubilee, Many IH Cub Cadets, 32 Ford Dump, 65 Comet, 66 F100.
Back to Top
HD6GTOM View Drop Down
Orange Level
Orange Level
Avatar

Joined: 30 Nov 2009
Location: MADISON CO IA
Points: 6627 		Post Options Post Options   Thanks (0) Thanks(0)   Quote HD6GTOM Quote  Post ReplyReply Direct Link To This Post Posted: 30 Apr 2019 at 4:09pm
Looks like a great idea. Make sure the crank for your B will fit thru it.
Back to Top
CrestonM View Drop Down
Orange Level
Orange Level
Avatar

Joined: 08 Sep 2014
Location: Oklahoma
Points: 8485 		Post Options Post Options   Thanks (0) Thanks(0)   Quote CrestonM Quote  Post ReplyReply Direct Link To This Post Posted: 30 Apr 2019 at 4:11pm
I, too, think it's a good idea. Mine is a little egged out from years of cranking.
Back to Top
Wdtractorman View Drop Down
Orange Level
Orange Level


Joined: 24 Sep 2013
Location: Kentucky
Points: 975 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Wdtractorman Quote  Post ReplyReply Direct Link To This Post Posted: 30 Apr 2019 at 9:01pm
I can get 1/2 in steel from work. I was going to cut out a plate to go on radiator mounting bracket to see if it help. That the problem on mine anyway that hole is worn way out oblong.
Back to Top
Norm Meinert View Drop Down
Silver Level
Silver Level


Joined: 31 Oct 2010
Location: Davis illinois
Points: 470 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Norm Meinert Quote  Post ReplyReply Direct Link To This Post Posted: 30 Apr 2019 at 10:07pm
call Mark at 440-570-3653 he has new part to weld on like the original.
Back to Top
Tgtack View Drop Down
Bronze Level
Bronze Level


Joined: 15 Apr 2019
Location: NW Ohio
Points: 42 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Tgtack Quote  Post ReplyReply Direct Link To This Post Posted: 02 May 2019 at 9:37pm
Got the bushing in today, crank handle fits fine. Will have to open up the hole some on each side to fit the oblong shape of the casting.
1939 AC Model B, 1952 AC Model G, Case 195, numerous Wheel Horse, Hit Miss Engines, currently looking for a AC B10 garden tractor
Back to Top
Tgtack View Drop Down
Bronze Level
Bronze Level


Joined: 15 Apr 2019
Location: NW Ohio
Points: 42 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Tgtack Quote  Post ReplyReply Direct Link To This Post Posted: 05 May 2019 at 9:31pm

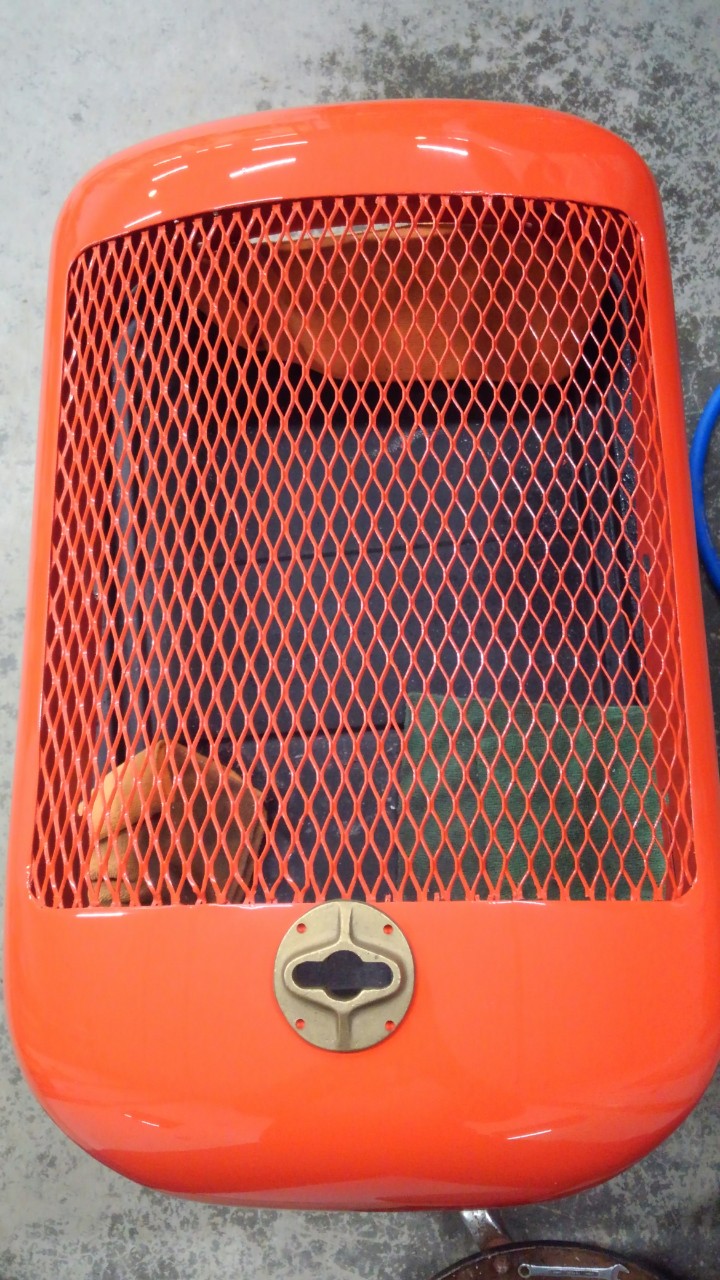

Today I opened up the crank opening on my Model B and fitted the brass Model G bushing to it. Fits pretty good, now need to cut s gasket to fit under it and find some mounting hardware. Think it's going to work pretty good.
1939 AC Model B, 1952 AC Model G, Case 195, numerous Wheel Horse, Hit Miss Engines, currently looking for a AC B10 garden tractor
Back to Top
CrestonM View Drop Down
Orange Level
Orange Level
Avatar

Joined: 08 Sep 2014
Location: Oklahoma
Points: 8485 		Post Options Post Options   Thanks (0) Thanks(0)   Quote CrestonM Quote  Post ReplyReply Direct Link To This Post Posted: 05 May 2019 at 11:33pm
Are you going to mount it on the outside or inside of the shell?
Back to Top
Dave(inMA) View Drop Down
Orange Level
Orange Level
Avatar

Joined: 12 Sep 2009
Location: Grafton, MA
Points: 2400 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Dave(inMA) Quote  Post ReplyReply Direct Link To This Post Posted: 06 May 2019 at 7:09am
Originally posted by CrestonM CrestonM wrote:

Are you going to mount it on the outside or inside of the shell?

Just what I was going to ask. You could rivet in place with the fitting on the inside and it'd hardly be noticeable.
WC, CA, D14, WD45
Back to Top
Tgtack View Drop Down
Bronze Level
Bronze Level


Joined: 15 Apr 2019
Location: NW Ohio
Points: 42 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Tgtack Quote  Post ReplyReply Direct Link To This Post Posted: 06 May 2019 at 9:49am
Inside mounting poses another set of issues, one, the lip of the expanded metal would be in the way. Mounting without the flange covering the opening would also require a lot of rework of the opening and a refinish of the shell. Since I am not sure of the color yet (know the brand), I do not want to venture into a repaint till maybe this fall. If I can identify the color, then I am going to rework some additional area of the shell including replacement of the mesh, and at that time If I could find a damaged Model G tail section and cut out the stamped area, it could be grafted into the B shell to mount it as is mounted on the G.

Edited by Tgtack - 06 May 2019 at 9:50am
1939 AC Model B, 1952 AC Model G, Case 195, numerous Wheel Horse, Hit Miss Engines, currently looking for a AC B10 garden tractor
Back to Top
Dick L View Drop Down
Orange Level
Orange Level
Avatar

Joined: 12 Sep 2009
Location: Edon Ohio
Points: 5093 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Dick L Quote  Post ReplyReply Direct Link To This Post Posted: 06 May 2019 at 5:08pm
Paint it orange and it will only be noticed by those that claim to be correct police. When I was pulling and had to put the C in a line of show tractors to qualify for the pull I had a big time setting back and listen to the correct police wondering if Allis ever put a straight drawbar on a C.

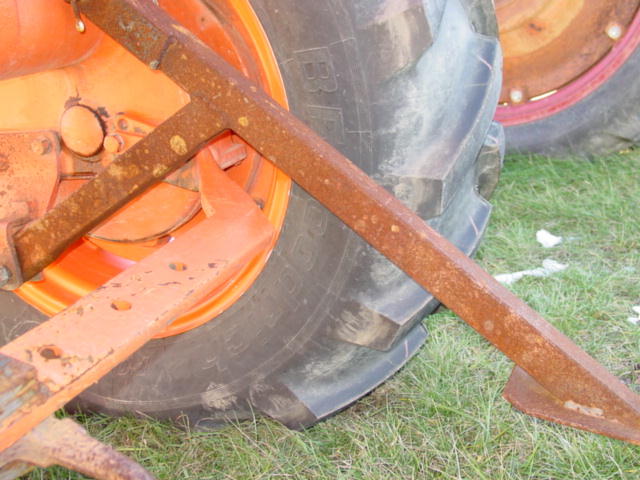

A picture for those that had not seen it posted before.
One of a kind Lemmon drawbar set for pulling at 13 inches from the ground.




Edited by Dick L - 06 May 2019 at 5:17pm
Back to Top
Tgtack View Drop Down
Bronze Level
Bronze Level


Joined: 15 Apr 2019
Location: NW Ohio
Points: 42 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Tgtack Quote  Post ReplyReply Direct Link To This Post Posted: 06 May 2019 at 10:19pm

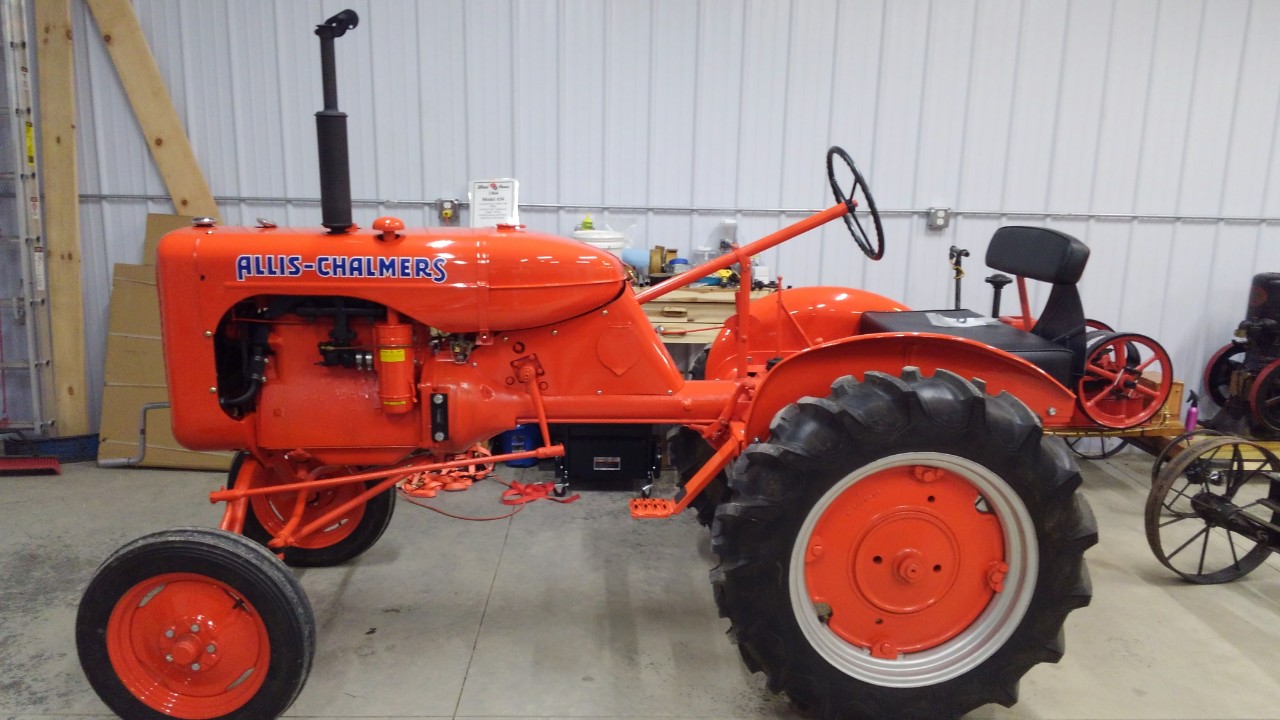

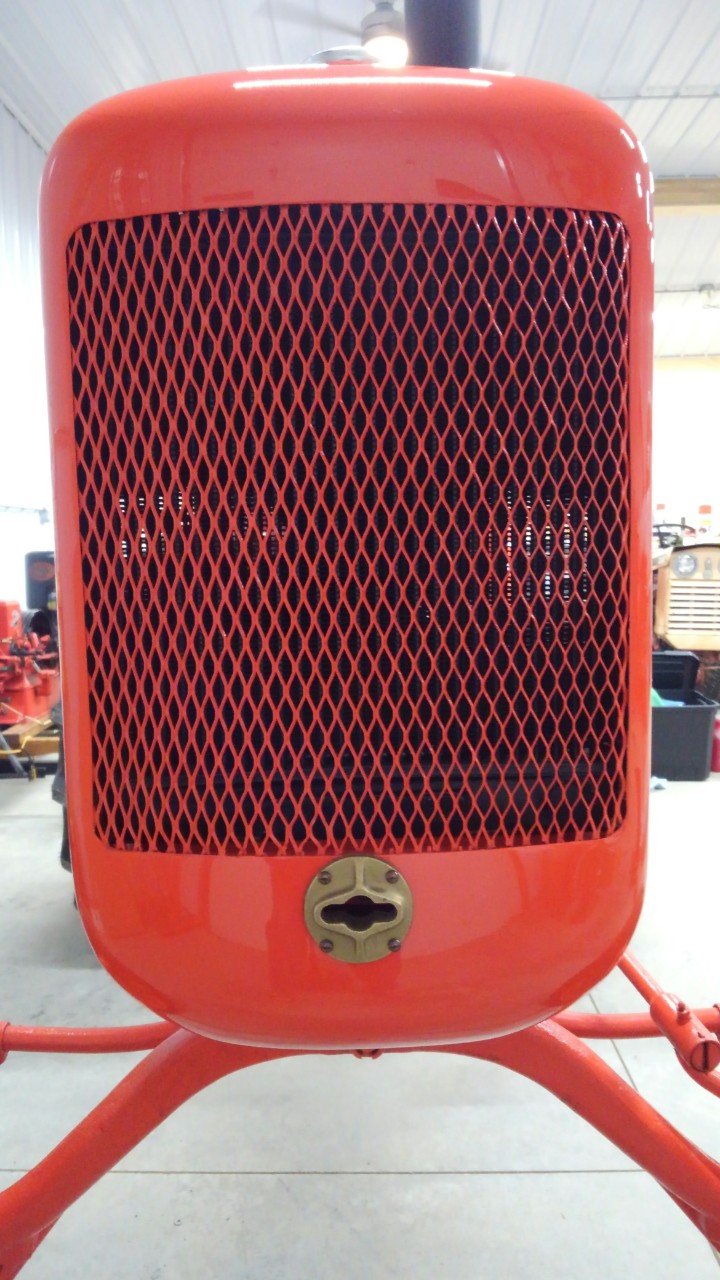

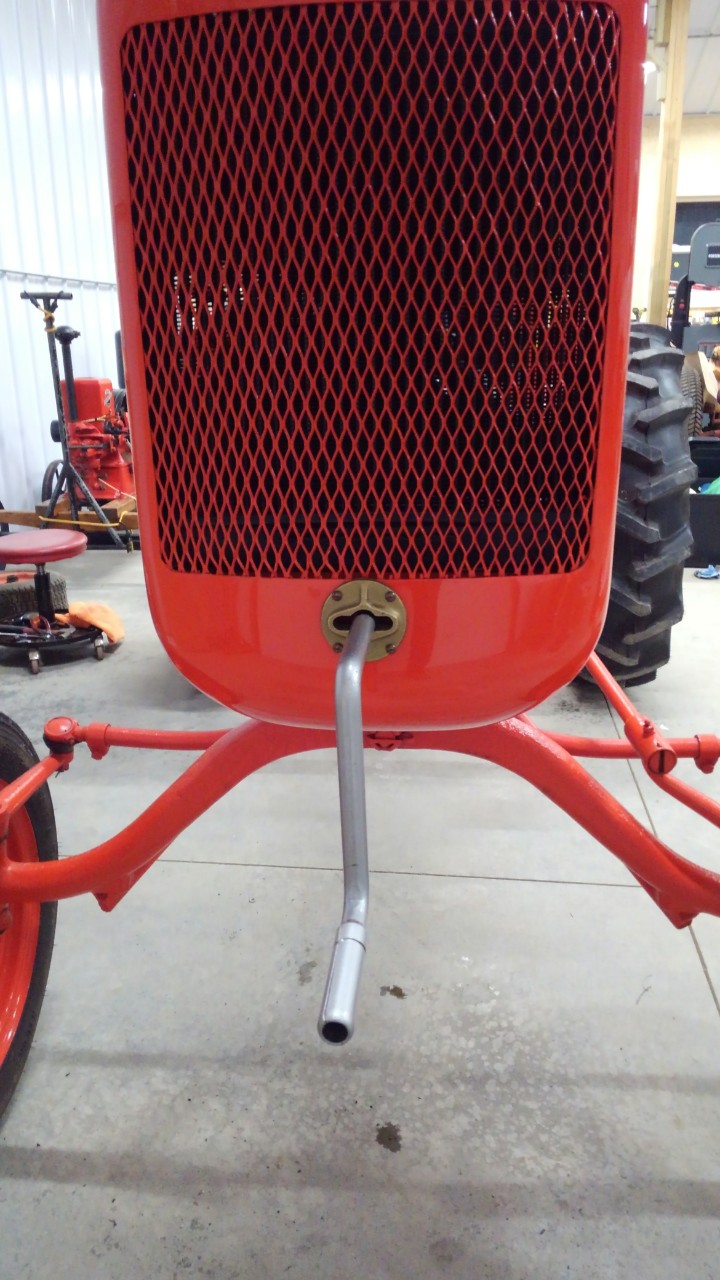

Finished up installing the Model G brass crank hole flange and the B is now all buttoned back up. Works great, no more rubbing off the crank handle against the grill sheet metal. While I had the tin work off, touched up the black paint on the engine components and manifold. Instead of webbing between the metal joints, I used a heavy gauge clear mylar tape that I have used on the tin work of garden tractors with good results. Is heavy enough and has enough lubricity to prevent chaffing. I did use a piece of orange webbing under the hood/tank body strap.
1939 AC Model B, 1952 AC Model G, Case 195, numerous Wheel Horse, Hit Miss Engines, currently looking for a AC B10 garden tractor
Back to Top
chaskaduo View Drop Down
Orange Level
Orange Level
Avatar

Joined: 26 Nov 2016
Location: Twin Cities
Points: 5200 		Post Options Post Options   Thanks (0) Thanks(0)   Quote chaskaduo Quote  Post ReplyReply Direct Link To This Post Posted: 07 May 2019 at 5:15am
Looks mighty good.  Now scrub up your floors. Wink
1938 B, 79 Dynamark 11/36 6spd, 95 Weed-Eater 16hp, 2010 Bolens 14hp
Back to Top
HoughMade View Drop Down
Orange Level
Orange Level
Avatar

Joined: 22 Sep 2017
Location: Valparaiso, IN
Points: 720 		Post Options Post Options   Thanks (0) Thanks(0)   Quote HoughMade Quote  Post ReplyReply Direct Link To This Post Posted: 07 May 2019 at 10:26am
Seeing this, I'm thinking of getting one....any my B doesn't even have a crank pulley that allows for the use of a crank.
1951 B
