bolt holes in lower housing of final drives
 Post Reply Post Reply
Author
Message
  Topic Search Topic Search  Topic Options Topic Options
cdon_FL View Drop Down
Silver Level
Silver Level
Avatar

Joined: 15 Aug 2016
Location: NE Florida
Points: 116 		Post Options Post Options   Thanks (0) Thanks(0)   Quote cdon_FL Quote  Post ReplyReply Direct Link To This Post Topic: bolt holes in lower housing of final drives
    Posted: 31 Jan 2017 at 2:29pm
Mounting a Woods mower under my CA. But I believe that C and B are very similar....

The holes in the lower part of the final drive housing have 4 holes each. Two of them seem to be smooth bore and two are threaded.

The holes in my woods mount pretty well match (CL to CL) with the threaded holes, but those threaded holes seem shallow and not particularly strong.

Is not my intent to jerk out stumps with a chain hooked to my mower deck, but is there a way to increase the strength of my mount where it attaches to the final drive housings (?)

Do these threaded holes have a bottom ? and for bonus points....What are the smooth holes for (?)
Chris in NE Florida
Back to Top
Sponsored Links


Back to Top
cdon_FL View Drop Down
Silver Level
Silver Level
Avatar

Joined: 15 Aug 2016
Location: NE Florida
Points: 116 		Post Options Post Options   Thanks (0) Thanks(0)   Quote cdon_FL Quote  Post ReplyReply Direct Link To This Post Posted: 31 Jan 2017 at 2:40pm
My bolt holes were crusted up with paint and gunk. Blew them out pretty well with my air nozzle -- just not sure how far to run the bolts into them.

Seem to bottom out after just a few complete rotations. Can't tell if I have running into gunk or that's as far as they go.
Chris in NE Florida
Back to Top
Bob-Maine View Drop Down
Orange Level
Orange Level
Avatar

Joined: 11 Sep 2009
Location: Central Maine
Points: 922 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Bob-Maine Quote  Post ReplyReply Direct Link To This Post Posted: 31 Jan 2017 at 2:44pm
Chris,

I will speak to the Models B and C. I would have to look at My CA to see if it is same. The holes are used to fasten the draw bar to the tractor. A clamp or lock is used which has a smooth round extension which fits through the draw bar and into the smooth hole. The lock goes on the outer surface of the draw bar and a threaded bolt goes through both the lock and the draw bar. The draw bar height can be adjusted as there are three holes in it into which the bolt can be inserted to vary the height.

I am going to leave alone your idea of jerking out stumps with a chain hooked to a mover deck. Any tractor I have seen has cautions about pulling from any place but the draw bar. Be safe. Bob@allisdowneast
I used to think I was indecisive, but now I'm not sure.
Back to Top
steve(ill) View Drop Down
Orange Level Access
Orange Level Access
Avatar

Joined: 11 Sep 2009
Location: illinois
Points: 86655 		Post Options Post Options   Thanks (0) Thanks(0)   Quote steve(ill) Quote  Post ReplyReply Direct Link To This Post Posted: 31 Jan 2017 at 8:43pm
the threaded holes are 5/8 inch on all except the very early Bs that were 1/2 inch. I would guess they are 7/8 inch deep.. The threads do get old and sloppy over the years. I have drilled out some to 7/8 inch and installed helicoils to get back to 5/8 inch. ... clean out the holes with a pick, and use  a bottom tap to get threads as deep as possible, if they are still good ....When drilling out the hole, if you go thru the case, its not a big deal.... just gear lube inside... put sealer on the threads of the bolt when you install to keep oil inside............. as mentioned, the smooth hole is a locater pin for the bracket...It also gives you something to "PULL" against in addition to the bolt, but stumps might be a little much !!
Like them all, but love the "B"s.
Back to Top
Dakota Dave View Drop Down
Orange Level
Orange Level
Avatar

Joined: 12 Sep 2009
Location: ND
Points: 3969 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Dakota Dave Quote  Post ReplyReply Direct Link To This Post Posted: 31 Jan 2017 at 9:09pm
The threaded holes on my C have been tapped oversized to 3/4" To tap them requires a bottoming tape as ther not very deep But the CA still has 5/8" holes. The smooth holes are for the draw bar of plow drop brackets on a B or C the pull force of the draw bar is Thur these pins and the threaded holes are to hold the clamps in place. When installing the woods mount it's very important to use the spacers between the mount and the castings. The spacers are a very tight squeeze between them. Properly installed they are quite strong. I have hit the barn foundation with the end of the mower deck and it stops the tractor.

Edited by Dakota Dave - 31 Jan 2017 at 9:10pm
Back to Top
Chalmersbob View Drop Down
Orange Level
Orange Level


Joined: 11 Sep 2009
Location: Pennsylvania
Points: 2122 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Chalmersbob Quote  Post ReplyReply Direct Link To This Post Posted: 01 Feb 2017 at 9:53pm
The holes in question were from the B & C. Used to mount the drawbar. You will not hurt them even if you try to pull out a stump. Bob
4 B's, 1 C's,3 CA's, 2 G's WD, D14, D15, B-1, B10, B12, 712S,
Back to Top
bradley6874 View Drop Down
Orange Level
Orange Level


Joined: 05 Sep 2010
Location: salisbury md
Points: 1349 		Post Options Post Options   Thanks (0) Thanks(0)   Quote bradley6874 Quote  Post ReplyReply Direct Link To This Post Posted: 03 Feb 2017 at 9:15pm
If your worried About how deep the threads are, chase the threads and put a stud in that way you get full thread and then use a lock nut
You can wash the dirt off the body but you can’t wash the farmer out of the heart and soul
Back to Top
Dick L View Drop Down
Orange Level
Orange Level
Avatar

Joined: 12 Sep 2009
Location: Edon Ohio
Points: 5087 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Dick L Quote  Post ReplyReply Direct Link To This Post Posted: 03 Feb 2017 at 9:35pm
If I was you I would rethink using the mower deck as a drawbar for pulling stumps. An Allis  C drawbar will work with a Woods mower and can be on the tractor all the time to pull other things. Might be cheaper than rebuilding a bent twisted mower.
Back to Top
stu(ON) View Drop Down
Orange Level
Orange Level


Joined: 12 Sep 2009
Points: 377 		Post Options Post Options   Thanks (0) Thanks(0)   Quote stu(ON) Quote  Post ReplyReply Direct Link To This Post Posted: 04 Feb 2017 at 8:55am
Is not my intent to jerk out stumps with a chain hooked to my mower deck, but is there a way to increase the strength of my mount where it attaches to the final drive housings (?)

In this day of misinformation and alternative facts, it remains interesting how a misinterpretation can carry itself through an entire thread.  Or are you guys just pulling the OP's leg?

Edited by stu(ON) - 04 Feb 2017 at 8:57am
Back to Top
Dick L View Drop Down
Orange Level
Orange Level
Avatar

Joined: 12 Sep 2009
Location: Edon Ohio
Points: 5087 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Dick L Quote  Post ReplyReply Direct Link To This Post Posted: 04 Feb 2017 at 9:52am
Originally posted by stu(ON) stu(ON) wrote:

Is not my intent to jerk out stumps with a chain hooked to my mower deck, but is there a way to increase the strength of my mount where it attaches to the final drive housings (?)

In this day of misinformation and alternative facts, it remains interesting how a misinterpretation can carry itself through an entire thread.  Or are you guys just pulling the OP's leg?

Hooking to a mower mount is hooking to part of a mower. Adding a drawbar solves the problem. The C drawbar will fit as in the picture.
I have practiced the occupation of breaking things taking short cuts for over 50 years and was passing on my (OPINION)  from experience.  So sorry if I ruffled your feathers and caused you to print colors to point out my stupidity.

If you look at the drawbar mount you are pulling on three shear pulling points on both sides. Remember you have no more strength in the depth of threads than the diameter of the bolt in good threads. That is why bolt nuts are not three inches long.

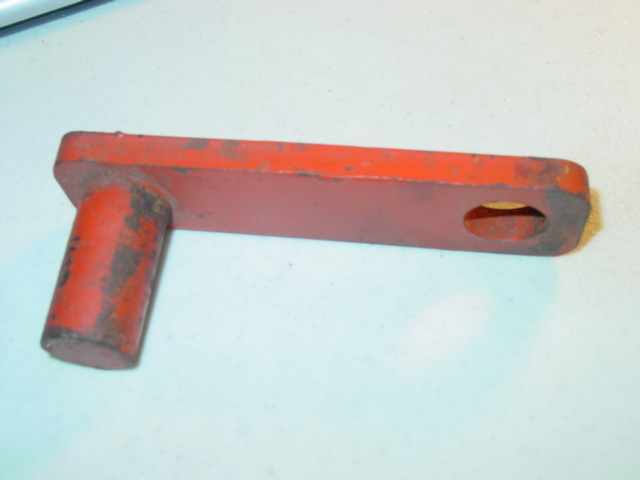

This is what goes in the smooth hole and is shown in the above picture.



Edited by Dick L - 04 Feb 2017 at 10:15am
Back to Top
 Post Reply Post Reply
  Share Topic
