 Topic: Ball and socket hitch?
Posted: 24 Apr 2019 at 9:39am |
|
Could somebody explain the ball and socket hitch used with some AC equipment? Been seeing mention of it in relation to roto balers, hay rakes, and all crop combines. Any pics?
Is it absolutely needed in order to use these implements?
Jared
|
 |
|
Sponsored Links
|
|
|
Pat the Plumber CIL
Orange Level
Joined: 11 Sep 2009
Location: Springfield,Il
Points: 4871
|
Post Options
Thanks(0)
Quote Reply
Posted: 24 Apr 2019 at 12:30pm |
|
Only needed if you dont want to convert them . On flat ground I dont see the advantage . Even on uneven ground I would not think it would matter . Have seen several converted to hitch pin and operators have said works fine.
|
|
You only need to know 3 things to be a plumber;Crap rolls down hill,Hot is on the left and Don't bite your fingernails
1964 D-17 SIV 3 Pt.WF,1964 D-15 Ser II 3pt.WF ,1960 D-17 SI NF,1956 WD 45 WF.
|
|
DennisA (IL)
Orange Level
Joined: 11 Sep 2009
Location: Ridott IL.
Points: 2064
|
Post Options
Thanks(0)
Quote Reply

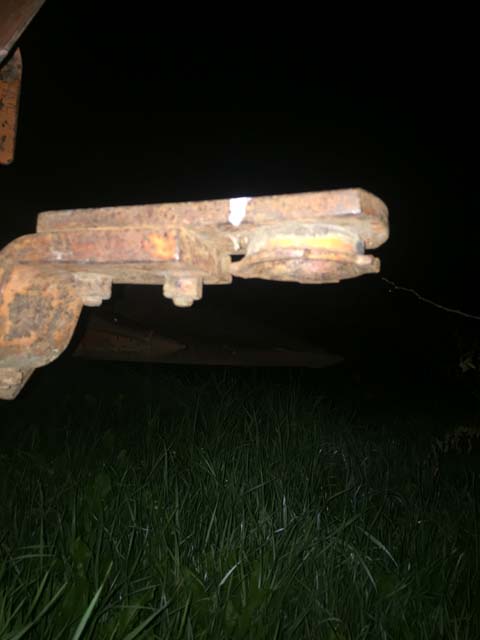

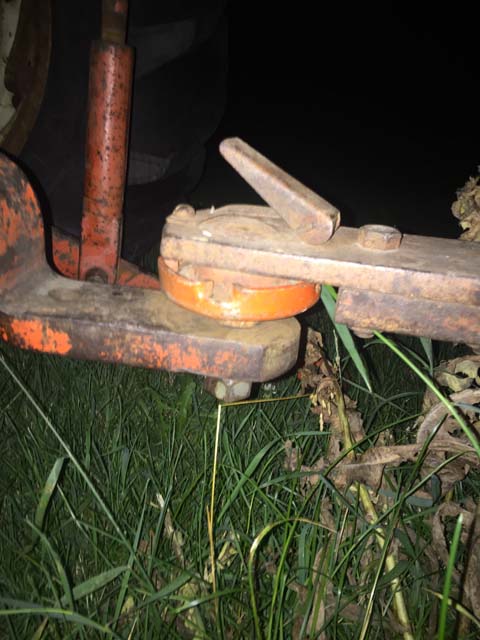

Posted: 24 Apr 2019 at 1:13pm |
|
|
|
Thanks & God Bless
Dennis
|
|
CrestonM
Orange Level
Joined: 08 Sep 2014
Location: Oklahoma
Points: 8447
|
Post Options
Thanks(0)
Quote Reply
Posted: 24 Apr 2019 at 1:37pm |
|
I really like it. Quick, easy attaching. I think it's easier than lining up a clevis hitch.
|
|
JaredC(WI)
Silver Level
Joined: 10 Apr 2019
Location: Birnamwood WI
Points: 106
|
Post Options
Thanks(0)
Quote Reply
Posted: 25 Apr 2019 at 10:06am |
|
Thanks guys. Is it a standard 1 7/8" or some strange size?
Is this what most of you are using on pull type equipment or like said above, has most allis equipment out there been converted to use a regular pin hitch.
Jared
|
|
Allis dave
Orange Level
Joined: 10 May 2012
Location: Northern IN
Points: 2971
|
Post Options
Thanks(0)
Quote Reply
Posted: 25 Apr 2019 at 11:23am |
|
I have it on my pull type combine and use it. Kind of cool just because it's different.
|
|
Mikez
Orange Level Access
Joined: 16 Jan 2013
Location: Usa
Points: 8602
|
Post Options
Thanks(0)
Quote Reply
Posted: 25 Apr 2019 at 2:01pm |

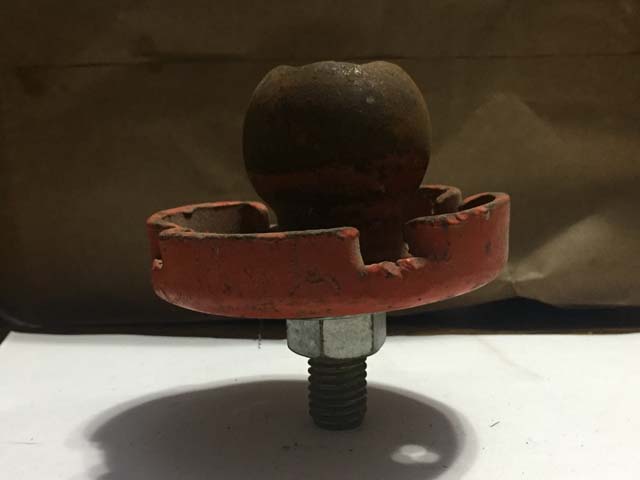

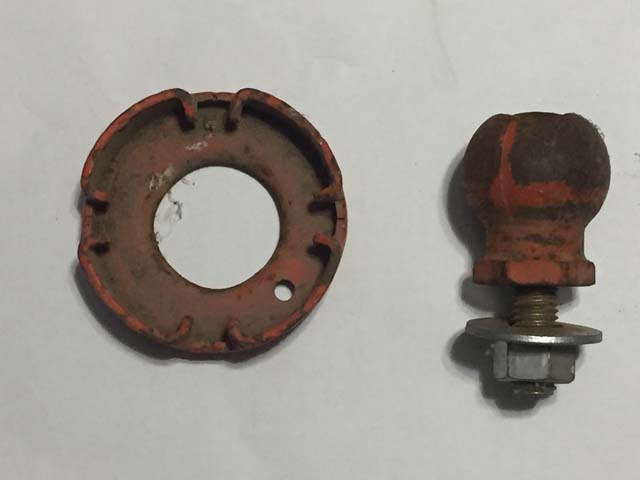

Here's an nos one we have
Edited by Mikez - 25 Apr 2019 at 2:04pm
|
|
FloydKS
Orange Level
Joined: 12 Sep 2009
Location: S E Kansas
Points: 8333
|
Post Options
Thanks(0)
Quote Reply
Posted: 25 Apr 2019 at 2:19pm |
|
With the Allis round baler you are stopping for each bale, that means a lot of stop and go...with a pin hitch you will be wearing your pin and the hole in the drawbar at least a little faster than normal, so the ball hitch saves your drawbar from needing repair as often.
|
|
Holding a grudge is like taking poison and expecting the other person to die
|
|
Alberta Phil
Orange Level
Joined: 13 Sep 2009
Location: Alberta, Canada
Points: 3882
|
Post Options
Thanks(0)
Quote Reply
Posted: 25 Apr 2019 at 2:24pm |
|
I've got two of those bar rakes that I use. One has the original ball hitch with the lock ring, and the other has an old style 2" ball type trailer coupler. Either one will couple to the ball on the tractor hitch.
|
|
Dmpaul89
Orange Level
Joined: 06 Mar 2013
Location: Edwardsville,IL
Points: 1689
|
Post Options
Thanks(0)
Quote Reply
Posted: 25 Apr 2019 at 6:48pm |
|
they work well but the flaw is, its hard to keep the nut tight especially if there is any wear to the drawbar hole. it gets pushed back and forth and loosens up. you really need to shim it to fit each drawbar. plus the ones I had were course thread shanks. the pic above looks like fine thread which wuold be an improvement over what I had. overall a good design and much nicer than dumb old clevis hitch flapping around.
Edited by Dmpaul89 - 25 Apr 2019 at 6:49pm
|
|
CrestonM
Orange Level
Joined: 08 Sep 2014
Location: Oklahoma
Points: 8447
|
Post Options
Thanks(0)
Quote Reply
Posted: 25 Apr 2019 at 8:52pm |
 Dmpaul89 wrote:
they work well but the flaw is, its hard to keep the nut tight especially if there is any wear to the drawbar hole. it gets pushed back and forth and loosens up. you really need to shim it to fit each drawbar. plus the ones I had were course thread shanks. the pic above looks like fine thread which wuold be an improvement over what I had. overall a good design and much nicer than dumb old clevis hitch flapping around.
|
I agree, they do tend to work loose if the drawbar hole is egged out any. Mine is a fine thread though, and I do think it works better than coarse thread.
|
|
jaybmiller
Orange Level Access
Joined: 12 Sep 2009
Location: Greensville,Ont
Points: 24337
|
Post Options
Thanks(0)
Quote Reply
Posted: 26 Apr 2019 at 6:39am |
OK, I have to ask.. what's the 'magic' for it to latch ? The 'lever' does 'something' similar to a trailer 'ball coupler' ?? curious... Jay
|
|
3 D-14s,A-C forklift, B-112
Kubota BX23S lil' TOOT( The Other Orange Tractor)
Never burn your bridges, unless you can walk on water
|
|
DennisA (IL)
Orange Level
Joined: 11 Sep 2009
Location: Ridott IL.
Points: 2064
|
Post Options
Thanks(0)
Quote Reply
Posted: 26 Apr 2019 at 7:46am |
jaybmiller wrote:
OK, I have to ask.. what's the 'magic' for it to latch ? The 'lever' does 'something' similar to a trailer 'ball coupler' ?? curious... Jay
|
under the lever is a pin. When you push the lever down the pin drops in to one of the notches in the locking ring. This prevents the locking ring from rotating and releasing the implement.
|
|
Thanks & God Bless
Dennis
|
|
JaredC(WI)
Silver Level
Joined: 10 Apr 2019
Location: Birnamwood WI
Points: 106
|
Post Options
Thanks(0)
Quote Reply
Posted: 26 Apr 2019 at 9:41am |
|
Thanks for the info on this. I think my draw bar would be too egged out to use one, lol.
|
|
