Another CA Pickup Plow Spacer Question
 Post Reply Post Reply
Author
Message
  Topic Search Topic Search  Topic Options Topic Options
dfwallis View Drop Down
Orange Level
Orange Level


Joined: 09 Mar 2023
Location: DFW
Points: 934 		Post Options Post Options   Thanks (0) Thanks(0)   Quote dfwallis Quote  Post ReplyReply Direct Link To This Post Topic: Another CA Pickup Plow Spacer Question
    Posted: Yesterday at 12:38pm
The pickup plow manual shows a spacer that goes on top of the rear end of the pull bar (spacer is missing).  In the line drawing, it seems to show it side-on as a straight piece of U channel with no cutouts for the through bolt in the sides.  However, in the image of the installation earlier in the manual, it appears to show the end view of the U channel as if it would need a cutout in the sides for the through bolt to go through (and presumably keep it from sliding out).  Not finding a suitable sized U channel, I'll probably make something.Does anyone know the design/dimensions of this spacer?  The max gap is almost exactly 5/16 inch so the web thickness would be 5/16 or less I assume.  I could also install it side to side so that the bolt goes through the channel, but that's not how the plow image shows it.
1952 CA13092
Back to Top
Sponsored Links


Back to Top
Tim NH View Drop Down
Orange Level Access
Orange Level Access


Joined: 16 Oct 2012
Location: Lancaster NH
Points: 1154 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Tim NH Quote  Post ReplyReply Direct Link To This Post Posted: 7 hours 18 minutes ago at 11:13am
Picture is from my 52 plow I restored last winter. You can see the U bracket, its half inch thick. The plow goes on my WD. But I think the CA uses the same plow.

Edited by Tim NH - 3 hours 57 minutes ago at 2:34pm
1950 WD 1959 D14 1955 WD45 1976 7000 B 207
Back to Top
dfwallis View Drop Down
Orange Level
Orange Level


Joined: 09 Mar 2023
Location: DFW
Points: 934 		Post Options Post Options   Thanks (0) Thanks(0)   Quote dfwallis Quote  Post ReplyReply Direct Link To This Post Posted: 7 hours 7 minutes ago at 11:24am
Originally posted by Tim NH Tim NH wrote:

picture is from my 52 plow I restored last winter. You can see the you bracket, its half inch thick. The plow goes on my WD. But I think the CA uses the same plow.

I have the U bracket installed.  But the manual shows a spacer between the top of the pull bar and the through bolt at the top of the U bracket.  That's what's missing (or lost but I don't remember it).


Edited by dfwallis - 7 hours 6 minutes ago at 11:25am
1952 CA13092
Back to Top
Tim NH View Drop Down
Orange Level Access
Orange Level Access


Joined: 16 Oct 2012
Location: Lancaster NH
Points: 1154 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Tim NH Quote  Post ReplyReply Direct Link To This Post Posted: 3 hours 53 minutes ago at 2:38pm

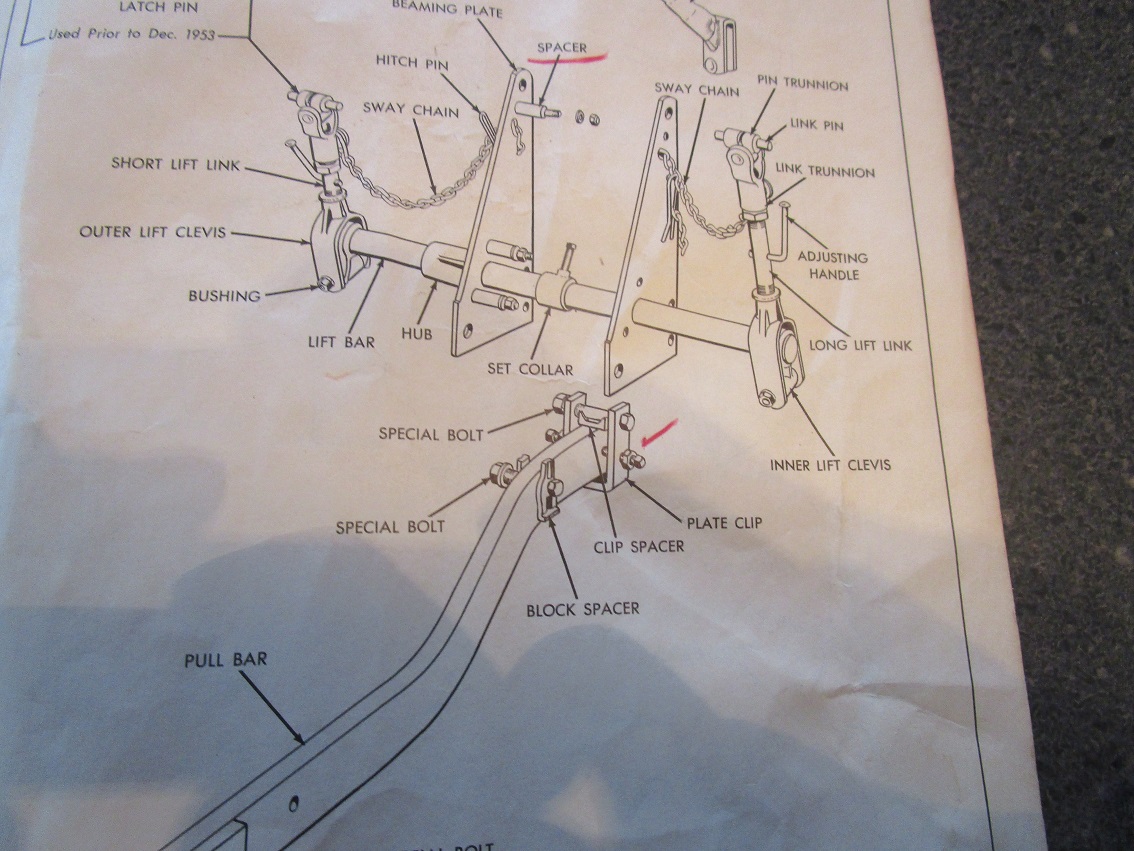

Alright I see what your needing. The clip spacer is near the red arrow. I don't have one. But I'm sure someone on here does.
1950 WD 1959 D14 1955 WD45 1976 7000 B 207
Back to Top
dfwallis View Drop Down
Orange Level
Orange Level


Joined: 09 Mar 2023
Location: DFW
Points: 934 		Post Options Post Options   Thanks (0) Thanks(0)   Quote dfwallis Quote  Post ReplyReply Direct Link To This Post Posted: 1 hour 27 minutes ago at 5:04pm
Interesting name for it.  The CA pickup plow manual doesn't describe it other than as a spacer.
1952 CA13092
Back to Top
dfwallis View Drop Down
Orange Level
Orange Level


Joined: 09 Mar 2023
Location: DFW
Points: 934 		Post Options Post Options   Thanks (0) Thanks(0)   Quote dfwallis Quote  Post ReplyReply Direct Link To This Post Posted: 1 hour 13 minutes ago at 5:18pm

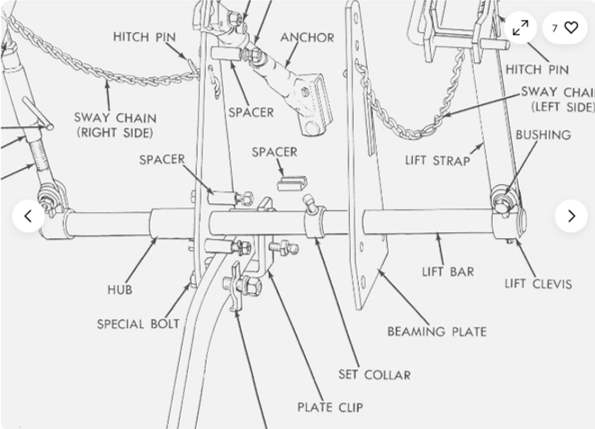

This is the CA manual depiction of the spacer.  Seems to imply it is installed horizontally, yet the actual plow image earlier in the manual shows an end view sticking out the back (like your image above) with the bolt going through the middle.  So I think this line drawing is incomplete and it has cutouts in all 4 sides/ends (or it was changed later).  I'm not sure it actually matters, but the below depiction of the line drawing of the spacer was confusing me when looking at the plow image.  I think a plain U channel with the bolt going through the channel will be fine.  I'd rather it be correct though.




Edited by dfwallis - 1 hour 7 minutes ago at 5:24pm
1952 CA13092
