 Topic: Allis-Chalmers "W" tractor
Posted: 13 May 2017 at 9:51pm |
|
I am searching for a sales brochure for the Model W tractor. The WC was called the
W for a short time. The brochure shows a W tractor on rubber on the cover for
$825. I would like to have the pages of the email scanned in or i would buy a
copy of the brochure if it was for sale.
Thanks,
Dean(IA)
|
 |
|
Sponsored Links
|
|
|
Dean(IA)
Silver Level
Joined: 12 Sep 2009
Location: NE Iowa
Points: 430
|
Post Options
Thanks(0)
Quote Reply
Posted: 13 May 2017 at 9:52pm |
|
My computer can't compose a sentence, I guess. I meant to say that the
copies could be posted on the forum or sent to me by PM.
Sorry about that.
Dean(IA)
|
|
JW in MO
Orange Level
Joined: 16 Feb 2010
Location: South KC Area
Points: 2641
|
Post Options
Thanks(0)
Quote Reply
Posted: 13 May 2017 at 10:15pm |
|
Never heard that. At first I was gonna tell you to flip it over, it's upside down, what you have is a crawler. Orrrrrrrrrrrr somebody put a radiator tag on upside down.
|
|
Maximum use of available resources!
|
|
Fred in Pa
Orange Level
Joined: 13 Sep 2009
Location: Hanover Pa.
Points: 9210
|
Post Options
Thanks(0)
Quote Reply
Posted: 14 May 2017 at 6:21am |
|
You can not always go by pictures they used ,some where of tractor already being used for some time ,u never know was had been done to them .
|
|
He who dies with the most toys is,
nonetheless ,still dead.
If all else fails ,Read all that is PRINTED.
|
|
Guests
Guest Group
|
Post Options
Thanks(0)
Quote Reply
Posted: 14 May 2017 at 8:06am |

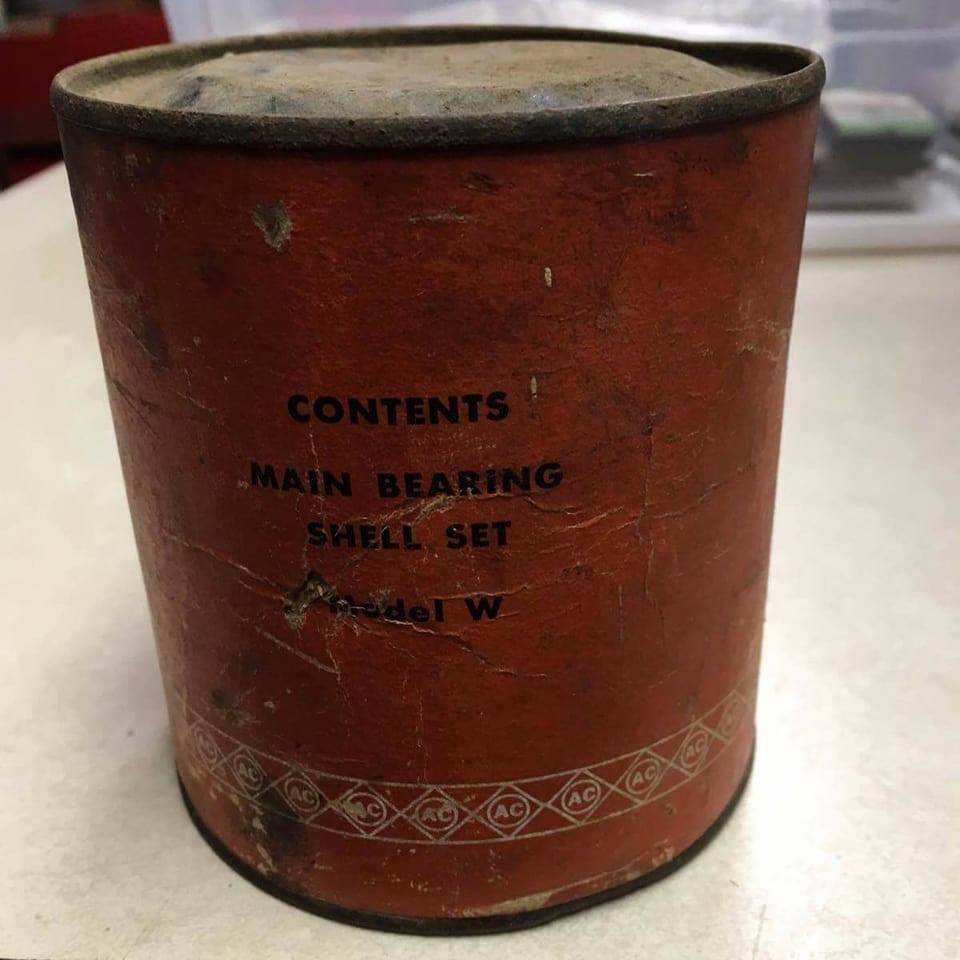

 I had ran across this main bearing set. It uses a journal that is smaller than 201 tractors would end up with.
|
|
MNLonnie
Orange Level
Joined: 11 Sep 2009
Location: Baxter MN
Points: 4791
|
Post Options
Thanks(0)
Quote Reply
Posted: 14 May 2017 at 10:29am |
|
Would it be for the early WC's before they increased the size by 3/8"?
|
|
Waukesha B, B, IB, G, styled WF, D15, 615 backhoe, 2-Oliver OC3's, 4 Ford Model T's, 3 Model A Fords, AV8 Coupe, AV8 Roadster, 1933 Ford Wrecker
|
|
Guests
Guest Group
|
Post Options
Thanks(0)
Quote Reply
Posted: 14 May 2017 at 11:13am |
 MNLonnie wrote:
Would it be for the early WC's before they increased the size by 3/8"? |
Yes Lonnie, that is the case. I have a very early WC engine out in the barn that has the small crank journals.
|
|
steelwheelAcjim
Orange Level
Joined: 06 Dec 2009
Location: Blissfield,Mi
Points: 1257
|
Post Options
Thanks(0)
Quote Reply
Posted: 14 May 2017 at 2:13pm |
OOOPS!! Sorry for that.
Edited by steelwheelAcjim - 14 May 2017 at 2:13pm
|
|
Pre-WW2 A-C tractors on steel wheels...because I'm too cheap to buy tires!
|
|
Gary
Orange Level Access
Joined: 13 Sep 2009
Location: Peterborough,On
Points: 5874
|
Post Options
Thanks(0)
Quote Reply
Posted: 14 May 2017 at 3:02pm |
|
I think it is the Engine that was called the 'W' Series.
The 201 in a WD, and the 226 in WD-45 were a W Series.
Gary
|
|
JoeM(GA)
Orange Level
Joined: 12 Sep 2009
Location: Cumming,GA
Points: 4754
|
Post Options
Thanks(0)
Quote Reply
Posted: 14 May 2017 at 3:43pm |
|
|
|
Allis Express North Georgia
41 WC,48 UC Cane,7-G's,
Ford 345C TLB
|
|
Randy MN
Bronze Level
Joined: 03 Dec 2015
Location: Blaine, MN
Points: 144
|
Post Options
Thanks(0)
Quote Reply
Posted: 14 May 2017 at 3:58pm |
|
|
|
34 WC #477, 38 B #1935, 1-116 on steel, #8 7ft dbl action disc, #9 5ft dbl action disc, 295 Chainsaw
|
|
Bill_MN
Orange Level
Joined: 12 Sep 2009
Location: Sioux Falls, SD
Points: 1466
|
Post Options
Thanks(0)
Quote Reply
Posted: 14 May 2017 at 3:59pm |
|
That's right, the early small-crank 201s were called "W All Crop". I believe the Waukeshas were even just "All Crop"
|
|
1951 WD #78283, 1918 Case 28x50 Thresher #76738, Case Centennial B 2x16 Plow
|
|
Randy MN
Bronze Level
Joined: 03 Dec 2015
Location: Blaine, MN
Points: 144
|
Post Options
Thanks(0)
Quote Reply
Posted: 14 May 2017 at 4:23pm |

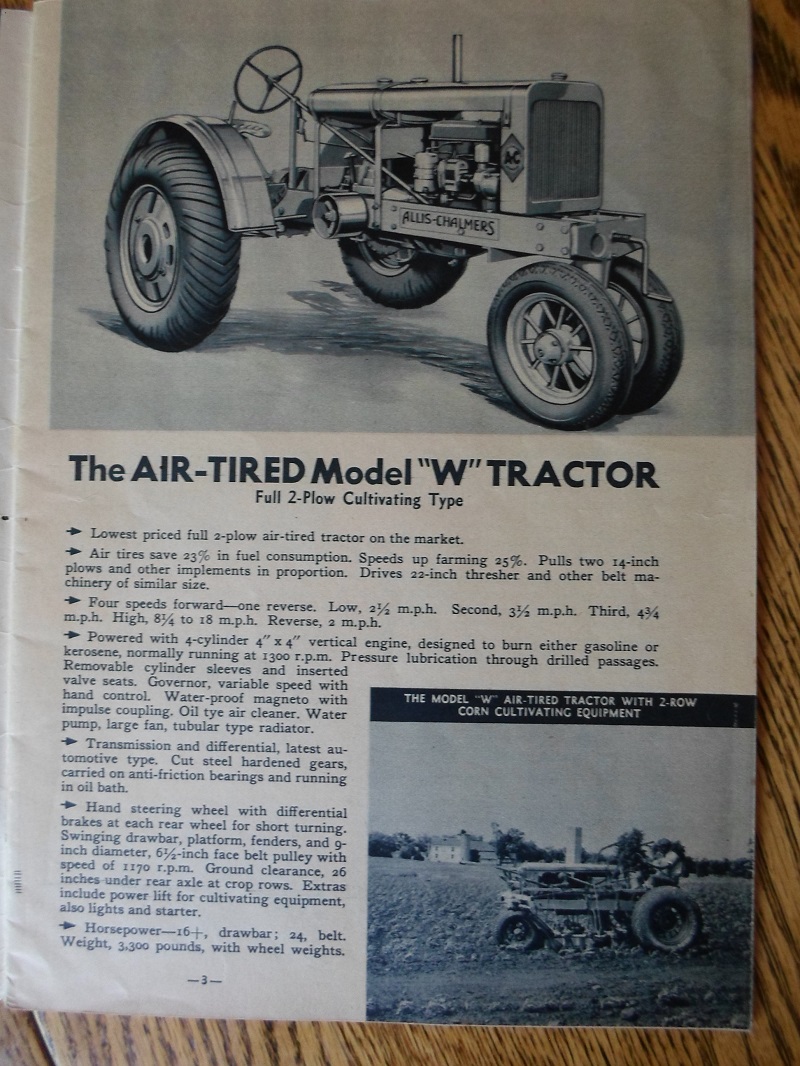

Bill has it right. In Terry Dean's Data Book "The WC was advertised as the Model W All-Crop untill the first part of 1934". Photos are from the 1934 Year Book.
|
|
34 WC #477, 38 B #1935, 1-116 on steel, #8 7ft dbl action disc, #9 5ft dbl action disc, 295 Chainsaw
|
|
steve(ill)
Orange Level Access
Joined: 11 Sep 2009
Location: illinois
Points: 85458
|
Post Options
Thanks(0)
Quote Reply
Posted: 14 May 2017 at 4:28pm |
|
WELL.......... ya learn something new every day !
|
|
Like them all, but love the "B"s.
|
|
Randy MN
Bronze Level
Joined: 03 Dec 2015
Location: Blaine, MN
Points: 144
|
Post Options
Thanks(0)
Quote Reply
Posted: 14 May 2017 at 4:41pm |
|
|
|
34 WC #477, 38 B #1935, 1-116 on steel, #8 7ft dbl action disc, #9 5ft dbl action disc, 295 Chainsaw
|
|
Dean(IA)
Silver Level
Joined: 12 Sep 2009
Location: NE Iowa
Points: 430
|
Post Options
Thanks(0)
Quote Reply
Posted: 14 May 2017 at 5:28pm |
|

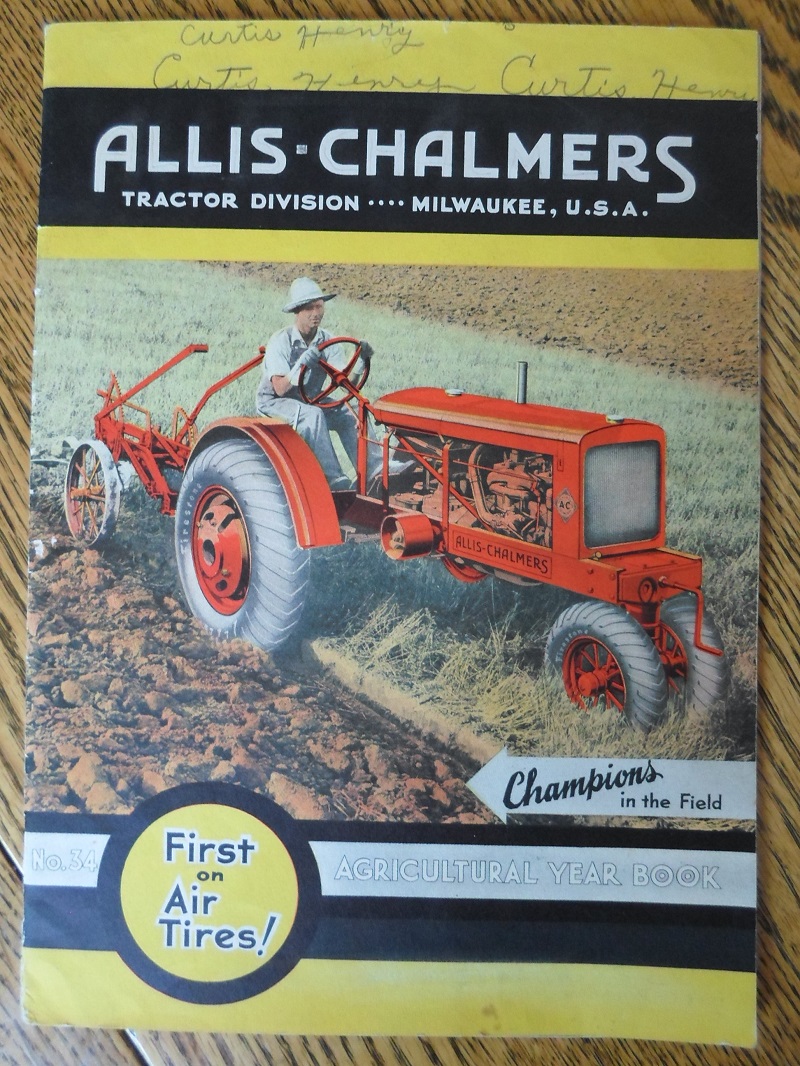

Thank you to all of you who have helped with this request. I have what appears to
be the front cover of this brochure which I am trying to post. When I get all of the pages restored I will post them for your interest or use. This rare piece of
A-C literature will be of interest to many of our Allis-Chalmers collector friends.
Again, thanks to all
Dean(IA)
|
|
jpessek
Silver Level
Joined: 12 Sep 2009
Location: Minnesota
Points: 223
|
Post Options
Thanks(0)
Quote Reply
Posted: 14 May 2017 at 6:35pm |
|
When did they quit putting the diamond on the sides of the radiator? I have a 34 radiator with original paint and I can't see any remnants of the decal. I see the cover shows the waukesha engine and the rest of the pages are the a-c engine
Edited by jpessek - 14 May 2017 at 6:40pm
|
|
www.allischalmersarchive.com
Your Source Of Free Vintage Allis Chalmers Brochures Available For Downloading
|
|
Gary(WI)
Orange Level
Joined: 27 Nov 2009
Location: WI
Points: 1003
|
Post Options
Thanks(0)
Quote Reply
Posted: 14 May 2017 at 8:22pm |
|

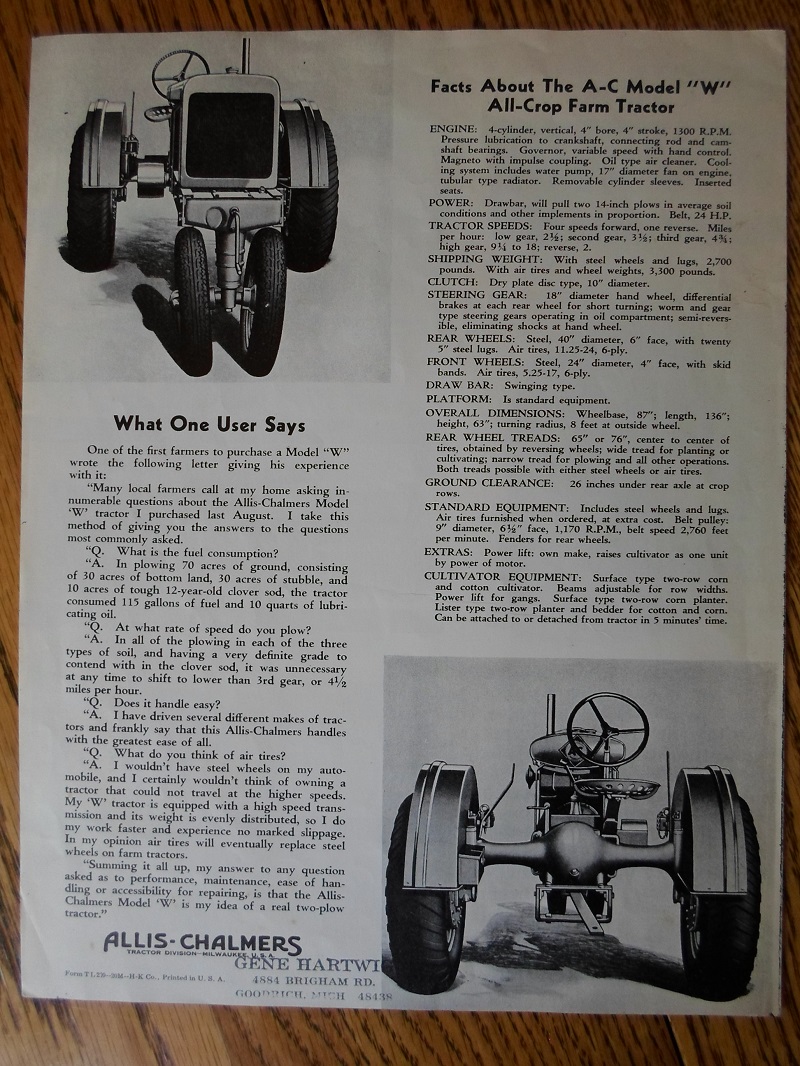

If you look at that last picture of the rear end. That tractor has the same rear end as a Waukesha wc .There are no flat spots on the rear end for the cultivator brackets to bolt to
I have only seen 3 tractors that are like that. The cultivator brackets on Waukesha wc's are also the brake cover.
|
|
Gary(WI)
Orange Level
Joined: 27 Nov 2009
Location: WI
Points: 1003
|
Post Options
Thanks(0)
Quote Reply
Posted: 14 May 2017 at 8:24pm |
|
The other thing to notice about that picture is there is no starting tank in the picture. If you look close there is a 3rd cap just In front of the fuel tank.
|
|
45 turboa-
Orange Level
Joined: 04 Feb 2012
Location: coral city wi
Points: 441
|
Post Options
Thanks(0)
Quote Reply
Posted: 14 May 2017 at 8:59pm |
|
I noticed that the tractor speeds shows 9 1/4 to 18 mph someone must of been using a govenor string !
|
|
turbocharged
|
|
Dean(IA)
Silver Level
Joined: 12 Sep 2009
Location: NE Iowa
Points: 430
|
Post Options
Thanks(0)
Quote Reply
Posted: 14 May 2017 at 9:18pm |

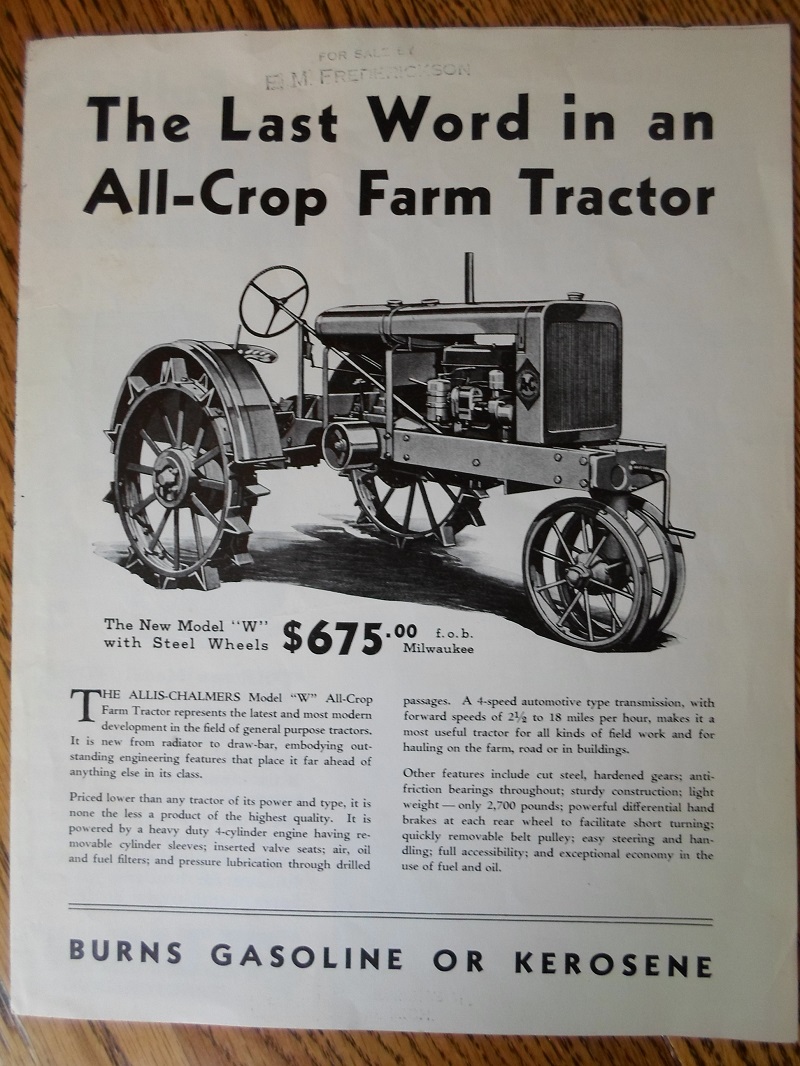

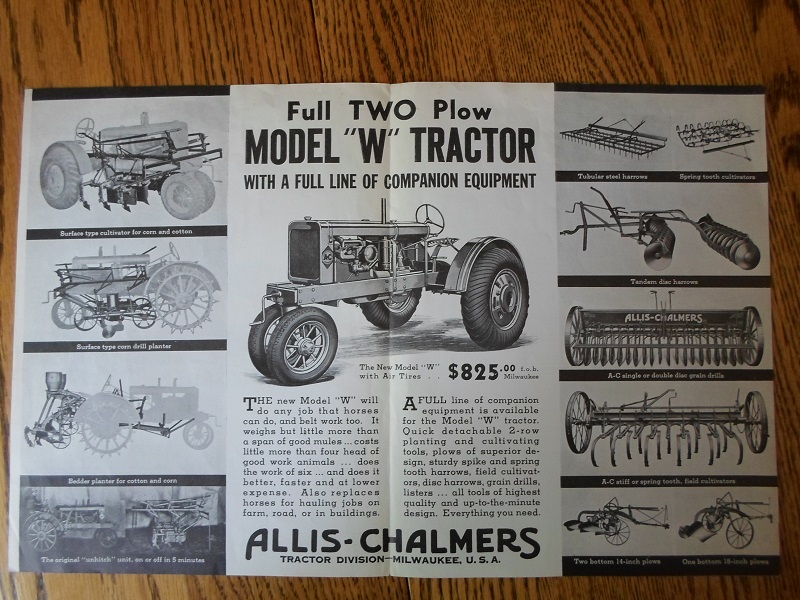

Here is the ad which I had found previously on ebay. The original ad which I copied had such a poor image of the tractor on rubber, so I had to use the one with steel wheels changed to rubber tires. The picture in the original ad actually was a 3/4 right front view.
|
|
Randy MN
Bronze Level
Joined: 03 Dec 2015
Location: Blaine, MN
Points: 144
|
Post Options
Thanks(0)
Quote Reply
Posted: 14 May 2017 at 10:30pm |

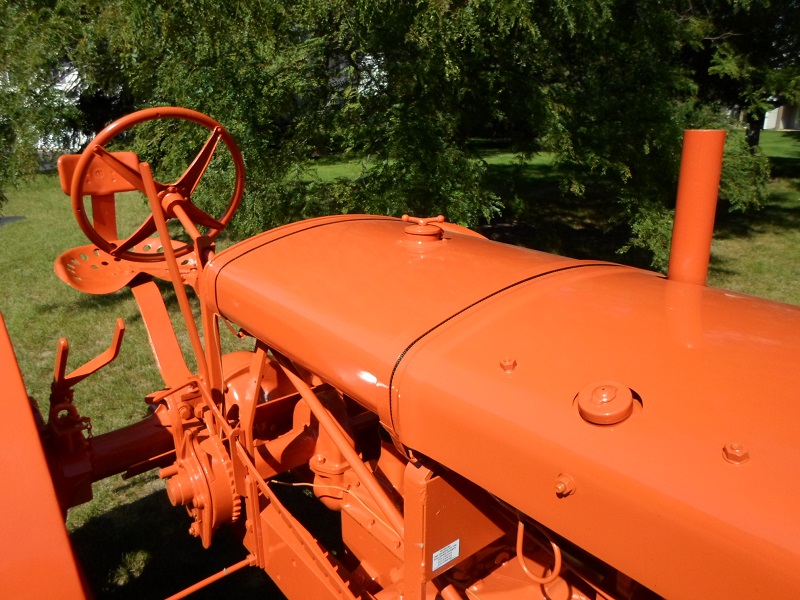

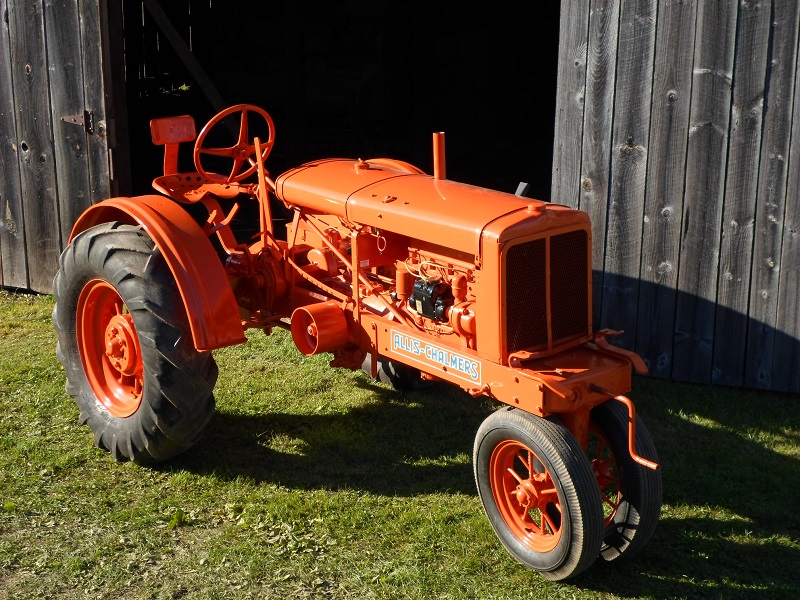

The drawings on the brochures did not always depict the actual tractors very well. The 34 WC's never had the AC diamond on the sides of the radiator. The starter tank was on the back right up to ser. # 546 with a 2 inlet fuel filter and the hinged gas cap was used up to ser.# 510. There are a number of other parts unique to the 34 also. Here is a picture of our 34.
|
|
34 WC #477, 38 B #1935, 1-116 on steel, #8 7ft dbl action disc, #9 5ft dbl action disc, 295 Chainsaw
|
|
Leesok
Orange Level Access
Joined: 11 Sep 2009
Location: OK
Points: 516
|
Post Options
Thanks(0)
Quote Reply
Posted: 15 May 2017 at 12:34am |
|
Is the drawing of the "W" with the 201 1 of 3, made in 33?
|
|
Gary(WI)
Orange Level
Joined: 27 Nov 2009
Location: WI
Points: 1003
|
Post Options
Thanks(0)
Quote Reply
Posted: 15 May 2017 at 6:44am |
|
I have seen one with a 201 with the Waukesha style rear end
Edited by Gary(WI) - 15 May 2017 at 6:44am
|
|
Grant Forsythe
Bronze Level
Joined: 02 Jan 2021
Location: 52745
Points: 97
|
Post Options
Thanks(0)
Quote Reply
Posted: 21 Feb 2021 at 7:34pm |
|
Where could I purchase the 33 brochure in color? Serious buyer. Thanks.
|
|
Bill Long
Orange Level
Joined: 12 Sep 2009
Location: Bel Air, MD
Points: 4556
|
Post Options
Thanks(0)
Quote Reply
Posted: 22 Feb 2021 at 8:40pm |
Thank you very much. Brings back some very old memories Good Luck! Bill Long
|
|
Scott B
Orange Level
Joined: 14 Sep 2013
Location: Kansas City
Points: 1047
|
Post Options
Thanks(0)
Quote Reply
Posted: 22 Feb 2021 at 10:01pm |
|
|
|
D17 Series 1
Allis B- 1939
Allis B- 1945
|
|
Bob Thompson
Bronze Level
Joined: 05 Oct 2009
Location: Oakfield, NY
Points: 119
|
Post Options
Thanks(0)
Quote Reply
Posted: 27 Feb 2021 at 7:43am |
|
I was reading the advertising literature and all the copies say the tractor will do 18mph in 4th gear. No way!!!! Maybe rolling down a steep hill in neutral!!!! If you have to stop hold the steering wheel with your knees because both hands will be on the brakes!!!!!
|
|
JohnColo
Orange Level
Joined: 03 Apr 2020
Location: Niwot, CO
Points: 1263
|
Post Options
Thanks(0)
Quote Reply
Posted: 27 Feb 2021 at 12:54pm |
Scott, that was for a new one, used prices are different!
|
|
Randy MN
Bronze Level
Joined: 03 Dec 2015
Location: Blaine, MN
Points: 144
|
Post Options
Thanks(0)
Quote Reply
Posted: 27 Feb 2021 at 9:29pm |
Thanks for the kind words Scott. So, I guess I could honor that $675.....if you add a 1 and 2 in front of that!
|
|
