 Topic: Allis g narrow rear end
Posted: 02 Jan 2020 at 6:46pm |
|
I bought a partial g last weekend. It has a narrow rear end. Does anyone know if the g came from the factory with a narrow rear end? Or was this a mod done later?
|
 |
|
Sponsored Links
|
|
|
JoeM(GA)
Orange Level
Joined: 12 Sep 2009
Location: Cumming,GA
Points: 4817
|
Post Options
Thanks(0)
Quote Reply
Posted: 02 Jan 2020 at 7:45pm |
G's only came one way, ones that were narrowed or widened were done afterwards
pictures??
|
|
Allis Express North Georgia
41 WC,48 UC Cane,7-G's,
Ford 345C TLB
|
|
Gerald J.
Orange Level
Joined: 12 Sep 2009
Location: Hamilton Co, IA
Points: 5636
|
Post Options
Thanks(0)
Quote Reply
Posted: 02 Jan 2020 at 9:44pm |
|
|
|
DiyDave
Orange Level Access
Joined: 11 Sep 2009
Location: Gambrills, MD
Points: 54095
|
Post Options
Thanks(0)
Quote Reply
Posted: 03 Jan 2020 at 4:50am |
G's were one of the most modified tractors, ever. I read a quote, somewhere, that they (the modifiers) would either make them 3 rows wide, or so narrow, that the tires would fill your pockets with dirt...
|
|
Source: Babylon Bee. Sponsored by BRAWNDO, its got what you need!
|
|
lbr
Bronze Level
Joined: 14 Oct 2009
Location: Indiana
Points: 48
|
Post Options
Thanks(0)
Quote Reply
Posted: 03 Jan 2020 at 5:03am |
|
The G's were narrowed up around the midwest to sow wheat down a wide row of corn. My father talked a lot about this when they got away from horses they narrowed up there G to run down the wide row of corn sowing wheat with a single row drill. He also said it wasn't a fun job getting hit by the corn ears and leaves.
|
|
Stookless
Bronze Level
Joined: 11 Jan 2019
Location: 46759
Points: 98
|
Post Options
Thanks(0)
Quote Reply
Posted: 03 Jan 2020 at 11:28am |
|

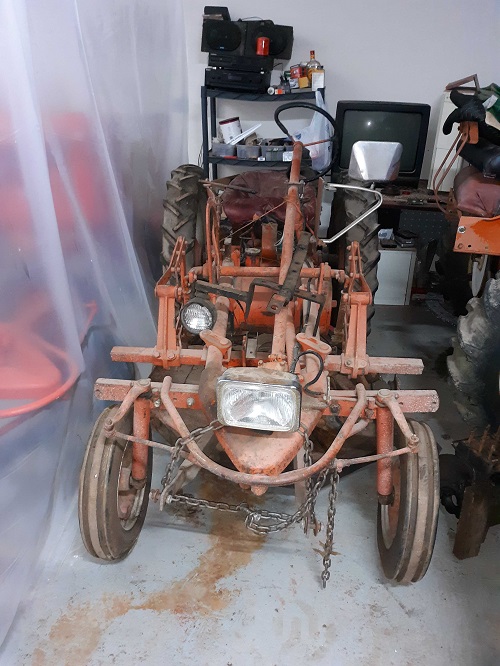

I will get a picture of it. I would really like to change it back to original. Would anyone be willing to trade axles or rolling chassis with me? Iij want to mow with it and I'm worried about stability on hilly ground.
|
|
Dick L
Orange Level
Joined: 12 Sep 2009
Location: Edon Ohio
Points: 5087
|
Post Options
Thanks(0)
Quote Reply
Posted: 03 Jan 2020 at 1:21pm |
|
The G did have two different length axle housings from the factory. The shorter version had a much lower amount manufactured. Still quite a few out there.
|
|
Stookless
Bronze Level
Joined: 11 Jan 2019
Location: 46759
Points: 98
|
Post Options
Thanks(0)
Quote Reply
Posted: 03 Jan 2020 at 5:28pm |
|
|
|
Dick L
Orange Level
Joined: 12 Sep 2009
Location: Edon Ohio
Points: 5087
|
Post Options
Thanks(0)
Quote Reply
Posted: 04 Jan 2020 at 6:28am |

Edited by Dick L - 04 Jan 2020 at 6:36am
|
|
Stookless
Bronze Level
Joined: 11 Jan 2019
Location: 46759
Points: 98
|
Post Options
Thanks(0)
Quote Reply
Posted: 04 Jan 2020 at 7:30am |
|

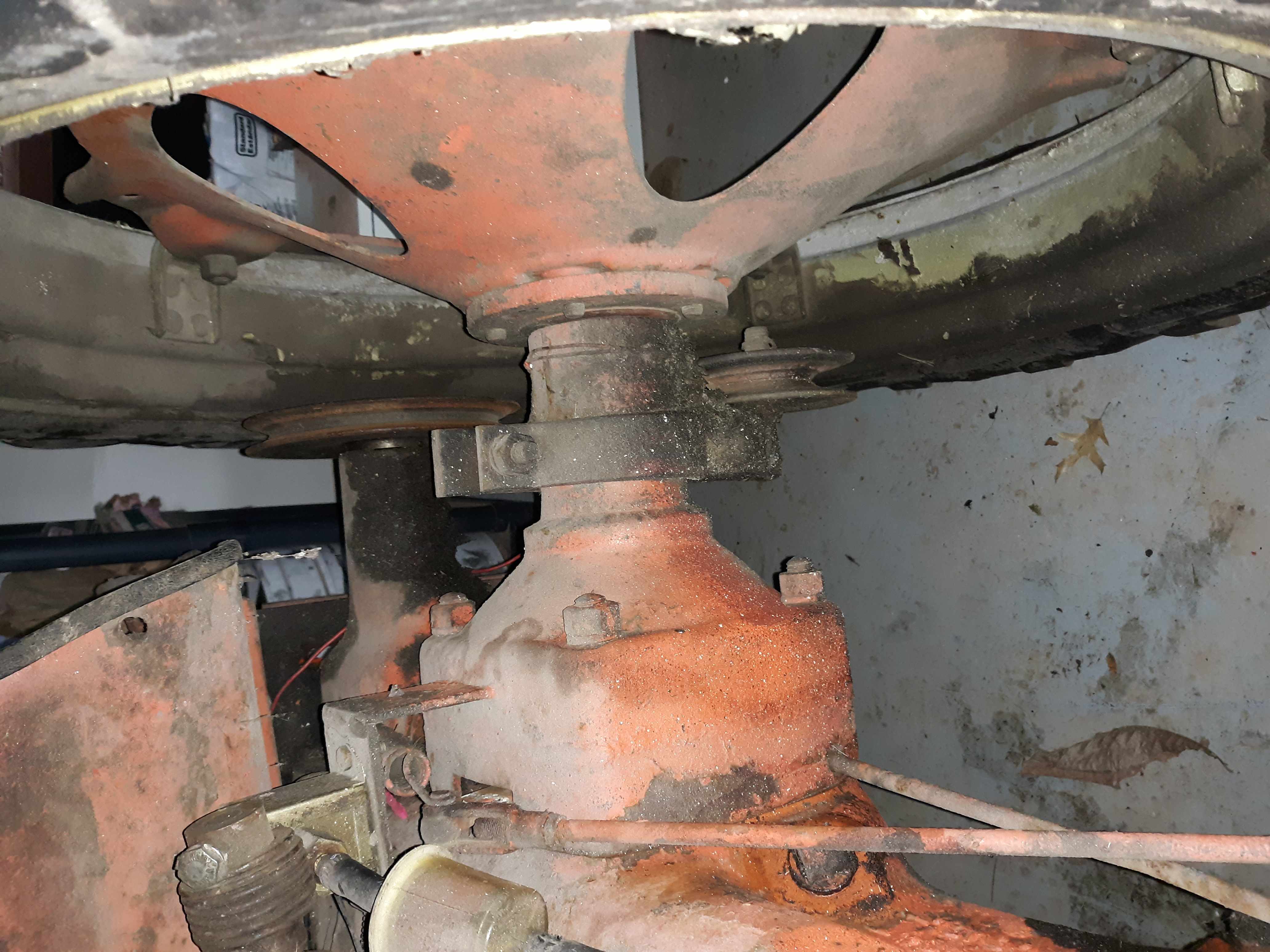

That appears to be a standard rear end. I have a 2nd g like that. I have been tracking down the parts I need. That's no easy task.
|
|
Dick L
Orange Level
Joined: 12 Sep 2009
Location: Edon Ohio
Points: 5087
|
Post Options
Thanks(0)
Quote Reply
Posted: 04 Jan 2020 at 10:27am |
|

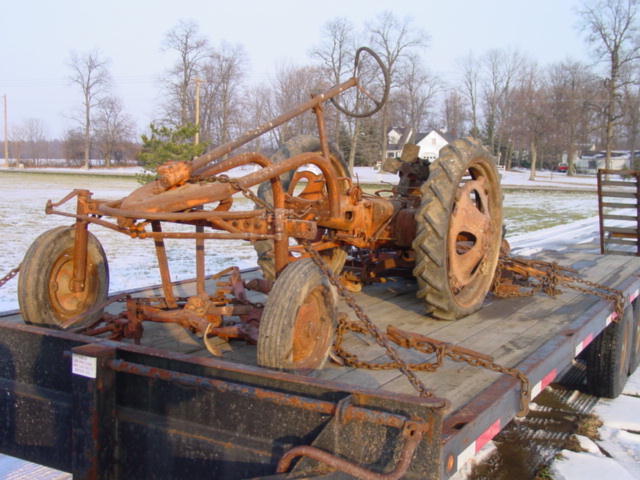

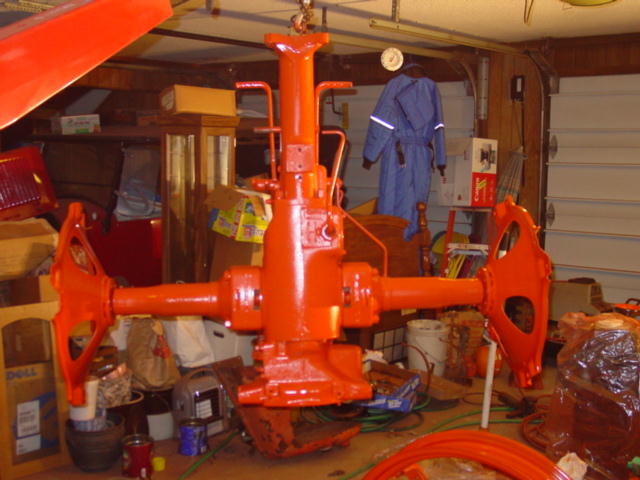

I put the pictures on so you could see the differences in the length of your shorter axle housings and my longer ones. I didn't know that you had one to compare yourself. Yours are like all the short factory axle housing I have seen.
|
|
jaybmiller
Orange Level Access
Joined: 12 Sep 2009
Location: Greensville,Ont
Points: 24669
|
Post Options
Thanks(0)
Quote Reply
Posted: 04 Jan 2020 at 10:28am |
|
OK, I have to ask, just how narrow IS a narrow G ? Stock ones give 36" track....
|
|
3 D-14s,A-C forklift, B-112
Kubota BX23S lil' TOOT( The Other Orange Tractor)
Never burn your bridges, unless you can walk on water
|
|
Dick L
Orange Level
Joined: 12 Sep 2009
Location: Edon Ohio
Points: 5087
|
Post Options
Thanks(0)
Quote Reply
Posted: 04 Jan 2020 at 10:32am |
|
I have one tore down that I will never get at making whole again that I would take offers on.
|
|
Herb(GA)
Orange Level Access
Joined: 15 Sep 2009
Location: United States
Points: 1039
|
Post Options
Thanks(0)
Quote Reply
Posted: 04 Jan 2020 at 11:02am |
|
I can relate to lbr'(Indiana) memory as we had two narrow, wheelless, walk behind, drills for sewing wheat between rows of corn. At that time most corn rows in central KS were 42". They were stored upstairs in our grainery; any use was before 1938. At a GOO in Lagrange, IN decades ago an enthusiast from southwest IN told me of narrowed Gs in his area; three small AC dealers had gone together and had a welder-machinist modify an estimated three dozen Gs primarily for this use. Herb(GA)
|
|
Stookless
Bronze Level
Joined: 11 Jan 2019
Location: 46759
Points: 98
|
Post Options
Thanks(0)
Quote Reply
Posted: 04 Jan 2020 at 11:25am |
|
Do you have any pics of the g? Is it complete? How much would you want for it?
|
|
Eldon (WA)
Orange Level
Joined: 11 Sep 2009
Location: Spokane, WA
Points: 7765
|
Post Options
Thanks(0)
Quote Reply
Posted: 04 Jan 2020 at 7:59pm |
|
One of my G's is narrow, tires barely hit the fenders.
|
|
ALLIS EXPRESS!
This year:
|
|
Richardmo
Orange Level Access
Joined: 12 Sep 2009
Location: Rolla mo.
Points: 1746
|
Post Options
Thanks(0)
Quote Reply
Posted: 04 Jan 2020 at 8:16pm |
|
I have one of the narrow up G also
|
|
Stookless
Bronze Level
Joined: 11 Jan 2019
Location: 46759
Points: 98
|
Post Options
Thanks(0)
Quote Reply
Posted: 05 Jan 2020 at 11:23am |
|
My narrow g measures about 33 inches hub to hub. My other g measures 48 inches hub hub to hub.
|
|
jaybmiller
Orange Level Access
Joined: 12 Sep 2009
Location: Greensville,Ont
Points: 24669
|
Post Options
Thanks(0)
Quote Reply
Posted: 05 Jan 2020 at 11:58am |
hmm 33", what's the 'track' ( center of tire tread to center of other tire tread' ) ?
|
|
3 D-14s,A-C forklift, B-112
Kubota BX23S lil' TOOT( The Other Orange Tractor)
Never burn your bridges, unless you can walk on water
|
|
Stookless
Bronze Level
Joined: 11 Jan 2019
Location: 46759
Points: 98
|
Post Options
Thanks(0)
Quote Reply
Posted: 07 Jan 2020 at 6:52pm |
|
The g has a lot of adjustment on wheel spacing. My narrow g currently measures 38" center to center.
|
|
