allis chalmers electric forklift help
 Post Reply Post Reply
Author
Message
  Topic Search Topic Search  Topic Options Topic Options
lsczzzz View Drop Down
Bronze Level
Bronze Level
Avatar

Joined: 08 May 2014
Location: GA
Points: 2 		Post Options Post Options   Thanks (0) Thanks(0)   Quote lsczzzz Quote  Post ReplyReply Direct Link To This Post Topic: allis chalmers electric forklift help
    Posted: 08 May 2014 at 10:19am

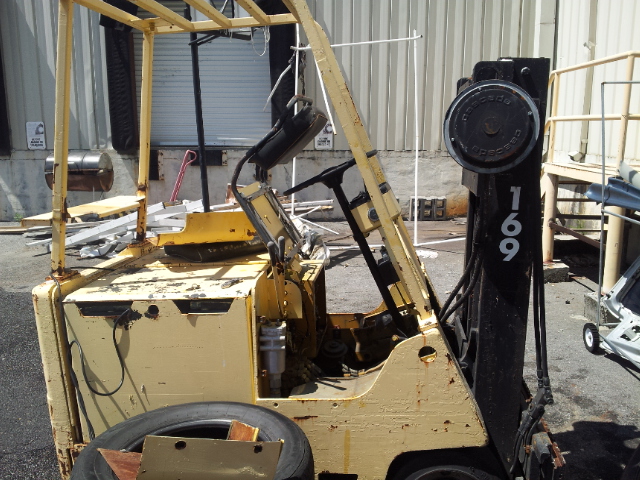

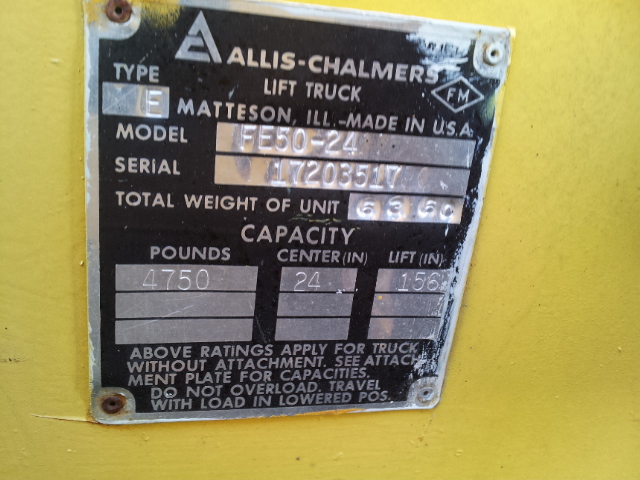

I have old allis chalmers electric forklift.
batteries are charging but, i can't seem to release the brakes.
No side brakes, i believe its auto brake when its off.
anyone know where i can release parking brake without power?
i need to move this under roof before i do anything.

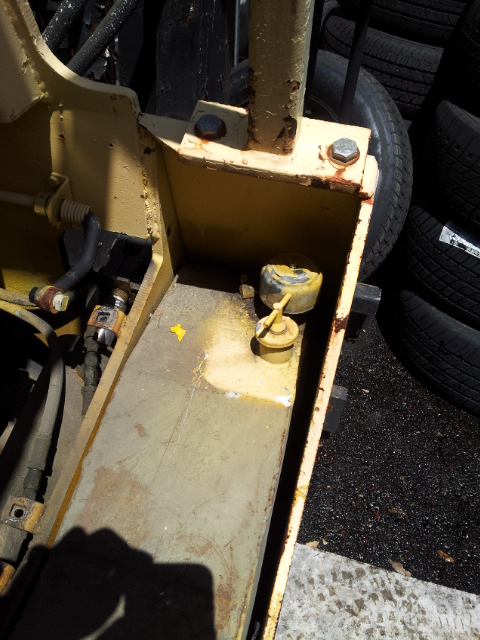

by the way, i need help finding what fuel tank that is.


Edited by lsczzzz - 08 May 2014 at 10:21am
Back to Top
Sponsored Links


Back to Top
Joe(TX) View Drop Down
Orange Level
Orange Level
Avatar

Joined: 11 Sep 2009
Location: Weatherford. TX
Points: 1682 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Joe(TX) Quote  Post ReplyReply Direct Link To This Post Posted: 08 May 2014 at 11:12am
Hydraulic Tank?
1970 190XT, 1973 200, 1962 D-19 Diesel, 1979 7010, 1957 WD45, 1950 WD, 1961 D17, Speed Patrol, D14, All crop 66 big bin, 180 diesel, 1970 170 diesel, FP80 forklift. Gleaner A
Back to Top
Mrgoodwrench View Drop Down
Orange Level
Orange Level
Avatar

Joined: 03 Apr 2011
Location: CHICORA PA
Points: 2087 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Mrgoodwrench Quote  Post ReplyReply Direct Link To This Post Posted: 08 May 2014 at 11:19am
Some had a cyl that run a park brake.   I believe it runs with the steering pump. Does the truck try to run?
There are 3 ways to do job GOOD, FAST, CHEAP. YOU MAY CHOOSE 2. If its FAST & CHEAP it won't be GOOD, if it's GOOD & CHEAP it won't be FAST, and if its GOOD & FAST it won't be CHEAP!!!!
Back to Top
den/southern illinoi View Drop Down
Orange Level
Orange Level
Avatar

Joined: 11 Sep 2009
Location: Sparta, Illinoi
Points: 2065 		Post Options Post Options   Thanks (0) Thanks(0)   Quote den/southern illinoi Quote  Post ReplyReply Direct Link To This Post Posted: 08 May 2014 at 6:29pm

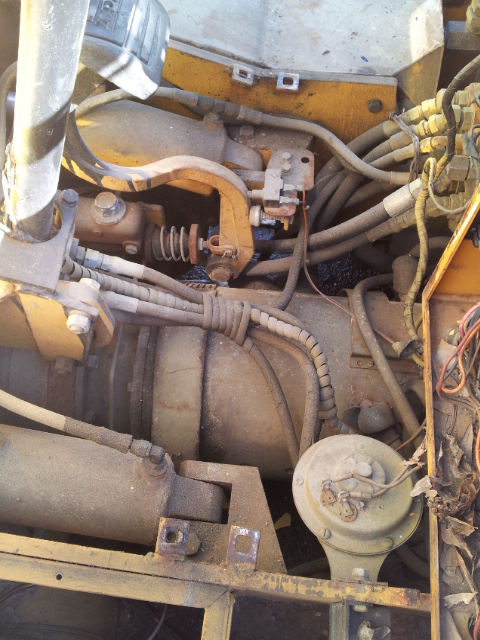

My electric forklifts have an automatic brake when you get off the seat.
The seat comes up like yours and the rod engages the brake.
The tank almost has to be hydraulic since it has a breather on it.  That's an opinion as mine are not like that.   Den

Edited by den/southern illinoi - 08 May 2014 at 6:30pm

Own 4 wheel 20, 2-5015, 5020 and associated equipment and 2 electric forklifts.
Back to Top
Mrgoodwrench View Drop Down
Orange Level
Orange Level
Avatar

Joined: 03 Apr 2011
Location: CHICORA PA
Points: 2087 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Mrgoodwrench Quote  Post ReplyReply Direct Link To This Post Posted: 08 May 2014 at 9:13pm
That is definatly the hyd tank.    If there is an additional auto. brake then it will be attached directly to the drive motor.
There are 3 ways to do job GOOD, FAST, CHEAP. YOU MAY CHOOSE 2. If its FAST & CHEAP it won't be GOOD, if it's GOOD & CHEAP it won't be FAST, and if its GOOD & FAST it won't be CHEAP!!!!
