lkennett Members Profile Send Private Message Find Members Posts Add to Buddy List Bronze Level Joined: 03 Aug 2025 Location: Canada Points: 5	Post Options Post Reply Quote lkennett Report Post Thanks(0) Quote Reply Topic: Allis Chalmers 5040 Clutch Posted: 5 hours 56 minutes ago at 2:40pm

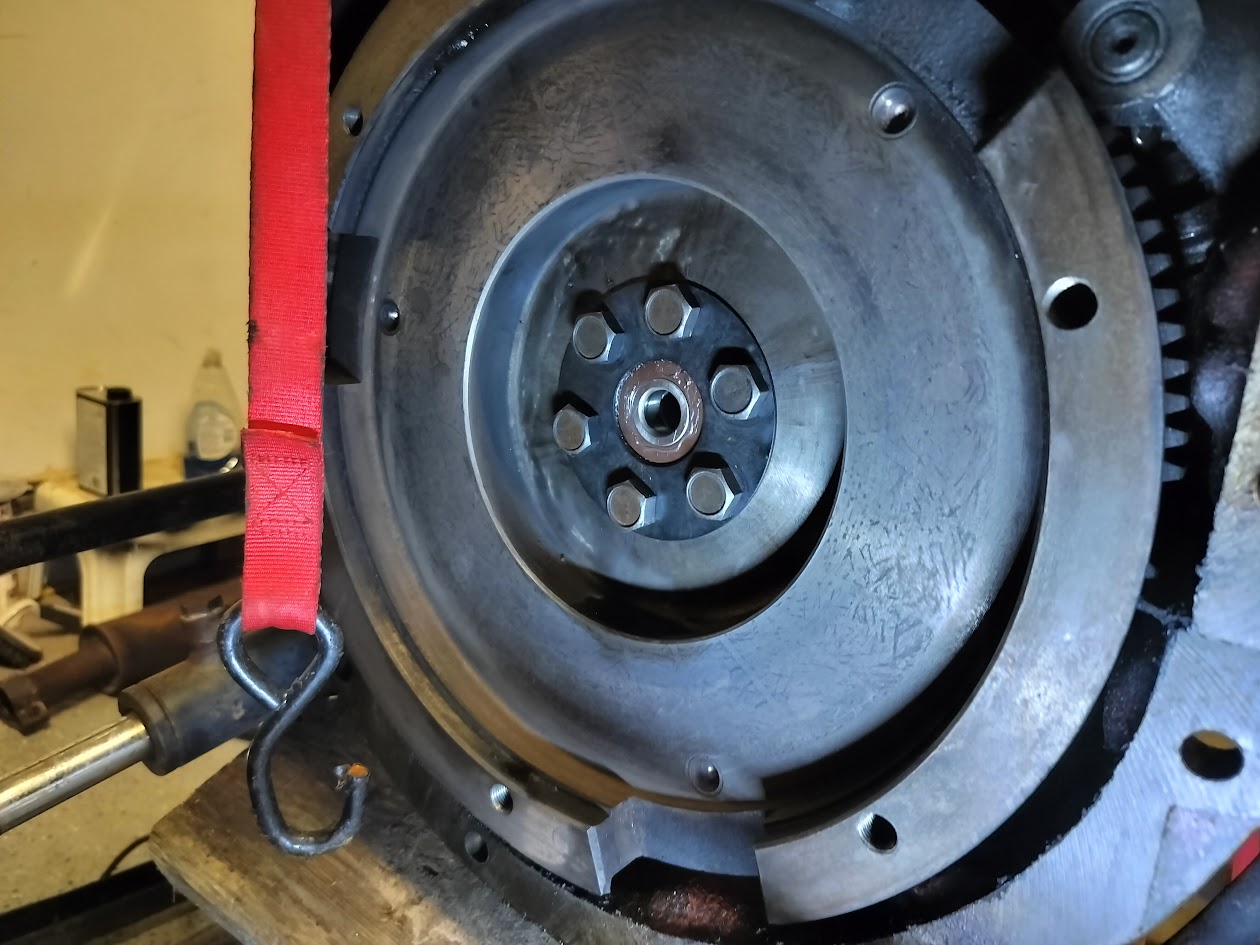

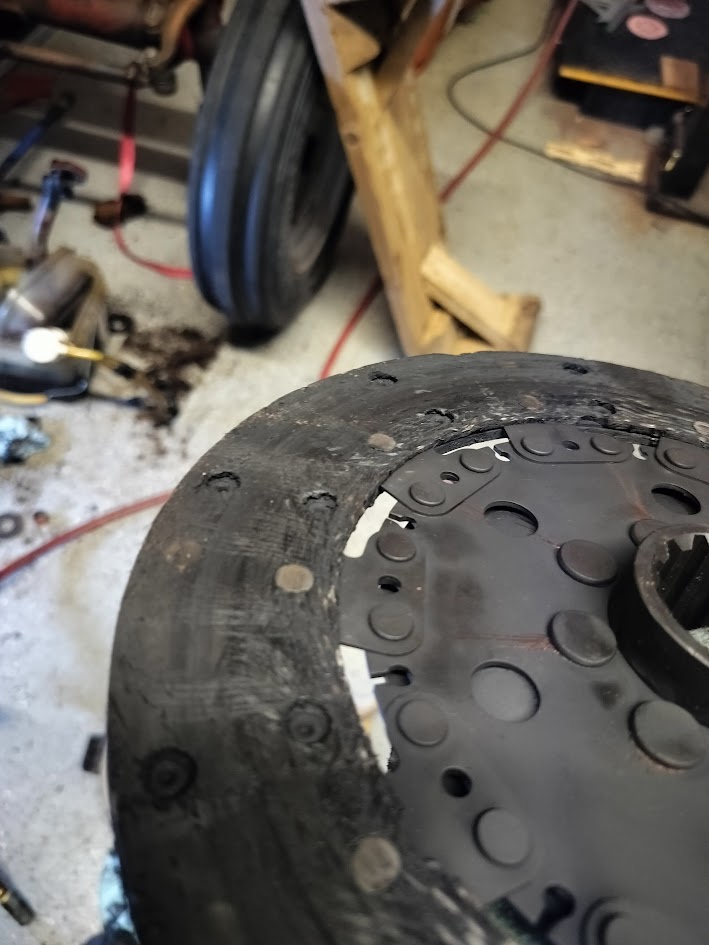

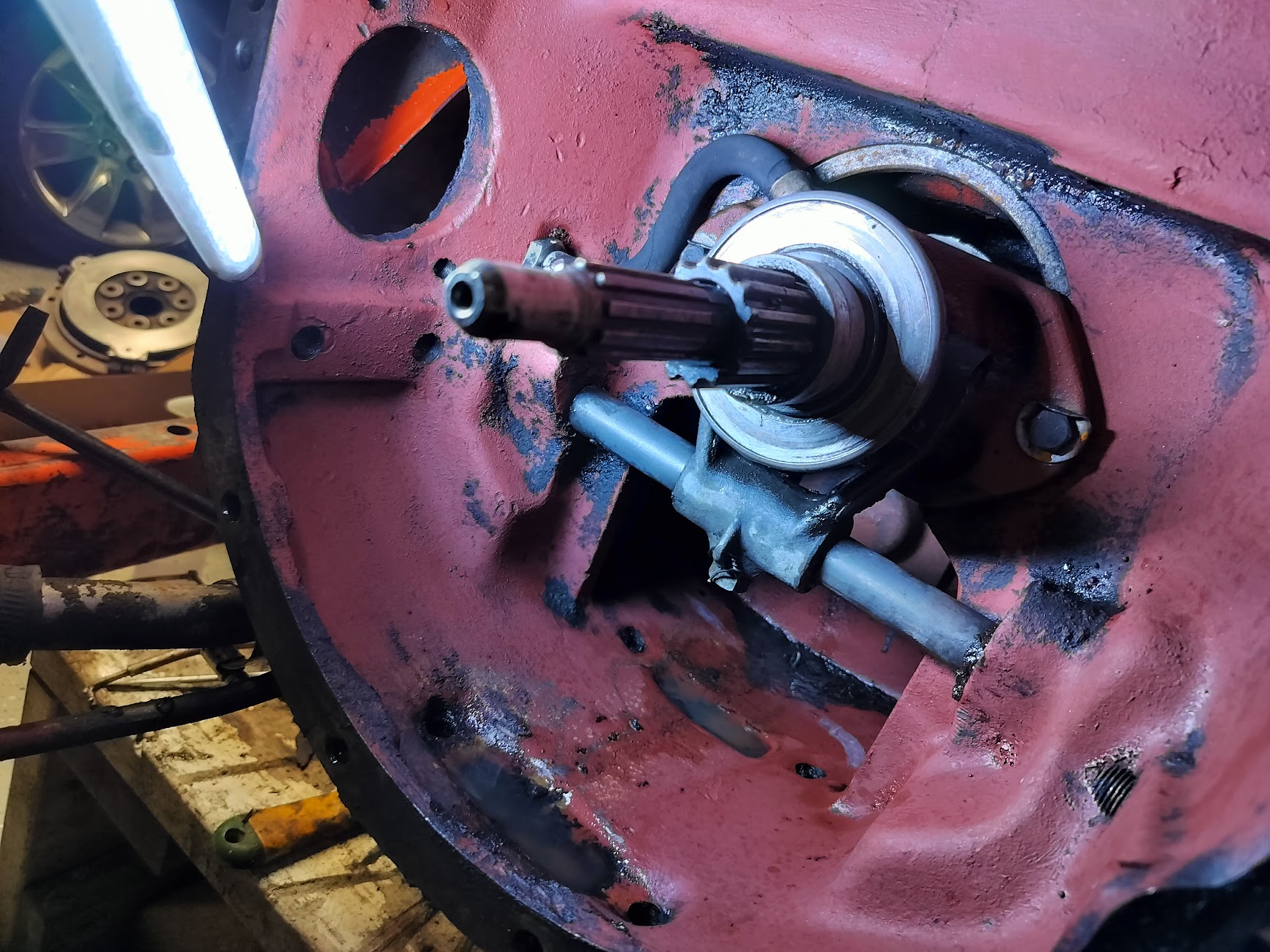

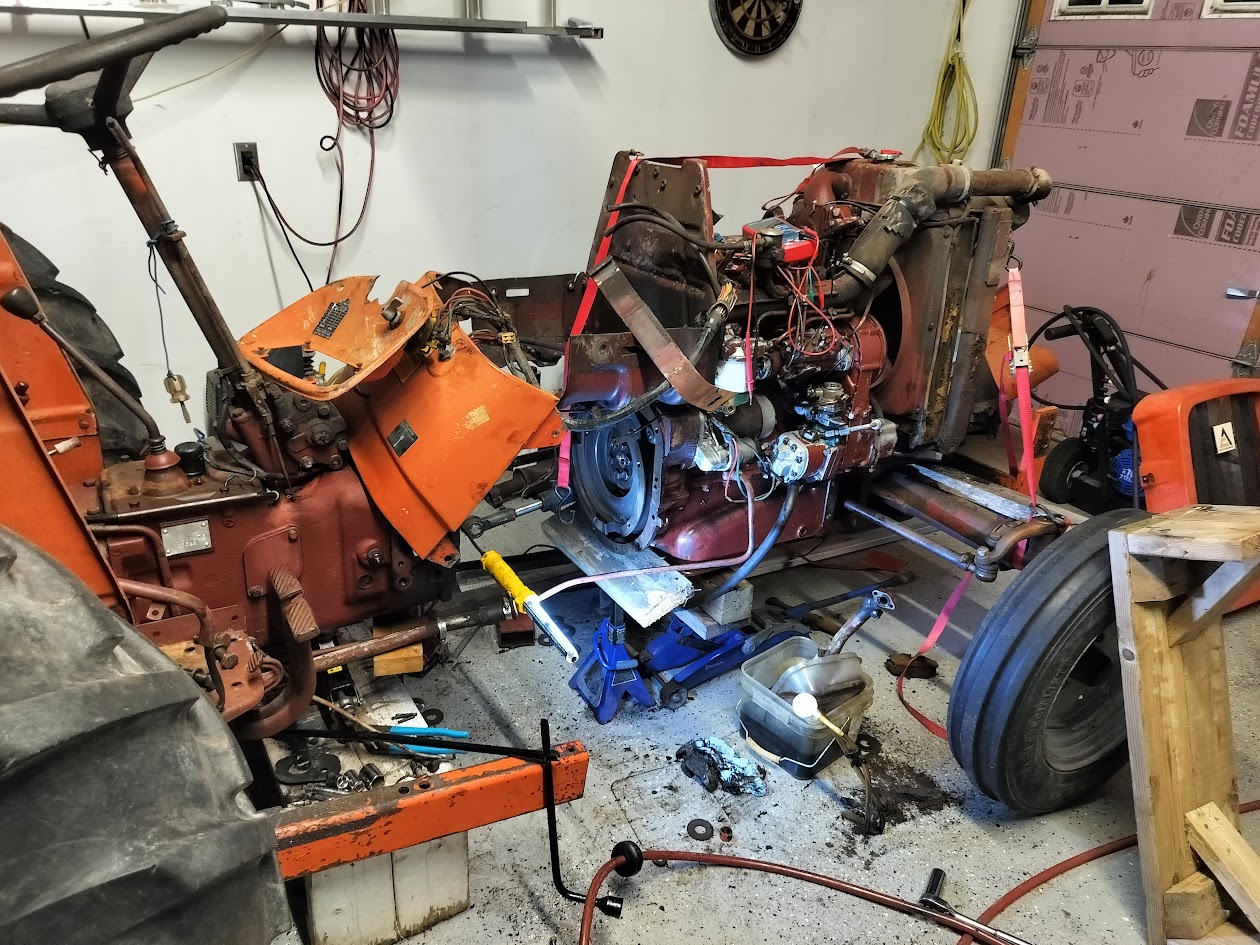

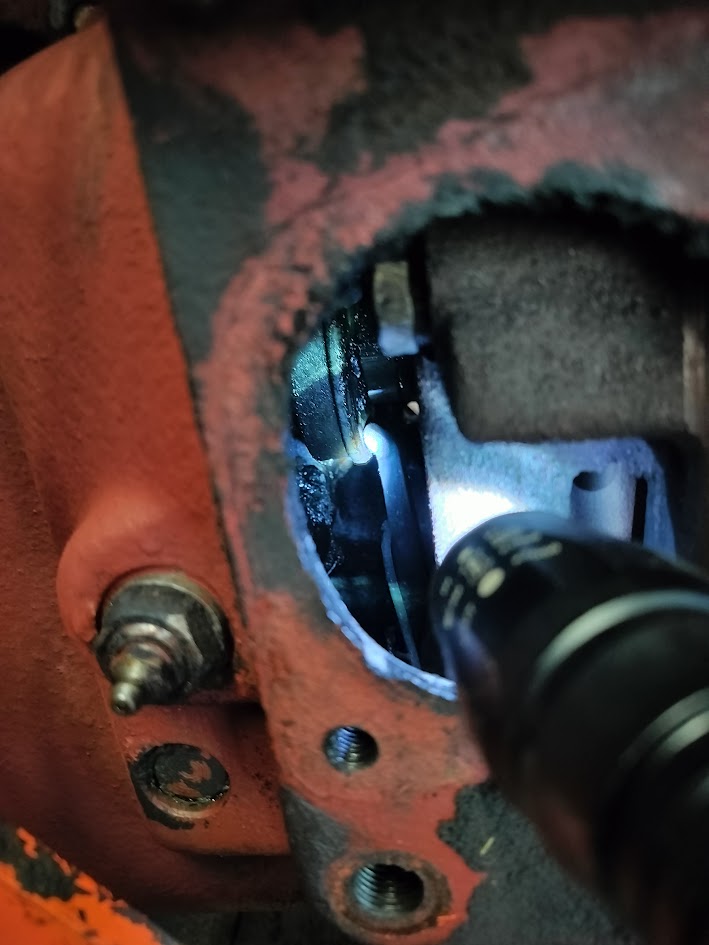

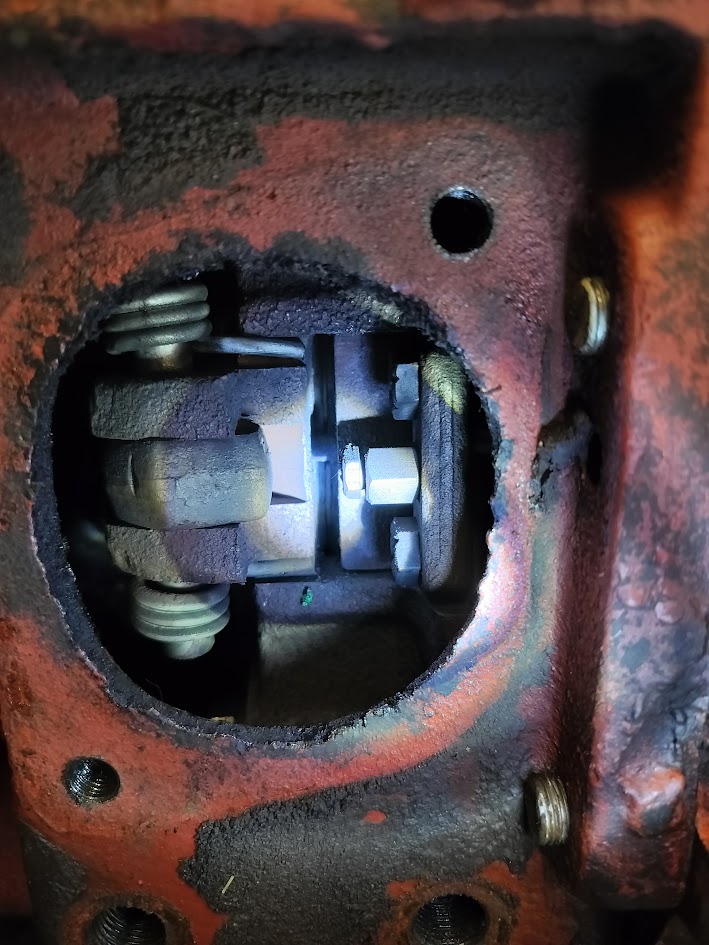

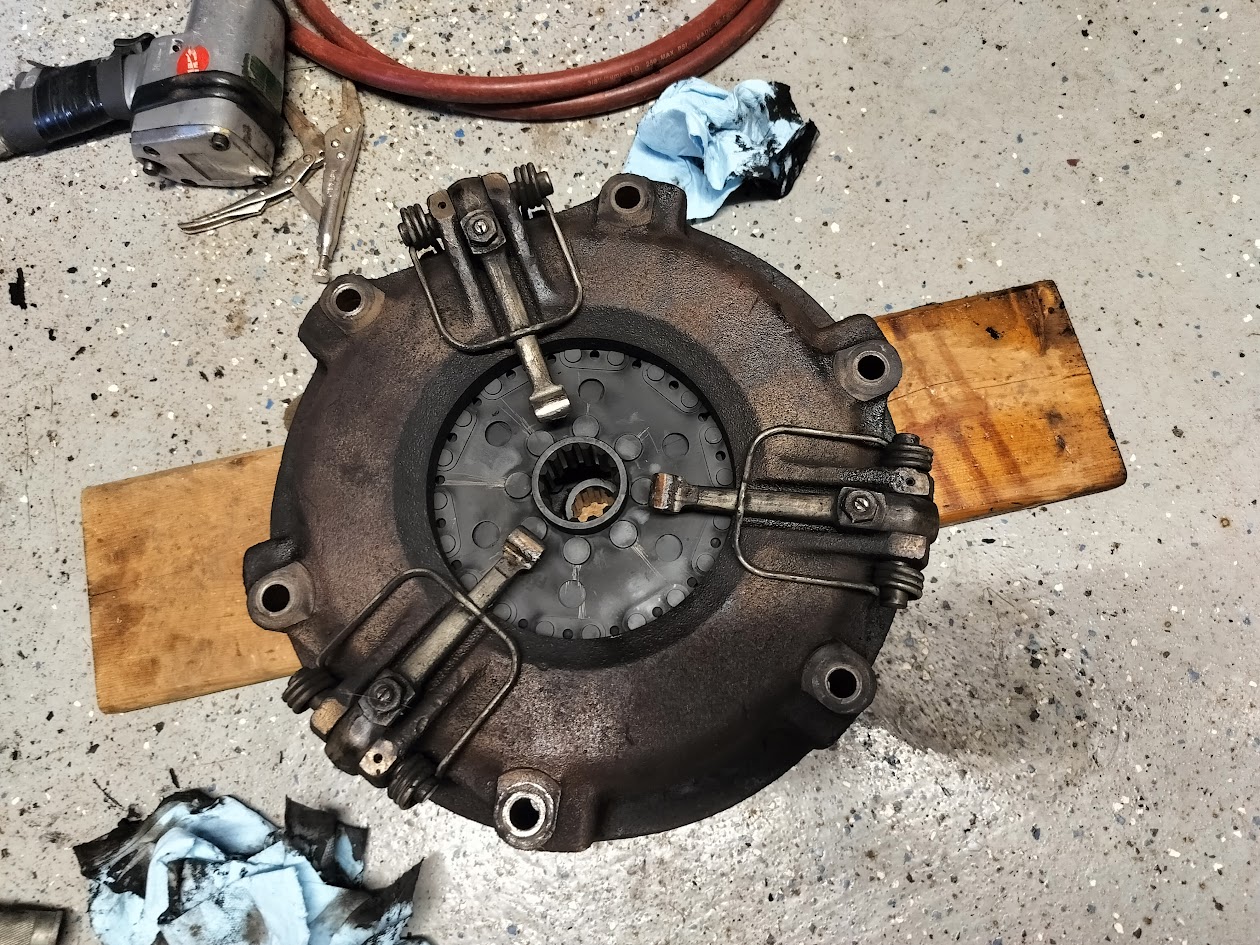

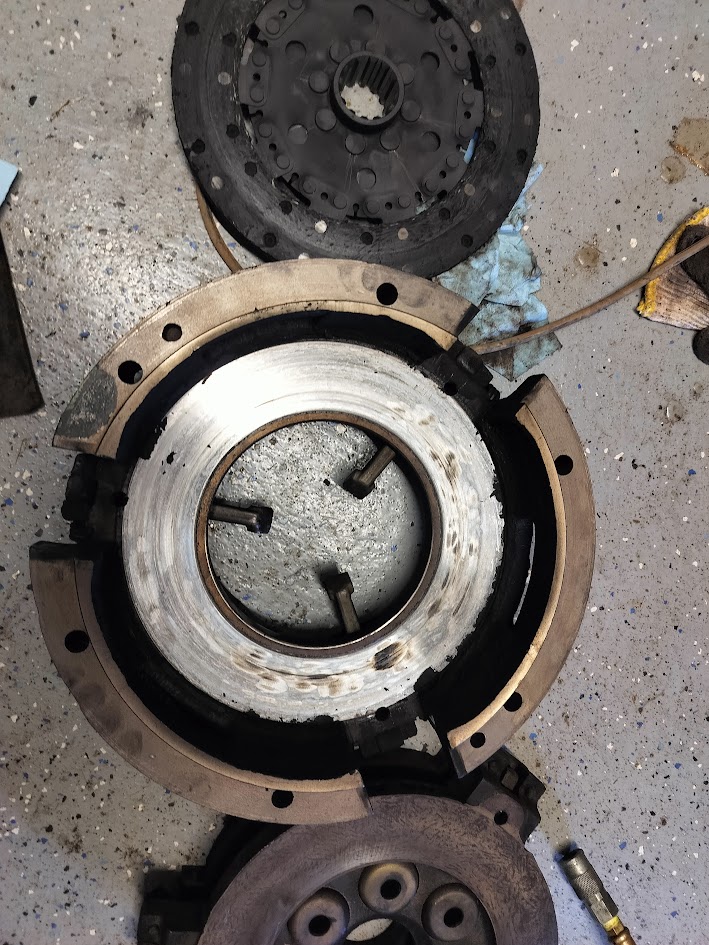

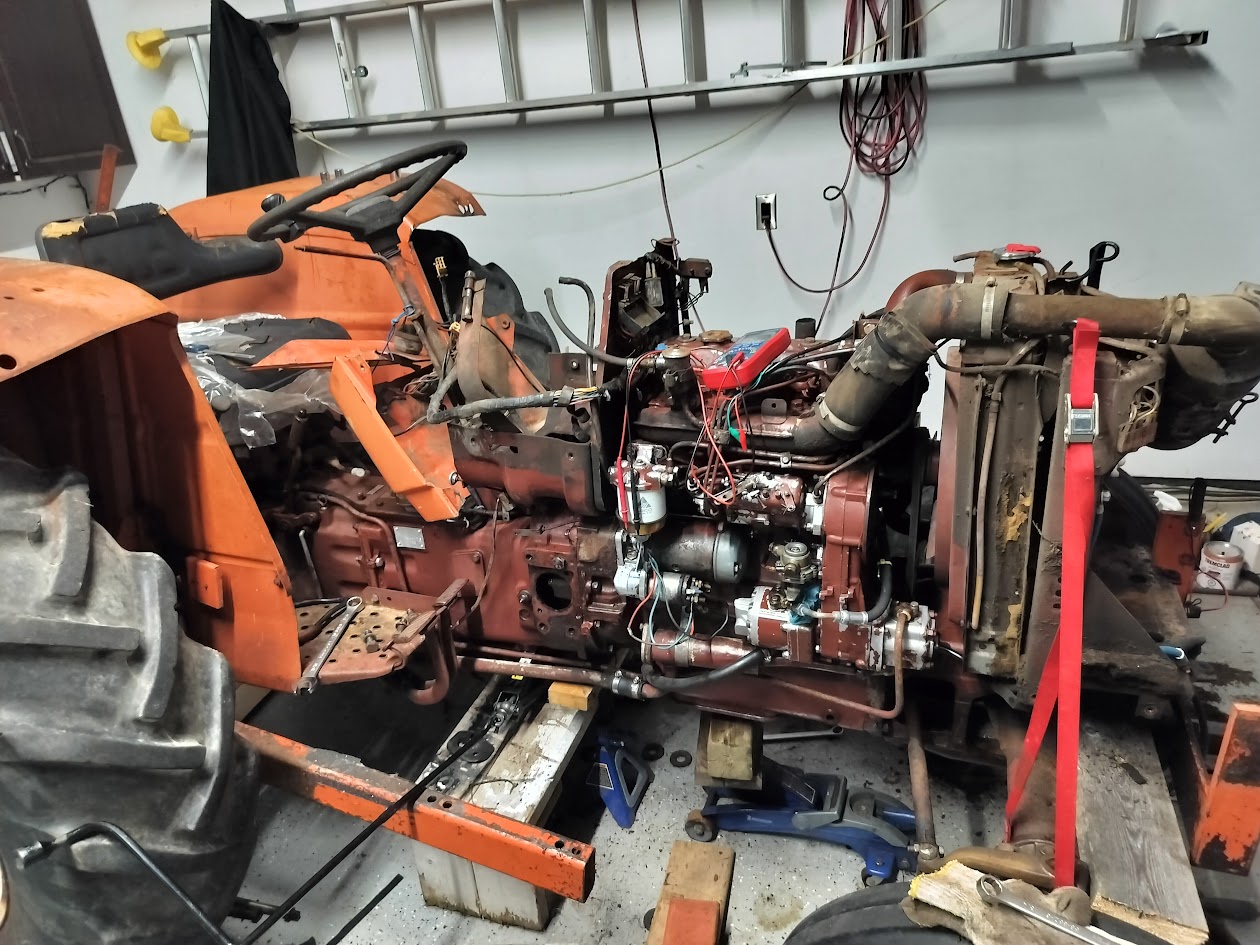

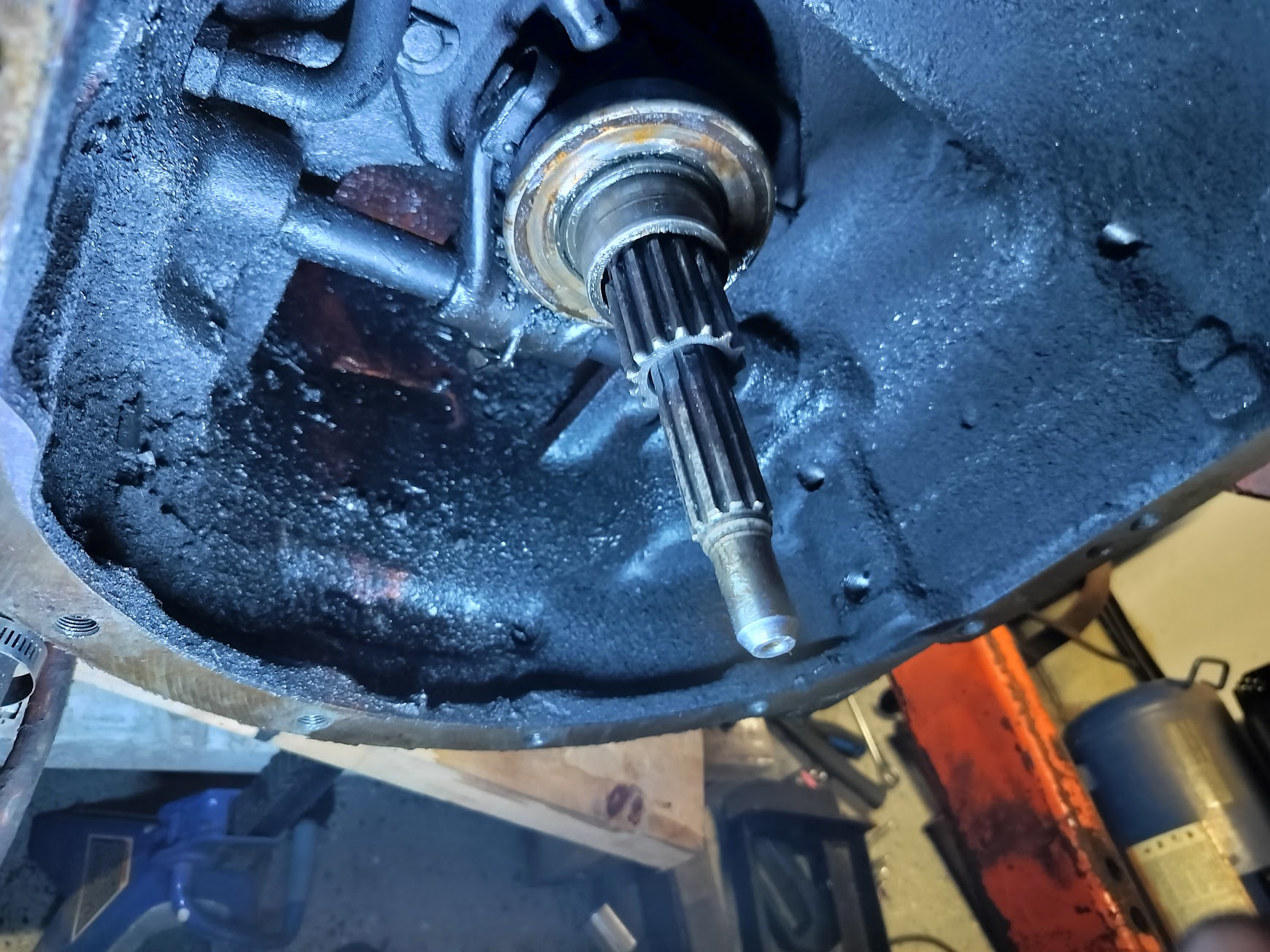

	Hi guys, I have a new to me 1976 5040. 6 speed with the dual clutch. The clutch has been slipping badly (known problem when I picked it up) I have the inspection plate removed after taking the loader frame off. Anything in high range is completely useless. When I take the inspection plate off the first thing I notice is alot of grease. Second thing is the clutch fingers are touching the throw out bearing (I think there should be a gap). Does anybody have access to the clutch specs. How to adjust? Basically pages from the service manual. I am about a day from splitting the tractor, I only have the fuel linkage and a hydraulic line to disconnect and I can start. I expect once I get it apart it probably needs a whole clutch kit and flywheel machined but I would like to verify if I knew the tolerances.

Sponsored Links

AC720Man Members Profile Send Private Message Find Members Posts Add to Buddy List Orange Level Joined: 10 Oct 2016 Location: Shenandoah, Va Points: 5227	Post Options Post Reply Quote AC720Man Report Post Thanks(0) Quote Reply Posted: 29 minutes ago at 8:07pm
	Not familiar with those but My guess is someone over greased the throwout bearing? Assuming that’s what the grease zirk is for. Hopefully Gary Burnett will see the thread, he knows these tractors well.
