Allis B Drott Universal Crane

Message Topic Search Topic Options Post Reply Create New Topic Printable Version Translate Topic

   I have a little Allis B converted by Drott to a Carry Deck Crane. The engine is mounted behind the the drive axle where the PTO would be and the transmission is mounted in front of the drive axle like a tractor. The operator sits on the left beside the transmission. It has a cherrypicker type boom by Your right elbow that rotates about 350 degrees and a winch that operates the hoist line. Has a flat deck ahead of the operator with about 12 inch diameter hard rubber wheels under front of the deck for steering.I have never seen another like it, will figure out how to post photos hopefully someone might know more information on it.
Hyperpack

Edited by Hyperpack - 05 Jan 2026 at 9:27am

	This site is not affiliated with AGCO Inc., Duluth GA., Allis-Chalmers Co., Milwaukee, WI., or any surviving or related corporate entity. All trademarks remain the property of their respective owners. All information presented herein should be considered the result of an un-moderated public forum with no responsibility for its accuracy or usability assumed by the users and sponsors of this site or any corporate entity.
	The Forum	Parts and Services	Unofficial Allis Store	Tractor Shows	Serial Numbers	History

Author	Message Topic Search Topic Options Post Reply Create New Topic Printable Version Translate Topic
Hyperpack Members Profile Send Private Message Find Members Posts Add to Buddy List Bronze Level Access Joined: 05 Apr 2013 Location: 54806 Points: 68	Post Options Post Reply Quote Hyperpack Report Post Thanks(0) Quote Reply Topic: Allis B Drott Universal Crane Posted: 05 Jan 2026 at 9:20am

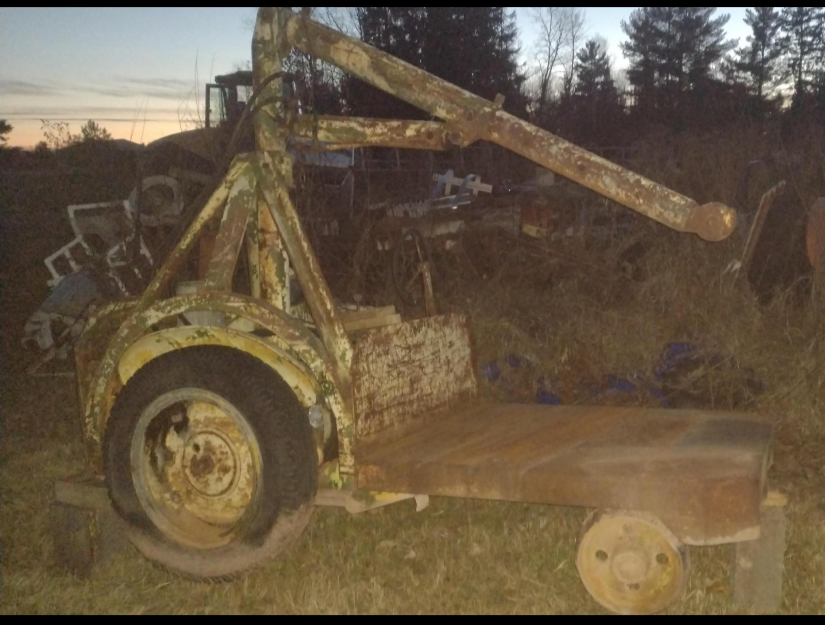

	I have a little Allis B converted by Drott to a Carry Deck Crane. The engine is mounted behind the the drive axle where the PTO would be and the transmission is mounted in front of the drive axle like a tractor. The operator sits on the left beside the transmission. It has a cherrypicker type boom by Your right elbow that rotates about 350 degrees and a winch that operates the hoist line. Has a flat deck ahead of the operator with about 12 inch diameter hard rubber wheels under front of the deck for steering. I have never seen another like it, will figure out how to post photos hopefully someone might know more information on it. Hyperpack Edited by Hyperpack - 05 Jan 2026 at 9:27am

Sponsored Links

steve(ill) Members Profile Send Private Message Find Members Posts Add to Buddy List Orange Level Access Joined: 11 Sep 2009 Location: illinois Points: 89452	Post Options Post Reply Quote steve(ill) Report Post Thanks(0) Quote Reply Posted: 05 Jan 2026 at 9:28am
	at the bottom of this page on the left side , there is a BOX that says "POST REPLY"... Click on that, then click on the GREEN TREE icon... Then on the bottom left of the pop up box, click on the "choose photo" to go get your photo.. Normally that will be on your computer desk top or photo file..... Photos should be 800 x 600 pixels or so.. Many cameras are 5000 x 3000 and over 5 MB in size and will not load on this forum.... use PAINT or other to SHRINK in size. Edited by steve(ill) - 05 Jan 2026 at 9:30am
	Like them all, but love the "B"s.

steve(ill) Members Profile Send Private Message Find Members Posts Add to Buddy List Orange Level Access Joined: 11 Sep 2009 Location: illinois Points: 89452	Post Options Post Reply Quote steve(ill) Report Post Thanks(0) Quote Reply Posted: 05 Jan 2026 at 7:58pm
	probably looks something like this....... https://www.youtube.com/watch?v=hUUUwCCKEcQ
	Like them all, but love the "B"s.
