allis 185 lift cylinders

 Post Reply Post Reply
Author
Message
WI Dave View Drop Down
Bronze Level
Bronze Level


Joined: 30 Jun 2020
Location: WI
Points: 9
Post Options Post Options   Thanks (0) Thanks(0)   Quote WI Dave Quote  Post ReplyReply Direct Link To This Post Topic: allis 185 lift cylinders
    Posted: 30 Jun 2020 at 1:32pm
Hello All.
I have an allis 185.
when I run the tractor (very little use, yard toy mostly) the lift arms raise and will not lower even with the control in lower position and me standing on the arm. Is this an issue with the controls valve body or something else?
It rose enough to blow the seals out of 1 cylinder.
Thanks all

Back to Top
Sponsored Links


Back to Top
Joe(TX) View Drop Down
Orange Level
Orange Level
Avatar

Joined: 11 Sep 2009
Location: Weatherford. TX
Points: 1250
Post Options Post Options   Thanks (0) Thanks(0)   Quote Joe(TX) Quote  Post ReplyReply Direct Link To This Post Posted: 30 Jun 2020 at 5:07pm
Check the actuator lever for the position control. It is most likely stuck on the shaft. The spring in the valve can't overcome the friction.
It's a common problem. I've had the issue on my 180 and 170.
1970 190XT, 1973 200, 1962 D-19 Diesel, 1979 7010, 1957 WD45, 1950 WD, 1961 D17, Speed Patrol, D14, All crop 66 big bin, 180 diesel, 1970 170 diesel, FP80 forklift. Gleaner A
Back to Top
DrAllis View Drop Down
Orange Level
Orange Level


Joined: 12 Sep 2009
Points: 12297
Post Options Post Options   Thanks (0) Thanks(0)   Quote DrAllis Quote  Post ReplyReply Direct Link To This Post Posted: 30 Jun 2020 at 6:55pm
Constant pumping of the Traction Booster pump will eventually cause it to fail, so be advised to get this problem figured out.
Back to Top
WI Dave View Drop Down
Bronze Level
Bronze Level


Joined: 30 Jun 2020
Location: WI
Points: 9
Post Options Post Options   Thanks (0) Thanks(0)   Quote WI Dave Quote  Post ReplyReply Direct Link To This Post Posted: 30 Jun 2020 at 7:46pm
levers seem to move ok or are you saying inside the valve body.
I have blown seals in at least 1 of the lift rams so I am not running this until figured out.
thanks for the quick replies.
Back to Top
DrAllis View Drop Down
Orange Level
Orange Level


Joined: 12 Sep 2009
Points: 12297
Post Options Post Options   Thanks (0) Thanks(0)   Quote DrAllis Quote  Post ReplyReply Direct Link To This Post Posted: 30 Jun 2020 at 8:17pm
This has been discussed dozens of times and there are good pictures of the affected area on this website. The Traction Booster plunger (external) is either stuck in or is being held in by rusted external linkage from the Traction Booster or Position control levers. Both those levers should be FORWARD.

Edited by DrAllis - 30 Jun 2020 at 8:18pm
Back to Top
DSeries4 View Drop Down
Orange Level
Orange Level
Avatar

Joined: 12 Sep 2009
Location: Ontario, Canada
Points: 5927
Post Options Post Options   Thanks (0) Thanks(0)   Quote DSeries4 Quote  Post ReplyReply Direct Link To This Post Posted: 30 Jun 2020 at 10:33pm
Originally posted by WI Dave WI Dave wrote:

levers seem to move ok or are you saying inside the valve body.
I have blown seals in at least 1 of the lift rams so I am not running this until figured out.
thanks for the quick replies.


Even though the levers move freely, it does not mean that the linkages are not rusted up - they are!  The 185 linkages under the side console has 3 pivot points.  Even if one of them are rusted up, your linkage will not work properly and put pressure on the traction booster valve.  Oil the hell out of each and every one of those pivot points (better yet, taken them apart, clean and reassemble with anti seize).  Once done, make sure the traction booster valve isn't stuck in the pushed in position.  After that, you won't have any problems.
It's not a hard fix or expensive fix, just hard to reach some of these places without taking the console apart.


'49 G, '54 WD45, '57 WD45, '58 D14, '59 D14, '61 D15D, '66 D15II, '66 D21II, '67 D17IV, '67 D17IVD, '67 190XTD, '73 620, '76 185, '77 175, '85 6080
Back to Top
WI Dave View Drop Down
Bronze Level
Bronze Level


Joined: 30 Jun 2020
Location: WI
Points: 9
Post Options Post Options   Thanks (0) Thanks(0)   Quote WI Dave Quote  Post ReplyReply Direct Link To This Post Posted: 01 Jul 2020 at 5:02am
I have to say that this is one of the most responsive forums that I am part of. Thank you all.

I have been searching here and elsewhere for more info on the valves trying to find more info than my sparse service manual.
I will disassemble and clean up all the under console linkage in the next couple days also rebuild the lift cylinders.
Any tips on where to purchase seals? I found 1 site at $43.00 per cylinder seems like alot for a seal and a wiper.
Back to Top
DMiller View Drop Down
Orange Level
Orange Level


Joined: 14 Sep 2009
Location: Hermann, Mo
Points: 12029
Post Options Post Options   Thanks (0) Thanks(0)   Quote DMiller Quote  Post ReplyReply Direct Link To This Post Posted: 01 Jul 2020 at 5:19am
Similar linkages on the 180s, where I had to take ALL of the linkages loose on my 180 to adequately free them up. A Stuck or jammed rockshaft can also do this as I was explained long ago.
Back to Top
WI Dave View Drop Down
Bronze Level
Bronze Level


Joined: 30 Jun 2020
Location: WI
Points: 9
Post Options Post Options   Thanks (0) Thanks(0)   Quote WI Dave Quote  Post ReplyReply Direct Link To This Post Posted: 01 Jul 2020 at 10:46am
All linkage is clean and free.
Valve shaft travels and detents as it should (to the best of my knowledge)

Reading other posts on the boost valve I see that the arms SHOULD be going up as normal procedure. But I cannot get the arms to lower even standing on them, 225 lbs, with lever in lower.
Can I hook in a high pressure gauge to tell me what is going on? or am I limited to a tester as is shown in manual? Can one be DIY'ed






Edited by WI Dave - 01 Jul 2020 at 11:00am
Back to Top
DrAllis View Drop Down
Orange Level
Orange Level


Joined: 12 Sep 2009
Points: 12297
Post Options Post Options   Thanks (0) Thanks(0)   Quote DrAllis Quote  Post ReplyReply Direct Link To This Post Posted: 01 Jul 2020 at 12:17pm
The two rear levers (Traction Booster and Position Control) must be clear forward. The tallest lever on the front bank must be fully forward against the square cut-out hole in the console. Wire it in this position. Engine off. Stand on the draft arms. If they refuse to go down, look at the rear of the hydraulic valve stack. Towards the right side you will see an "acorn nut". Next to it is a short aluminum cap with two allen-head screws retaining it. Remove both screws and set the cap and spring off to the side. Take a hammer and punch and tap the spool forward until it hits the snap ring. Replace the cap/spring/bolts. Hitch should now go down.
Back to Top
Joe(TX) View Drop Down
Orange Level
Orange Level
Avatar

Joined: 11 Sep 2009
Location: Weatherford. TX
Points: 1250
Post Options Post Options   Thanks (0) Thanks(0)   Quote Joe(TX) Quote  Post ReplyReply Direct Link To This Post Posted: 01 Jul 2020 at 2:44pm
Like DR said if both levers are not forward. it will not lower.

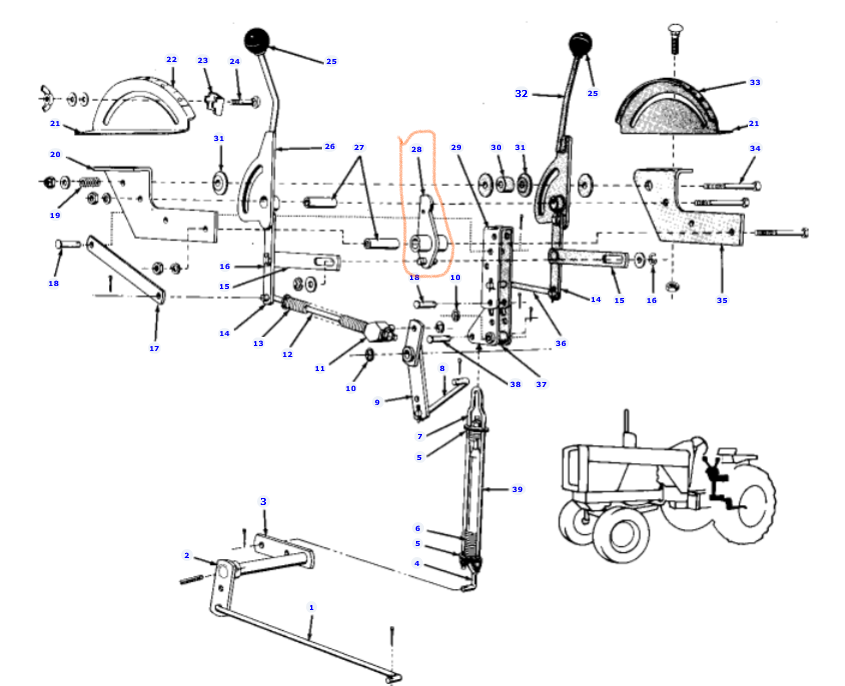

If the lever circled (item 28) is not free on the shaft, it will hold the position/traction control spool in.
1970 190XT, 1973 200, 1962 D-19 Diesel, 1979 7010, 1957 WD45, 1950 WD, 1961 D17, Speed Patrol, D14, All crop 66 big bin, 180 diesel, 1970 170 diesel, FP80 forklift. Gleaner A
Back to Top
WI Dave View Drop Down
Bronze Level
Bronze Level


Joined: 30 Jun 2020
Location: WI
Points: 9
Post Options Post Options   Thanks (0) Thanks(0)   Quote WI Dave Quote  Post ReplyReply Direct Link To This Post Posted: 01 Jul 2020 at 2:53pm
Did not see the small cover first time (old eyes)
Removed that and the spring broke as I removed it. Shaft was partly out. Cleaned it up, lubed shaft pulled it in and out to be sure it moved freely. I will get a new spring in it tomorrow and test this theory.
Thank you.
Back to Top
Luke114 View Drop Down
Bronze Level
Bronze Level


Joined: 27 Aug 2019
Location: Washington
Points: 21
Post Options Post Options   Thanks (0) Thanks(0)   Quote Luke114 Quote  Post ReplyReply Direct Link To This Post Posted: 01 Jul 2020 at 3:30pm
The kit you found for $43 is about the best price.  It seemed like a lot to me also, and I thought about just getting some standard cup seals for a few bucks.  The internals on this piston are not very typical, unfortunately.  There's a stack of 4 nested seals that is backed up on either end by a couple more pieces and that all needs to be the correct length when you screw the piston back together.  It really just has a lot more parts than a normal cylinder would.

The kit also includes the much improved gland seal for the 190.  I didn't use that on the 180 (I think the 185 uses the same seal as the 180).  So you wind up with some expensive leftover parts.  But after the initial sticker shock, I didn't regret getting the kit.

The rod end breather could really use an upgrade to keep dirt and moisture from getting sucked in.  I would guess this is the main reason for losing seals.
Back to Top
DrAllis View Drop Down
Orange Level
Orange Level


Joined: 12 Sep 2009
Points: 12297
Post Options Post Options   Thanks (0) Thanks(0)   Quote DrAllis Quote  Post ReplyReply Direct Link To This Post Posted: 01 Jul 2020 at 4:02pm
A quick fix for #28 being stuck is this. Loosen the nut one full turn on the bolt that goes thru #28.  Turn the head of the same bolt in full revolutions until you can turn it freely. Leave the nut right where you left it. It is so rusty it will never fall off and now the linkage is free to move without going to all the extra work to free up the bushing inside of #28.  I can do this procedure in under 3 minutes with the right wrenches.
Back to Top
DCAC View Drop Down
Silver Level
Silver Level


Joined: 20 Oct 2018
Location: east central SD
Points: 161
Post Options Post Options   Thanks (0) Thanks(0)   Quote DCAC Quote  Post ReplyReply Direct Link To This Post Posted: 01 Jul 2020 at 9:26pm
Do what Dr. says about the cap and allen head screws.  Did this on my 17 s4 and it cured my problem with the lift arms not going down.  Thanks again Dr.!!
