All Crop 72 Axle Stubs
 Post Reply Post Reply
Author
Message
  Topic Search Topic Search  Topic Options Topic Options
mandm View Drop Down
Bronze Level
Bronze Level


Joined: 25 Nov 2018
Location: MN
Points: 5 		Post Options Post Options   Thanks (0) Thanks(0)   Quote mandm Quote  Post ReplyReply Direct Link To This Post Topic: All Crop 72 Axle Stubs
    Posted: 26 Nov 2018 at 8:43pm
I have purchased an All Crop 72 and will need to transport it home approx. 90 miles. I pulled off one of the tires to replace it due to sidewall wear and found that the bronze bushings are in bad shape, the hub was very loose on the shaft. I'd like to upgrade the axle and hub to one with bearings for longer life and easier transport. Would anyone know the dimensions of the stock axle stub that I can use to find a heavy duty replacement? It would save me a trip out to the machine to take the axle off to measure. Has anyone done this type of change/upgrade?
Back to Top
Sponsored Links


Back to Top
CrestonM View Drop Down
Orange Level
Orange Level
Avatar

Joined: 08 Sep 2014
Location: Oklahoma
Points: 8452 		Post Options Post Options   Thanks (0) Thanks(0)   Quote CrestonM Quote  Post ReplyReply Direct Link To This Post Posted: 26 Nov 2018 at 8:56pm
Great-grandpa had the local blacksmith weld on hubs from a 1939 Ford car to his/my 60A. He kept the old axle stubs and just welded the new hubs on them. I don't know how he did it, but everything is straight as an arrow with no wobble.
Back to Top
WD45Diesel57 View Drop Down
Orange Level
Orange Level
Avatar

Joined: 20 Jul 2010
Location: Varna, Ont. Can
Points: 646 		Post Options Post Options   Thanks (0) Thanks(0)   Quote WD45Diesel57 Quote  Post ReplyReply Direct Link To This Post Posted: 27 Nov 2018 at 7:21am
if you can find a 72 that's been wrecked the later ones had actual bearings and hubs, yours must be an early machine, I have one with bushing style hubs and I think serial number is 12** my dad has one with wheel bearings, his also has cream colored wheels, auger and reel and has newer decals, mine is entirely orange and old style decals. im curious on what serial number yours is
1-B's, 2-C, 2-CA's,2-WF, 1-WC,1-G, 3-WD's, 2-WD45, 1-RC, 1-D17 Diesel, 1-D14, 2-D15,1-D17 row crop,1-D19 gas and All Crop 40,60,66,72,90 and 100
Back to Top
PaulB View Drop Down
Orange Level
Orange Level


Joined: 12 Sep 2009
Location: Rocky Ridge Md
Points: 4956 		Post Options Post Options   Thanks (0) Thanks(0)   Quote PaulB Quote  Post ReplyReply Direct Link To This Post Posted: 27 Nov 2018 at 7:23am
I have a pair of NOS 6 bolt hubs with stub axles available. I could email a picture of them to anyone interested in them.
If it was fun to pull in LOW gear, I could have a John Deere.
Real pullers don't have speed limits.
If you can't make it GO... make it SHINY
Back to Top
mandm View Drop Down
Bronze Level
Bronze Level


Joined: 25 Nov 2018
Location: MN
Points: 5 		Post Options Post Options   Thanks (0) Thanks(0)   Quote mandm Quote  Post ReplyReply Direct Link To This Post Posted: 28 Nov 2018 at 8:03pm
Originally posted by CrestonM CrestonM wrote:

Great-grandpa had the local blacksmith weld on hubs from a 1939 Ford car to his/my 60A. He kept the old axle stubs and just welded the new hubs on them. I don't know how he did it, but everything is straight as an arrow with no wobble.


That was a pretty smart fix and sounds like it has stood the test of time.
Back to Top
mandm View Drop Down
Bronze Level
Bronze Level


Joined: 25 Nov 2018
Location: MN
Points: 5 		Post Options Post Options   Thanks (0) Thanks(0)   Quote mandm Quote  Post ReplyReply Direct Link To This Post Posted: 28 Nov 2018 at 8:09pm
Originally posted by WD45Diesel57 WD45Diesel57 wrote:


if you can find a 72 that's been wrecked the later ones had actual bearings and hubs, yours must be an early machine, I have one with bushing style hubs and I think serial number is 12** my dad has one with wheel bearings, his also has cream colored wheels, auger and reel and has newer decals, mine is entirely orange and old style decals. im curious on what serial number yours is


I noticed that from the factory parts manual that the earlier ones had bushings and the later ones had bearings. I was hoping I had the later series but no luck. This one has the factory pickup head as well as the reel and has the crop lifters. I'm hoping all the brackets are there for re-mounting the reel but it's hard to see with the pickup mounted. Unfortunately, winter is here so if I can get it home, I'll start digging into it in the spring.
Back to Top
mandm View Drop Down
Bronze Level
Bronze Level


Joined: 25 Nov 2018
Location: MN
Points: 5 		Post Options Post Options   Thanks (0) Thanks(0)   Quote mandm Quote  Post ReplyReply Direct Link To This Post Posted: 28 Nov 2018 at 8:12pm
Originally posted by PaulB PaulB wrote:

I have a pair of NOS 6 bolt hubs with stub axles available. I could email a picture of them to anyone interested in them.


Does your set have bushings or are they the later ones with bearings? I'd maybe be interested if they were the later ones with bearings.
Back to Top
B26240 View Drop Down
Orange Level
Orange Level


Joined: 21 Nov 2009
Location: mn
Points: 3860 		Post Options Post Options   Thanks (0) Thanks(0)   Quote B26240 Quote  Post ReplyReply Direct Link To This Post Posted: 29 Nov 2018 at 6:27am
Another option would be to go to a place that sells trailer parts as they will have axle replacement stubs/bearings/hubs/wheel rims etc.  If you went that route you could even install electric brakes.
Back to Top
Allis dave View Drop Down
Orange Level
Orange Level


Joined: 10 May 2012
Location: Northern IN
Points: 2991 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Allis dave Quote  Post ReplyReply Direct Link To This Post Posted: 29 Nov 2018 at 6:47am
Go Online to Shoups part, you can buy axle stubs and hubs for wagons and similar applications that you could weld on.
Back to Top
jaybmiller View Drop Down
Orange Level Access
Orange Level Access


Joined: 12 Sep 2009
Location: Greensville,Ont
Points: 24415 		Post Options Post Options   Thanks (0) Thanks(0)   Quote jaybmiller Quote  Post ReplyReply Direct Link To This Post Posted: 29 Nov 2018 at 6:48am
Ok... silly idea...but could you make a 'dolly' from a trailer axle and some steel? Raise the unit up, slide under, 'secure', add wheels, away you go....
I'd make it out of tubing,with left 'beams' sliding into the right 'beams', overlap say a foot or two. That way you can adjust for tight width.beams are welded to 2' sections of tubing, axle gets bolted to that 'end piece.
A newbuilt dolly could be stronger and more stable than stub axles. Springs could be an option for a smoother ride,esp. if you use a drop axle.
The dolly can be disassembled once you get home OR made available to the next guy who needs to haul an All Crop 72 !
3 D-14s,A-C forklift, B-112
Kubota BX23S lil' TOOT( The Other Orange Tractor)

Never burn your bridges, unless you can walk on water
Back to Top
Ray View Drop Down
Orange Level
Orange Level


Joined: 21 Sep 2009
Points: 1979 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Ray Quote  Post ReplyReply Direct Link To This Post Posted: 29 Nov 2018 at 2:50pm
I have stub axels and hubs from a 90 combine and 66 combine.They are bearing type. NOt sure if they will fit. 785-353-2392
Back to Top
PaulB View Drop Down
Orange Level
Orange Level


Joined: 12 Sep 2009
Location: Rocky Ridge Md
Points: 4956 		Post Options Post Options   Thanks (0) Thanks(0)   Quote PaulB Quote  Post ReplyReply Direct Link To This Post Posted: 29 Nov 2018 at 4:55pm

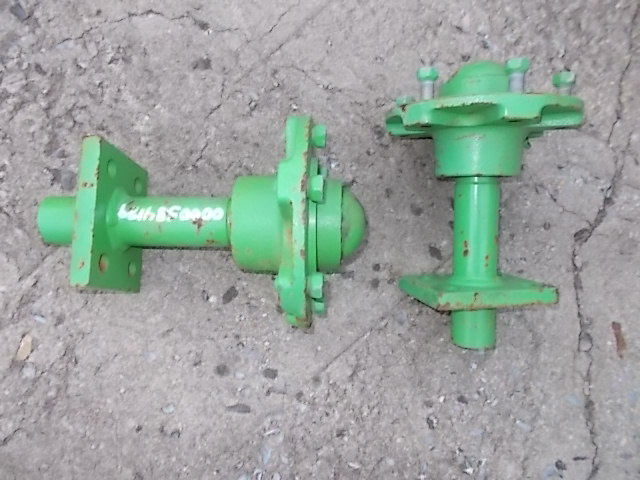

Here is the pair of stub axles that I have available. They accept the standard AG 6 bolt rim. The round part of the axle is 1-3/4". The hubs have a grease fitting and roller bearings.
If it was fun to pull in LOW gear, I could have a John Deere.
Real pullers don't have speed limits.
If you can't make it GO... make it SHINY
