 Topic: all crop 66
Posted: 07 Mar 2021 at 9:19pm |
|
just got a all crop 66 engine driven no dents no rust original paint engine driven , very little paint wore off on the in side so i am sure it is very low hours . i put four new impliment tires on it before i brought it home, needs both canvases's . it is seiral number b29443 what year is it ?
|
 |
|
Sponsored Links
|
|
|
Brian G. NY
Orange Level
Joined: 12 Sep 2009
Location: 12194
Points: 2269
|
Post Options
Thanks(0)
Quote Reply
Posted: 08 Mar 2021 at 9:25am |
|
I don't know but we need to see pictures of it!
|
|
N186364
Bronze Level
Joined: 05 Jan 2020
Location: Ontario, Canada
Points: 30
|
Post Options
Thanks(0)
Quote Reply
Posted: 08 Mar 2021 at 5:46pm |
|
According to the serial number list I have it was built in 1954.
|
|
HudCo
Orange Level
Joined: 29 Jan 2013
Location: Plymouth Utah
Points: 3948
|
Post Options
Thanks(0)
Quote Reply
Posted: 08 Mar 2021 at 8:44pm |
|

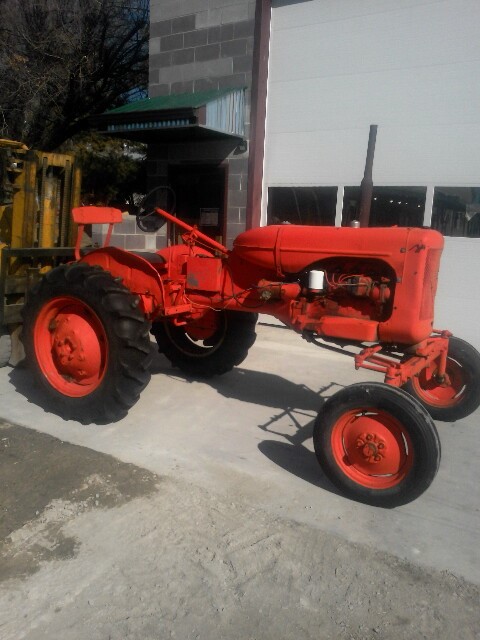

good to know thanks will try to get some pictures of it and the c i brought home with it
|
|
HudCo
Orange Level
Joined: 29 Jan 2013
Location: Plymouth Utah
Points: 3948
|
Post Options
Thanks(0)
Quote Reply
Posted: 14 Mar 2021 at 10:59pm |
|
i have a few pictures if i could send them to some one to put them on here
|
|
HudCo
Orange Level
Joined: 29 Jan 2013
Location: Plymouth Utah
Points: 3948
|
Post Options
Thanks(0)
Quote Reply
Posted: 14 Mar 2021 at 11:10pm |
|
|
|
ac hunter
Orange Level
Joined: 05 Jan 2011
Location: OHIO
Points: 1065
|
Post Options
Thanks(0)
Quote Reply
Posted: 15 Mar 2021 at 8:36am |

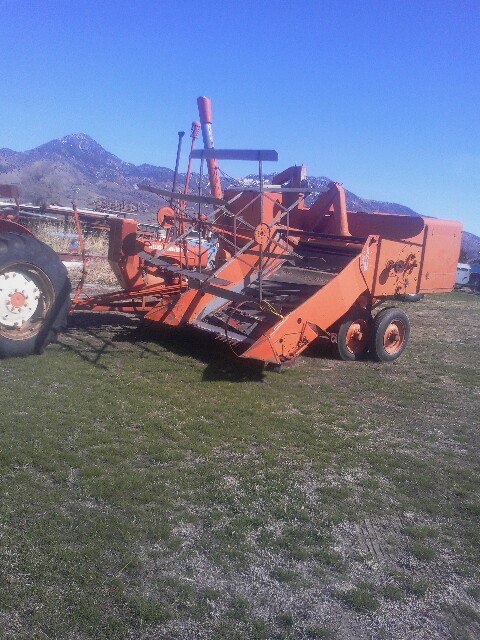

Looks like you have a couple of great pieces of equipment there; clean looking. I like the extra axle on the combine. Dad added one to his 60 combine and greatly improved the ride as I remember. Maybe a dumb question but what is the item with the "knives" lying on the ground? You have some great background scenery too. Thanks for the pictures and let us know about your work on those ACs.
|
|
Lon(MN)
Orange Level
Joined: 11 Sep 2009
Location: Merrill Wi
Points: 2040
|
Post Options
Thanks(0)
Quote Reply
Posted: 15 Mar 2021 at 10:03am |
|
I would like to add that wheel set up to my 60 All Crop bagger engine drive combine. I am trying to put as many options on one combine as I can. I just completed the electric start option on the engine.
|
|
Ryan Renko
Orange Level
Joined: 12 Sep 2009
Location: Edwardsville, I
Points: 2336
|
Post Options
Thanks(0)
Quote Reply
Posted: 15 Mar 2021 at 7:58pm |
|
Those knives belong under the straw hood for the flail type straw spreader. Ryan
|
|
Ryan Renko
Orange Level
Joined: 12 Sep 2009
Location: Edwardsville, I
Points: 2336
|
Post Options
Thanks(0)
Quote Reply
Posted: 16 Mar 2021 at 7:08pm |
|

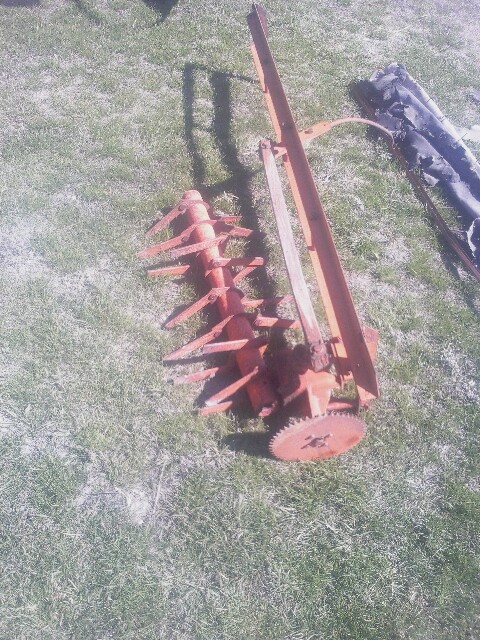

Also in the picture with the straw spreader is a windrow spreader that goes at the top of the bottom draper in front of the cylinder. I never in my 55 years have ever seen one except in a manual or brochure. You have a great find!!! Ryan
Edited by Ryan Renko - 16 Mar 2021 at 7:09pm
|
|
HudCo
Orange Level
Joined: 29 Jan 2013
Location: Plymouth Utah
Points: 3948
|
Post Options
Thanks(0)
Quote Reply
Posted: 17 Mar 2021 at 10:56pm |
|
that was my next question is what that is i could not figure where it mounts what side is the gear box on and what realy is it supposed to do
|
|
CrestonM
Orange Level
Joined: 08 Sep 2014
Location: Oklahoma
Points: 8457
|
Post Options
Thanks(0)
Quote Reply
Posted: 18 Mar 2021 at 11:52am |
|
It mounts toward the top of the header and that "finger" moves back and forth, it spreads windrowed crops out for more even feeding into the cylinder. Gear box mounts on right side of the header. Should be another sprocket already on the combine to drive that.
|
|
HudCo
Orange Level
Joined: 29 Jan 2013
Location: Plymouth Utah
Points: 3948
|
Post Options
Thanks(0)
Quote Reply
Posted: 18 Mar 2021 at 10:15pm |
|
i did not see a sprocket but i will look agian , do you see the rusty pulleys on the left side of the header what could they be for? ihave taken the drive shaft off and i need to clean the carb change the plugs witch still have orange paint on them and the oil filter is still the soup can looking style witch would be neet to find an other one i will save it for parade show day along with the spark plugs . i am hoping the cylinder tach still works i will give it some tlc before i turn it , i have not found a worn bearing on the thrasher and have most taking grease so far . were do i find drapers ? the top one looks like it has about 4inch tines on each bar
|
|
Ryan Renko
Orange Level
Joined: 12 Sep 2009
Location: Edwardsville, I
Points: 2336
|
Post Options
Thanks(0)
Quote Reply
Posted: 19 Mar 2021 at 7:52pm |
|
The pulleys on the left side are for a rotary pickup in front. I would like to see a more better picture of this upper draper with 4" tines?? Ryan
|
|
HudCo
Orange Level
Joined: 29 Jan 2013
Location: Plymouth Utah
Points: 3948
|
Post Options
Thanks(0)
Quote Reply
Posted: 19 Mar 2021 at 10:39pm |
|
not much left of the upper draper i will put whats left in a pile and take a picture of it . got engine running but no oil pressure gauge works took oil filter base off cleaned every thing good blew back threw stem with light compressed air , hope i didnt ruin the corks in the rocker shaft . then hooked a vacuum pot up and it would draw up oil so i will put a tee in between the gauge and base and hook it to a pressure pot full of oil and start it and see what the gauge does and see if it picks up but i think something is wrong with the sump
|
|
Ryan Renko
Orange Level
Joined: 12 Sep 2009
Location: Edwardsville, I
Points: 2336
|
Post Options
Thanks(0)
Quote Reply
Posted: 20 Mar 2021 at 9:43am |
|
I'm thinking the upper draper you described with the 4" tines is actually the rotary pickup that goes in front so pictures would help. Ryan
|
|
HudCo
Orange Level
Joined: 29 Jan 2013
Location: Plymouth Utah
Points: 3948
|
Post Options
Thanks(0)
Quote Reply
Posted: 21 Mar 2021 at 1:32pm |
|
did they have a jack or a stand for the hitch ?
|
|
