AC460 loader

 Post Reply Post Reply
Author
Message
AC720Man View Drop Down
Orange Level
Orange Level
Avatar

Joined: 10 Oct 2016
Location: Shenandoah, Va
Points: 5189
Post Options Post Options   Thanks (0) Thanks(0)   Quote AC720Man Quote  Post ReplyReply Direct Link To This Post Topic: AC460 loader
    Posted: 11 Nov 2021 at 6:23pm

Trying to find a operators manual for a 460 loader. Haven’t had time to research it yet, but I would like to move the controls to the right side of the loader. The oil tank is on the left side,in the loader frame. The control has a short hose that screws into the tank. My thinking it is the return from the controls. If so, I should be able to move the control to the right and run a new hose from the control, under the tractor and back in to the tank. Thoughts?
1968 B-208, 1976 720 (2 of them)Danco brush hog, single bottom plow,52" snow thrower, belly mower,rear tine tiller, rear blade, front blade, 57"sickle bar,1983 917 hydro, 1968 7hp sno-bee, 1968 190XTD
Back to Top
Sponsored Links


Back to Top
AC720Man View Drop Down
Orange Level
Orange Level
Avatar

Joined: 10 Oct 2016
Location: Shenandoah, Va
Points: 5189
Post Options Post Options   Thanks (0) Thanks(0)   Quote AC720Man Quote  Post ReplyReply Direct Link To This Post Posted: 11 Nov 2021 at 6:28pm
The nice thing I like about this loader is it has its own pump. So it doesn’t use the hydraulics of the tractor. Also looking for a quick attach to fit the loader for my other skid loader attachments.
1968 B-208, 1976 720 (2 of them)Danco brush hog, single bottom plow,52" snow thrower, belly mower,rear tine tiller, rear blade, front blade, 57"sickle bar,1983 917 hydro, 1968 7hp sno-bee, 1968 190XTD
Back to Top
AC720Man View Drop Down
Orange Level
Orange Level
Avatar

Joined: 10 Oct 2016
Location: Shenandoah, Va
Points: 5189
Post Options Post Options   Thanks (0) Thanks(0)   Quote AC720Man Quote  Post ReplyReply Direct Link To This Post Posted: 11 Nov 2021 at 6:46pm
Just ordered a manual.
1968 B-208, 1976 720 (2 of them)Danco brush hog, single bottom plow,52" snow thrower, belly mower,rear tine tiller, rear blade, front blade, 57"sickle bar,1983 917 hydro, 1968 7hp sno-bee, 1968 190XTD
Back to Top
Dirt Farmer View Drop Down
Silver Level Access
Silver Level Access


Joined: 15 Sep 2020
Location: Illinois
Points: 414
Post Options Post Options   Thanks (0) Thanks(0)   Quote Dirt Farmer Quote  Post ReplyReply Direct Link To This Post Posted: 11 Nov 2021 at 7:34pm
Worksaver in Litchfield Illinois makes several adapters for lots of applications. Look at their website or give them a call at (217) 324-5973 and ask for Kevin, products made locally and great folks to work with. They also make attachments for loader tractors and skid steers.
Back to Top
AC720Man View Drop Down
Orange Level
Orange Level
Avatar

Joined: 10 Oct 2016
Location: Shenandoah, Va
Points: 5189
Post Options Post Options   Thanks (0) Thanks(0)   Quote AC720Man Quote  Post ReplyReply Direct Link To This Post Posted: 11 Nov 2021 at 9:18pm
Thanks
1968 B-208, 1976 720 (2 of them)Danco brush hog, single bottom plow,52" snow thrower, belly mower,rear tine tiller, rear blade, front blade, 57"sickle bar,1983 917 hydro, 1968 7hp sno-bee, 1968 190XTD
Back to Top
Bret (OH) View Drop Down
Silver Level
Silver Level


Joined: 15 Sep 2009
Location: Blanchester, OH
Points: 353
Post Options Post Options   Thanks (0) Thanks(0)   Quote Bret (OH) Quote  Post ReplyReply Direct Link To This Post Posted: 12 Nov 2021 at 6:39am

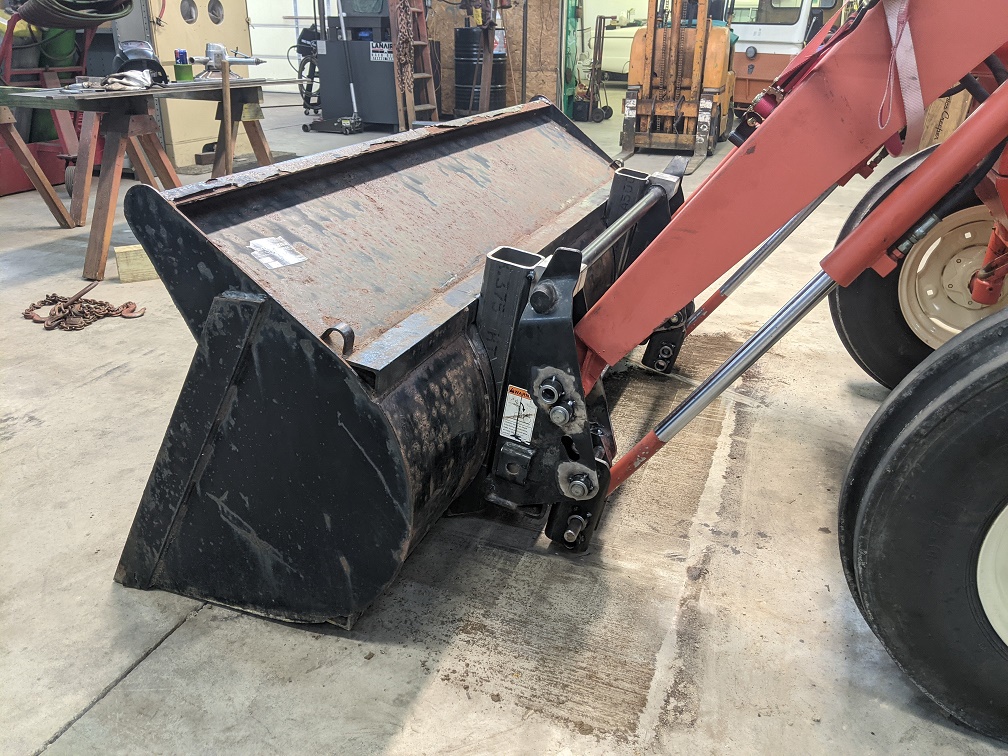

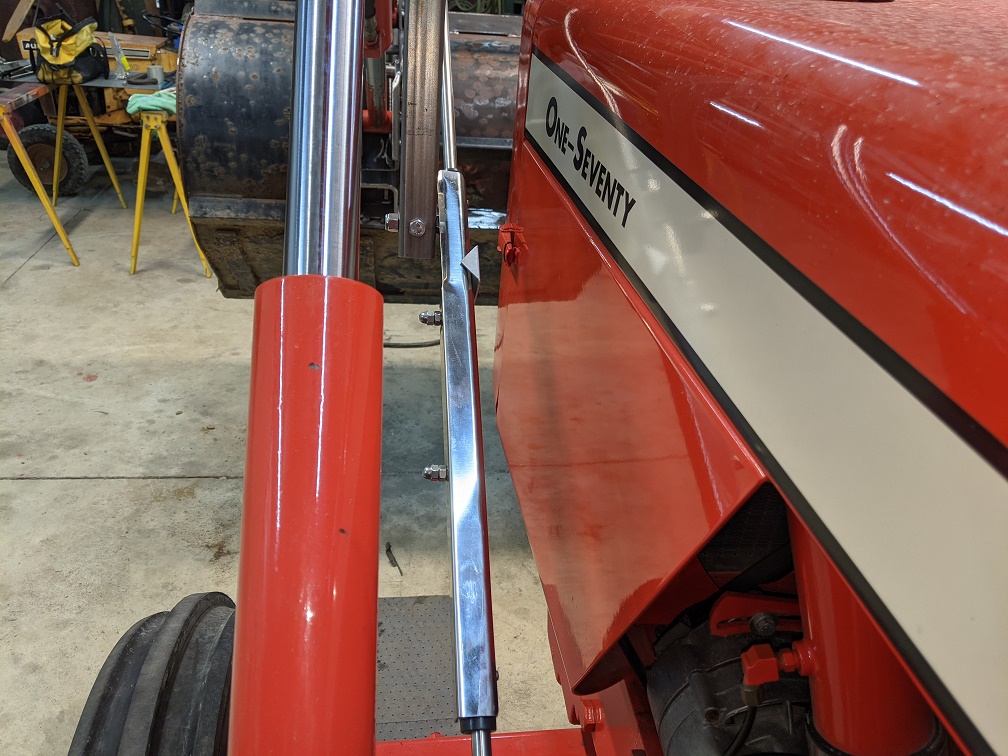

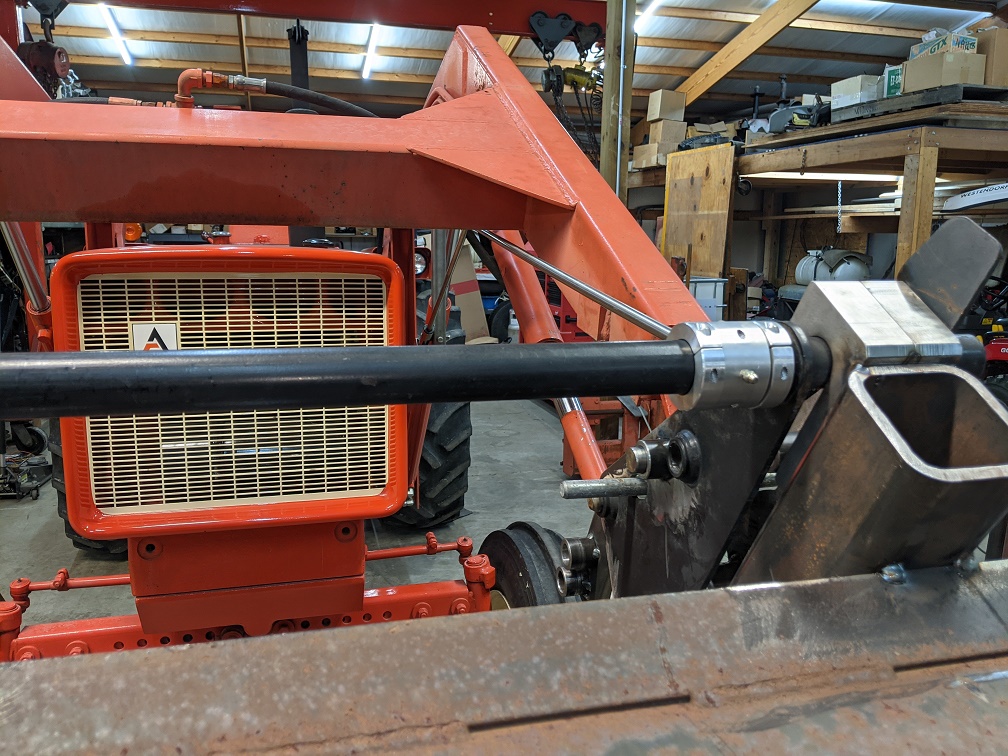

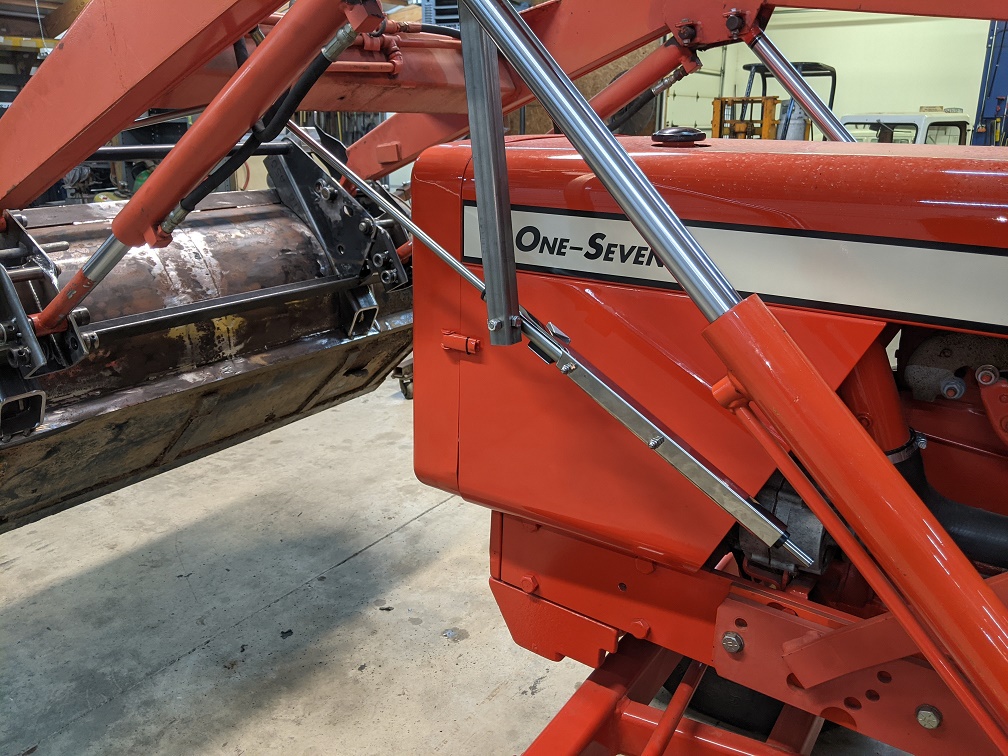

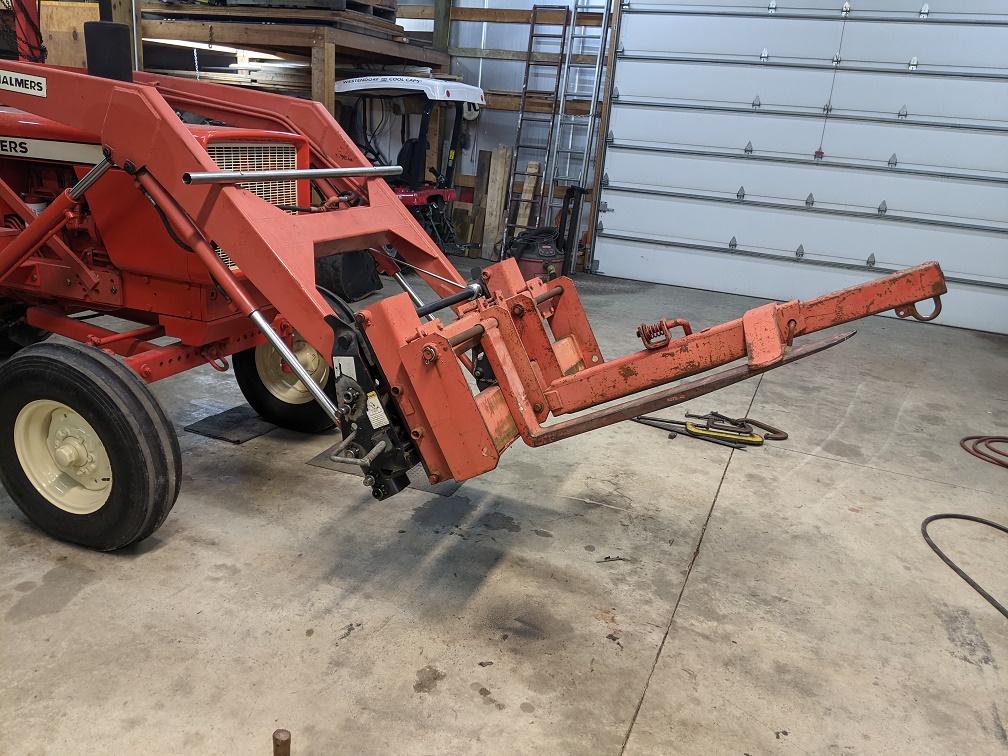

Just finished modifying a new old stock Farmhand quick attach and bucket for the One-Seventy with a 500 loader.  Here are some "in process" photos.

You may have to do the same with a quick attach for your 400 series.


Back to Top
Bret (OH) View Drop Down
Silver Level
Silver Level


Joined: 15 Sep 2009
Location: Blanchester, OH
Points: 353
Post Options Post Options   Thanks (0) Thanks(0)   Quote Bret (OH) Quote  Post ReplyReply Direct Link To This Post Posted: 12 Nov 2021 at 6:41am
Back to Top
Lynn Marshall View Drop Down
Orange Level Access
Orange Level Access
Avatar

Joined: 13 Sep 2009
Location: Dana, Iowa
Points: 2364
Post Options Post Options   Thanks (0) Thanks(0)   Quote Lynn Marshall Quote  Post ReplyReply Direct Link To This Post Posted: 12 Nov 2021 at 8:47am
More pictures of that 170 please. It looks flawless.
Back to Top
DrAllis View Drop Down
Orange Level Access
Orange Level Access


Joined: 12 Sep 2009
Points: 21728
Post Options Post Options   Thanks (0) Thanks(0)   Quote DrAllis Quote  Post ReplyReply Direct Link To This Post Posted: 12 Nov 2021 at 9:04am
Too nice for a loader tractor for sure !!
Back to Top
DougG View Drop Down
Orange Level
Orange Level


Joined: 20 Sep 2009
Location: Mo
Points: 8309
Post Options Post Options   Thanks (0) Thanks(0)   Quote DougG Quote  Post ReplyReply Direct Link To This Post Posted: 12 Nov 2021 at 4:15pm
Why did they think to put the cylinders under the frame was a good idea - so many were bent loading gravel etc,,
Back to Top
AC720Man View Drop Down
Orange Level
Orange Level
Avatar

Joined: 10 Oct 2016
Location: Shenandoah, Va
Points: 5189
Post Options Post Options   Thanks (0) Thanks(0)   Quote AC720Man Quote  Post ReplyReply Direct Link To This Post Posted: 15 Nov 2021 at 8:41pm
Brett, beautiful 170. Nice fab work to suit your needs.
So, I received my operators manual on my 460 loader that I am putting on my 160. The loader came off of a One Sixty parts tractor. So it seams AC made 2 versions of the 460 loader. One, like mine, has the hydraulic pump that drives off the front crank pulley. I really like this because it dos not utilize the tractors hydraulic system, leaving the remote free to be used. The second version requires 2 remotes at the rear of the tractor. The manual I received is on that particular loader. Anyone out there have the type loader I have and have a manual that I could get a copy of or have a manual for sale?

Edited by AC720Man - 15 Nov 2021 at 8:42pm
1968 B-208, 1976 720 (2 of them)Danco brush hog, single bottom plow,52" snow thrower, belly mower,rear tine tiller, rear blade, front blade, 57"sickle bar,1983 917 hydro, 1968 7hp sno-bee, 1968 190XTD
Back to Top
AC720Man View Drop Down
Orange Level
Orange Level
Avatar

Joined: 10 Oct 2016
Location: Shenandoah, Va
Points: 5189
Post Options Post Options   Thanks (0) Thanks(0)   Quote AC720Man Quote  Post ReplyReply Direct Link To This Post Posted: 16 Nov 2021 at 8:46pm
So I am guessing at this point. This loader could be either fluid fed by the tractor hydraulics or by the pump which makes it self sufficient. So it appears the pump and hydraulic controls were a option? Any you guys out there that were dealers that may remember?
1968 B-208, 1976 720 (2 of them)Danco brush hog, single bottom plow,52" snow thrower, belly mower,rear tine tiller, rear blade, front blade, 57"sickle bar,1983 917 hydro, 1968 7hp sno-bee, 1968 190XTD
Back to Top
Charlie175 View Drop Down
Orange Level
Orange Level


Joined: 11 Sep 2009
Location: Shenandoah, VA
Points: 6368
Post Options Post Options   Thanks (0) Thanks(0)   Quote Charlie175 Quote  Post ReplyReply Direct Link To This Post Posted: 17 Nov 2021 at 4:21am
Reading around online it appears it was an option.
Charlie

'48 B, '51 CA, '56 WD45 '61 D17, '63 D12, '65 D10 , '68 One-Ninety XTD
Back to Top
Jim.ME View Drop Down
Orange Level
Orange Level


Joined: 19 Nov 2016
Location: Maine
Points: 962
Post Options Post Options   Thanks (0) Thanks(0)   Quote Jim.ME Quote  Post ReplyReply Direct Link To This Post Posted: 17 Nov 2021 at 6:48am
Crank driven pump and valve could be options, some tractors would have had hydraulics and remotes which could run a loader(some did but were slow, so front pump and valve were improvements).  Yes, you should be able to use a hose to return the oil from the valve to the reservoir.  I would increase the hose size (fitting size would stay the same) one step for the longer run, definitely don't down size it.  If it is 1" hose with 3/4" NPT fittings now (as it appears it might be in your pictures) that should be ok.  I would use at least a one wire reinforced hydraulic hose and try to find a routing across the tractor, not under it.  You may need a couple proper swivel adapters to connect it to the reservoir port and the valve.  Just my thoughts.
Back to Top
AC720Man View Drop Down
Orange Level
Orange Level
Avatar

Joined: 10 Oct 2016
Location: Shenandoah, Va
Points: 5189
Post Options Post Options   Thanks (0) Thanks(0)   Quote AC720Man Quote  Post ReplyReply Direct Link To This Post Posted: 17 Nov 2021 at 9:45pm
Thanks Jim, good ideas. That hose could be routed across the brace that goes between the loader frame. What reason for not going under the tractor out of curiosity? Just trying to keep hoses out of the way. If its the control dump back into the tank wouldn’t it be under pressure to return the oil to the tank? I appreciate your input to help me figure this out.
1968 B-208, 1976 720 (2 of them)Danco brush hog, single bottom plow,52" snow thrower, belly mower,rear tine tiller, rear blade, front blade, 57"sickle bar,1983 917 hydro, 1968 7hp sno-bee, 1968 190XTD
Back to Top
AC720Man View Drop Down
Orange Level
Orange Level
Avatar

Joined: 10 Oct 2016
Location: Shenandoah, Va
Points: 5189
Post Options Post Options   Thanks (0) Thanks(0)   Quote AC720Man Quote  Post ReplyReply Direct Link To This Post Posted: 17 Nov 2021 at 9:51pm
Yes, the self contain loader was a option to free up the remotes or in my case with only having one remote. Local Agco dealer pulled it up in Agco books. Oddly no separate manual could be found.
1968 B-208, 1976 720 (2 of them)Danco brush hog, single bottom plow,52" snow thrower, belly mower,rear tine tiller, rear blade, front blade, 57"sickle bar,1983 917 hydro, 1968 7hp sno-bee, 1968 190XTD
Back to Top
Jim.ME View Drop Down
Orange Level
Orange Level


Joined: 19 Nov 2016
Location: Maine
Points: 962
Post Options Post Options   Thanks (0) Thanks(0)   Quote Jim.ME Quote  Post ReplyReply Direct Link To This Post Posted: 18 Nov 2021 at 5:37am
I guess it depends on where you may go with your tractor.  If you go into the woods or other rough area, such as brush hogging heavy growth, having a hose under the tractor has the greater risk of snagging it.  I try to avoid adding anything under the tractor as general practice.
Back to Top
Bret (OH) View Drop Down
Silver Level
Silver Level


Joined: 15 Sep 2009
Location: Blanchester, OH
Points: 353
Post Options Post Options   Thanks (0) Thanks(0)   Quote Bret (OH) Quote  Post ReplyReply Direct Link To This Post Posted: 18 Nov 2021 at 7:42am
On my 500 loader, there is a tie bar across the bottom that ties the bottom of the upright frames together.  Perhaps you could route the return hose there along with the pressure hoses for the left side cylinders.
Back to Top
AC720Man View Drop Down
Orange Level
Orange Level
Avatar

Joined: 10 Oct 2016
Location: Shenandoah, Va
Points: 5189
Post Options Post Options   Thanks (0) Thanks(0)   Quote AC720Man Quote  Post ReplyReply Direct Link To This Post Posted: 18 Nov 2021 at 9:22am
Bret you are correct, the 460 does also. Those lines go underneath to feed the rams on the right side. Good point on hanging hoses on debris. Tie wrapped to that brace will prevent that. Just wanted to verify it wasn’t a flow problem. I like the idea of a larger hose between the tank and the control dump.
1968 B-208, 1976 720 (2 of them)Danco brush hog, single bottom plow,52" snow thrower, belly mower,rear tine tiller, rear blade, front blade, 57"sickle bar,1983 917 hydro, 1968 7hp sno-bee, 1968 190XTD
Back to Top
AC720Man View Drop Down
Orange Level
Orange Level
Avatar

Joined: 10 Oct 2016
Location: Shenandoah, Va
Points: 5189
Post Options Post Options   Thanks (0) Thanks(0)   Quote AC720Man Quote  Post ReplyReply Direct Link To This Post Posted: 01 Dec 2021 at 6:24am
Ordered a ATI quick attach for my loader. Looking at for a bucket for it. Looked at a low profile 66” skid steer bucket for it. Factory options were a 48 manure bucket, 60” and 80” material bucket. Measuring the tractor it seams to be a good fit.
1968 B-208, 1976 720 (2 of them)Danco brush hog, single bottom plow,52" snow thrower, belly mower,rear tine tiller, rear blade, front blade, 57"sickle bar,1983 917 hydro, 1968 7hp sno-bee, 1968 190XTD
Back to Top
AC720Man View Drop Down
Orange Level
Orange Level
Avatar

Joined: 10 Oct 2016
Location: Shenandoah, Va
Points: 5189
Post Options Post Options   Thanks (0) Thanks(0)   Quote AC720Man Quote  Post ReplyReply Direct Link To This Post Posted: 02 Dec 2021 at 9:33pm
I did look into the Work Saver unit, but it took 2 separate pieces to do what I wanted. Chose the ATI for its simplicity as well as it operates like the one on my Mahindra other than the hydraulics being on the bottom verses being on top. Thanks everyone for your input. Can’t wait to install it, repaint the loader before I install it on the tractor. Picked up the 66” skid steer bucket this afternoon. Will be a spring project due to winter time setting in.

Edited by AC720Man - 02 Dec 2021 at 9:34pm
1968 B-208, 1976 720 (2 of them)Danco brush hog, single bottom plow,52" snow thrower, belly mower,rear tine tiller, rear blade, front blade, 57"sickle bar,1983 917 hydro, 1968 7hp sno-bee, 1968 190XTD
Back to Top
AC720Man View Drop Down
Orange Level
Orange Level
Avatar

Joined: 10 Oct 2016
Location: Shenandoah, Va
Points: 5189
Post Options Post Options   Thanks (0) Thanks(0)   Quote AC720Man Quote  Post ReplyReply Direct Link To This Post Posted: 03 Dec 2021 at 6:15am
1968 B-208, 1976 720 (2 of them)Danco brush hog, single bottom plow,52" snow thrower, belly mower,rear tine tiller, rear blade, front blade, 57"sickle bar,1983 917 hydro, 1968 7hp sno-bee, 1968 190XTD
