| Author |
 Topic Search  Topic Options
|
WF owner
Orange Level
Joined: 12 May 2013
Location: Bombay NY
Points: 5060
|
 Post Options
 Thanks(0)
 Quote  Reply
 Topic: AC Wagon Decal
Posted: 18 Apr 2023 at 11:19am |
I have an AC wagon that I use for hayrides. When I got it, the paint was pretty tough, so I used a needle scaler, wire wheel and sander, then neutralized the rust on rusty spots, primed and painted it.
What I didn't do is take a picture of the decal placement (I think there was only the one decal on the back), nor measure the size of the decal.
Does anyone have a picture of the decal placement and the size? Also if anyone knows a good source to buy a decal, I would appreciate it. I would like it to look original, if possible.
|
 |
|
Sponsored Links
|
|
|
AC7060IL
Orange Level
Joined: 19 Aug 2012
Location: central IL
Points: 3585
|
Post Options
Thanks(0)
Quote Reply
Posted: 18 Apr 2023 at 12:06pm |
Which running gear do you have? Whats it's ID tag list for Catalog number, serial number?
Edited by AC7060IL - 18 Apr 2023 at 12:13pm
|
|
WF owner
Orange Level
Joined: 12 May 2013
Location: Bombay NY
Points: 5060
|
Post Options
Thanks(0)
Quote Reply
Posted: 18 Apr 2023 at 7:16pm |
|
I am pretty sure it is a 700, but I'm not sure if there is even a tag on it.
|
|
AC7060IL
Orange Level
Joined: 19 Aug 2012
Location: central IL
Points: 3585
|
Post Options
Thanks(0)
Quote Reply
Posted: 19 Apr 2023 at 6:59am |
Mark, here’s an older AC forum thread that contains pics of an AC 700 ID tag, rear decal, & stenciled 700 on right rear hound. https://www.allischalmers.com/forum/allis-running-gear_topic137847.html
|
|
WF owner
Orange Level
Joined: 12 May 2013
Location: Bombay NY
Points: 5060
|
Post Options
Thanks(0)
Quote Reply
Posted: 19 Apr 2023 at 7:52am |
|
Thank you! Any idea where I might find the decal?
|
|
AC7060IL
Orange Level
Joined: 19 Aug 2012
Location: central IL
Points: 3585
|
Post Options
Thanks(0)
Quote Reply
Posted: 19 Apr 2023 at 9:40am |
|
I’d try your local print shop?
Take a picture of rear decal from the link I provided & measurements to print shop. They can scan picture, edit it, & print decal.
I took measurements of my 700’s rear decal & sharing them here.
Rear AC 700 decal measurements;
22 5/16” long,
Letters 2 5/16” tall,
7/16” black thickness,
3/32” white borders,
1/8” space between letters at widest points.
A is 3/4”top,2”base,
L is 11/16”top,1 3/16”base,
I is 11/16”top&base(straight),
S is 1 5/16” wide,
7/16” space
dash is 5/8”tall, 7/8”wide,
7/16” space,
“Printed in USA” is 3/32” below,
C is 1 3:8” wide,
H is 1 11/16” wide,
M is 2” wide,
E is 1 5:16” wide,
R is 1 7/16” wide,
In addition, there is a decal on mid section of reach, titled “Important”. I’ll try to get a picture of it later.
Important decal is;
2 3/26” tall & 3 1/8” wide,
IMPORTANT is 5/16” tall,
Rest of words are 3/16” tall,
|
|
WF owner
Orange Level
Joined: 12 May 2013
Location: Bombay NY
Points: 5060
|
Post Options
Thanks(0)
Quote Reply
Posted: 19 Apr 2023 at 11:57am |
Thank you!!!!!!
My granddaughter is very good with her Cricut. I'm thinking she might be able to make it for me.
|
|
DSeries4
Orange Level
Joined: 12 Sep 2009
Location: Ontario, Canada
Points: 7542
|
Post Options
Thanks(0)
Quote Reply
Posted: 19 Apr 2023 at 4:36pm |
 WF owner wrote:
Thank you!!!!!!
My granddaughter is very good with her Cricut. I'm thinking she might be able to make it for me. |
Here is my 800 running gear...
|
|
'49 G, '54 WD45, '55 CA, '56 WD45D, '57 WD45, '58 D14, '59 D14, '60 D14, '63 D15D, '66 D15II, '66 D21II, '67 D17IV, '67 D17IVD, '67 190XTD, '73 620, '76 185, '77 175, '84 8030, '85 6080
|
|
AC7060IL
Orange Level
Joined: 19 Aug 2012
Location: central IL
Points: 3585
|
Post Options
Thanks(0)
Quote Reply
Posted: 19 Apr 2023 at 4:46pm |
WF owner wrote:
Thank you!!!!!!
My granddaughter is very good with her Cricut. I'm thinking she might be able to make it for me. |
Yes, there you go! My daughter also has printed some wonderful AC decals on her cricut. Please note that All the letters, dash, & “made in the USA” are all separate pieces. You’re welcome. Can’t wait to see how it works out for you!
|
|
AC7060IL
Orange Level
Joined: 19 Aug 2012
Location: central IL
Points: 3585
|
Post Options
Thanks(0)
Quote Reply
Posted: 19 Apr 2023 at 4:56pm |
|
Dseries4, nice photos of your AC 800 gear. It has the more modern rear decal from 1965 & up. WF’s AC 700 has an older pre 1965 rear decal & it has no triangle hound decal like your 800. The 700 has no AC rear hound decals just stenciled “700”.
Hounds are the 2 channel braces that diagonally connect the rear axle beam (rear hounds) or front beam axle (front hounds) to their center reach (pipe).
Edited by AC7060IL - 19 Apr 2023 at 4:57pm
|
|
WF owner
Orange Level
Joined: 12 May 2013
Location: Bombay NY
Points: 5060
|
Post Options
Thanks(0)
Quote Reply
Posted: 19 Apr 2023 at 7:08pm |
AC7060IL wrote:
WF’s AC 700 has an older pre 1965 rear decal & it has no triangle hound decal like your 800. The 700 has no AC rear hound decals just stenciled “700”. |
Now that I look at Myron's, I'm not so sure....
|
|
AC7060IL
Orange Level
Joined: 19 Aug 2012
Location: central IL
Points: 3585
|
Post Options
Thanks(0)
Quote Reply
Posted: 20 Apr 2023 at 7:24am |
WF owner wrote:
AC7060IL wrote:
WF’s AC 700 has an older pre 1965 rear decal & it has no triangle hound decal like your 800. The 700 has no AC rear hound decals just stenciled “700”. |
Now that I look at Myron's, I'm not so sure.... |
An ID tag info would help. Pictures? If pictures is not possible, please PM me.
|
|
WF owner
Orange Level
Joined: 12 May 2013
Location: Bombay NY
Points: 5060
|
Post Options
Thanks(0)
Quote Reply
Posted: 20 Apr 2023 at 7:56pm |

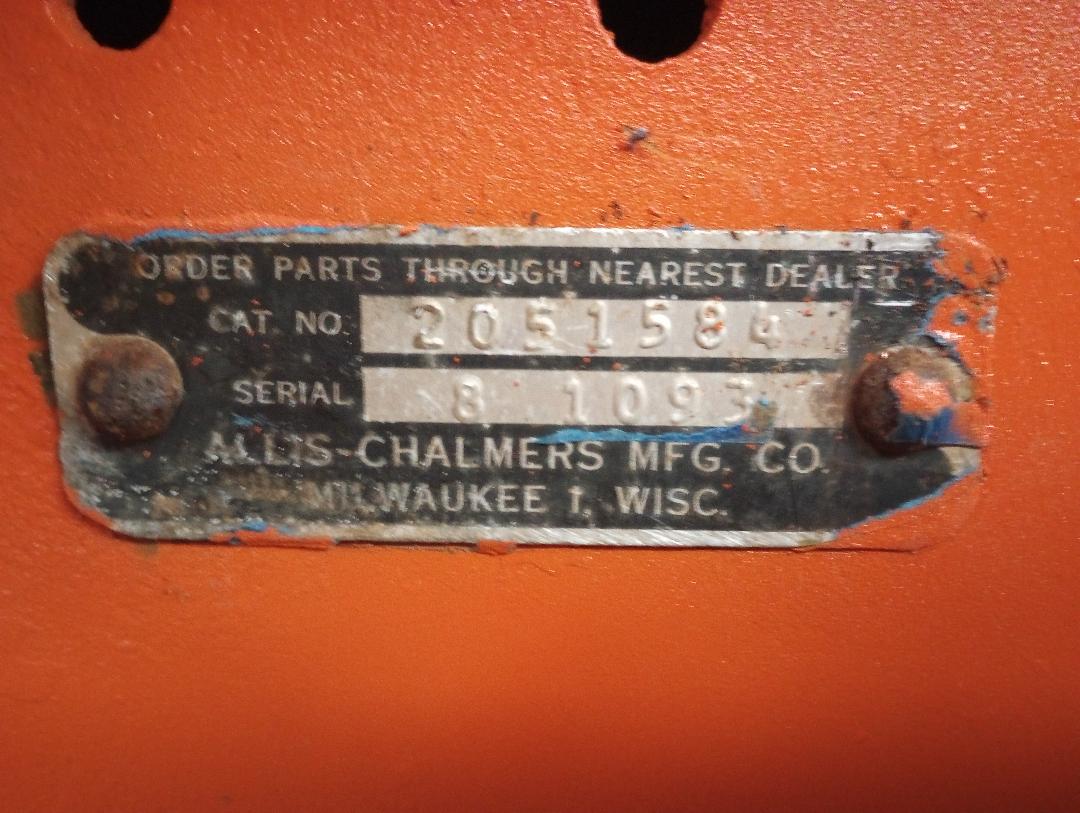

I went down and pulled the wagon away from the wall today. The guy that did the painting several years ago (me) never peeled the painter's tape off the tag and it doesn't come off easy after several years!
After seeing the tag, I'm thinking it is an 8 ton (800?).
|
|
Kenny L.
Orange Level Access
Joined: 12 Sep 2009
Location: NEIOWA
Points: 1363
|
Post Options
Thanks(0)
Quote Reply
Posted: 21 Apr 2023 at 2:11am |
WF owner wrote:
I went down and pulled the wagon away from the wall today. The guy that did the painting several years ago (me) never peeled the painter's tape off the tag and it doesn't come off easy after several years!
After seeing the tag, I'm thinking it is an 8 ton (800?).
|
Yes it's a 8 ton running gear
|
|
AC7060IL
Orange Level
Joined: 19 Aug 2012
Location: central IL
Points: 3585
|
Post Options
Thanks(0)
Quote Reply
Posted: 21 Apr 2023 at 10:57am |
|
WF, yes indeed you have an AC 800 gear, serial 8 1093. Thanks for posting it's ID tag. DSeries4, what your 800's ID tag serial number?
|
|
DSeries4
Orange Level
Joined: 12 Sep 2009
Location: Ontario, Canada
Points: 7542
|
Post Options
Thanks(0)
Quote Reply
Posted: 22 Apr 2023 at 9:48pm |
|
|
|
'49 G, '54 WD45, '55 CA, '56 WD45D, '57 WD45, '58 D14, '59 D14, '60 D14, '63 D15D, '66 D15II, '66 D21II, '67 D17IV, '67 D17IVD, '67 190XTD, '73 620, '76 185, '77 175, '84 8030, '85 6080
|
|
WF owner
Orange Level
Joined: 12 May 2013
Location: Bombay NY
Points: 5060
|
Post Options
Thanks(0)
Quote Reply
Posted: 23 Apr 2023 at 6:32am |
I know mine is older, but I think it still had the same decal that Myron's has. With the work of applying one decal as opposed to every individual letter, I'm pretty sure it is going to have the single decal now!!! I'm not that much of a purist!
EDIT: I was surprised to see that the cat# on the tag was identical to Myron's, even though the tags were a completely different style.
Edited by WF owner - 23 Apr 2023 at 6:39am
|
|
mruhlig77
Orange Level
Joined: 19 Aug 2014
Location: central Indiana
Points: 595
|
Post Options
Thanks(0)
Quote Reply
Posted: 24 Apr 2023 at 7:39am |
|
AC 7060IL sent you a PM...
|
|
