So how many were aware that in the 70's and 80's that in Canada, Simplicity marketed a modern version of the Model G called the GII? This was AC's attempt to market a replacement for the original Model G. Based on the design, AC (Simplicity) was buying them from a company called Tuff-Bilt Tractor. I was aware of several attempted clones, but not that AC was marketing one.
Info taken from an early 80's brochure.
A Complete Tractor System for Whatever Field You're In
A New Product . . . Innovative . . . Affordable.
Small farmers in developing areas need a small, basic tractor to increase their productivity. Big farmers need such a tractor to supplement larger equipment. The GII answers both.
The Perfect Answer for Whatever Field You're In.
A range of 24 easy to mount implements and accessories are available to handle any job. A unique, simple, hydraulic drive system delivers 450 kilograms drawbar pull, utilizing a 16 hp engine. The GII comes equipped with two category "0", 3-point hitches that are hydraulically operated with a lift capacity of over 325 kilograms each. Both front and rear axles are adjustable to accommodate row widths up to 180 centimeters.
Handles in Tight Spots.
With individual, left and right brakes, the GII has a turning radius of 2.3 meters. This radius combined with instant forward-and-reverse hydraulic drive makes it maneuverable in tight areas.
Designed for the Worker and the Job.
The GII gives the driver comfort, easy turning and great visibility. The tractor has a full 51 centimeter ground clearance. The GII offers easy service, low purchase cost, low maintenance cost, and low cost of operation. It uses only about 3.5 liters of gas per hour. Diesel engines are also available.
Makes it Through Wet Ground.
The GII Tractor is light weight to prevent bogging down in wet field conditions. The rear engine design places weight over rear wheels for better traction. Mid-mounted implements evenly distribute the load and add traction as they bite into the ground. Most GII implements mount in front of the operator; visible at all times.
The GII Tractor Is What You've Been Waiting For.

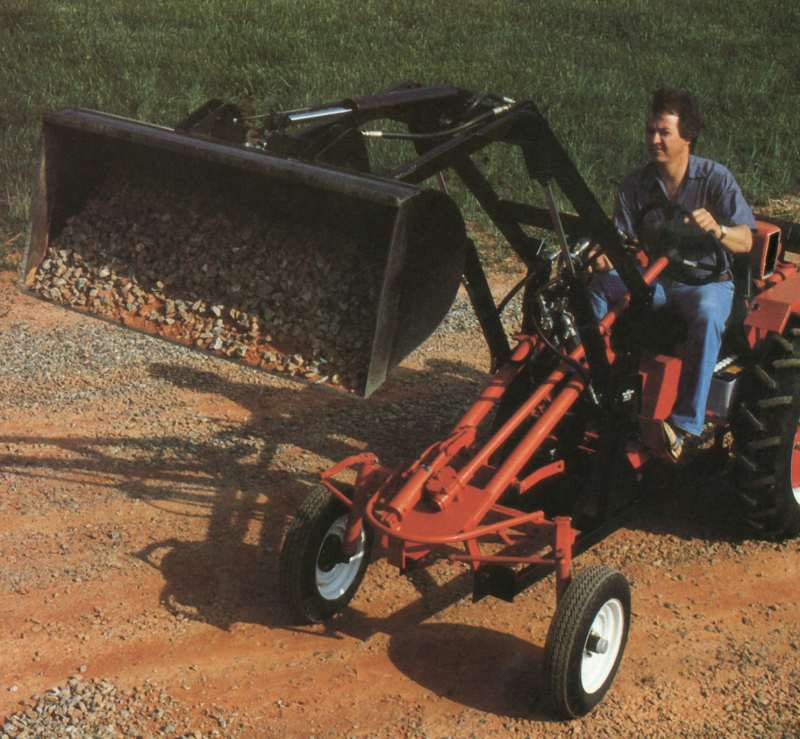

Shown on cover: Tractor with Cultivator. Shown above: Tractor with Front End Loader.
Other implements and accessories available but not shown: Wheel Weights, Front Bumper and Weight, Draw Bar, Cultivator Fenders, Lay-Off Attachment, Wood Splitter, Dual Tires, Diesel Engine, and Paddy Wheel Adaptor.
The GII Tractor Stays Out of the Shop and in the Field
Hitches:Two three-point hitches -- Category "0" -- with individual Hydraulic lifts -- 325 kg lifting capacity.
Transmission:Variable speed Sundstrand Hydrostatic with built-in cooling system, driving through a 3 speed transmission.
Engine:16 hp Kohler with cast iron block, electrical starter and 15 amp alternator. 14.7 hp and 17 hp Lombardini Diesel with electric start or rope start available on request.
Electrical System:12 volt battery, electrical starter,15 amp alternator.
Brakes:Individual, left and right band.
Tires:Rear,8.3-24;front 4.00-12.
Length:Wheelbase 1.83 m -- Overall -- 2.92 m
Turning Radius:2.13m
Height:1.45m to top of steering wheel.
Weight:585 kg
Crop Clearance:51 cm
Steering:Ross Gear
Wheel Width Adjustment:Front:96 cm minimum,152 cm maximum.(1cm increments). Rear:91 cm minimum,117 cm maximum (variable increments).With optional kit,152 cm to 183 cm front. Rear from 122 cm to 1 83 cm.
Gas Tank Capacity:11.5 liters.
Frame:Heavy duty, unitized, tubular steel constructed frame.
Final Drive:Heavy duty -- all gear.
Contact Your Dealer for a Demonstration Today!
[Source:Simplicity brochure, GII TRACTOR, 820501-02 AD-118, 1982?, courtesy of Earl Yetman]
Edited by Tgtack - 10 Jun 2019 at 6:42pm
