AC Farm Wagon ?
 Post Reply Post Reply
Author
Message
  Topic Search Topic Search  Topic Options Topic Options
rustyorange45 View Drop Down
Silver Level Access
Silver Level Access


Joined: 01 Sep 2013
Location: Vernon Co. MO.
Points: 392 		Post Options Post Options   Thanks (0) Thanks(0)   Quote rustyorange45 Quote  Post ReplyReply Direct Link To This Post Topic: AC Farm Wagon ?
    Posted: 01 Nov 2018 at 8:40pm
How many models of farm wagons did Allis Chalmers make? I would like to find one with removable sides and a hoist. Are they a common find or few and far between? What price? Thanks, Tim
1953 WD45 WF/Model 90 Loader, Oxnard Rear Blade, 80R Mower, Model 209 Disc, WD Rear Mounted Scoop, Model 184 & 160 Rotary Mowers, 1952 CA NF/L306CA mower, 1953 CA WF/Model 8 Loader.
Back to Top
Sponsored Links


Back to Top
bauerd44 View Drop Down
Silver Level Access
Silver Level Access
Avatar

Joined: 11 Sep 2009
Location: Wentzville, MO
Points: 350 		Post Options Post Options   Thanks (0) Thanks(0)   Quote bauerd44 Quote  Post ReplyReply Direct Link To This Post Posted: 01 Nov 2018 at 9:33pm

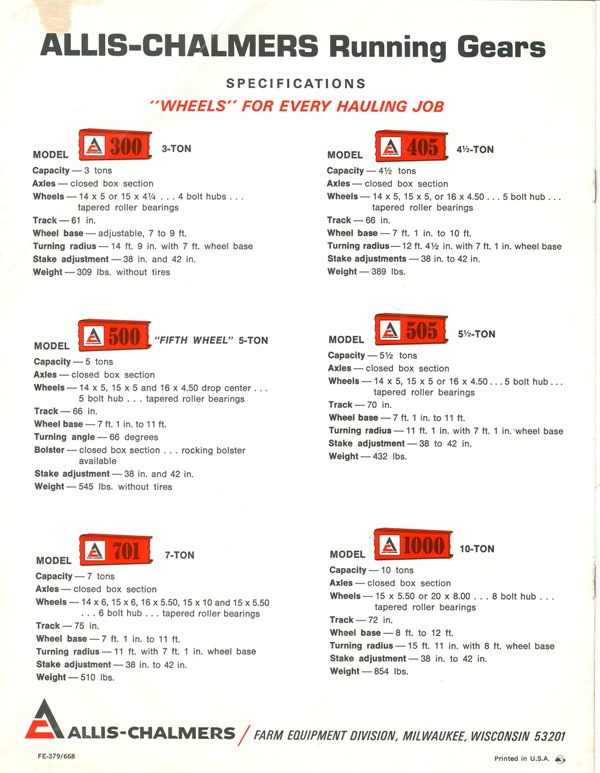

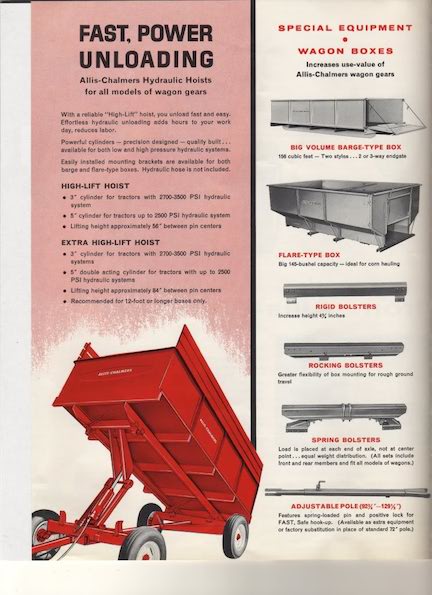

Here is one piece of information that I have.



Edited by bauerd44 - 01 Nov 2018 at 9:36pm
Missouri Allis-Chalmers Club
CA Allis, 175 Allis, 185 Allis
Back to Top
AC7060IL View Drop Down
Orange Level
Orange Level
Avatar

Joined: 19 Aug 2012
Location: central IL
Points: 3499 		Post Options Post Options   Thanks (0) Thanks(0)   Quote AC7060IL Quote  Post ReplyReply Direct Link To This Post Posted: 01 Nov 2018 at 10:43pm
There are also the following models;
605 ~6 1/2 ton,
700 ~ 7 ton (initial 7 ton followed by the later 701 model),
800 ~ 8 ton, (maybe a later 801 with front tierod?)
1001, & 1010 ~ both later 10 ton models after the 1000. 1010 has front tierod

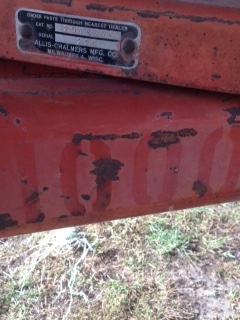

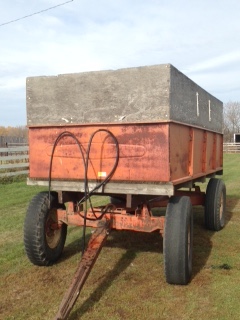

This wagon below is an early AC 1000 model gear @ 10 ton capacity with 8 bolt wheel pattern.


This is a J&M gravity box on a later AC 1010 model gear with front tierod design & 8 bolt wheel pattern.



Edited by AC7060IL - 01 Nov 2018 at 10:57pm
Back to Top
Matt MN View Drop Down
Orange Level
Orange Level
Avatar

Joined: 14 Sep 2009
Location: Silver lake MN
Points: 1491 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Matt MN Quote  Post ReplyReply Direct Link To This Post Posted: 02 Nov 2018 at 12:33pm
I would like to find one of the smaller 300 or 305 wagons to add to my collection, does any body have a picture of one?
Unless your are the lead horse the scenery never changes!!
Back to Top
AC7060IL View Drop Down
Orange Level
Orange Level
Avatar

Joined: 19 Aug 2012
Location: central IL
Points: 3499 		Post Options Post Options   Thanks (0) Thanks(0)   Quote AC7060IL Quote  Post ReplyReply Direct Link To This Post Posted: 04 Jul 2019 at 12:52pm

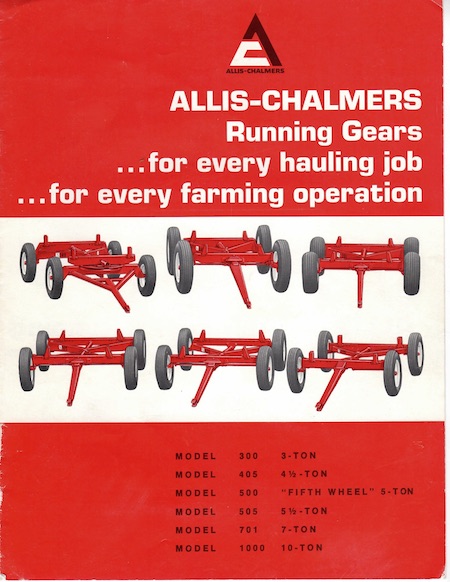

This is a copy of the AC running gears sales brochure’s front cover printed June 1968.
Lower row, from left to right: 505, 405, 300.
Upper row, from left to right: 500, 1000, 701.

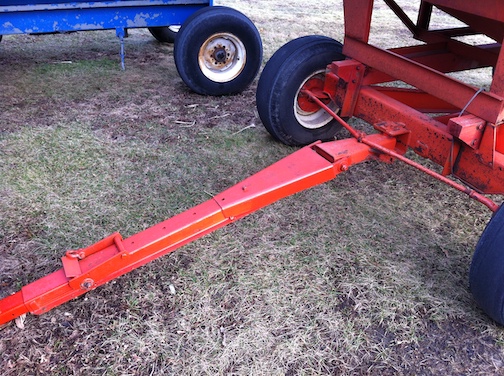

 All of these models, except for 500, have their tie-rod assemblies positioned behind the front axle beam. Later 810? & 1010 models had their tie-rod assemblies positioned ahead of the front axle beam. Heres a photo of an AC 1010 model's front tie-rod.






Edited by AC7060IL - 04 Jul 2019 at 5:45pm
Back to Top
AC7060IL View Drop Down
Orange Level
Orange Level
Avatar

Joined: 19 Aug 2012
Location: central IL
Points: 3499 		Post Options Post Options   Thanks (0) Thanks(0)   Quote AC7060IL Quote  Post ReplyReply Direct Link To This Post Posted: 04 Jul 2019 at 12:54pm

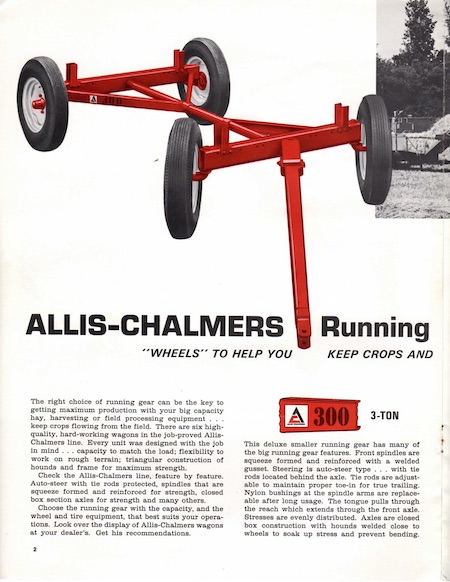

This is page 2 of that same AC running gear sales brochure. It showing a picture of the AC 300 model.

Edited by AC7060IL - 04 Jul 2019 at 5:47pm
