AC 80R Sickle Bar Cross bar bearing
 Post Reply Post Reply
Author
Message
  Topic Search Topic Search  Topic Options Topic Options
nichol1122 View Drop Down
Bronze Level
Bronze Level
Avatar

Joined: 28 May 2022
Location: Greenville, Il
Points: 6 		Post Options Post Options   Thanks (0) Thanks(0)   Quote nichol1122 Quote  Post ReplyReply Direct Link To This Post Topic: AC 80R Sickle Bar Cross bar bearing
    Posted: 28 May 2022 at 4:12pm
Any idea where to find a replacement cross bar bearing for an 80R sickle bar?
Back to Top
Sponsored Links


Back to Top
Mikez View Drop Down
Orange Level Access
Orange Level Access
Avatar

Joined: 16 Jan 2013
Location: Usa
Points: 8662 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Mikez Quote  Post ReplyReply Direct Link To This Post Posted: 28 May 2022 at 4:29pm
Do you have a early or late mower. Do you have caps with grease fittings
Welcome to the forum


Edited by Mikez - 28 May 2022 at 4:32pm
Back to Top
MACK View Drop Down
Orange Level
Orange Level


Joined: 17 Nov 2009
Points: 7664 		Post Options Post Options   Thanks (0) Thanks(0)   Quote MACK Quote  Post ReplyReply Direct Link To This Post Posted: 28 May 2022 at 10:23pm
Take it to your local auto parts store. They can match the number.                 MACK
Back to Top
Tracy Martin TN View Drop Down
Orange Level Access
Orange Level Access
Avatar

Joined: 11 Sep 2009
Location: Gallatin,TN
Points: 10722 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Tracy Martin TN Quote  Post ReplyReply Direct Link To This Post Posted: 28 May 2022 at 11:36pm
Those bearing are used in airplanes. I have ordered them before. I can't remember the place but I think it was in California. HTH Tracy
No greater gift than healthy grandkids!
Back to Top
RMD View Drop Down
Silver Level
Silver Level
Avatar

Joined: 07 Oct 2009
Location: Connecticut
Points: 304 		Post Options Post Options   Thanks (1) Thanks(1)   Quote RMD Quote  Post ReplyReply Direct Link To This Post Posted: 29 May 2022 at 12:30pm
They are KP-A series airplane control bearings.  Two different sizes were used on the mowers - check your dimensions against this site:
Back to Top
Alex09(WI) View Drop Down
Orange Level
Orange Level
Avatar

Joined: 15 Mar 2012
Location: CECIL WI
Points: 1733 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Alex09(WI) Quote  Post ReplyReply Direct Link To This Post Posted: 29 May 2022 at 12:59pm
We have most of those mower parts in stock. But will need to know if you have early or late mower like Mike mentioned.


www.awtractor.com
A&W TRACTOR 920-598-1287
KEEPING ALLIS-CHALMERS IN THE FIELDS THROUGH THE 21ST CENTURY
Back to Top
nichol1122 View Drop Down
Bronze Level
Bronze Level
Avatar

Joined: 28 May 2022
Location: Greenville, Il
Points: 6 		Post Options Post Options   Thanks (0) Thanks(0)   Quote nichol1122 Quote  Post ReplyReply Direct Link To This Post Posted: 30 May 2022 at 8:53am
I don’t need the bearings I am in need of the cross bar bushing.
I’m having a hard time uploading the pictures
Thanks
Back to Top
TomC View Drop Down
Orange Level Access
Orange Level Access
Avatar

Joined: 24 Nov 2017
Location: Hillsboro, MO
Points: 1549 		Post Options Post Options   Thanks (0) Thanks(0)   Quote TomC Quote  Post ReplyReply Direct Link To This Post Posted: 30 May 2022 at 9:48am
Try this guy in Iowa, can't remember his name but I have his number 641-572-0194, I restored a model 77 rake I needed a bunch of parts, he had them all and was very helpful and knowledgeable. He parts out a lot of equipment so he may have what you need or a good idea what to replace it with. Good guy
Back to Top
HudCo View Drop Down
Orange Level
Orange Level
Avatar

Joined: 29 Jan 2013
Location: Plymouth Utah
Points: 3831 		Post Options Post Options   Thanks (0) Thanks(0)   Quote HudCo Quote  Post ReplyReply Direct Link To This Post Posted: 30 May 2022 at 10:00am
do mean the knife head bushing with knotches on one end ?
Back to Top
nichol1122 View Drop Down
Bronze Level
Bronze Level
Avatar

Joined: 28 May 2022
Location: Greenville, Il
Points: 6 		Post Options Post Options   Thanks (0) Thanks(0)   Quote nichol1122 Quote  Post ReplyReply Direct Link To This Post Posted: 30 May 2022 at 12:06pm
Back to Top
nichol1122 View Drop Down
Bronze Level
Bronze Level
Avatar

Joined: 28 May 2022
Location: Greenville, Il
Points: 6 		Post Options Post Options   Thanks (0) Thanks(0)   Quote nichol1122 Quote  Post ReplyReply Direct Link To This Post Posted: 30 May 2022 at 12:07pm

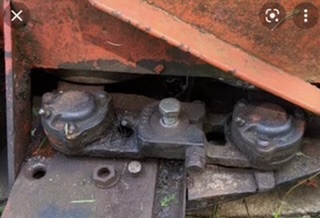

I’m needing the center bushing with the bolt. The bushing is grooved on the bottom side to fit into the knife head.
Back to Top
Mikez View Drop Down
Orange Level Access
Orange Level Access
Avatar

Joined: 16 Jan 2013
Location: Usa
Points: 8662 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Mikez Quote  Post ReplyReply Direct Link To This Post Posted: 30 May 2022 at 6:22pm
That is 803760 for the smooth
And 804518 for the serrated style
The bolt is 920704
Back to Top
Alex09(WI) View Drop Down
Orange Level
Orange Level
Avatar

Joined: 15 Mar 2012
Location: CECIL WI
Points: 1733 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Alex09(WI) Quote  Post ReplyReply Direct Link To This Post Posted: 05 Jun 2022 at 9:05pm

New old stock grooved bushing. $55. new bushing to knifehead bolt also in stock
www.awtractor.com
A&W TRACTOR 920-598-1287
KEEPING ALLIS-CHALMERS IN THE FIELDS THROUGH THE 21ST CENTURY
Back to Top
nichol1122 View Drop Down
Bronze Level
Bronze Level
Avatar

Joined: 28 May 2022
Location: Greenville, Il
Points: 6 		Post Options Post Options   Thanks (0) Thanks(0)   Quote nichol1122 Quote  Post ReplyReply Direct Link To This Post Posted: 06 Jun 2022 at 9:21am
I’ll take it! I can mail you a check or pay with PayPal. Let me know what I owe.

Thanks!

Sam Scott
1046 Schaufelberger Blvd
Greenville, Illinois 62246
Back to Top
Alex09(WI) View Drop Down
Orange Level
Orange Level
Avatar

Joined: 15 Mar 2012
Location: CECIL WI
Points: 1733 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Alex09(WI) Quote  Post ReplyReply Direct Link To This Post Posted: 06 Jun 2022 at 9:36am
I sent you a private message with the details

Originally posted by nichol1122 nichol1122 wrote:

I’ll take it! I can mail you a check or pay with PayPal. Let me know what I owe.
Thanks!

Sam Scott
1046 Schaufelberger Blvd
Greenville, Illinois 62246
www.awtractor.com
A&W TRACTOR 920-598-1287
KEEPING ALLIS-CHALMERS IN THE FIELDS THROUGH THE 21ST CENTURY
