80R mower balance spring bracket D14
 Post Reply Post Reply
Author
Message
  Topic Search Topic Search  Topic Options Topic Options
baverwolf View Drop Down
Orange Level
Orange Level


Joined: 24 May 2010
Location: SE Montana
Points: 828 		Post Options Post Options   Thanks (0) Thanks(0)   Quote baverwolf Quote  Post ReplyReply Direct Link To This Post Topic: 80R mower balance spring bracket D14
    Posted: 23 Jun 2018 at 7:16am
I'm currently resurrecting an 80R mower for use on a D14. I'm missing the brackets that attach to the right axle housing that the balance spring attaches to. Anyone have these brackets that would be willing to take a few pics and a few measurements for me?

Thanks!
Ben
Back to Top
Sponsored Links


Back to Top
ac160 View Drop Down
Silver Level
Silver Level


Joined: 02 Dec 2010
Points: 403 		Post Options Post Options   Thanks (0) Thanks(0)   Quote ac160 Quote  Post ReplyReply Direct Link To This Post Posted: 23 Jun 2018 at 7:44am

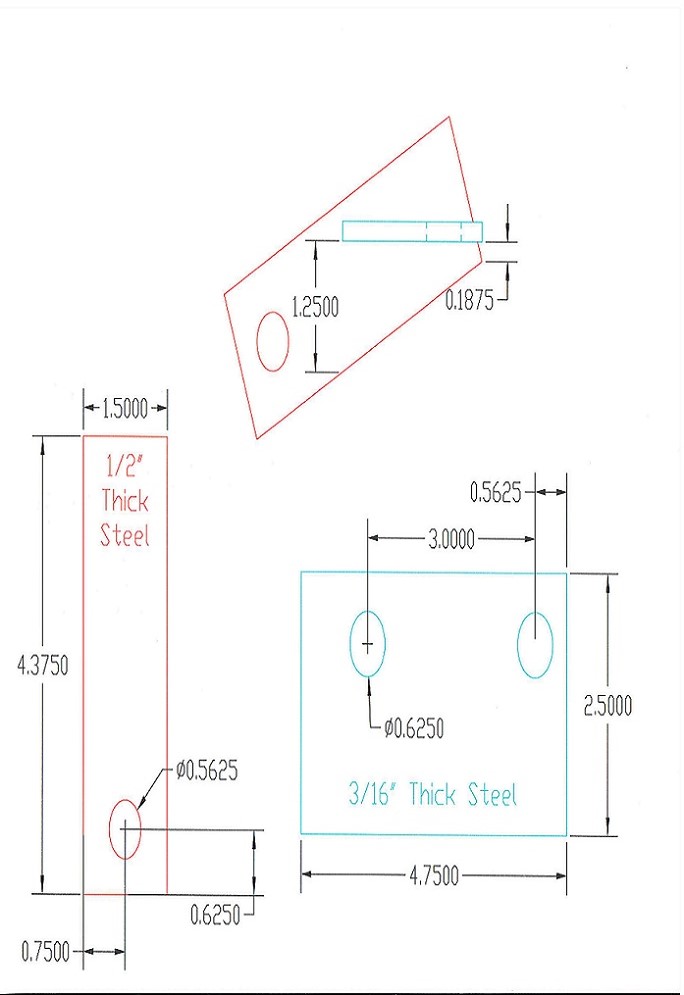

I will try to get some.  Here is a drawing with some dimensions.  It is from another forum member.  I have some notes as well I will try to add that are on my copy of the picture.
Back to Top
baverwolf View Drop Down
Orange Level
Orange Level


Joined: 24 May 2010
Location: SE Montana
Points: 828 		Post Options Post Options   Thanks (0) Thanks(0)   Quote baverwolf Quote  Post ReplyReply Direct Link To This Post Posted: 23 Jun 2018 at 8:17am
That's just what I was needing!
Thank you!
Back to Top
only AC orange View Drop Down
Orange Level Access
Orange Level Access


Joined: 06 Dec 2014
Location: Eastern Indiana
Points: 516 		Post Options Post Options   Thanks (0) Thanks(0)   Quote only AC orange Quote  Post ReplyReply Direct Link To This Post Posted: 23 Jun 2018 at 6:23pm
I use a piece of log chain about 4' long with hook on one end, wrap this around axle and hook back into itself at desired length for balance of mower.
