7060 transmission brake

 Post Reply Post Reply
Author
Message
Still.learning View Drop Down
Bronze Level
Bronze Level
Avatar

Joined: 19 Mar 2019
Location: Minster,ohio
Points: 7
Post Options Post Options   Thanks (0) Thanks(0)   Quote Still.learning Quote  Post ReplyReply Direct Link To This Post Topic: 7060 transmission brake
    Posted: 20 Mar 2019 at 5:01am
Hello, was wondering if anyone has replaced a transmission brake assembly by removing hydraulic pump and working through that opening. Thanks
Back to Top
Sponsored Links


Back to Top
GregStremel View Drop Down
Bronze Level
Bronze Level


Joined: 06 Aug 2013
Points: 81
Post Options Post Options   Thanks (0) Thanks(0)   Quote GregStremel Quote  Post ReplyReply Direct Link To This Post Posted: 20 Mar 2019 at 6:23am
Yes, my brother has done it on a 7060. Obviously must be done by touch. But it was MUCH easier than taking tractor apart.
Back to Top
MACK View Drop Down
Orange Level
Orange Level


Joined: 17 Nov 2009
Points: 7664
Post Options Post Options   Thanks (0) Thanks(0)   Quote MACK Quote  Post ReplyReply Direct Link To This Post Posted: 20 Mar 2019 at 6:33am
Make sure all free play is out of clutch, no thick floor mat under pedal, and bushing is not worn out in linkage before you go to that oily job. I have never saw one worn out.        MACK
Back to Top
DrAllis View Drop Down
Orange Level Access
Orange Level Access


Joined: 12 Sep 2009
Points: 21732
Post Options Post Options   Thanks (0) Thanks(0)   Quote DrAllis Quote  Post ReplyReply Direct Link To This Post Posted: 20 Mar 2019 at 7:09am
Mack is right. I have NEVER replaced a tranny brake. It is always worn/maladjusted linkage on the clutch pedal.
Back to Top
Alvin M View Drop Down
Orange Level
Orange Level


Joined: 24 Jun 2018
Location: PA
Points: 800
Post Options Post Options   Thanks (0) Thanks(0)   Quote Alvin M Quote  Post ReplyReply Direct Link To This Post Posted: 20 Mar 2019 at 8:14am
front of cable has a u bolt slide it back so fork has just a little play a big washer  I only replaced one brake disc that tractor was on big spreader used trans brake to stop tractor they don't wear out if used right I replaced a lot of brass bushings
Back to Top
Ben (MI) View Drop Down
Orange Level
Orange Level
Avatar

Joined: 02 Jun 2010
Location: SW Lower MI
Points: 760
Post Options Post Options   Thanks (0) Thanks(0)   Quote Ben (MI) Quote  Post ReplyReply Direct Link To This Post Posted: 20 Mar 2019 at 8:38am
When this discussion is complete, PLEASE put it on the knowledge database forum! Thank you.
Part time farming with a 1980 7060 and 1984 F3 hydro.
Back to Top
Lynn Marshall View Drop Down
Orange Level Access
Orange Level Access
Avatar

Joined: 13 Sep 2009
Location: Dana, Iowa
Points: 2368
Post Options Post Options   Thanks (0) Thanks(0)   Quote Lynn Marshall Quote  Post ReplyReply Direct Link To This Post Posted: 20 Mar 2019 at 7:09pm
I did one on a 7060 once that way. It was a tedious job,but if I would have had to do another one the next day,it probably would have been easier. This particular tractor had sheared the positioning pin in the piston.
Back to Top
Lynn Marshall View Drop Down
Orange Level Access
Orange Level Access
Avatar

Joined: 13 Sep 2009
Location: Dana, Iowa
Points: 2368
Post Options Post Options   Thanks (0) Thanks(0)   Quote Lynn Marshall Quote  Post ReplyReply Direct Link To This Post Posted: 20 Mar 2019 at 8:02pm

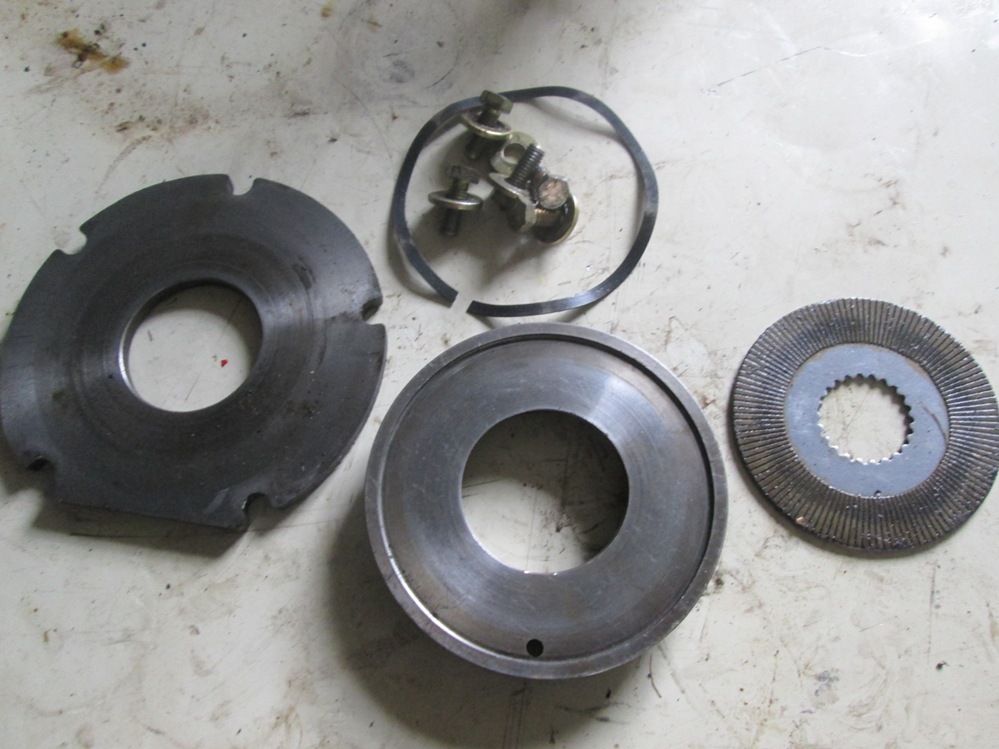

These pieces were out of an 8030. I had the transmission out of that tractor. Long arms help if you are going to do it up through the hole.
Back to Top
Still.learning View Drop Down
Bronze Level
Bronze Level
Avatar

Joined: 19 Mar 2019
Location: Minster,ohio
Points: 7
Post Options Post Options   Thanks (0) Thanks(0)   Quote Still.learning Quote  Post ReplyReply Direct Link To This Post Posted: 20 Mar 2019 at 8:44pm
Thanks for the advice and replies. I put gauges in the ports like the books says and I have 200 psi  at both ports and one  goes to 0 psi when clutch is depressed. Installed a new cable from the foot pedal to the valve and took all the free play out with the u bolt adjustment, bushings were ok.  With the foot pedal depressed, I took a prybar and tried to pull the spool out further, but there was no movement. Will put a gauge on the line as close to the transmission brake fitting as I can, I assume it should also read 200 psi. , if it does then would you think the brake needs replaced? Thanks
Back to Top
Lynn Marshall View Drop Down
Orange Level Access
Orange Level Access
Avatar

Joined: 13 Sep 2009
Location: Dana, Iowa
Points: 2368
Post Options Post Options   Thanks (0) Thanks(0)   Quote Lynn Marshall Quote  Post ReplyReply Direct Link To This Post Posted: 20 Mar 2019 at 9:28pm
It's always possible to have warped clutch plates in the power director. If that's the case,then that small brake disc can't stop the clutch pack from turning very easily.
Back to Top
Still.learning View Drop Down
Bronze Level
Bronze Level
Avatar

Joined: 19 Mar 2019
Location: Minster,ohio
Points: 7
Post Options Post Options   Thanks (0) Thanks(0)   Quote Still.learning Quote  Post ReplyReply Direct Link To This Post Posted: 21 Mar 2019 at 8:38am
Thanks for the reply, as of now, I plan on changing the $40 pad and if that doesn’t stop the grinding, split it at the engine and fix power director clutches. Make sense to you? Thanks
Back to Top
DrAllis View Drop Down
Orange Level Access
Orange Level Access


Joined: 12 Sep 2009
Points: 21732
Post Options Post Options   Thanks (0) Thanks(0)   Quote DrAllis Quote  Post ReplyReply Direct Link To This Post Posted: 22 Mar 2019 at 7:16am
Doesn't make good sense to me.  I have changed ONE of those tranny brakes in the last 40 yrs and it wasn't fun. You have to drain all the transmission oil anyway to perform what you want to do. Why wouldn't you then remove the sump underneath the Power Director clutch and give the clutch a visual physical at EVERY possible spot to see if there is any space differences in the discs and separator plates ?? This means rotating the clutch 360 degrees to see all viewing areas. You already have the oil drained. All it will require is the removal of eight 3/8" bolts and some RTV to reseal when done. If you find something suspect, the brake replacement maybe isn't needed. It seems to me the late black belly units had a lube hole drilled in something that may have actually made the brake a little less effective than an older version ?? I'd have to research that thought. That's what I'd be doing, but you do whatever you want.
Back to Top
Leon B MO View Drop Down
Orange Level
Orange Level


Joined: 12 Sep 2009
Location: Old Monroe, Mo
Points: 2181
Post Options Post Options   Thanks (0) Thanks(0)   Quote Leon B MO Quote  Post ReplyReply Direct Link To This Post Posted: 22 Mar 2019 at 7:45am
Two years ago I bought a 7060 that would grind no matter how warm the oil was. Wound up removing sump plate and found the spaces between clutch plates were eradic. Split tractor and found two of the waffer springs had collasped. Now at first start up, it will want to grind a bit until the oil warms up. But I can live with that. Good luck with your unit.
Leon B Mo
Uncle always said "Fill the back of the shovel and the front will take care of itself".
Back to Top
Still.learning View Drop Down
Bronze Level
Bronze Level
Avatar

Joined: 19 Mar 2019
Location: Minster,ohio
Points: 7
Post Options Post Options   Thanks (0) Thanks(0)   Quote Still.learning Quote  Post ReplyReply Direct Link To This Post Posted: 19 Apr 2019 at 11:46pm
Hello, you guys were right. I finally found time to work on the 7060 with the air temperature now at 60 degrees.  Left the oil get hot instead of just warm and the grinding of the gears decreased immensely. Don't need to split it yet. Thanks to all.
Back to Top
