7060 exhaust question
 Post Reply Post Reply
Author
Message
  Topic Search Topic Search  Topic Options Topic Options
AC 426 power View Drop Down
Orange Level Access
Orange Level Access
Avatar

Joined: 01 May 2012
Location: Ohio
Points: 519 		Post Options Post Options   Thanks (0) Thanks(0)   Quote AC 426 power Quote  Post ReplyReply Direct Link To This Post Topic: 7060 exhaust question
    Posted: 29 Apr 2019 at 4:26pm

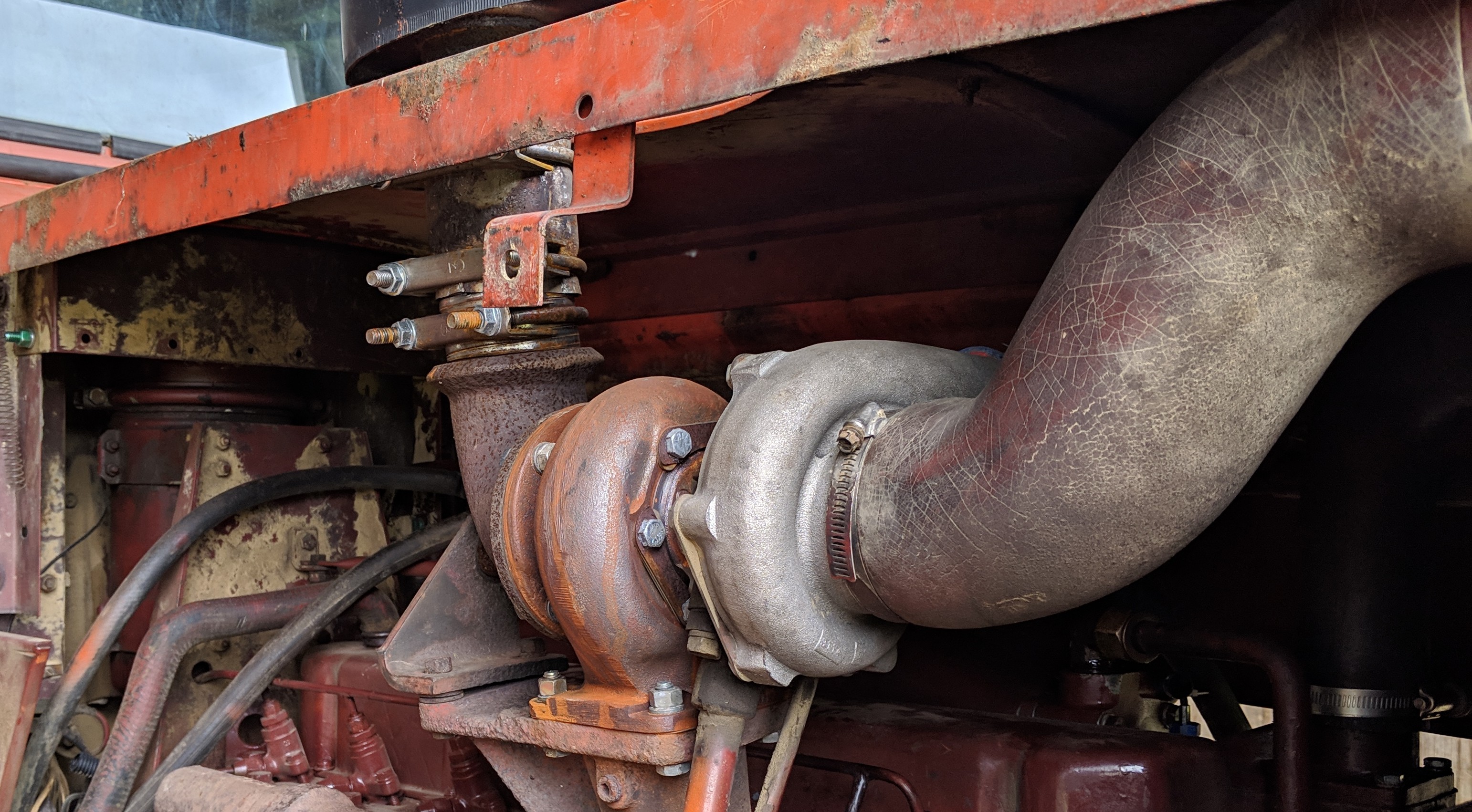

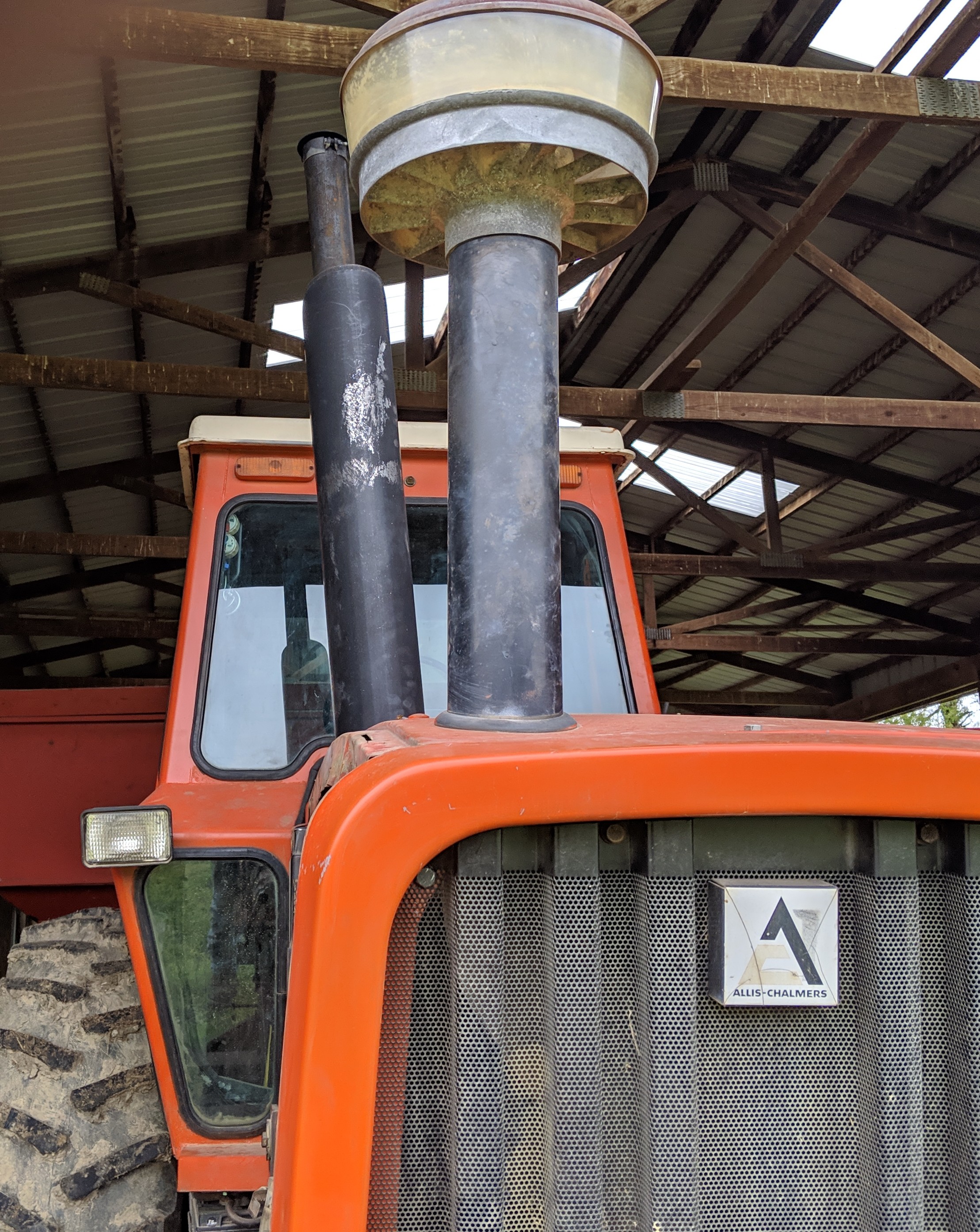

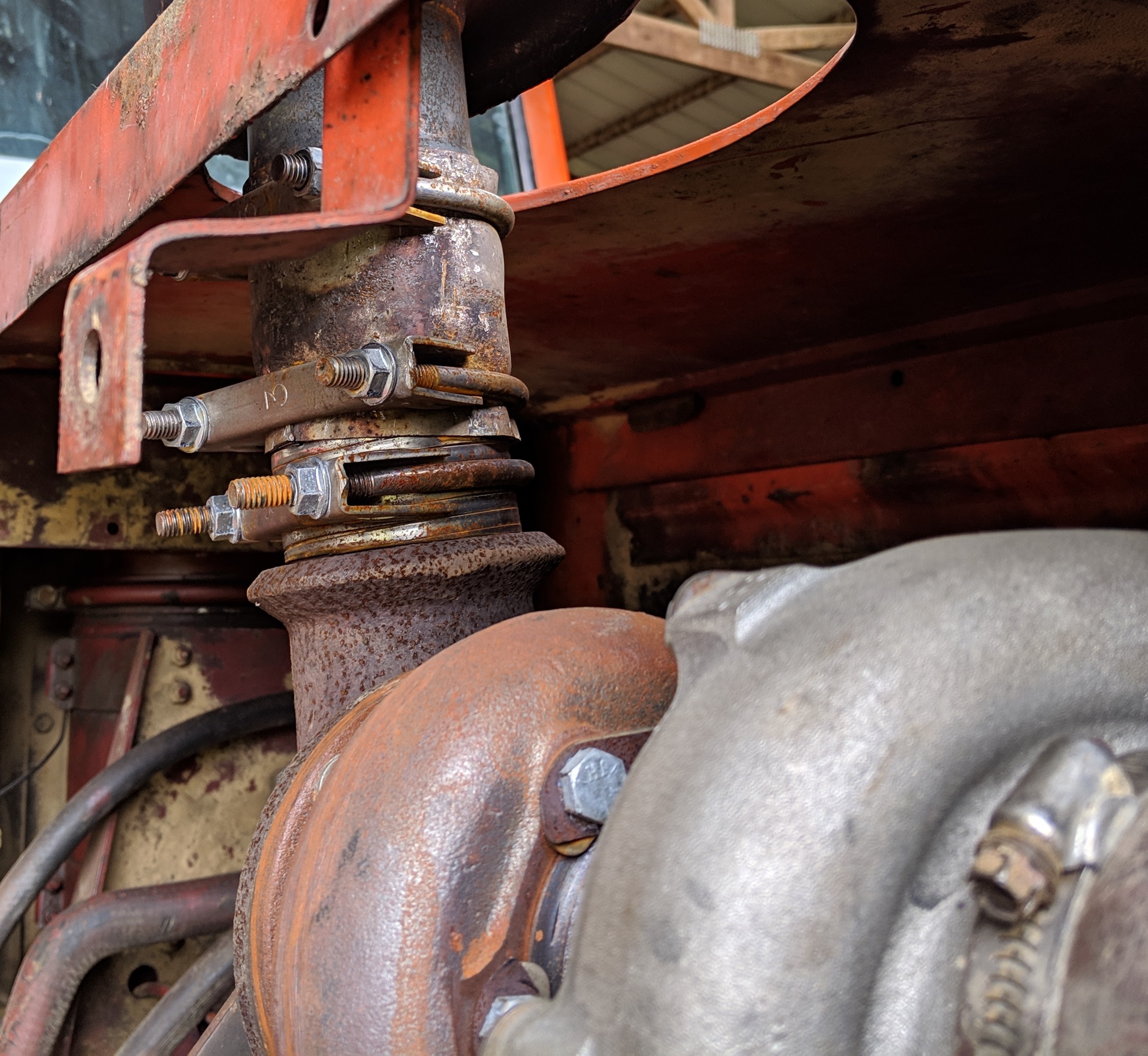

Got a 7060 that ever since I've had it for like 10 years now has had a exhaust pipe that is angled off to the left, making it impossible to fit the factory muffler without using some type of adapter, for years I ran straight pipe but getting tired of the loud noise. It looks like it should to me, I did replace the elbow a few years back but it was the same then as well. Here's a few pics, any ideas? Thanks!
Back to Top
Sponsored Links


Back to Top
Ron(AB) View Drop Down
Orange Level
Orange Level
Avatar

Joined: 27 Dec 2009
Location: Alberta
Points: 959 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Ron(AB) Quote  Post ReplyReply Direct Link To This Post Posted: 29 Apr 2019 at 7:24pm
There is something strange about that turbo?

I'll take a pic of my 7050 and we can compare.
Back to Top
SteveM C/IL View Drop Down
Orange Level Access
Orange Level Access


Joined: 12 Sep 2009
Location: Shelbyville IL
Points: 8519 		Post Options Post Options   Thanks (0) Thanks(0)   Quote SteveM C/IL Quote  Post ReplyReply Direct Link To This Post Posted: 29 Apr 2019 at 10:56pm
looks like a "center" mount where it should be the "offset" mount? Think the one on my 220 is centered over exhaust port and my 8070 is set off to the side some. Possible? Thinking it is not turbo for that tractor.

Edited by SteveM C/IL - 29 Apr 2019 at 10:57pm
Back to Top
DrAllis View Drop Down
Orange Level Access
Orange Level Access


Joined: 12 Sep 2009
Points: 21471 		Post Options Post Options   Thanks (0) Thanks(0)   Quote DrAllis Quote  Post ReplyReply Direct Link To This Post Posted: 30 Apr 2019 at 7:22am
That is a non-AGCO replacement part that was made wrong  !!!!     I have seen that before. It should have been taken right back to wherever it was purchased and demanded another correct one or a refund of $$$$$$$.   Your choices are drill 4 more holes to clock it where it should be or buy another one that is correct.
Back to Top
Alvin M View Drop Down
Orange Level
Orange Level


Joined: 24 Jun 2018
Location: PA
Points: 792 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Alvin M Quote  Post ReplyReply Direct Link To This Post Posted: 30 Apr 2019 at 7:54am
 Yes Dr AllisI saw them too they were just drilled off to the one side
Back to Top
allisrutledge View Drop Down
Orange Level
Orange Level


Joined: 30 Mar 2010
Location: SurgoinsvilleTN
Points: 1358 		Post Options Post Options   Thanks (0) Thanks(0)   Quote allisrutledge Quote  Post ReplyReply Direct Link To This Post Posted: 30 Apr 2019 at 11:48am
Take the elbo to a machine shop and ask them to slot the holes counter clockwise .375 and you should have enough room to move it straight
Allis Chalmers still exist in my mind and barns
Back to Top
Ron(AB) View Drop Down
Orange Level
Orange Level
Avatar

Joined: 27 Dec 2009
Location: Alberta
Points: 959 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Ron(AB) Quote  Post ReplyReply Direct Link To This Post Posted: 30 Apr 2019 at 2:15pm

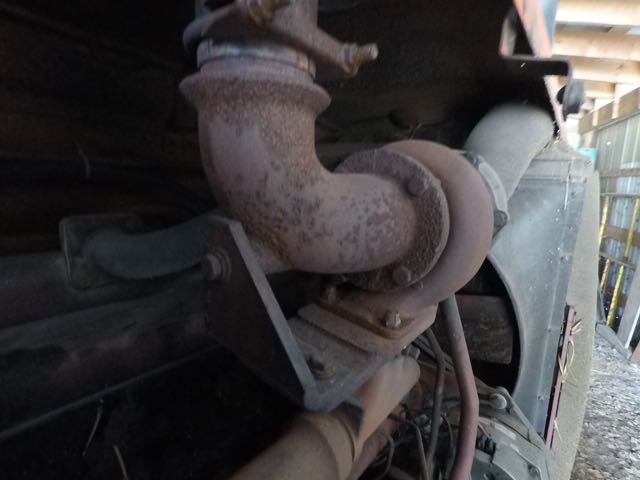

Here's a couple pics of a 7050.





The elbow has an offset.
Back to Top
AC 426 power View Drop Down
Orange Level Access
Orange Level Access
Avatar

Joined: 01 May 2012
Location: Ohio
Points: 519 		Post Options Post Options   Thanks (0) Thanks(0)   Quote AC 426 power Quote  Post ReplyReply Direct Link To This Post Posted: 30 Apr 2019 at 8:37pm
Originally posted by DrAllis DrAllis wrote:


That is a non-AGCO replacement part that was made wrong  !!!!     I have seen that before. It should have been taken right back to wherever it was purchased and demanded another correct one or a refund of $$$$$$$.   Your choices are drill 4 more holes to clock it where it should be or buy another one that is correct.
Thanks dr, makes total sense.
Back to Top
AC 426 power View Drop Down
Orange Level Access
Orange Level Access
Avatar

Joined: 01 May 2012
Location: Ohio
Points: 519 		Post Options Post Options   Thanks (0) Thanks(0)   Quote AC 426 power Quote  Post ReplyReply Direct Link To This Post Posted: 30 Apr 2019 at 8:39pm
Thanks for the pics Ron, I'll know how it's supposed to look when I do the repair.
