7020 wiring diagram

 Post Reply Post Reply
Author
Message
Paulb66 View Drop Down
Bronze Level
Bronze Level


Joined: 04 Jul 2018
Location: Mo
Points: 21
Post Options Post Options   Thanks (0) Thanks(0)   Quote Paulb66 Quote  Post ReplyReply Direct Link To This Post Topic: 7020 wiring diagram
    Posted: 03 Sep 2019 at 8:15pm
I just had the power shift rebuilt in my 7020 and now it drains the batteries when it sits. Iv been trying to trace it down with my test light between the battery ground and ground cable but haven’t had any luck. If someone has a wiring diagram that would sure help. I found a post on here but the pictures don’t load at least not for me. Mines a black belly. Any help would be appreciated. My light goes out when I unhook the big red wire going to the cab from the circuit breaker but that doesn’t narrow it down much.
Back to Top
Sponsored Links


Back to Top
LB0442 View Drop Down
Orange Level
Orange Level
Avatar

Joined: 27 Dec 2014
Location: Boise ID
Points: 767
Post Options Post Options   Thanks (0) Thanks(0)   Quote LB0442 Quote  Post ReplyReply Direct Link To This Post Posted: 03 Sep 2019 at 8:44pm

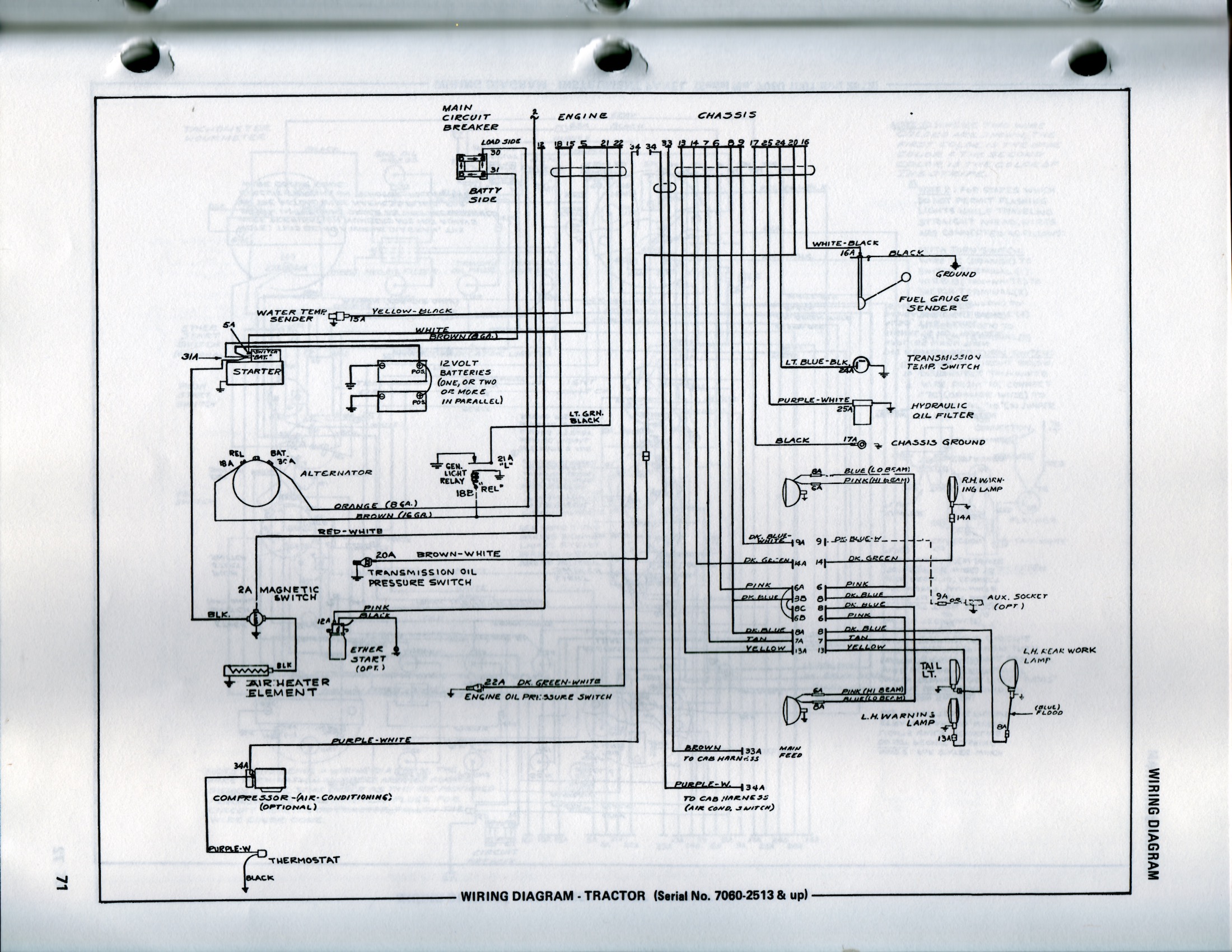

Here is couple from a black 7060 I posted for someone else a while ago.
