7010 AC Part ID??

Second photo:

i think that's whats left of the thermal limiter fuse for the air conditioning system!

1-B's, 2-C, 2-CA's,2-WF, 1-WC,1-G, 3-WD's, 2-WD45, 1-RC, 1-D17 Diesel, 1-D14, 2-D15,1-D17 row crop,1-D19 gas and All Crop 40,60,66,72,90 and 100

I agree with the bypassing

Stolen from the internet, cause I am too lazy to type.......

A thermal limiter is much like a fuse. This device was used on many General Motors cars and trucks during the mid to late 1970s and was designed to help protect the compressor inside the air conditioner. The thermal limiter switch keeps the clutch in the air conditioner from engaging when the air conditioning system is low in refrigerant. The superheat switch sends the information to the thermal limiter switch to prevent the clutch from engaging. When refrigerant levels in the air conditioning system are too low, the evaporator within the system will be forced into superheat conditions. This simply means that the vapor from the refrigerant in the system’s evaporator will become overheated. When the superheat switch, which is located in the rear head of the air conditioner’s compressor, gets the signal that the evaporator is being overheated, it will send the message to the thermal limiter switch which will in turn completely shut down the air conditioning system within the vehicle. This is done to prevent damage or failure of the system.

Still in use:
HD7 WC C CA WD 2-WD45 WD45LP WD45D D14 3-D17 D17LP 2-D19D D19LP 190XTD 190XTLP 720 D21 220 7020 7030 7040 7045 3-7060
Projects: 3-U UC 2-G 2-B 2-C CA 7-WC RC WDLP WF D14 D21 210 7045 N7

a words of caution - if the coil on the compressor clutch is drawing too many amps it will blow the fuse,,, by passing it will eventually melt the harness..// check the amp draw on the coil - should not be over 5-6 amps. country boy way to check is take a 12v powered wire and touch it to the coil wire with a 5 amp fuse in-between - should not blow fuse.

When told "it's not the money,it's the principle", remember, it's always the money..

	This site is not affiliated with AGCO Inc., Duluth GA., Allis-Chalmers Co., Milwaukee, WI., or any surviving or related corporate entity. All trademarks remain the property of their respective owners. All information presented herein should be considered the result of an un-moderated public forum with no responsibility for its accuracy or usability assumed by the users and sponsors of this site or any corporate entity.
	The Forum	Parts and Services	Unofficial Allis Store	Tractor Shows	Serial Numbers	History

Author	Message Topic Search Topic Options Post Reply Create New Topic Printable Version Translate Topic
Roscoe62 Members Profile Send Private Message Find Members Posts Add to Buddy List Silver Level Joined: 22 Aug 2014 Location: Louisville Points: 145	Post Options Post Reply Quote Roscoe62 Report Post Thanks(0) Quote Reply Topic: 7010 AC Part ID?? Posted: 16 Mar 2017 at 4:13am

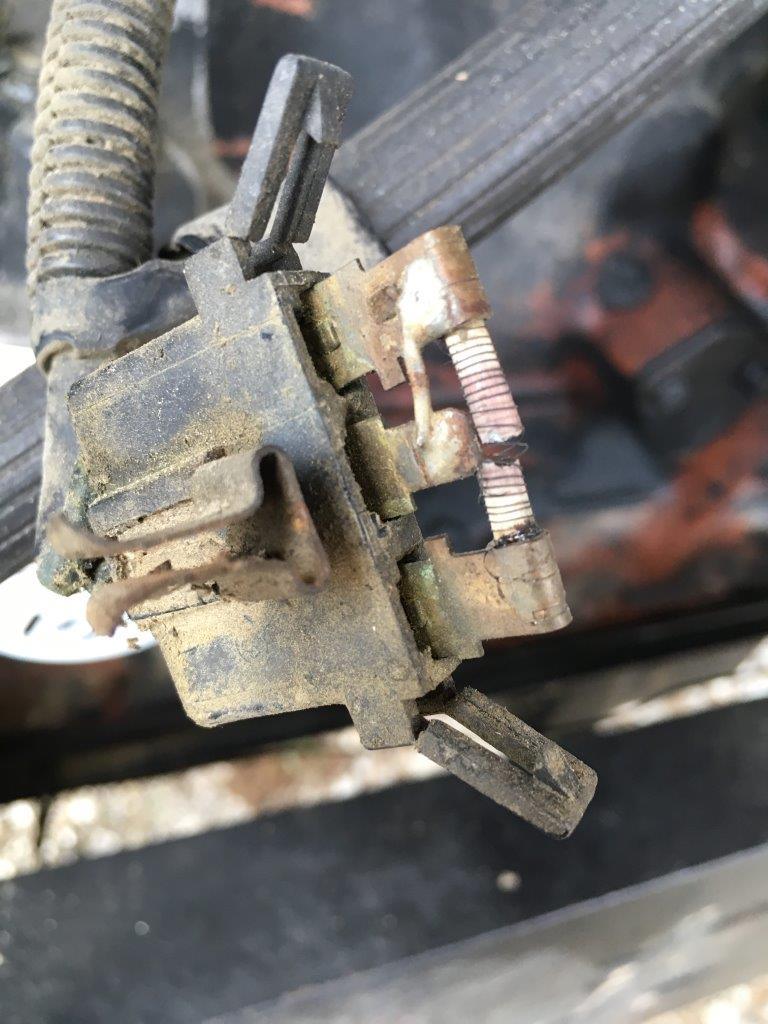

	Below are photos of a ?fuse? that is clipped to the block just in front of the coolant filter on my 7010. I must have bumped it when replacing the filter recently. What is this? The wire runs up to the air conditioning compressor. What do I look for when trying to find a new one? Thanks, Roscoe

Sponsored Links

Roscoe62 Members Profile Send Private Message Find Members Posts Add to Buddy List Silver Level Joined: 22 Aug 2014 Location: Louisville Points: 145	Post Options Post Reply Quote Roscoe62 Report Post Thanks(0) Quote Reply Posted: 16 Mar 2017 at 4:16am

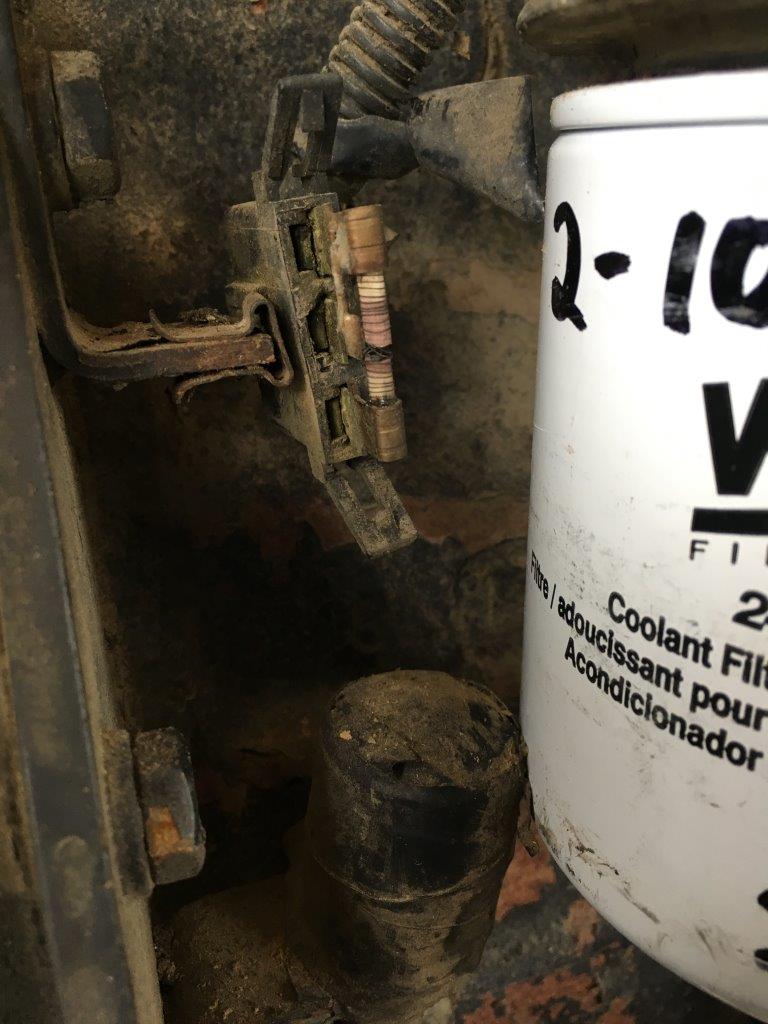

	Second photo:

Lynn Marshall Members Profile Send Private Message Find Members Posts Add to Buddy List Orange Level Access Joined: 13 Sep 2009 Location: Dana, Iowa Points: 2355	Post Options Post Reply Quote Lynn Marshall Report Post Thanks(0) Quote Reply Posted: 16 Mar 2017 at 7:16am
	It's a GM air conditioning fuse or sometimes called a thermal limiter. Any automotive parts store should have that.

WD45Diesel57 Members Profile Send Private Message Find Members Posts Add to Buddy List Orange Level Joined: 20 Jul 2010 Location: Varna, Ont. Can Points: 646	Post Options Post Reply Quote WD45Diesel57 Report Post Thanks(0) Quote Reply Posted: 16 Mar 2017 at 7:17am
	i think that's whats left of the thermal limiter fuse for the air conditioning system!
	1-B's, 2-C, 2-CA's,2-WF, 1-WC,1-G, 3-WD's, 2-WD45, 1-RC, 1-D17 Diesel, 1-D14, 2-D15,1-D17 row crop,1-D19 gas and All Crop 40,60,66,72,90 and 100

MACK Members Profile Send Private Message Find Members Posts Add to Buddy List Orange Level Joined: 17 Nov 2009 Points: 7664	Post Options Post Reply Quote MACK Report Post Thanks(0) Quote Reply Posted: 16 Mar 2017 at 7:18am
	Just ask for a GM air conditioner fuse or take it off and bypass it. MACK

farmboy520 Members Profile Send Private Message Find Members Posts Add to Buddy List Orange Level Access Joined: 22 Jun 2016 Location: Beason, IL Points: 553	Post Options Post Reply Quote farmboy520 Report Post Thanks(0) Quote Reply Posted: 16 Mar 2017 at 7:39am
	I agree with the bypassing

Roscoe62 Members Profile Send Private Message Find Members Posts Add to Buddy List Silver Level Joined: 22 Aug 2014 Location: Louisville Points: 145	Post Options Post Reply Quote Roscoe62 Report Post Thanks(0) Quote Reply Posted: 16 Mar 2017 at 8:57am
	So just stick a jumper wire in the two outside slots? Thanks! What is a thermal limiter supposed to do, anyway?

Orange Blood Members Profile Send Private Message Find Members Posts Add to Buddy List Orange Level Joined: 29 Nov 2010 Location: ColoradoSprings Points: 4053	Post Options Post Reply Quote Orange Blood Report Post Thanks(0) Quote Reply Posted: 16 Mar 2017 at 11:16am
	Stolen from the internet, cause I am too lazy to type....... A thermal limiter is much like a fuse. This device was used on many General Motors cars and trucks during the mid to late 1970s and was designed to help protect the compressor inside the air conditioner. The thermal limiter switch keeps the clutch in the air conditioner from engaging when the air conditioning system is low in refrigerant. The superheat switch sends the information to the thermal limiter switch to prevent the clutch from engaging. When refrigerant levels in the air conditioning system are too low, the evaporator within the system will be forced into superheat conditions. This simply means that the vapor from the refrigerant in the system’s evaporator will become overheated. When the superheat switch, which is located in the rear head of the air conditioner’s compressor, gets the signal that the evaporator is being overheated, it will send the message to the thermal limiter switch which will in turn completely shut down the air conditioning system within the vehicle. This is done to prevent damage or failure of the system.
	Still in use: HD7 WC C CA WD 2-WD45 WD45LP WD45D D14 3-D17 D17LP 2-D19D D19LP 190XTD 190XTLP 720 D21 220 7020 7030 7040 7045 3-7060 Projects: 3-U UC 2-G 2-B 2-C CA 7-WC RC WDLP WF D14 D21 210 7045 N7

Roscoe62 Members Profile Send Private Message Find Members Posts Add to Buddy List Silver Level Joined: 22 Aug 2014 Location: Louisville Points: 145	Post Options Post Reply Quote Roscoe62 Report Post Thanks(0) Quote Reply Posted: 16 Mar 2017 at 11:19am
	After reading that, I think I'll spend the $6 for a NOS Made in USA switch. Thanks!

tbran Members Profile Send Private Message Find Members Posts Add to Buddy List Orange Level Joined: 14 Sep 2009 Location: Paris Tn Points: 3500	Post Options Post Reply Quote tbran Report Post Thanks(0) Quote Reply Posted: 16 Mar 2017 at 8:38pm
	a words of caution - if the coil on the compressor clutch is drawing too many amps it will blow the fuse,,, by passing it will eventually melt the harness..// check the amp draw on the coil - should not be over 5-6 amps. country boy way to check is take a 12v powered wire and touch it to the coil wire with a 5 amp fuse in-between - should not blow fuse.
	When told "it's not the money,it's the principle", remember, it's always the money..
