 Topic: 4 wheel drive C
Posted: 24 Oct 2014 at 8:48pm |

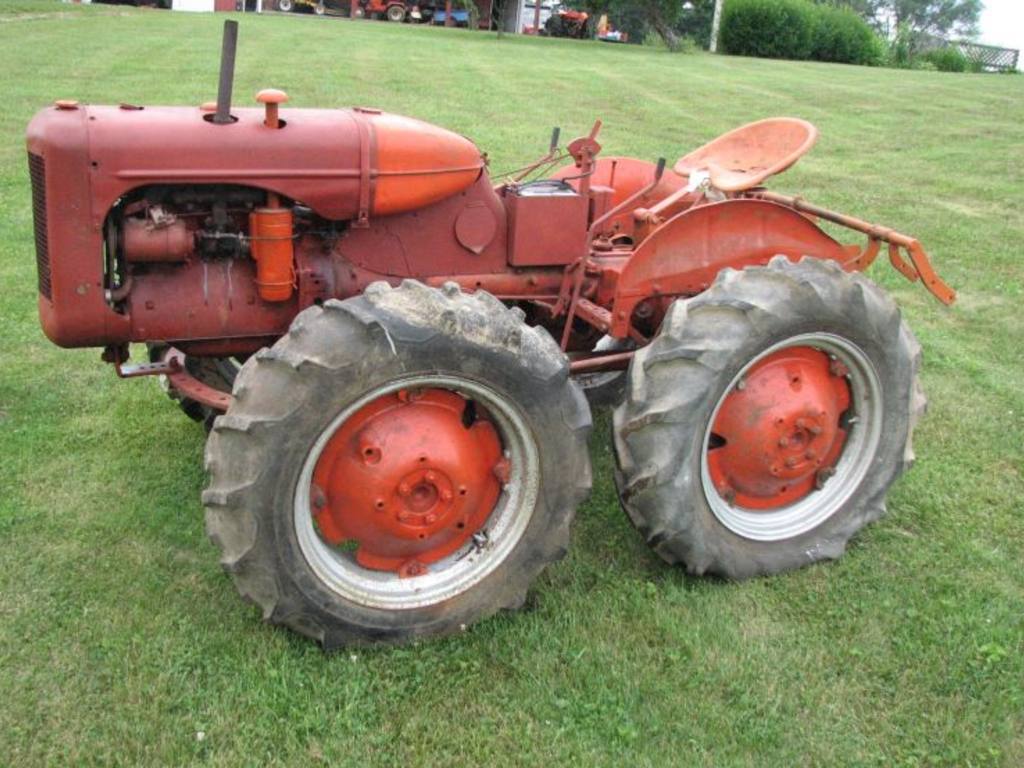

Anybody know about this tractor? I see they mounted a second set of final drives for the front axle but how would you steer?
|
 |
|
Sponsored Links
|
|
|
CTuckerNWIL
Orange Level
Joined: 11 Sep 2009
Location: NW Illinois
Points: 22822
|
Post Options
Thanks(0)
Quote Reply
Posted: 24 Oct 2014 at 8:54pm |
Either the front axle pivots, or you skid steer.The Power Horse was based on a B but turning took away too much power from forward motion as the outside wheel would speed up when stopping the inside wheel. http://www.farmcollector.com/tractors/power-horse-tractor.aspx#axzz3H7MYJEop
Edited by CTuckerNWIL - 24 Oct 2014 at 8:58pm
|
|
|
|
Daehler
Orange Level Access
Joined: 23 Nov 2010
Location: Lexington MO
Points: 1153
|
Post Options
Thanks(0)
Quote Reply
Posted: 24 Oct 2014 at 8:59pm |
|
That looks kinda like what a model H would be.
|
|
8070FWA,7080 BlackBelly, 7045,2 200s,D19,D17,G, WD,45,UC,7 AC mowers and lots more!
"IT TAKES 3 JD's TO OUT DO AN ALLIS, 2 TO MATCH IT IN THE FIELD AND 1 FOR PARTS!"
|
|
Don(MI)
Orange Level
Joined: 15 Sep 2009
Location: Michigan
Points: 3853
|
Post Options
Thanks(0)
Quote Reply
Posted: 24 Oct 2014 at 9:27pm |
|
Just thinkin out loud.....would be fun to make one and use it to skid logs from out back up to the yard. But then again...might be a little weak on the engine to skid if its turnin 4 wheels.
|
|
Galatians 5:22-24
"I got a pig at home in a pen and corn to feed him on, All I need is a pretty little girl to feed him when I'm gone!"
|
|
steve(ill)
Orange Level Access
Joined: 11 Sep 2009
Location: illinois
Points: 86102
|
Post Options
Thanks(0)
Quote Reply
Posted: 24 Oct 2014 at 9:40pm |
|
does it really have another set of final drives ? You need the bevel gear housing to drive the finals. That would be quite a bunch of mass under the engine oil pan... I don't see that. I would guess it has a front axle from a 4 wheel unit and that would include steering ??
|
|
Like them all, but love the "B"s.
|
|
DiyDave
Orange Level Access
Joined: 11 Sep 2009
Location: Gambrills, MD
Points: 53492
|
Post Options
Thanks(0)
Quote Reply
Posted: 25 Oct 2014 at 4:38am |
|
Google powermaster or H, this unit was made for a couple years. The original concept was a tractor that you could use to pull horse drawn equipment, it had control reins that you used, from the seat of the implement. It's main drawback was weakness in power in the turns...
|
|
Calvin Schmidt
Orange Level
Joined: 11 Sep 2009
Location: Ontario Can.
Points: 4529
|
Post Options
Thanks(0)
Quote Reply
Posted: 25 Oct 2014 at 5:50am |
|
Where did you take the picture? I'm sure this tractor is in the George Nesbitt collection here in Ontario. He bought it this past summer. I have more detailed pictures on another computer. It is supposed to be the prototype 'H' but I have my reservations.
|
|
Nothing is impossible if it is properly financed
|
|
Dick L
Orange Level
Joined: 12 Sep 2009
Location: Edon Ohio
Points: 5087
|
Post Options
Thanks(0)
Quote Reply
Posted: 25 Oct 2014 at 12:29pm |
 Sam (WI) wrote:
Anybody know about this tractor? I see they mounted a second set of final drives for the front axle but how would you steer?
|
Since it has no steering wheel my guess would be skid steer. Seeing the C drawbar out the front to hold the front of the engine it more than likely has a C final drive set in backwards and powered from the power take off using gears and roller chain. Looks like a CA torque tube. Of course anyone can guess anything and be totally wrong. Be fun to see up close.
|
|
TerryMN
Orange Level
Joined: 11 Sep 2009
Location: Rochester MN
Points: 201
|
Post Options
Thanks(0)
Quote Reply
Posted: 25 Oct 2014 at 6:57pm |
|
Home built tractor not the allis model h
It drives off the pto
It is neat and I respect the work the person put in. But it is not an allis chalmers prototype.
|
|
Calvin Schmidt
Orange Level
Joined: 11 Sep 2009
Location: Ontario Can.
Points: 4529
|
Post Options
Thanks(0)
Quote Reply
Posted: 25 Oct 2014 at 8:37pm |
|
Terry you are correct. The front drives from the PTO and the 'C' rear in the front is driven through the PTO. It is a skid steer but by braking not clutching. I didn't think it could have been the 'H' prototype either. It is not built as the prototype was discribed in Norm Swinford's book.
Edited by Calvin Schmidt - 26 Oct 2014 at 6:04am
|
|
Nothing is impossible if it is properly financed
|
|
DiyDave
Orange Level Access
Joined: 11 Sep 2009
Location: Gambrills, MD
Points: 53492
|
Post Options
Thanks(0)
Quote Reply
Posted: 26 Oct 2014 at 4:35am |
|
That certainly explains it, does it have the serial # stamped on upside down?
|
|
Gary
Orange Level Access
Joined: 13 Sep 2009
Location: Peterborough,On
Points: 5890
|
Post Options
Thanks(0)
Quote Reply
Posted: 26 Oct 2014 at 5:48am |
|
Tractor was sold at an Auction in June, 2014 in IN - $20,000
Gary
|
|
jaybmiller
Orange Level Access
Joined: 12 Sep 2009
Location: Greensville,Ont
Points: 24413
|
Post Options
Thanks(0)
Quote Reply
Posted: 26 Oct 2014 at 6:17am |
|
20G !
Wow ! for 1/4 of that you can have both my Bees and the C and make your own !
As much as I'd love to build one my 'job jar' is overflowing, my 'todo' list is 3 pages long and my hernias and back getting too old to haul big heavy things this week !
Sure would be a nice project though......
Jay
North of the 49th
kinda dark at 7 today,sigh....
|
|
3 D-14s,A-C forklift, B-112
Kubota BX23S lil' TOOT( The Other Orange Tractor)
Never burn your bridges, unless you can walk on water
|
|
Calvin Schmidt
Orange Level
Joined: 11 Sep 2009
Location: Ontario Can.
Points: 4529
|
Post Options
Thanks(0)
Quote Reply
Posted: 26 Oct 2014 at 6:24am |
|
It does have a serial number 24xxx on the main tractor. On the front, the axles and final drives are rotated 90 degrees forward and the drive is in through the PTO end. I did not check the front transmission for a serial number. I'm not familiar enough with a 'G' but I know the the engine is on the PTO end of the transmission so I don't what internal changes would have to be made to have this tractor drive both axles in all the gears.
|
|
Nothing is impossible if it is properly financed
|
|
Dusty MI
Orange Level
Joined: 13 Sep 2009
Location: Charlotte, Mi
Points: 5058
|
Post Options
Thanks(0)
Quote Reply
Posted: 26 Oct 2014 at 7:26am |
For the B & C there's a shaft that is driven from the front of the transmission, that goes through the transmission to drive the PTO. The G uses that shaft to drive the tranmission.
Dusty
|
|
917 H, '48 G, '65 D-10 series III "Allis Express"
|
|
Gary
Orange Level Access
Joined: 13 Sep 2009
Location: Peterborough,On
Points: 5890
|
Post Options
Thanks(0)
Quote Reply
Posted: 26 Oct 2014 at 8:00am |
|
Wonder what happens when you put the driving transmission in reverse ?
The PTO doesn't change direction, so front wheels would still be driving forward !!
I guess just shift PTO out of gear.
Gary
|
|
sparky
Orange Level Access
Joined: 13 May 2011
Location: So. Indiana
Points: 1732
|
Post Options
Thanks(0)
Quote Reply
Posted: 26 Oct 2014 at 12:39pm |
|
That's right It went for 20 G's. I was there at the Gayhart auction and I think it went to Canada....I think.
|
|
It's the color tractor my grandpa had!
|
|
DiyDave
Orange Level Access
Joined: 11 Sep 2009
Location: Gambrills, MD
Points: 53492
|
Post Options
Thanks(0)
Quote Reply
Posted: 26 Oct 2014 at 5:51pm |
Calvin Schmidt wrote:
It does have a serial number 24xxx on the main tractor. On the front, the axles and final drives are rotated 90 degrees forward and the drive is in through the PTO end. I did not check the front transmission for a serial number. I'm not familiar enough with a 'G' but I know the the engine is on the PTO end of the transmission so I don't what internal changes would have to be made to have this tractor drive both axles in all the gears. |
Might have the spider gears welded up to lock up both axles...
|
|
Gary
Orange Level Access
Joined: 13 Sep 2009
Location: Peterborough,On
Points: 5890
|
Post Options
Thanks(0)
Quote Reply
Posted: 26 Oct 2014 at 6:03pm |
|
If the axles were locked together, how would you turn by braking ??
Gary
|
|
arnfinn
Bronze Level
Joined: 12 Jan 2016
Location: Sweden
Points: 1
|
Post Options
Thanks(0)
Quote Reply
Posted: 12 Jan 2016 at 4:32am |

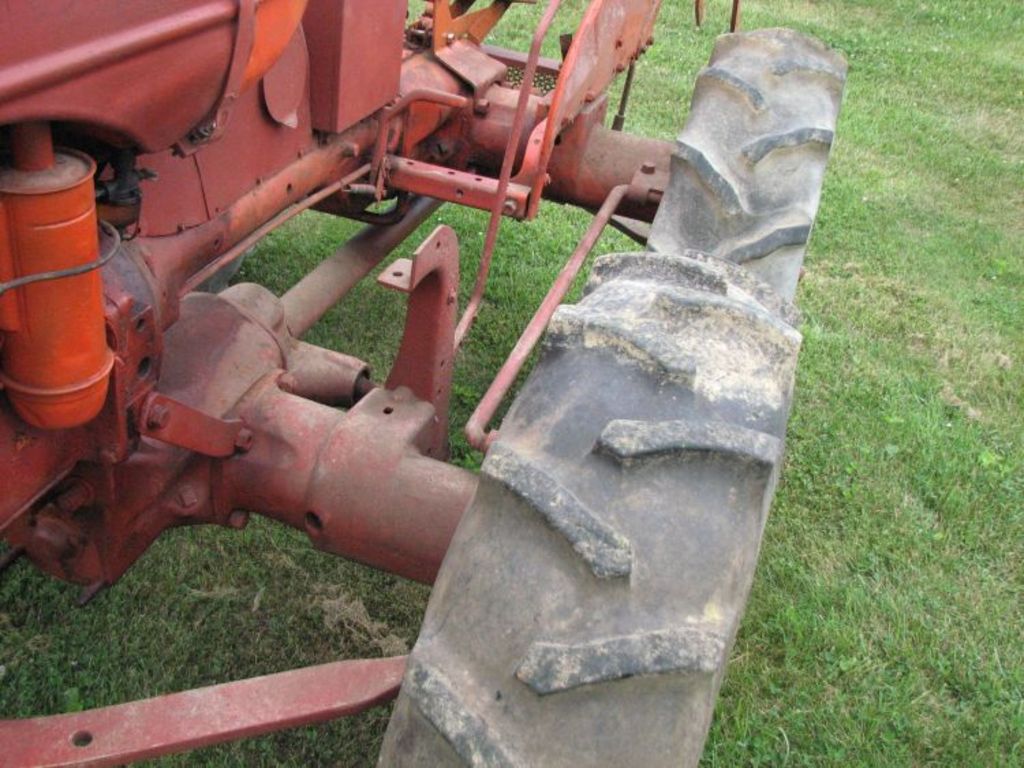

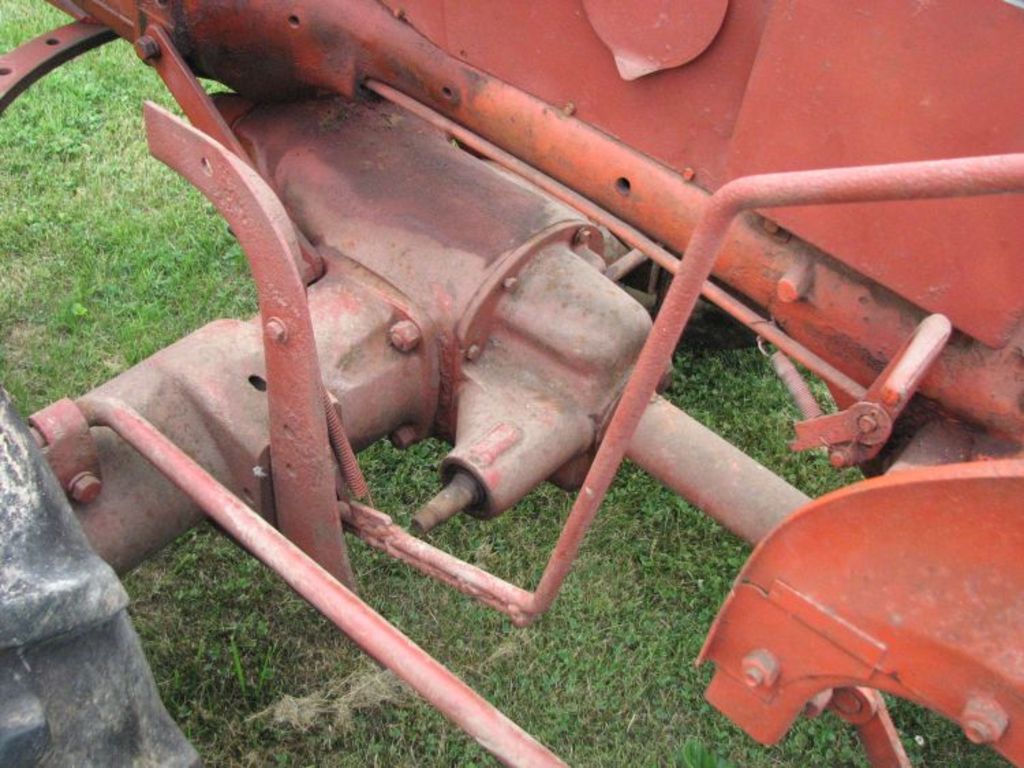

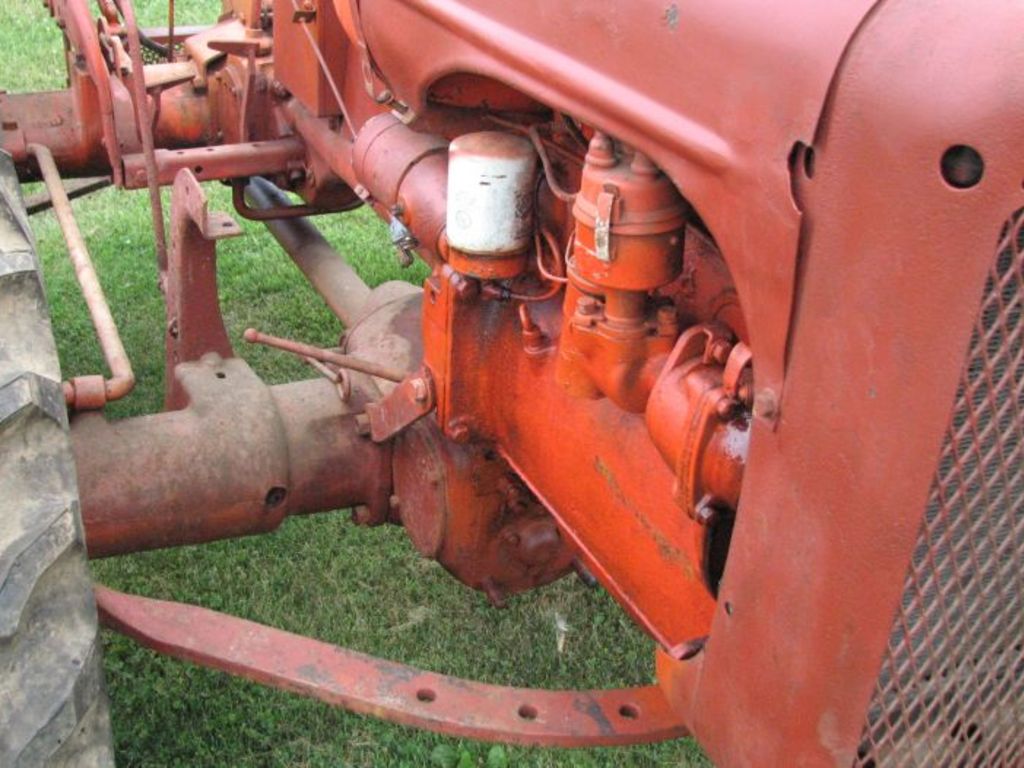

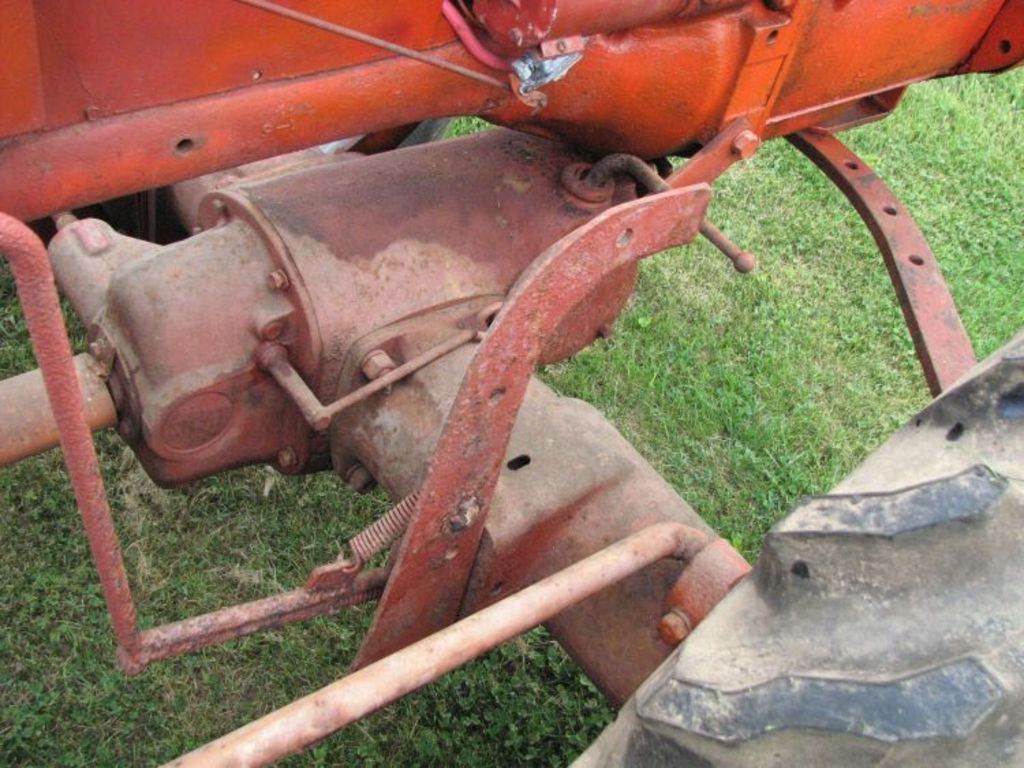

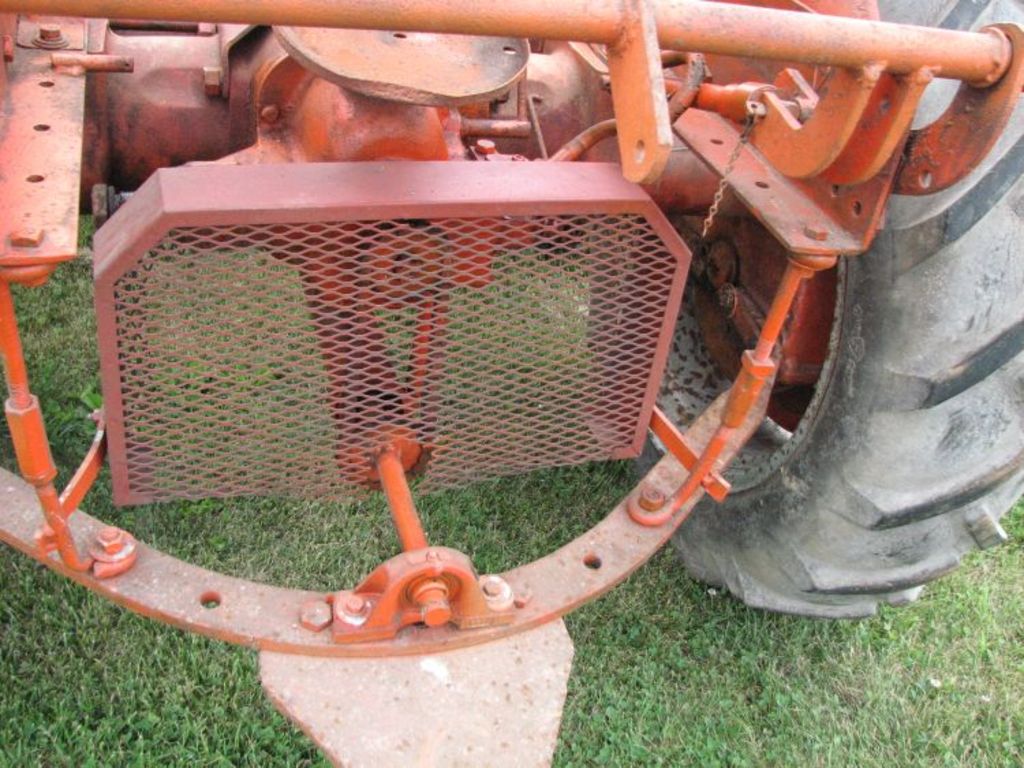

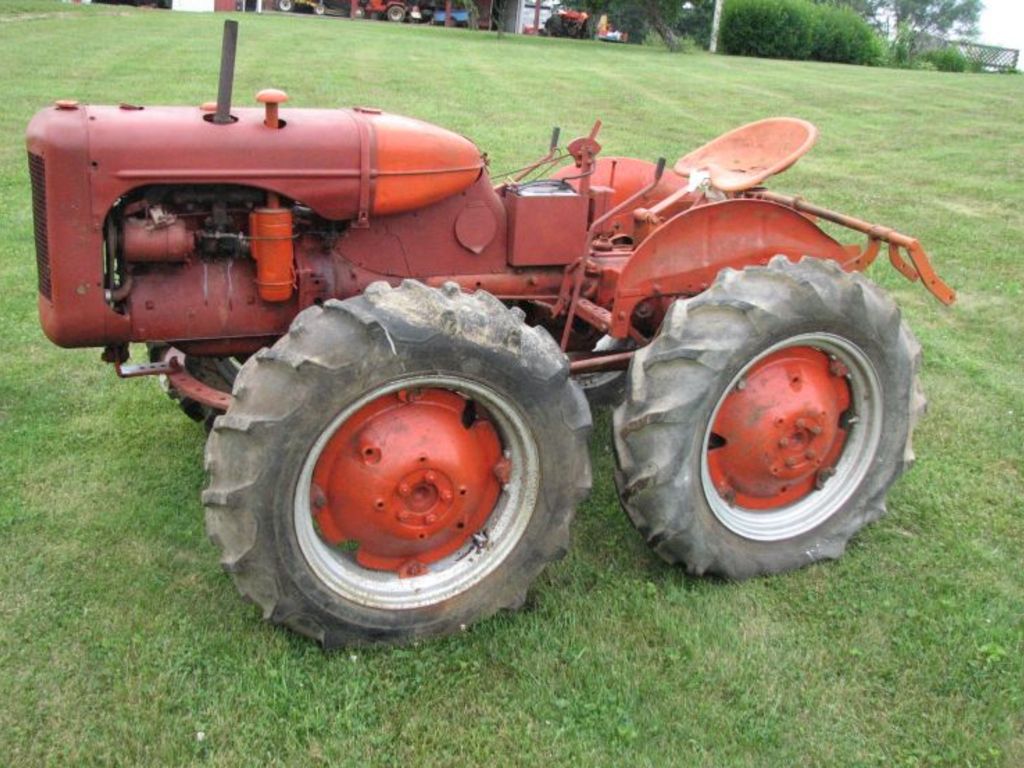

Hello, I found some additional pics when browsing this nice project. AC_1.jpgAC_2.jpgAC_3.jpgAC_4.jpgAC_5.jpgAC_6.jpgAC_7.jpgAC_8.jpg
|
|
corbinstein
Orange Level
Joined: 31 Jul 2014
Location: Oklahoma
Points: 796
|
Post Options
Thanks(0)
Quote Reply
Posted: 12 Jan 2016 at 6:36am |
looks to me like it still needs some work, but neat anyway.

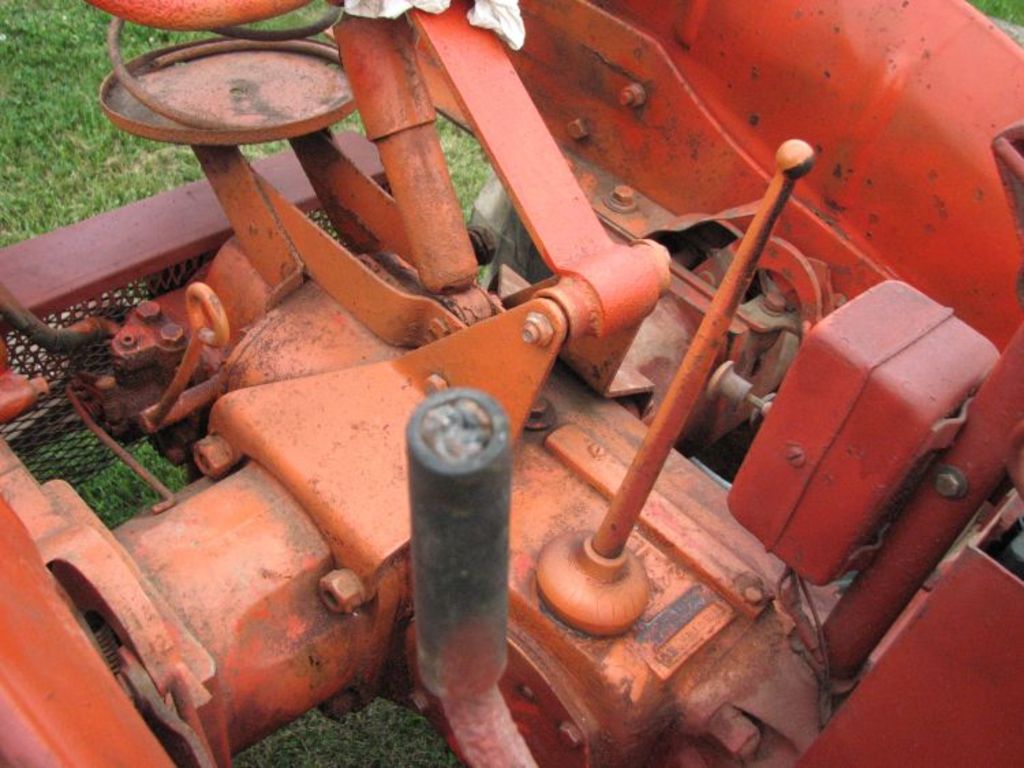

notice the gearshift under the engine.....
|
|
jaybmiller
Orange Level Access
Joined: 12 Sep 2009
Location: Greensville,Ont
Points: 24413
|
Post Options
Thanks(0)
Quote Reply
Posted: 12 Jan 2016 at 6:49am |
|
great, it's snowing, nothing to do... but think..gee I have 2 'extra' D-14s here........
wonder if that's been done before...
Jay
I need a job, too many ideers,too little time !
|
|
3 D-14s,A-C forklift, B-112
Kubota BX23S lil' TOOT( The Other Orange Tractor)
Never burn your bridges, unless you can walk on water
|
|
cpg
Silver Level
Joined: 10 Jul 2015
Location: Michigan
Points: 246
|
Post Options
Thanks(0)
Quote Reply
Posted: 12 Jan 2016 at 8:27am |
|
Wonder if you could do this with CA axles/housings on both sides so you have the clutched axles and would actually have steering clutches? Not sure if you could spin the CA axle housing around and use it on the left side too? Then you would also have to weld the diff so it would keep going when a side was disconnected. That would be such a cool project. Useful; probably not, but would be cool.
Edited by cpg - 12 Jan 2016 at 8:30am
|
|
CTuckerNWIL
Orange Level
Joined: 11 Sep 2009
Location: NW Illinois
Points: 22822
|
Post Options
Thanks(0)
Quote Reply
Posted: 12 Jan 2016 at 9:33am |
cpg wrote:
Wonder if you could do this with CA axles/housings on both sides so you have the clutched axles and would actually have steering clutches? Not sure if you could spin the CA axle housing around and use it on the left side too? Then you would also have to weld the diff so it would keep going when a side was disconnected. That would be such a cool project. Useful; probably not, but would be cool.
|
Ca's can have a hand clutch on the left side. If you weld the differential, you couldn't steer it. Just adding a hand clutch on the left and keeping the right side clutch would allow either wheel to be powered or both.
|
|
|
|
HD6GTOM
Orange Level
Joined: 30 Nov 2009
Location: MADISON CO IA
Points: 6627
|
Post Options
Thanks(0)
Quote Reply
Posted: 12 Jan 2016 at 9:40am |
|

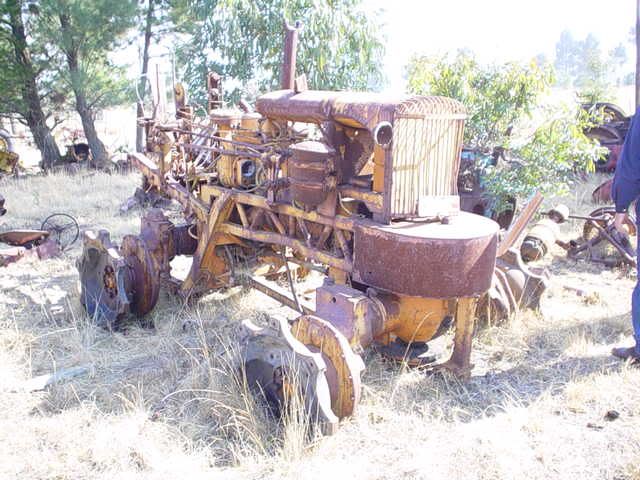

fellow in southern Iowa had 2 wd45's hooked together, pivoted in the center like most bigger 4x4's do. I think I've seen them before. That one looks like it would not turn very short before the tires came together
|
|
Unit3
Orange Level
Joined: 17 Oct 2009
Location: NC Iowa
Points: 5576
|
Post Options
Thanks(0)
Quote Reply
Posted: 12 Jan 2016 at 12:30pm |
|
Who can post a picture of a UC set up like this? I might be fun to see them side by side.
|
|
2-8070FWA PS/8050PS/7080/7045PS/200/D15-II/2-WD45/WD/3-WC/UC/C
|
|
Dan73
Orange Level
Joined: 04 Jun 2015
Location: United States
Points: 6054
|
Post Options
Thanks(0)
Quote Reply
Posted: 12 Jan 2016 at 12:42pm |
|
I have toyed with building a 4 wd out of a d15. Either adding a front assist or building an articulated setup. My train of thought was to get a stronger front end which would make a better loader tractor. I always thought the 4 wd tractors with the same wheels front and rear look unstoppable to me. I never got beyond toying with a few design ideas. But I love seeing photos of stuff like this always thought it was too bad that AC never went anywhere with the 4 wd concepts back in the early days. Seems like if you could put a shuttle clutch on each side you wouldn't loose too much power in a turn I mean skid steers are very useful tools. But I couldn't really figure out how you build the mechanical setup to drive each side when the tractor was really designed to drive across and axel. Seems like an artulated design would ne easier to build out of d serries parts.
|
|
Dan73
Orange Level
Joined: 04 Jun 2015
Location: United States
Points: 6054
|
Post Options
Thanks(0)
Quote Reply
Posted: 12 Jan 2016 at 12:46pm |
|
I did wonder if you could put a hydraulic motor as the input to the final drives and build one that way but I figured the torque required at that point would be too high. But if you could do 4 hydraulic motors one on each wheel controlling it would be easy.
|
|
ac fleet
Orange Level
Joined: 12 Jan 2014
Location: Arrowsmith, ILL
Points: 2330
|
Post Options
Thanks(0)
Quote Reply
Posted: 12 Jan 2016 at 4:51pm |
|
I see 2 levers sticking up.---look just below and on each side of the throttle tower!---can anyone see what they hook to and is it on the front or rear end?? thanks; ac fleet
|
|
JoeM(GA)
Orange Level
Joined: 12 Sep 2009
Location: Cumming,GA
Points: 4768
|
Post Options
Thanks(0)
Quote Reply
Posted: 12 Jan 2016 at 5:05pm |

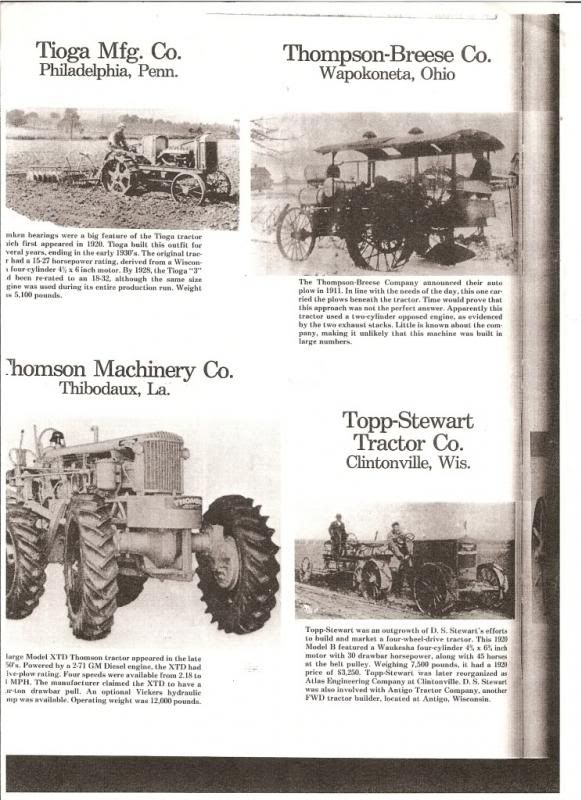

anything is possible with time and money!, remember the UC done by Thompson?
|
|
