25-40 and 20-35 Parts
 Post Reply Post Reply
Author
Message
  Topic Search Topic Search  Topic Options Topic Options
51ACWD View Drop Down
Silver Level
Silver Level
Avatar

Joined: 24 Dec 2015
Location: United States
Points: 243 		Post Options Post Options   Thanks (0) Thanks(0)   Quote 51ACWD Quote  Post ReplyReply Direct Link To This Post Topic: 25-40 and 20-35 Parts
    Posted: 16 May 2021 at 12:13am
#1
Hi all, I have both a 1929 20-35 E and 1930 25-40 E Allis- Chalmers and am needing to know what mags and carburetors came on each. I THINK the Kingston L3 carb came on the 25-40. My parts books don't list what the exact carbs/mags are, just the Allis order number from back in the day. I know some Eisemann mags were used on them, and have heard of people going ahead and switching them for reliability reasons. I'm not too concerned with that, I'd like like put them close to original again.

On another note, I've heard that Allis also put a Wico AP mag as a replacement later down the road. Any ideas?
Back to Top
Sponsored Links


Back to Top
Alberta Phil View Drop Down
Orange Level
Orange Level
Avatar

Joined: 13 Sep 2009
Location: Alberta, Canada
Points: 3906 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Alberta Phil Quote  Post ReplyReply Direct Link To This Post Posted: 16 May 2021 at 10:12am

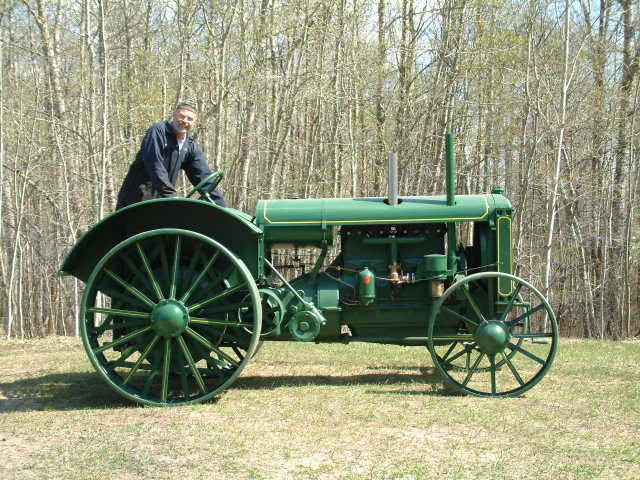

'29 20-35 had a Kingston L3 carb and an Eiseman GS4 magneto. This mag has automatic advance and no manual advance/retard control, as did the previous years using a GV4 magneto.  I have a '29 20-35 and a '28 20-35.  I have been running the Eisemann mags for 20 years now and have had no problems with reliability.
The 25-40 may have also used the Kingston carb, but most I've seen have the Zenith 6CEV carb.
Back to Top
51ACWD View Drop Down
Silver Level
Silver Level
Avatar

Joined: 24 Dec 2015
Location: United States
Points: 243 		Post Options Post Options   Thanks (0) Thanks(0)   Quote 51ACWD Quote  Post ReplyReply Direct Link To This Post Posted: 16 May 2021 at 3:37pm
Thanks for the info! Any idea on mags for a 25-40?
Back to Top
Butch(OH) View Drop Down
Orange Level
Orange Level


Joined: 11 Sep 2009
Location: Lucerne Ohio
Points: 3837 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Butch(OH) Quote  Post ReplyReply Direct Link To This Post Posted: 17 May 2021 at 5:58am
25-40s were originally equipped with C6EV Zenith carburetors. A lot of the C6s were replaced with a later model but the number escapes me. Fred Lucabaugh will know the part number if he sees this post.
Back to Top
Alberta Phil View Drop Down
Orange Level
Orange Level
Avatar

Joined: 13 Sep 2009
Location: Alberta, Canada
Points: 3906 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Alberta Phil Quote  Post ReplyReply Direct Link To This Post Posted: 17 May 2021 at 9:55am
25-40 used an Eisemann G4 magneto.
Back to Top
51ACWD View Drop Down
Silver Level
Silver Level
Avatar

Joined: 24 Dec 2015
Location: United States
Points: 243 		Post Options Post Options   Thanks (0) Thanks(0)   Quote 51ACWD Quote  Post ReplyReply Direct Link To This Post Posted: 30 May 2021 at 11:31pm
Did Allis change the throttle quadrant/control on the '29's? I know they went away with having to manually set the spark advance. Mine has the quadrant for an earlier 20-35 I believe.
Back to Top
51ACWD View Drop Down
Silver Level
Silver Level
Avatar

Joined: 24 Dec 2015
Location: United States
Points: 243 		Post Options Post Options   Thanks (0) Thanks(0)   Quote 51ACWD Quote  Post ReplyReply Direct Link To This Post Posted: 14 Jun 2021 at 12:11pm
Just updating everybody on the serial #. It is in fact 17246, making it a 1929. One thing I'm still scratching my head about is that I was told the oil tube on the side of the block (under carb/air breather) is from an earlier tractor prior to '29. These tractors had a different oil pump setup. Im just curious if the engine was swapped? Just hate having unanswered questions!
Back to Top
Pfouts Family Farm View Drop Down
Bronze Level
Bronze Level


Joined: 05 Dec 2018
Location: Hiram, Ohio
Points: 177 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Pfouts Family Farm Quote  Post ReplyReply Direct Link To This Post Posted: 15 Jun 2021 at 9:17am
Originally posted by 51ACWD 51ACWD wrote:

Did Allis change the throttle quadrant/control on the '29's? I know they went away with having to manually set the spark advance. Mine has the quadrant for an earlier 20-35 I believe.


I think most of the 29' tractors that did away with the spark advance had the 2 sided quadrant, but had no lever or linkage on the side for the spark advance
Back to Top
Pfouts Family Farm View Drop Down
Bronze Level
Bronze Level


Joined: 05 Dec 2018
Location: Hiram, Ohio
Points: 177 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Pfouts Family Farm Quote  Post ReplyReply Direct Link To This Post Posted: 15 Jun 2021 at 9:26am
Originally posted by 51ACWD 51ACWD wrote:

Just updating everybody on the serial #. It is in fact 17246, making it a 1929. One thing I'm still scratching my head about is that I was told the oil tube on the side of the block (under carb/air breather) is from an earlier tractor prior to '29. These tractors had a different oil pump setup. Im just curious if the engine was swapped? Just hate having unanswered questions!


The 20-35 block has waterpump, governor, and magneto mounted in line on the left side of the block.  The 25-40 block will have a front mounted water pump (behind the fan, belt driven) and governor and magneto on the right side of the block.  The 20-35 oil tube is held on by clamps and is much smaller diameter, while the 25-40 oil tube is held on with a banjo type connection at each of the ports.  The oil tubes are not interchangeable.
Back to Top
51ACWD View Drop Down
Silver Level
Silver Level
Avatar

Joined: 24 Dec 2015
Location: United States
Points: 243 		Post Options Post Options   Thanks (0) Thanks(0)   Quote 51ACWD Quote  Post ReplyReply Direct Link To This Post Posted: 19 Jun 2021 at 7:58am
Thank you for the reply! But I'm aware of the differences between my 25-40 and 20-35. This has more to do with the mag/carb combinations on each!

-Jesse
Back to Top
51ACWD View Drop Down
Silver Level
Silver Level
Avatar

Joined: 24 Dec 2015
Location: United States
Points: 243 		Post Options Post Options   Thanks (0) Thanks(0)   Quote 51ACWD Quote  Post ReplyReply Direct Link To This Post Posted: 29 Jun 2021 at 8:05pm
Bump
Back to Top
51ACWD View Drop Down
Silver Level
Silver Level
Avatar

Joined: 24 Dec 2015
Location: United States
Points: 243 		Post Options Post Options   Thanks (0) Thanks(0)   Quote 51ACWD Quote  Post ReplyReply Direct Link To This Post Posted: 10 Jul 2021 at 8:51pm
In regards to the mag on my 1930 25-40, I've been told a G4 Eisemann or GL4 Eisemann were the proper mag. Is there a difference in these? Could it have used a GV4 mag as well?

Edited by 51ACWD - 10 Jul 2021 at 10:19pm
Back to Top
