1954 G dies

Message Topic Search Topic Options Post Reply Create New Topic Printable Version Translate Topic

   Hey guys,

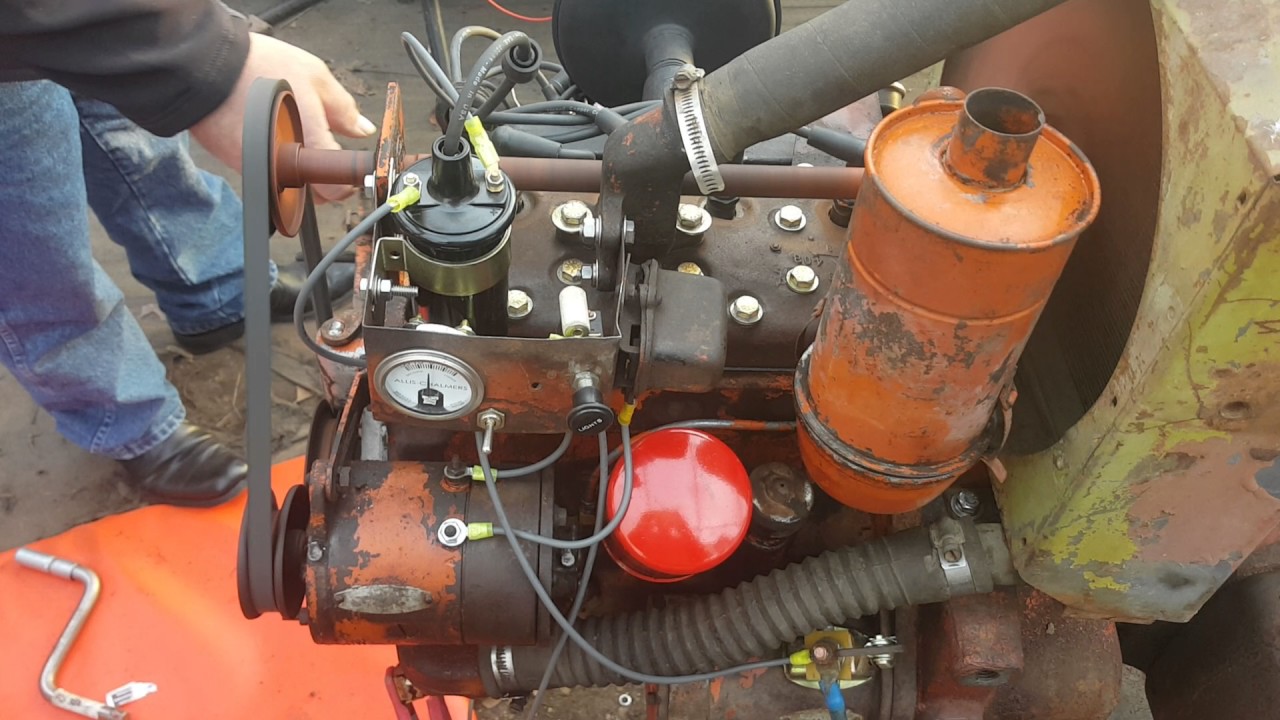

I am working on a 1954 Allis Chalmers G garden tractor for a friend. I have been working on this thing for a few months now, and I am starting to lose hope.

My problem: At the first start of the day, the tractor will run fine for 3-4 minutes. Once it warms up a bit, it dies. It acts like it is running out of gas. It will restart and run for a few seconds but die once again. When it starts to die, it makes a weird metal scraping noise from the crankcase (I think).

Things I have replaced: points, condenser, fuel tank, fuel lines, fuel sediment bowl, wiring harness, main on/off switch, and the carburetor.

Things I have tried: rebuilt the old carburetor, reset the timing, and used new fuel without the 10% ethanol.

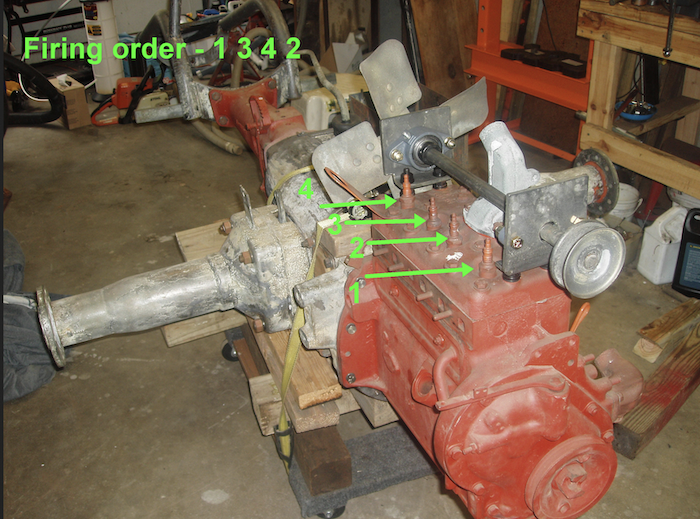

The timing on this little engine is a bit confusing. Some say the number one cylinder is close to the radiator; others say it is close to the timing gears/crank pulley. It ran fine when I used the cylinder closest to the radiator for number one, but I am truly not sure which end number one is located. Is the number one cylinder located on the end with the fan belt or nearest the tractor seat?

Thanks for ANY and all help.

	This site is not affiliated with AGCO Inc., Duluth GA., Allis-Chalmers Co., Milwaukee, WI., or any surviving or related corporate entity. All trademarks remain the property of their respective owners. All information presented herein should be considered the result of an un-moderated public forum with no responsibility for its accuracy or usability assumed by the users and sponsors of this site or any corporate entity.
	The Forum	Parts and Services	Unofficial Allis Store	Tractor Shows	Serial Numbers	History

Author	Message Topic Search Topic Options Post Reply Create New Topic Printable Version Translate Topic
cabinfourus Members Profile Send Private Message Find Members Posts Add to Buddy List Bronze Level Joined: 03 Jun 2025 Location: Asheville, NC Points: 29	Post Options Post Reply Quote cabinfourus Report Post Thanks(0) Quote Reply Topic: 1954 G dies Posted: 1 hour 12 minutes ago at 11:46am
	Hey guys, I am working on a 1954 Allis Chalmers G garden tractor for a friend. I have been working on this thing for a few months now, and I am starting to lose hope. My problem: At the first start of the day, the tractor will run fine for 3-4 minutes. Once it warms up a bit, it dies. It acts like it is running out of gas. It will restart and run for a few seconds but die once again. When it starts to die, it makes a weird metal scraping noise from the crankcase (I think). Things I have replaced: points, condenser, fuel tank, fuel lines, fuel sediment bowl, wiring harness, main on/off switch, and the carburetor. Things I have tried: rebuilt the old carburetor, reset the timing, and used new fuel without the 10% ethanol. The timing on this little engine is a bit confusing. Some say the number one cylinder is close to the radiator; others say it is close to the timing gears/crank pulley. It ran fine when I used the cylinder closest to the radiator for number one, but I am truly not sure which end number one is located. Is the number one cylinder located on the end with the fan belt or nearest the tractor seat? Thanks for ANY and all help.
