190XT 3pt Lift Link Repair Problem

Message Topic Search Topic Options Post Reply Create New Topic Printable Version Translate Topic

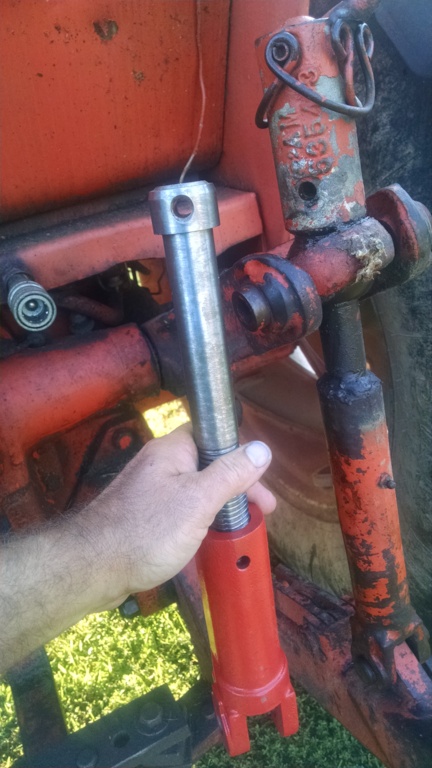

   I am trying to replace the welded version of the lift link with my new lift link that will adjust as shown in the picture.

After pounding for about 20 minutes, I finally got the pin out of the hole that holds the screw to the collar handle.  It looks like the screw part is completely rusted together though on that ball joint collar so this may also take some significant time to remove.  I am looking for advice on how best to remove this screw from the collar?  There isn't any way that they made that screw and collar as one piece on early 190XTs?  Mine is a around 1967-1968.  Anybody taken one of these apart?

It dawned on me that I am going to have to saw off the screw part above the cast iron part since it is welded.  I think, normally, you would unscrew the cast iron piece and push the screw part out of the collar, but I can't.  So mine is a little more of a problem than normal.

The new part does not have grease fitting threads.  Do I need to cut threads or will a grease fitting cut it's own threads for a Zerk fitting?  Never had to deal with that before.

Any help or ideas are appreciated!

	This site is not affiliated with AGCO Inc., Duluth GA., Allis-Chalmers Co., Milwaukee, WI., or any surviving or related corporate entity. All trademarks remain the property of their respective owners. All information presented herein should be considered the result of an un-moderated public forum with no responsibility for its accuracy or usability assumed by the users and sponsors of this site or any corporate entity.
	The Forum	Parts and Services	Unofficial Allis Store	Tractor Shows	Serial Numbers	History

Author	Message Topic Search Topic Options Post Reply Create New Topic Printable Version Translate Topic
calico190xt68 Members Profile Send Private Message Find Members Posts Add to Buddy List Orange Level Joined: 12 Jan 2017 Location: Frankton, IN Points: 869	Post Options Post Reply Quote calico190xt68 Report Post Thanks(0) Quote Reply Topic: 190XT 3pt Lift Link Repair Problem Posted: 09 Aug 2019 at 8:54am
	I am trying to replace the welded version of the lift link with my new lift link that will adjust as shown in the picture. After pounding for about 20 minutes, I finally got the pin out of the hole that holds the screw to the collar handle. It looks like the screw part is completely rusted together though on that ball joint collar so this may also take some significant time to remove. I am looking for advice on how best to remove this screw from the collar? There isn't any way that they made that screw and collar as one piece on early 190XTs? Mine is a around 1967-1968. Anybody taken one of these apart? It dawned on me that I am going to have to saw off the screw part above the cast iron part since it is welded. I think, normally, you would unscrew the cast iron piece and push the screw part out of the collar, but I can't. So mine is a little more of a problem than normal. The new part does not have grease fitting threads. Do I need to cut threads or will a grease fitting cut it's own threads for a Zerk fitting? Never had to deal with that before. Any help or ideas are appreciated!
	80 7010, 80 7020. 67 190XTD Series I w/500 Loader, AC 2000 Plow, Member Indiana A-C Partners, Member TAC

Sponsored Links

Alvin M Members Profile Send Private Message Find Members Posts Add to Buddy List Orange Level Joined: 24 Jun 2018 Location: PA Points: 800	Post Options Post Reply Quote Alvin M Report Post Thanks(0) Quote Reply Posted: 09 Aug 2019 at 9:24am
	Cut Off Shaft You Can Use Tap In Grease Fitting

SteveM C/IL Members Profile Send Private Message Find Members Posts Add to Buddy List Orange Level Access Joined: 12 Sep 2009 Location: Shelbyville IL Points: 8567	Post Options Post Reply Quote SteveM C/IL Report Post Thanks(0) Quote Reply Posted: 09 Aug 2019 at 10:05am
	Torch it off just above the weld. You could likely saw it just below the weld and have a useable lower threaded piece....maybe not.

calico190xt68 Members Profile Send Private Message Find Members Posts Add to Buddy List Orange Level Joined: 12 Jan 2017 Location: Frankton, IN Points: 869	Post Options Post Reply Quote calico190xt68 Report Post Thanks(0) Quote Reply Posted: 09 Aug 2019 at 11:44am
	That's not a bad idea. Cutting it off below the weld might allow it to work. I noticed that the new cast iron piece is significantly smaller than the old one. I was going to buy a matching one for the other side once I got this one installed, but wouldn't have to do that if I could if resurrect the old one. I was going to use a reciprocating saw so might take my time and make a cleaner cut to save it. The negative is that I will have to cut twice to remove the weld bead from shaft. Thanks for the idea.
	80 7010, 80 7020. 67 190XTD Series I w/500 Loader, AC 2000 Plow, Member Indiana A-C Partners, Member TAC

SteveM C/IL Members Profile Send Private Message Find Members Posts Add to Buddy List Orange Level Access Joined: 12 Sep 2009 Location: Shelbyville IL Points: 8567	Post Options Post Reply Quote SteveM C/IL Report Post Thanks(0) Quote Reply Posted: 09 Aug 2019 at 12:27pm
	I would guess the owner broke (somehow) the threaded part and just welded it together. The old screw may be in there and might be ok other than rusted in meaning if you could remove it,you'd have a useful piece. You have to make the top cut either way.

Joe(TX) Members Profile Send Private Message Find Members Posts Add to Buddy List Orange Level Joined: 11 Sep 2009 Location: Weatherford. TX Points: 1682	Post Options Post Reply Quote Joe(TX) Report Post Thanks(0) Quote Reply Posted: 09 Aug 2019 at 12:43pm
	Most likely the threads in the lower part are striped. Most replacements have a different thread than the original ones.
	1970 190XT, 1973 200, 1962 D-19 Diesel, 1979 7010, 1957 WD45, 1950 WD, 1961 D17, Speed Patrol, D14, All crop 66 big bin, 180 diesel, 1970 170 diesel, FP80 forklift. Gleaner A

SteveM C/IL Members Profile Send Private Message Find Members Posts Add to Buddy List Orange Level Access Joined: 12 Sep 2009 Location: Shelbyville IL Points: 8567	Post Options Post Reply Quote SteveM C/IL Report Post Thanks(0) Quote Reply Posted: 09 Aug 2019 at 1:15pm
	Joe may have nailed it. That would explain weld better than a break.

Allis_Cooper Members Profile Send Private Message Find Members Posts Add to Buddy List Bronze Level Joined: 05 Oct 2021 Location: FL Points: 23	Post Options Post Reply Quote Allis_Cooper Report Post Thanks(0) Quote Reply Posted: 10 Jan 2022 at 5:23pm
	But I'm still curious as to how the ball joint collar comes out? Is it a strange pin of sorts? Does it have to be cut off on either side of the collar? In other words, if you wanted to install a more generic lift link and had to remove this 'collar', what do you do?

MACK Members Profile Send Private Message Find Members Posts Add to Buddy List Orange Level Joined: 17 Nov 2009 Points: 7664	Post Options Post Reply Quote MACK Report Post Thanks(0) Quote Reply Posted: 10 Jan 2022 at 8:07pm
	Cut it off above the weld, remove the top pin, and it will all come out the top. Next step, throw what is left in junk pile because that is what is left of old link. MACK

rw Members Profile Send Private Message Find Members Posts Add to Buddy List Silver Level Joined: 28 Oct 2009 Location: United States Points: 384	Post Options Post Reply Quote rw Report Post Thanks(0) Quote Reply Posted: 10 Jan 2022 at 8:07pm
	To get the swivel ball out of its yoke there are round hollow collars (item 14) bit like universal joints that drive in from each side. https://parts.agcocorp.com/en_US/apbsearch?q=agcoallis/79001625/l&name=190+%2F+190XT+%2F+190XT+III+TRACTOR# https://parts.agcocorp.com/en_US/apbsearch?q=agcoallis/79001625/l&name=190+%2F+190XT+%2F+190XT+III+TRACTOR# Check this second picture out. The threaded link in your hand drops in from the top after you remove the roll pin that goes through the adjuster handle. Hack Saw the old threaded shaft in two and press/drive it out of the swivel ball. probably going to need some help from a torch to get it through the ball.

Mikez Members Profile Send Private Message Find Members Posts Add to Buddy List Orange Level Access Joined: 16 Jan 2013 Location: Usa Points: 8689	Post Options Post Reply Quote Mikez Report Post Thanks(0) Quote Reply Posted: 10 Jan 2022 at 9:17pm
	yup cut it above weld. Top part will go up out of top. Unscrew the new one and drop it down through ball an socket. Then the top handle pins back to top. And bottom part pins to your 3pt arm.
