 Topic: 190 hydraulic leak out of steering column
Posted: 08 Oct 2019 at 7:30pm |
|
190 has started to leak hydraulic fluid out of the steering column by the steering wheel what is the cause and how bad to repair
Phil
|
 |
|
Sponsored Links
|
|
|
DSeries4
Orange Level
Joined: 12 Sep 2009
Location: Ontario, Canada
Points: 7453
|
Post Options
Thanks(0)
Quote Reply
Posted: 08 Oct 2019 at 8:41pm |
|
Need new seals in the steering motor. After 50 years, they may be a little worn out. I took mine to my local hydraulic shop 2 years ago and haven't had any problems since. Just remember to label which hydraulic line goes where.
|
|
'49 G, '54 WD45, '55 CA, '56 WD45D, '57 WD45, '58 D14, '59 D14, '60 D14, '61 D15D, '66 D15II, '66 D21II, '67 D17IV, '67 D17IVD, '67 190XTD, '73 620, '76 185, '77 175, '84 8030, '85 6080
|
|
MACK
Orange Level
Joined: 17 Nov 2009
Points: 7664
|
Post Options
Thanks(0)
Quote Reply
Posted: 08 Oct 2019 at 8:54pm |
|
Getting steering motor out is biggest problem. Don't pull the shaft out. MACK
|
|
JC-WI
Orange Level Access
Joined: 11 Sep 2009
Location: wisconsin
Points: 34258
|
Post Options
Thanks(0)
Quote Reply
Posted: 08 Oct 2019 at 9:51pm |
You may be able to get by with a front seal kit for the unit.
|
|
He who says there is no evil has already deceived himself
The truth is the truth, sugar coated or not. Trawler II says, "Remember that."
|
|
wf32
Silver Level
Joined: 13 Sep 2009
Location: Brownsville MN
Points: 455
|
Post Options
Thanks(0)
Quote Reply
Posted: 09 Oct 2019 at 12:04pm |
to remove steering motor do you have to take out the whole steering column or can you just get motor out Phil
|
|
Joe(TX)
Orange Level
Joined: 11 Sep 2009
Location: Weatherford. TX
Points: 1682
|
Post Options
Thanks(0)
Quote Reply
Posted: 09 Oct 2019 at 2:19pm |
|
Actually the column and shaft is held by 4 bolts to the steering valve. The shaft splines into the valve. The seal is in the top cap of the valve. The valve will have to be removed from the column. The tilt pivot is on the column.
|
|
1970 190XT, 1973 200, 1962 D-19 Diesel, 1979 7010, 1957 WD45, 1950 WD, 1961 D17, Speed Patrol, D14, All crop 66 big bin, 180 diesel, 1970 170 diesel, FP80 forklift. Gleaner A
|
|
JC-WI
Orange Level Access
Joined: 11 Sep 2009
Location: wisconsin
Points: 34258
|
Post Options
Thanks(0)
Quote Reply
Posted: 09 Oct 2019 at 10:58pm |

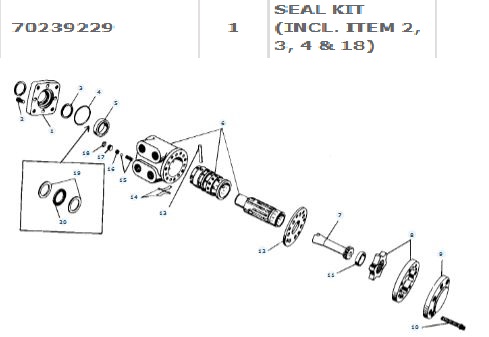

Take the top cover off the hood so you can look in and take the right side panels off too so you can reach up in there. There are four bolts that you take out, the steering column and wheel stay on the tractor. You will have to take the dash gauge panel loose so you can get at some of the bolts from above. You can get a wrench on a couple from underneath.. Like said, don't mix up the hoses. Once the unit is out you can change the quad ring and outer seal by removing the 12 point bolts in front casting..
|
|
