185 High Crop???
 Post Reply Post Reply
Author
Message
  Topic Search Topic Search  Topic Options Topic Options
Buckyman View Drop Down
Silver Level
Silver Level
Avatar

Joined: 17 Nov 2016
Location: SW Wisconsin
Points: 74 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Buckyman Quote  Post ReplyReply Direct Link To This Post Topic: 185 High Crop???
    Posted: 27 Nov 2017 at 11:29am
Is there such a thing as a 185 High Crop? I've seen pictures of a 185 and a 180 allis with rear wheels that have flat cores instead of the typical convex ones. The picture below shows what I mean. This guy is on this forum and this is a picture he took of his tractor after restoring it. There is a 180 with similar rear wheels on craigslist near where I live and I was wondering where those wheels came from.
Image result for allis chalmers 185
Back to Top
Sponsored Links


Back to Top
DougG View Drop Down
Orange Level
Orange Level


Joined: 20 Sep 2009
Location: Mo
Points: 8390 		Post Options Post Options   Thanks (0) Thanks(0)   Quote DougG Quote  Post ReplyReply Direct Link To This Post Posted: 27 Nov 2017 at 2:19pm
GGGGRRRR, wrong muffler for a 185
Back to Top
AJ View Drop Down
Orange Level
Orange Level


Joined: 31 Oct 2010
Location: mo
Points: 5244 		Post Options Post Options   Thanks (0) Thanks(0)   Quote AJ Quote  Post ReplyReply Direct Link To This Post Posted: 27 Nov 2017 at 2:43pm
Don't think it is classified as a highcrop. Maybe a hi clearance. It don't really look anything special in my opinion. 185 with 38s on it. Kinda like a D15 with the 28s on it.
Can't fix stupid
Back to Top
tbran View Drop Down
Orange Level
Orange Level


Joined: 14 Sep 2009
Location: Paris Tn
Points: 3545 		Post Options Post Options   Thanks (0) Thanks(0)   Quote tbran Quote  Post ReplyReply Direct Link To This Post Posted: 27 Nov 2017 at 5:59pm
The 'high crop' units we ordered in south La. used the tall spindle as in the D19 and 190 although the spindle housings did not have provisions for nor were the brace rods attached.
We also ordered 7.50 -20" F3 rubber on the fronts. The rears were 15.5-38 R-2-O rice tires which were taller than the R1's.   If not careful with attachments the taller tire cleats could contact 3 point attachments.

As for the Cane (HC) d15's they mostly had the 13.6-38 rice tires and the same ft spindles as the D17 for height with the 7.5 16" fronts. They usually were equipped with final drive extensions as well, D14's had the same option.
When told "it's not the money,it's the principle", remember, it's always the money..
Back to Top
Dswall View Drop Down
Silver Level
Silver Level


Joined: 11 Jan 2014
Location: Lindsay ca
Points: 260 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Dswall Quote  Post ReplyReply Direct Link To This Post Posted: 27 Nov 2017 at 7:23pm
Allis put 38’s on some 185’s most people call them high clear. We have a couple for row crop farming.
Dustin in CA
Back to Top
DSeries4 View Drop Down
Orange Level
Orange Level
Avatar

Joined: 12 Sep 2009
Location: Ontario, Canada
Points: 7569 		Post Options Post Options   Thanks (0) Thanks(0)   Quote DSeries4 Quote  Post ReplyReply Direct Link To This Post Posted: 27 Nov 2017 at 9:05pm
It's not a high crop.  Just a regular 185 with 38" rear tires.  Good looking tractor though!
'49 G, '54 WD45, '55 CA, '56 WD45D, '57 WD45, '58 D14, '59 D14, '60 D14, '63 D15D, '66 D15II, '66 D21II, '67 D17IV, '67 D17IVD, '67 190XTD, '73 620, '76 185, '77 175, '84 8030, '85 6080
Back to Top
mruhlig77 View Drop Down
Orange Level
Orange Level


Joined: 19 Aug 2014
Location: central Indiana
Points: 595 		Post Options Post Options   Thanks (0) Thanks(0)   Quote mruhlig77 Quote  Post ReplyReply Direct Link To This Post Posted: 28 Nov 2017 at 7:44am
Don't miss the point of 20 inch front wheels on factory hi-clearance..have had some in the past...just regular spindles.....Mark  note...Massey wheels fit the rear but have larger bolt holes...a factory 38 inch may have studs or inside lock nuts on rear..
Back to Top
Eldon (WA) View Drop Down
Orange Level
Orange Level
Avatar

Joined: 11 Sep 2009
Location: Spokane, WA
Points: 7765 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Eldon (WA) Quote  Post ReplyReply Direct Link To This Post Posted: 28 Nov 2017 at 10:10am
Originally posted by DSeries4 DSeries4 wrote:

It's not a high crop.  Just a regular 185 with 38" rear tires.  Good looking tractor though!

I agree, even a hi-clearance will have 2" taller front spindles. Top of tire will be about even with the steering arm.  BTW, I have a couple of sets of taller spindles for a 180/185 I would sell.
ALLIS EXPRESS!
This year:
Back to Top
Eldon (WA) View Drop Down
Orange Level
Orange Level
Avatar

Joined: 11 Sep 2009
Location: Spokane, WA
Points: 7765 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Eldon (WA) Quote  Post ReplyReply Direct Link To This Post Posted: 28 Nov 2017 at 10:15am
Originally posted by mruhlig77 mruhlig77 wrote:

Don't miss the point of 20 inch front wheels on factory hi-clearance..have had some in the past...just regular spindles.....Mark  note...Massey wheels fit the rear but have larger bolt holes...a factory 38 inch may have studs or inside lock nuts on rear..

I think just the hi-crops came with the 20" wheels. All the hi-clearance that I have and have seen just have the 16" fronts....of course anything can be mixed over the years.
ALLIS EXPRESS!
This year:
Back to Top
Dswall View Drop Down
Silver Level
Silver Level


Joined: 11 Jan 2014
Location: Lindsay ca
Points: 260 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Dswall Quote  Post ReplyReply Direct Link To This Post Posted: 28 Nov 2017 at 7:28pm
Ours are 16’s as well.
Dustin in CA
Back to Top
ac.d17iv View Drop Down
Silver Level
Silver Level


Joined: 29 Sep 2009
Location: SWIA
Points: 103 		Post Options Post Options   Thanks (0) Thanks(0)   Quote ac.d17iv Quote  Post ReplyReply Direct Link To This Post Posted: 28 Nov 2017 at 9:46pm
The picture above is of my Grandpa's 1974 185 that my Dad has restored.  When Grandpa purchased it from an auction, I believe it had 30's on it, but he wanted higher clearance for cultivating and spraying, so put new 38's on.  38's were a factory option, but definitely don't see as many with 38's.  We know the muffler isn't OEM, but it was what our Agco dealer had.

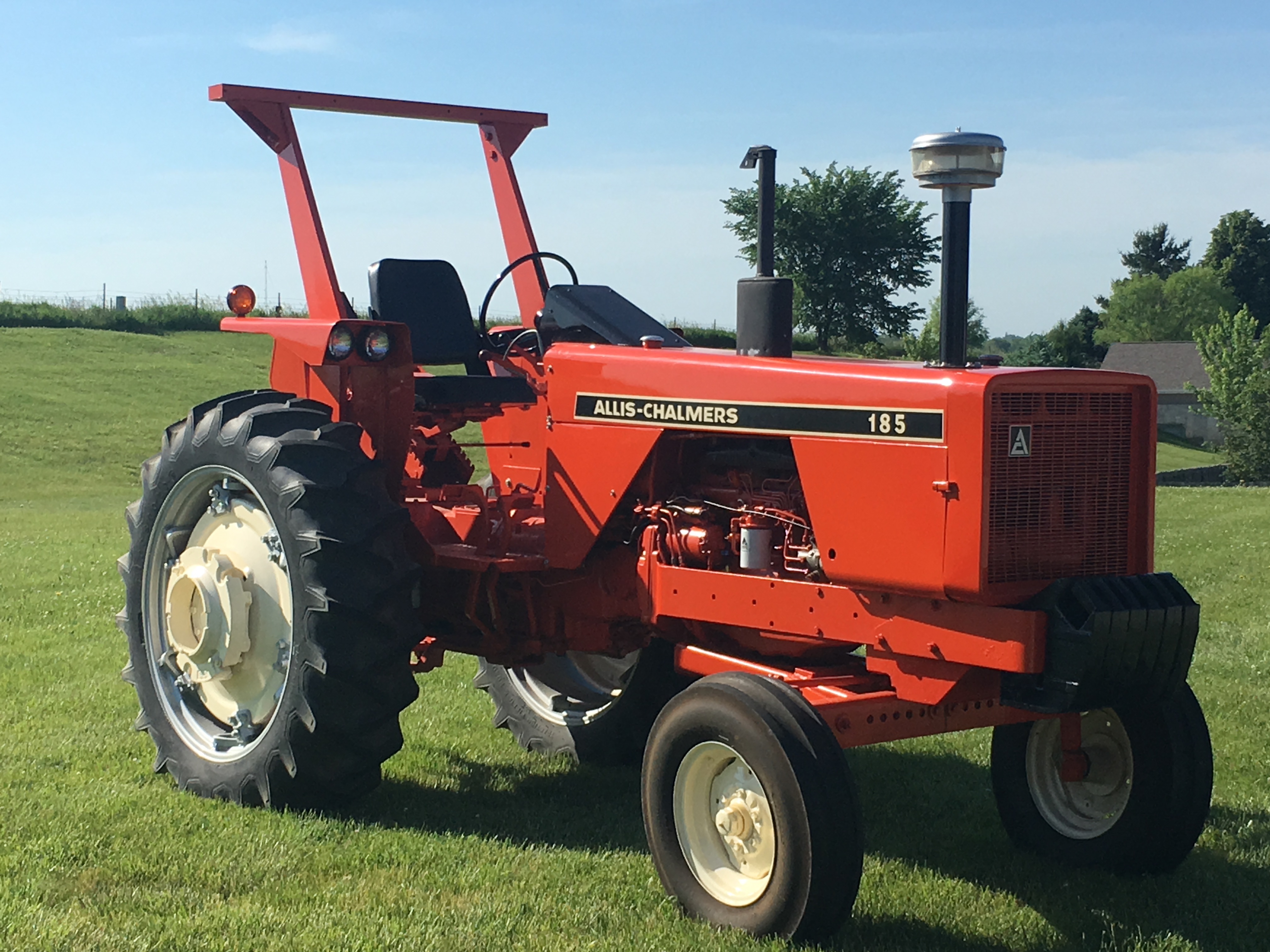

Here is a current pic of the tractor with front suitcase weights added and a "new" gleaner 301 combine engine installed.  The original engine had electrolysis.
Back to Top
Mikez View Drop Down
Orange Level Access
Orange Level Access
Avatar

Joined: 16 Jan 2013
Location: Usa
Points: 8805 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Mikez Quote  Post ReplyReply Direct Link To This Post Posted: 28 Nov 2017 at 10:45pm
Nice tractor thanks for sharing ac.d17iv
Back to Top
Lester View Drop Down
Orange Level
Orange Level


Joined: 08 Jan 2010
Location: Indiana
Points: 526 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Lester Quote  Post ReplyReply Direct Link To This Post Posted: 29 Nov 2017 at 3:48pm
The high clearance 185 came with 15.5s on back and 750x20s on front plus a 190 front spindles that are 2 inches taller than 185s are.. No high crop.
Back to Top
mruhlig77 View Drop Down
Orange Level
Orange Level


Joined: 19 Aug 2014
Location: central Indiana
Points: 595 		Post Options Post Options   Thanks (0) Thanks(0)   Quote mruhlig77 Quote  Post ReplyReply Direct Link To This Post Posted: 30 Nov 2017 at 7:49am
Curiosity might get the cat...measured spindles D-17  15inches , 185 Hi Clearance 15 inches , D-19 17 inches, 190   17 inches
Back to Top
JoeO(CMO) View Drop Down
Orange Level
Orange Level
Avatar

Joined: 11 Sep 2009
Location: Cent Missouri
Points: 2696 		Post Options Post Options   Thanks (0) Thanks(0)   Quote JoeO(CMO) Quote  Post ReplyReply Direct Link To This Post Posted: 30 Nov 2017 at 9:15am
From my recollection, the "high clearance" tall tires were offered to use with narrow rows.

Run 18" down a 38" row you are okay, but run it down a 30" row and it gets crowded, so a
15" tire brings it back.

Try running 18" tires on 30" rows all day and the switch will be quick.





Back to Top
Buckyman View Drop Down
Silver Level
Silver Level
Avatar

Joined: 17 Nov 2016
Location: SW Wisconsin
Points: 74 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Buckyman Quote  Post ReplyReply Direct Link To This Post Posted: 01 Dec 2017 at 10:00pm
I have definitely learned a lot guys. Thanks for answering the questions and providing your insight. It's been really interesting learning about this. I had see them before and wondered why they looked different and then I thought "hey, I know where there are people who know stuff about a tractor like this". Just like that, I got the answer. Thanks much.
