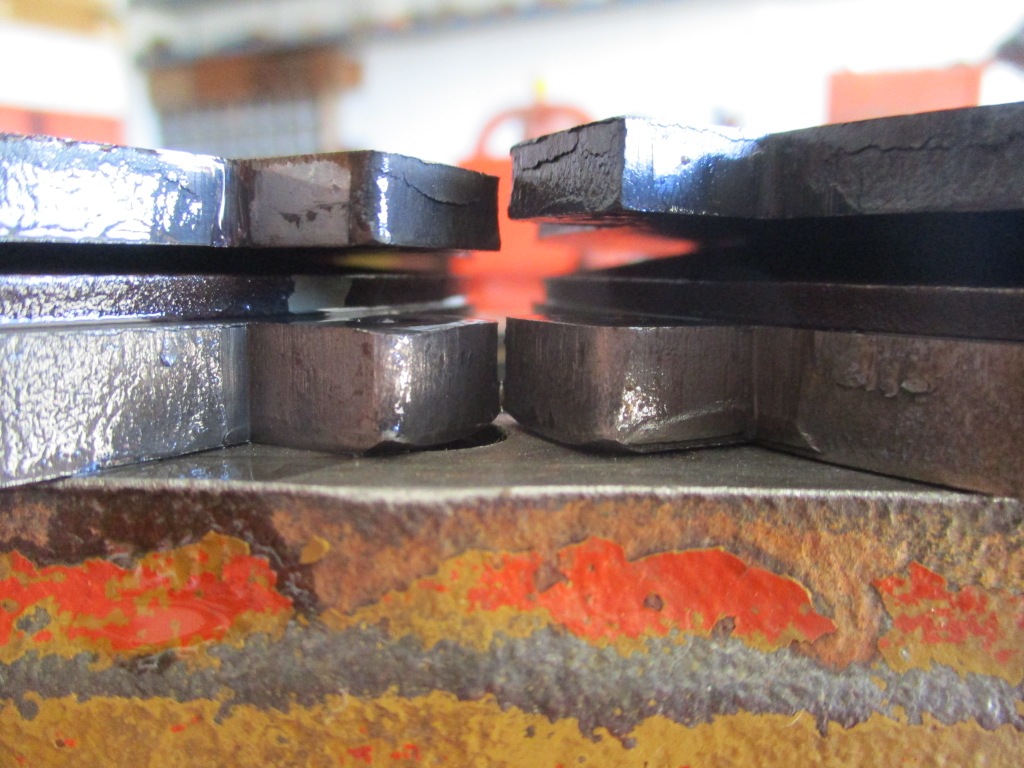

I am working on a 175 that the power director is not releasing fully. You have to stand on the brakes to stop it with lever in Neutral. Neutral adjustment is correct and shim adjustment is correct (.080-.040-.085). Which leads me to what I think is the problem: With the clutch in N, the plates in high range are not free, like there is still pressure on them. I observed the gap between the pressure plate and the pre-load plate to be larger on the high side than on the low side. So I thought the snap ring that holds the 2 plates together (with the pressure washer in the middle) had come out or was missing. Now that I have the clutch apart, the snap ring is still in place but it appears the pressure plate from the high side is .073" thicker than the pressure plate from the low side. The parts book shows both pressure plates to be the same #228067? Is this a mistake at the factory and I should replace with a matching plate or is this proper for the 175?

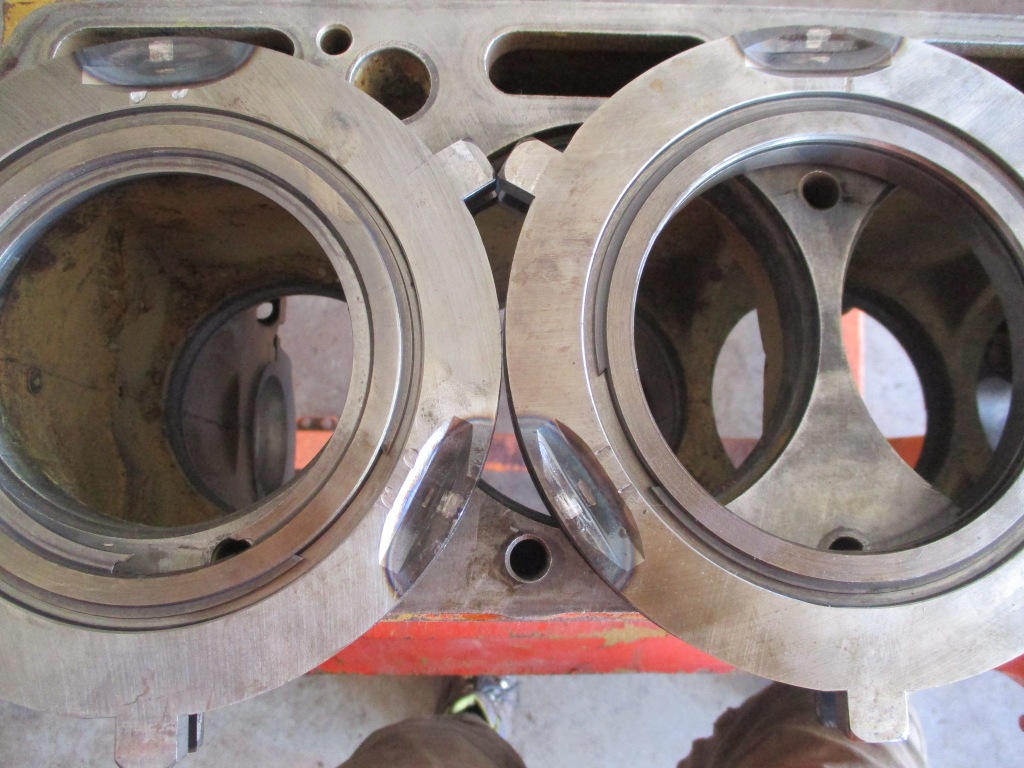

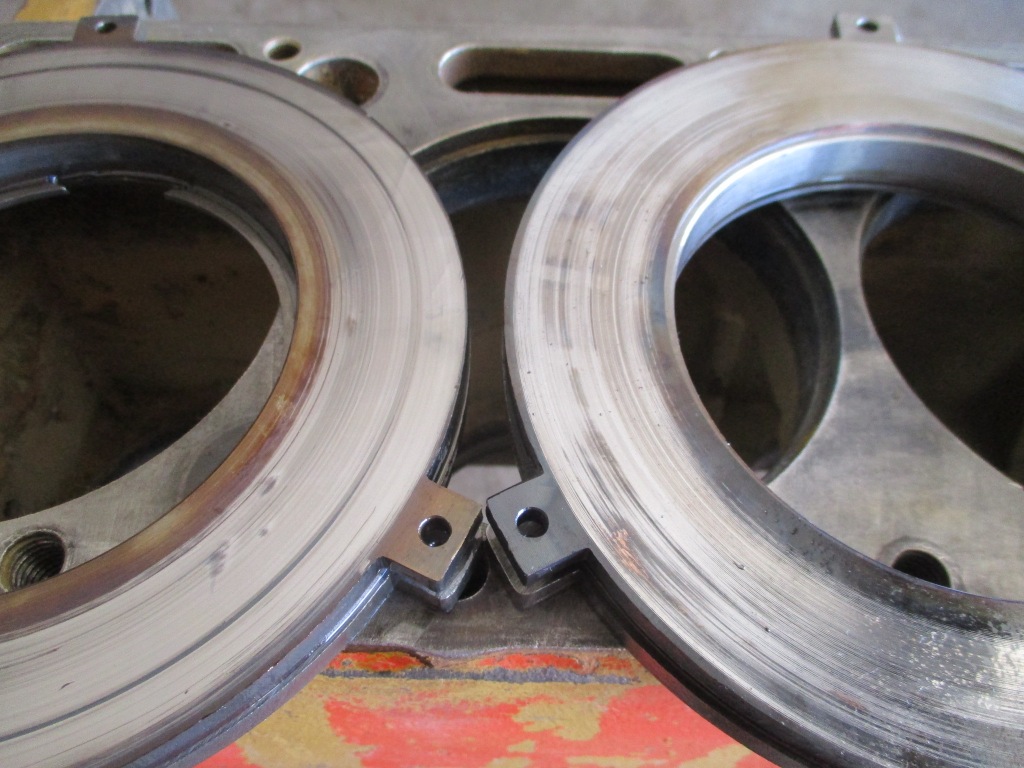

ON LEFT IS LOW SIDE PRESSURE ASSEMBLY---ON RIGHT IS HIGH SIDE PRESSURE ASSEMBLY

	This site is not affiliated with AGCO Inc., Duluth GA., Allis-Chalmers Co., Milwaukee, WI., or any surviving or related corporate entity. All trademarks remain the property of their respective owners. All information presented herein should be considered the result of an un-moderated public forum with no responsibility for its accuracy or usability assumed by the users and sponsors of this site or any corporate entity.
	The Forum	Parts and Services	Unofficial Allis Store	Tractor Shows	Serial Numbers	History

Author	Message Topic Search Topic Options Post Reply Create New Topic Printable Version Translate Topic
Alex09(WI) Members Profile Send Private Message Find Members Posts Add to Buddy List Orange Level Joined: 15 Mar 2012 Location: CECIL WI Points: 1745	Post Options Post Reply Quote Alex09(WI) Report Post Thanks(0) Quote Reply Topic: 175 power director question for advanced mechanics Posted: 02 May 2020 at 5:00pm
	I am working on a 175 that the power director is not releasing fully. You have to stand on the brakes to stop it with lever in Neutral. Neutral adjustment is correct and shim adjustment is correct (.080-.040-.085). Which leads me to what I think is the problem: With the clutch in N, the plates in high range are not free, like there is still pressure on them. I observed the gap between the pressure plate and the pre-load plate to be larger on the high side than on the low side. So I thought the snap ring that holds the 2 plates together (with the pressure washer in the middle) had come out or was missing. Now that I have the clutch apart, the snap ring is still in place but it appears the pressure plate from the high side is .073" thicker than the pressure plate from the low side. The parts book shows both pressure plates to be the same #228067? Is this a mistake at the factory and I should replace with a matching plate or is this proper for the 175? ON LEFT IS LOW SIDE PRESSURE ASSEMBLY---ON RIGHT IS HIGH SIDE PRESSURE ASSEMBLY
	www.awtractor.com A&W TRACTOR 920-598-1287 KEEPING ALLIS-CHALMERS IN THE FIELDS THROUGH THE 21ST CENTURY

Sponsored Links

DrAllis Members Profile Send Private Message Find Members Posts Add to Buddy List Orange Level Access Joined: 12 Sep 2009 Points: 21751	Post Options Post Reply Quote DrAllis Report Post Thanks(0) Quote Reply Posted: 02 May 2020 at 6:09pm
	Looks to me like the snap ring groove is cut in the wrong place. All parts are to be the same and they ain't.

Alex09(WI) Members Profile Send Private Message Find Members Posts Add to Buddy List Orange Level Joined: 15 Mar 2012 Location: CECIL WI Points: 1745	Post Options Post Reply Quote Alex09(WI) Report Post Thanks(0) Quote Reply Posted: 03 May 2020 at 7:41pm

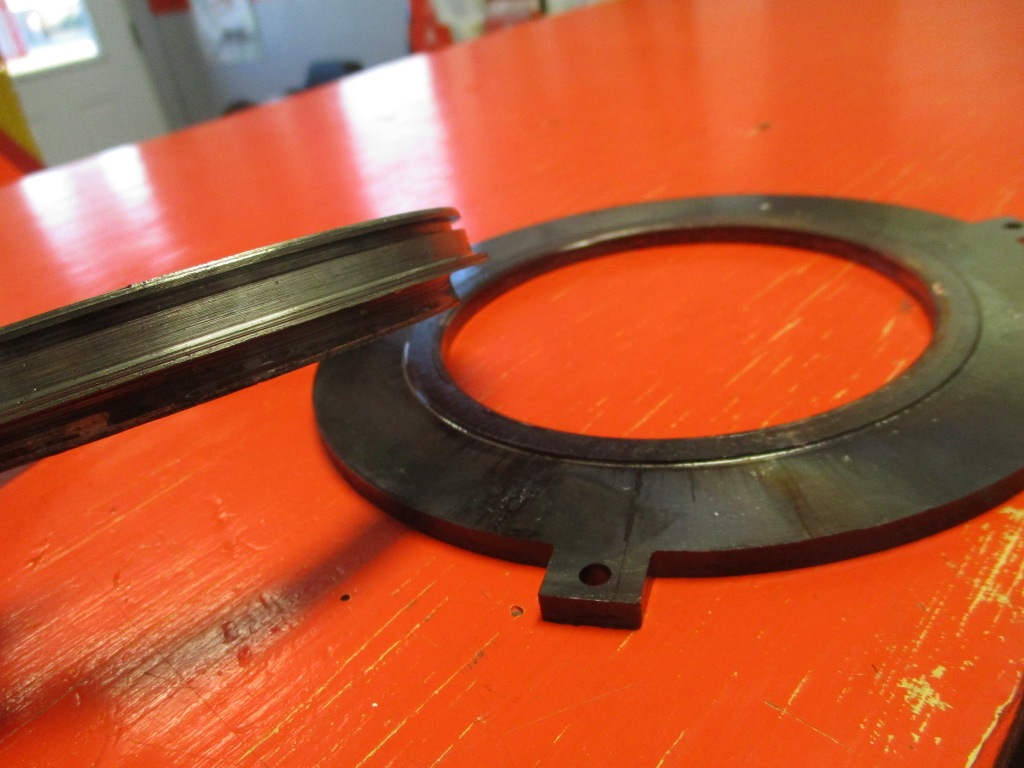

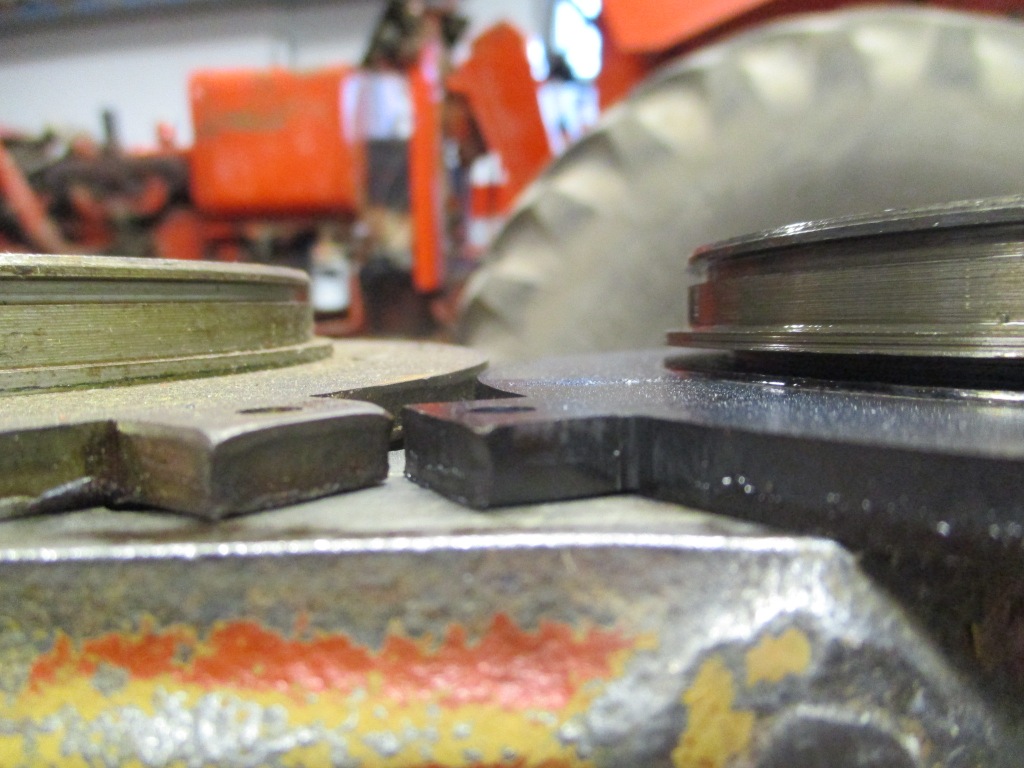

	This is what I found: NOS correct plate on Left---Problem plate from clutch on right Appears to have an extra groove cut! But it really is 2 peices that separated! I stuck a screwdriver in the "groove" and they came apart??? With the pressure washer forcing the 2 halves apart, I wonder why would it be a 2-peice?
