 Topic: 1 u-joint cup
Posted: 18 Apr 2023 at 10:48am |
|
is ‘spinning’ on the yoke. Took the collars off, and the cup is not seized, turns freely, bolts were tight. What causes this, and what is the cure? Replace the u-joint?
|
|
I tried to follow the science, but it was not there. I then followed the money, and that’s where I found the science.
|
 |
|
Sponsored Links
|
|
|
DMiller
Orange Level Access
Joined: 14 Sep 2009
Location: Hermann, Mo
Points: 29573
|
Post Options
Thanks(0)
Quote Reply
Posted: 18 Apr 2023 at 11:14am |
|
Peen the Yoke bore and replace the joint.
|
|
Lars(wi)
Orange Level Access
Joined: 14 Sep 2009
Location: Permian Basin
Points: 6658
|
Post Options
Thanks(0)
Quote Reply
Posted: 18 Apr 2023 at 11:15am |
|
‘Peen’?
|
|
I tried to follow the science, but it was not there. I then followed the money, and that’s where I found the science.
|
|
steve(ill)
Orange Level Access
Joined: 11 Sep 2009
Location: illinois
Points: 77858
|
Post Options
Thanks(0)
Quote Reply
Posted: 18 Apr 2023 at 3:58pm |
|
with the collar bolted on, the "HOLE" is a couple thousands bigger than the CAP , so the cap can rotate / move.... PEEN means to take a center punch and make several DIMPLES inside the "HOLE" so that the metal will extrude out a few thousands, and then COMPRESS when you reinstall the collar and bolt solid.... You can also make sure the collar has no burrs .. or take a couple thousands off the mating FACE around the bolt hole so you get more COMPRESSION on the cap when tightened.
|
|
Like them all, but love the "B"s.
|
|
Coke-in-MN
Orange Level Access
Joined: 12 Sep 2009
Location: Afton MN
Points: 41211
|
Post Options
Thanks(0)
Quote Reply
Posted: 22 Apr 2023 at 12:42am |
Would depend what type of cap it is and what holds it in place , if it's full press in round hole in yoke it would depend on use as one could use a locktite compound to hold cap of not to worn - on a PTO shaft on one dump truck pump cap was lose and for a temp fix transmission shop didn't have the yoke in stock so they places 2 small tack welds onto cap to yoke surfaces - been running for 10 years now as a temp fix .
Notices you said bolts were used to secure the cap to the yoke - so if the STRAP type hold down then the strap is stretched and needs to be replaces . A new strap should solve the tension required - or you could shim under the strap . or on yoke side / or replace the yoke itself .
Edited by Coke-in-MN - 22 Apr 2023 at 12:47am
|
|
Faith isn't a jump in the dark. It is a walk in the light. Faith is not guessing; it is knowing something.
"Challenges are what make life interesting; overcoming them is what makes life meaningful."
|
|
Ed (Ont)
Orange Level
Joined: 08 Nov 2009
Location: New Lowell, Ont
Points: 1222
|
Post Options
Thanks(0)
Quote Reply
Posted: 22 Apr 2023 at 1:54pm |
Take the strap that holds it on. take a few thou off that that where the bolts go thru and put back in place. Torque to spec - it was 125 ft/lbs on my dump truck. And problem fixed. All the shops will tell you to put a new strap kit on but it will spin again in a few days. When you take a bit of material off the end of strap it tightens everything up a bit more. I just used a high speed air tool and those little cookies to take a bit off the strap.  Off the bottom of strap.
Edited by Ed (Ont) - 22 Apr 2023 at 8:09pm
|
|
Ed (Ont)
Orange Level
Joined: 08 Nov 2009
Location: New Lowell, Ont
Points: 1222
|
Post Options
Thanks(0)
Quote Reply
Posted: 22 Apr 2023 at 2:09pm |
|
|
|
Ed (Ont)
Orange Level
Joined: 08 Nov 2009
Location: New Lowell, Ont
Points: 1222
|
Post Options
Thanks(0)
Quote Reply
Posted: 22 Apr 2023 at 2:12pm |
Take a bit off the bottom. Few thou. Lets it tighten a bit more on the cap and keep it from spinning. If this is the design you are referring to. This is referred to as 1/2 round u-joint. If you shim under strap you will have no tension on cap. Will come apart real fast.
Edited by Ed (Ont) - 22 Apr 2023 at 2:25pm
|
|
Ed (Ont)
Orange Level
Joined: 08 Nov 2009
Location: New Lowell, Ont
Points: 1222
|
Post Options
Thanks(0)
Quote Reply
Posted: 22 Apr 2023 at 2:21pm |

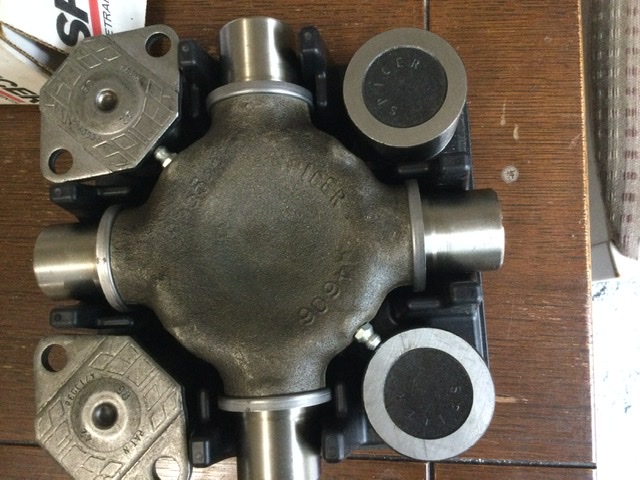

Spicer 1810
Edited by Ed (Ont) - 22 Apr 2023 at 2:22pm
|
|
Lars(wi)
Orange Level Access
Joined: 14 Sep 2009
Location: Permian Basin
Points: 6658
|
Post Options
Thanks(0)
Quote Reply
Posted: 22 Apr 2023 at 2:36pm |
|
Thanks Ed (Ont), that is exactly what I have.
|
|
I tried to follow the science, but it was not there. I then followed the money, and that’s where I found the science.
|
|
DMiller
Orange Level Access
Joined: 14 Sep 2009
Location: Hermann, Mo
Points: 29573
|
Post Options
Thanks(1)
Quote Reply
Posted: 22 Apr 2023 at 2:39pm |
|
Can also remove a few thou from the yoke ears, clamps then lose no stress value.
|
|
Ed (Ont)
Orange Level
Joined: 08 Nov 2009
Location: New Lowell, Ont
Points: 1222
|
Post Options
Thanks(0)
Quote Reply
Posted: 22 Apr 2023 at 3:09pm |
|

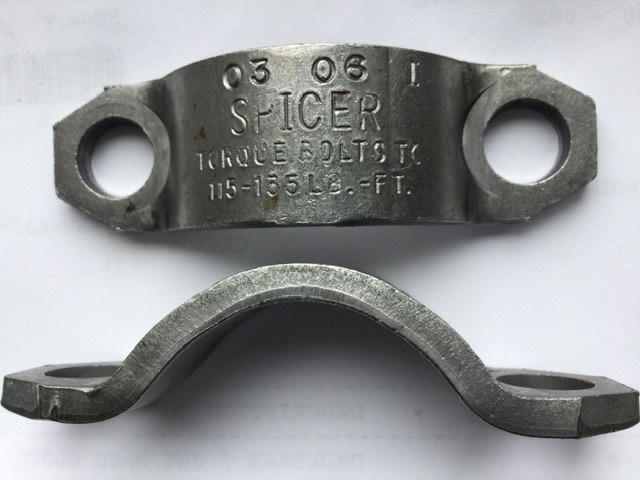

Lars tighten straps to 125 ft/lbs. You can see it on the strap there. They show the range as 115-135. 12 pt 1/2 socket.
|
|
Lars(wi)
Orange Level Access
Joined: 14 Sep 2009
Location: Permian Basin
Points: 6658
|
Post Options
Thanks(0)
Quote Reply
Posted: 22 Apr 2023 at 3:12pm |
|
The one cup that spins is held with a strap.
|
|
I tried to follow the science, but it was not there. I then followed the money, and that’s where I found the science.
|
|
Ed (Ont)
Orange Level
Joined: 08 Nov 2009
Location: New Lowell, Ont
Points: 1222
|
Post Options
Thanks(0)
Quote Reply
Posted: 22 Apr 2023 at 4:53pm |
|
Yes the ones that spin are always held with strap. Not the best design. Do as I have explained and you will not have any further problems. If you have spare time do all that are held with a strap the same way. Don't wait for them to start spinning.
|
|
