 Topic: What disc is it??
Posted: 10 Nov 2021 at 4:37pm |

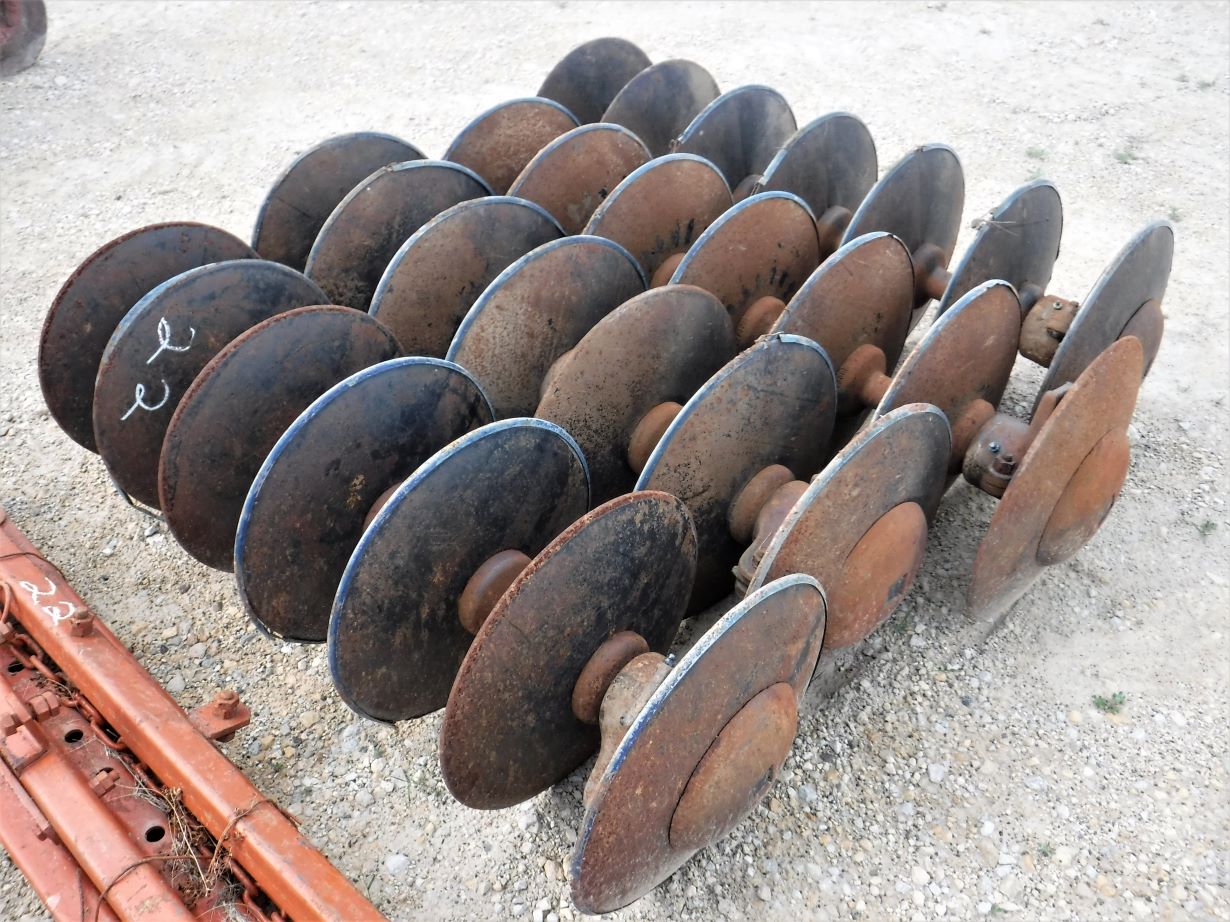

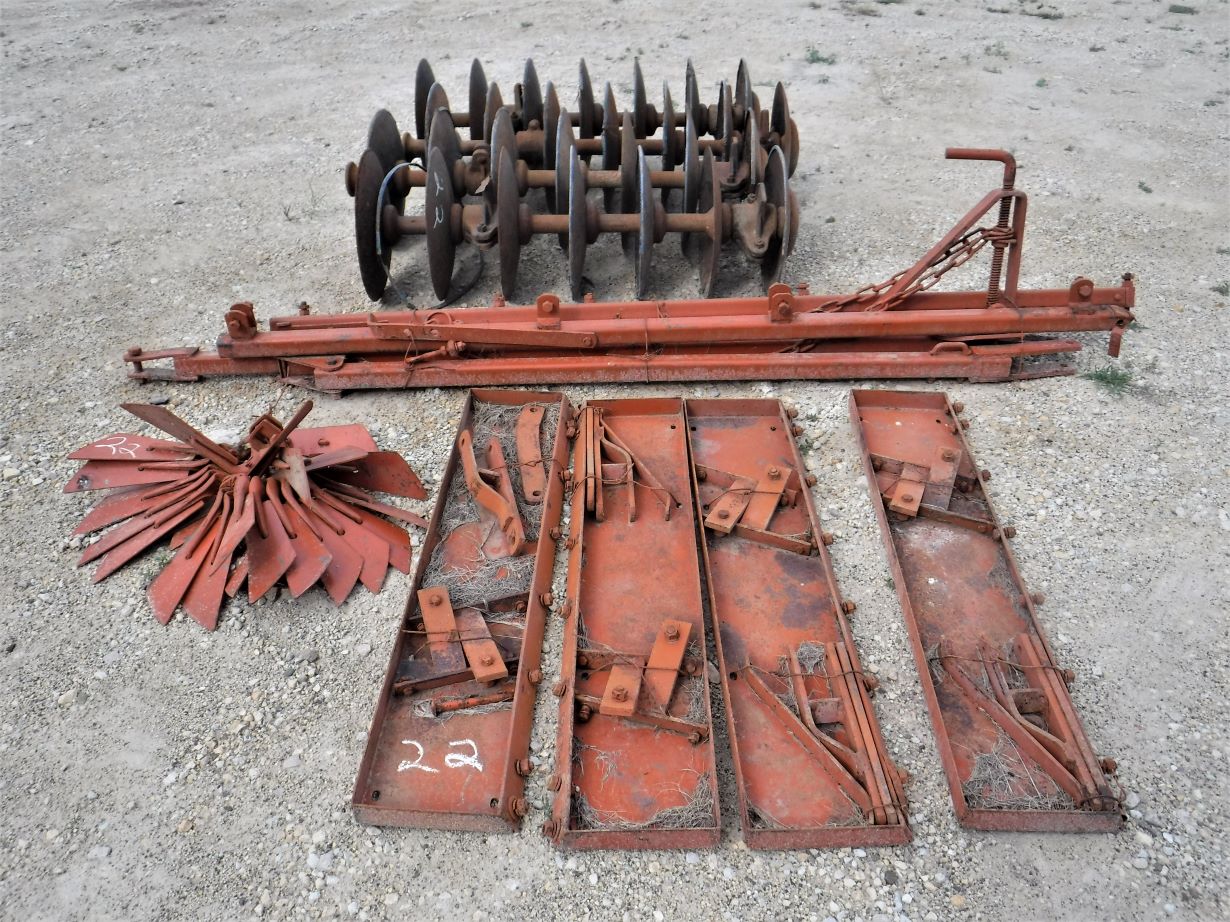

Bought new new unassembled AC disc today. Listed as 14 foot. believe its a 10 footer. Tags on it have numbers 382180 on the frame, 32055 on a pan. looks like cement blocks would fit, and 82056, wood bearing 300627. 7 discs on each axle. 4 axles. about 4 ft wide. uploads/22596/disk22-1.jpguploads/22596/disk22-2.jpg new to this forum need to figure out how to post pics.
|
 |
|
Sponsored Links
|
|
|
Lynn Marshall
Orange Level Access
Joined: 13 Sep 2009
Location: Dana, Iowa
Points: 2406
|
Post Options
Thanks(0)
Quote Reply
Posted: 10 Nov 2021 at 6:16pm |
|
Don't know what model that is, but cool find ,whatever it is. And welcome to the forum.
|
|
DiyDave
Orange Level Access
Joined: 11 Sep 2009
Location: Gambrills, MD
Points: 54284
|
Post Options
Thanks(0)
Quote Reply
Posted: 10 Nov 2021 at 6:34pm |
Wood bearings, probably what is known as a WD disc, But it could be older than even that. From those boxes, in the back of the steel picture, it might be a LaCrosse built 114 disc harrow. If so, its a one way disc, all discs point inward, like the rear gangs of a normal disc, and is spread out pretty wide, in the only picture I have ever seen. The picture I'm talking about is in Swinford's book, being pulled by a WC tractor...
|
|
Source: Babylon Bee. Sponsored by BRAWNDO, its got what you need!
|
|
Tom59
Bronze Level
Joined: 27 Feb 2021
Location: Lebanon Tenness
Points: 155
|
Post Options
Thanks(0)
Quote Reply
Posted: 11 Nov 2021 at 7:42am |
|
I curious to see your new Allis Chalmers disk when you get it assembled and in the field operating. That is a great find. .
|
|
DiscoPaul
Bronze Level
Joined: 10 Nov 2021
Location: mn
Points: 12
|
Post Options
Thanks(0)
Quote Reply
Posted: 11 Nov 2021 at 10:41am |
|
I will. Going to be one of my winter projects. Hope to get it unloaded today. Thinking about using a real light grease on the bearings over the winter. I'm sure the wood is pretty darn dry. Thinking it might soak in some.
|
|
Allis dave
Orange Level
Joined: 10 May 2012
Location: Northern IN
Points: 3073
|
Post Options
Thanks(0)
Quote Reply
Posted: 11 Nov 2021 at 1:24pm |
Very cool find!
That's a No. 9a Disc Harrow. I have a book in my drawer for it that I'm staring at as we speak.
|
|
steve(ill)
Orange Level Access
Joined: 11 Sep 2009
Location: illinois
Points: 88218
|
Post Options
Thanks(0)
Quote Reply
Posted: 11 Nov 2021 at 1:26pm |
|
Paul, you might try soaking the wood bearings in oil for a few days and see if it soaks some up.. Then when you install, use grease..
|
|
Like them all, but love the "B"s.
|
|
DiscoPaul
Bronze Level
Joined: 10 Nov 2021
Location: mn
Points: 12
|
Post Options
Thanks(0)
Quote Reply
Posted: 11 Nov 2021 at 5:35pm |
You all ROCK!!!!!! Will do on the oil. Great to know what model it is. Gonna spray all the bolts tomorrow. Hopefully will loosen them up some.
|
|
1951WDNWWI
Bronze Level Access
Joined: 11 Jul 2011
Location: NW Wisconsin
Points: 118
|
Post Options
Thanks(0)
Quote Reply
Posted: 11 Nov 2021 at 5:40pm |
|
Was it in a wood box? Nice to see a picture of that.
|
|
DiscoPaul
Bronze Level
Joined: 10 Nov 2021
Location: mn
Points: 12
|
Post Options
Thanks(0)
Quote Reply
Posted: 11 Nov 2021 at 5:42pm |
|
I'm sure it must be an 8 Foot model. I knew it wasn't 14 foot. Can't wait to get started.
|
|
DiscoPaul
Bronze Level
Joined: 10 Nov 2021
Location: mn
Points: 12
|
Post Options
Thanks(0)
Quote Reply
Posted: 11 Nov 2021 at 5:45pm |
|
No on the wood box. It was on a implement lot. One of their customers put on consignment. Made them an offer and they took it. I think most if not all the parts are there. Maybe missing a couple of bolts.
|
|
DiscoPaul
Bronze Level
Joined: 10 Nov 2021
Location: mn
Points: 12
|
Post Options
Thanks(0)
Quote Reply
Posted: 11 Nov 2021 at 5:48pm |
|
Plan on repainting as I get into it. The disc's still had the edge protector's on them.
|
|
Mikez
Orange Level Access
Joined: 16 Jan 2013
Location: Usa
Points: 8731
|
Post Options
Thanks(0)
Quote Reply
Posted: 11 Nov 2021 at 6:04pm |
welcome to the forum. That is a neat find. Do you have any other allis
|
|
im4racin
Orange Level
Joined: 12 Jun 2017
Location: Garrison ND
Points: 1068
|
Post Options
Thanks(0)
Quote Reply
Posted: 11 Nov 2021 at 6:13pm |
|
if it was mine I wouldn’t assemble it. It will never be cool as it is now. If you want one to use buy a used one
|
|
DiscoPaul
Bronze Level
Joined: 10 Nov 2021
Location: mn
Points: 12
|
Post Options
Thanks(0)
Quote Reply
Posted: 11 Nov 2021 at 6:44pm |
|
1st piece of Allis. I just thought it would be a cool project. Thinking after looking at pics in manual it might be missing a part for the back. We raise grass hay and goats. Doubt if it will get used much. If at all. It was cool to find something so old still unused. It would be nice to keep as is.
|
|
Roger Mn
Bronze Level
Joined: 12 Sep 2009
Location: Preston Mn
Points: 108
|
Post Options
Thanks(0)
Quote Reply
Posted: 11 Nov 2021 at 7:09pm |
|
I think it is a number 15 disc I stop one day and took a look at it
|
|
DiscoPaul
Bronze Level
Joined: 10 Nov 2021
Location: mn
Points: 12
|
Post Options
Thanks(0)
Quote Reply
Posted: 11 Nov 2021 at 7:15pm |
|
Roger I'm not far from you. Just outside of Cannon Falls MN. Looked at ebay listing that Allis Dave posted. Looks pretty much like the 9a. I'll take a look at the 15.
|
|
Everyday is a good day. Some are just better than others!!
|
|
DiscoPaul
Bronze Level
Joined: 10 Nov 2021
Location: mn
Points: 12
|
Post Options
Thanks(0)
Quote Reply
Posted: 11 Nov 2021 at 7:18pm |
|
Don't think it is a #15. All disc sections are just under 4 feet wide.
|
|
Everyday is a good day. Some are just better than others!!
|
|
DiscoPaul
Bronze Level
Joined: 10 Nov 2021
Location: mn
Points: 12
|
Post Options
Thanks(0)
Quote Reply
Posted: 12 Nov 2021 at 9:11am |
|
OK so I just got it unloaded and looked at tags and manual on ebay. Numbers don't match up. I have 2 bundles each of 32056 and 32055. Those are the pan bundles with hardware. The frame bundle is 382180. Discs are 16 inch. The search continues.
|
|
Everyday is a good day. Some are just better than others!!
|
|
TedBuiskerN.IL.
Orange Level
Joined: 11 Sep 2009
Location: Davis, IL.
Points: 1959
|
Post Options
Thanks(0)
Quote Reply
Posted: 12 Nov 2021 at 1:02pm |
It's not a #9 as the arched piece that pulls the tandem is not there. I would say it's a single disc maybe a #15 as was previously stated.
|
|
Most problems can be solved with the proper application of high explosives.
|
|
DiscoPaul
Bronze Level
Joined: 10 Nov 2021
Location: mn
Points: 12
|
Post Options
Thanks(0)
Quote Reply
Posted: 12 Nov 2021 at 7:41pm |
I think Roger is right on the 15 foot disc. Found some pictures Really want to thank everyone for their help.
|
|
Everyday is a good day. Some are just better than others!!
|
|
Allis dave
Orange Level
Joined: 10 May 2012
Location: Northern IN
Points: 3073
|
Post Options
Thanks(0)
Quote Reply
Posted: 15 Nov 2021 at 6:25am |
|
Personally, I wouldn't paint it. Tha'ts some good original paint. (And I usually like t paint things...)
|
|
