three spool control valve D-19
 Post Reply Post Reply
Author
Message
  Topic Search Topic Search  Topic Options Topic Options
T-bone_indy View Drop Down
Silver Level
Silver Level
Avatar

Joined: 06 Sep 2018
Location: Indiana
Points: 68 		Post Options Post Options   Thanks (1) Thanks(1)   Quote T-bone_indy Quote  Post ReplyReply Direct Link To This Post Topic: three spool control valve D-19
    Posted: 10 Sep 2018 at 7:05am
Hi All
The lever that rises lift arms won't hold position. The previous owner had the unit rebuild but he said it only lasted a few weeks after that. Should I replace the whole unit or can I repair just the one control lever?
Thanks
D19-AC916-Kubota B2150- Wheel Horse charger 12
Back to Top
Sponsored Links


Back to Top
MACK View Drop Down
Orange Level
Orange Level


Joined: 17 Nov 2009
Points: 7664 		Post Options Post Options   Thanks (0) Thanks(0)   Quote MACK Quote  Post ReplyReply Direct Link To This Post Posted: 10 Sep 2018 at 7:58am
Are you saying the lift arms go down after you let go of lever or is lever going down?     MACK
Back to Top
T-bone_indy View Drop Down
Silver Level
Silver Level
Avatar

Joined: 06 Sep 2018
Location: Indiana
Points: 68 		Post Options Post Options   Thanks (0) Thanks(0)   Quote T-bone_indy Quote  Post ReplyReply Direct Link To This Post Posted: 10 Sep 2018 at 9:05am
the 2pt arms go down and won't hold the bush hog up. after raising it up.
D19-AC916-Kubota B2150- Wheel Horse charger 12
Back to Top
T-bone_indy View Drop Down
Silver Level
Silver Level
Avatar

Joined: 06 Sep 2018
Location: Indiana
Points: 68 		Post Options Post Options   Thanks (0) Thanks(0)   Quote T-bone_indy Quote  Post ReplyReply Direct Link To This Post Posted: 10 Sep 2018 at 1:06pm
would one these suit for a replacement ?
from northen tool



Edited by T-bone_indy - 10 Sep 2018 at 1:10pm
D19-AC916-Kubota B2150- Wheel Horse charger 12
Back to Top
Travis(NE) View Drop Down
Silver Level
Silver Level


Joined: 24 Sep 2009
Location: Seward NE
Points: 296 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Travis(NE) Quote  Post ReplyReply Direct Link To This Post Posted: 10 Sep 2018 at 4:26pm
Those valves would take a lot of plumbing to make work.

There is a check valve for the traction boost that gets gummed up and wont hold and that is usually what causes the lift arms to not hold on the D19's.  I have two of them that I need to look into as well.
Back to Top
T-bone_indy View Drop Down
Silver Level
Silver Level
Avatar

Joined: 06 Sep 2018
Location: Indiana
Points: 68 		Post Options Post Options   Thanks (0) Thanks(0)   Quote T-bone_indy Quote  Post ReplyReply Direct Link To This Post Posted: 10 Sep 2018 at 9:39pm
thanks for reply.
Now i need to find it and how to take it apart is the question.
can you point me in the right direction?
D19-AC916-Kubota B2150- Wheel Horse charger 12
Back to Top
MACK View Drop Down
Orange Level
Orange Level


Joined: 17 Nov 2009
Points: 7664 		Post Options Post Options   Thanks (0) Thanks(0)   Quote MACK Quote  Post ReplyReply Direct Link To This Post Posted: 11 Sep 2018 at 6:58am
It is the two way check valve. Remove top section from bottom section. There will be a valve stuck out of bottom of top section. Unscrew valve, a second part may stay in, unscrew it. Replace copper ring. Tighten valve with big screw driver, drop ball back in. With a soft punch and hammer, pound on ball then retighten several times until it s tight. Replace all orings and reassembly.     MACK
Back to Top
T-bone_indy View Drop Down
Silver Level
Silver Level
Avatar

Joined: 06 Sep 2018
Location: Indiana
Points: 68 		Post Options Post Options   Thanks (0) Thanks(0)   Quote T-bone_indy Quote  Post ReplyReply Direct Link To This Post Posted: 11 Sep 2018 at 7:14am
Thanks Mack
I will be  being the tractor home later today once my tire is repaired. I will take it apart over the next few days and report back to what I found. Is the O-ring and copper washer available at the local auto parts store ? Thanks again


Edited by T-bone_indy - 11 Sep 2018 at 7:24am
D19-AC916-Kubota B2150- Wheel Horse charger 12
Back to Top
Travis(NE) View Drop Down
Silver Level
Silver Level


Joined: 24 Sep 2009
Location: Seward NE
Points: 296 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Travis(NE) Quote  Post ReplyReply Direct Link To This Post Posted: 11 Sep 2018 at 11:34pm

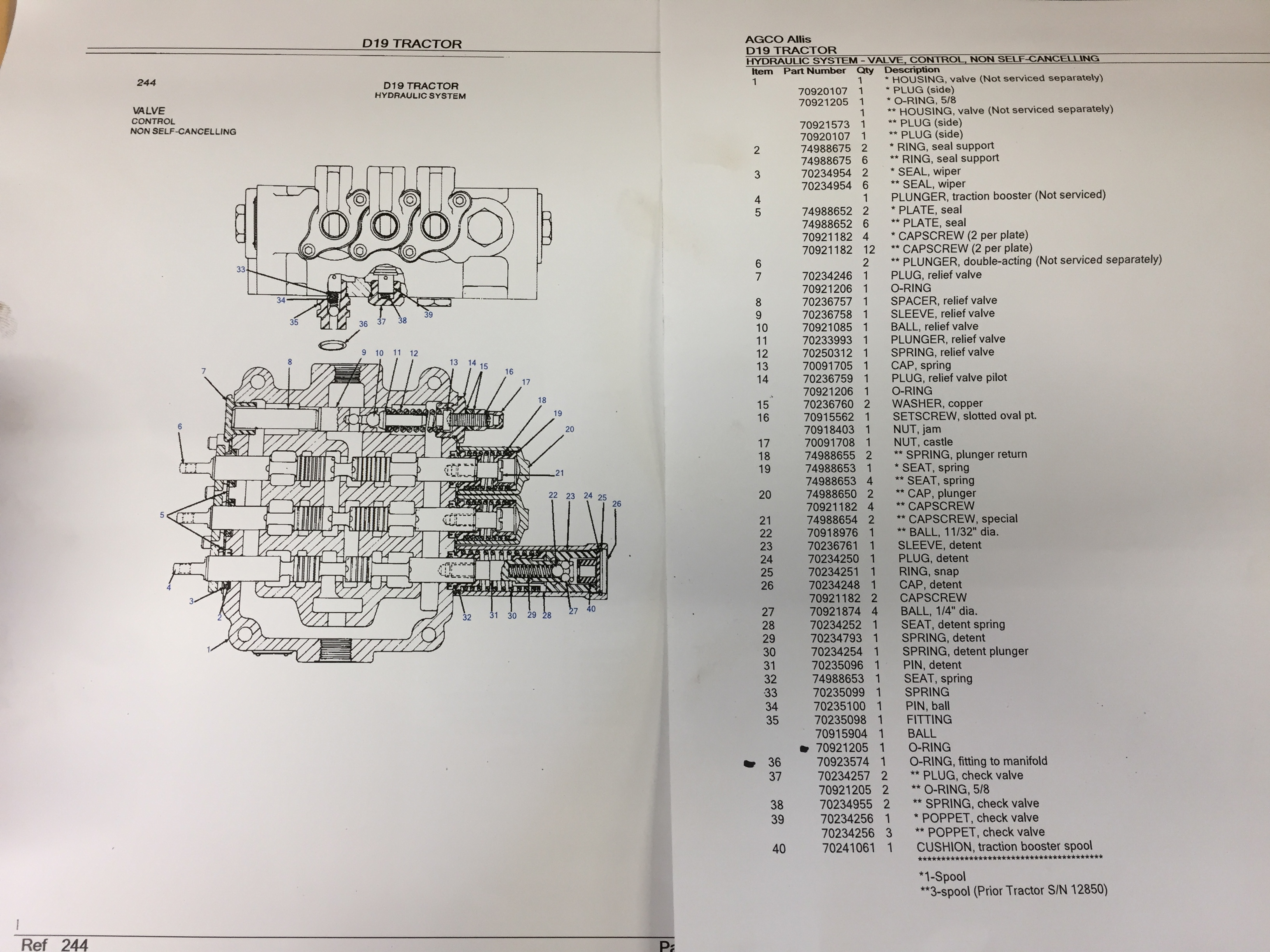

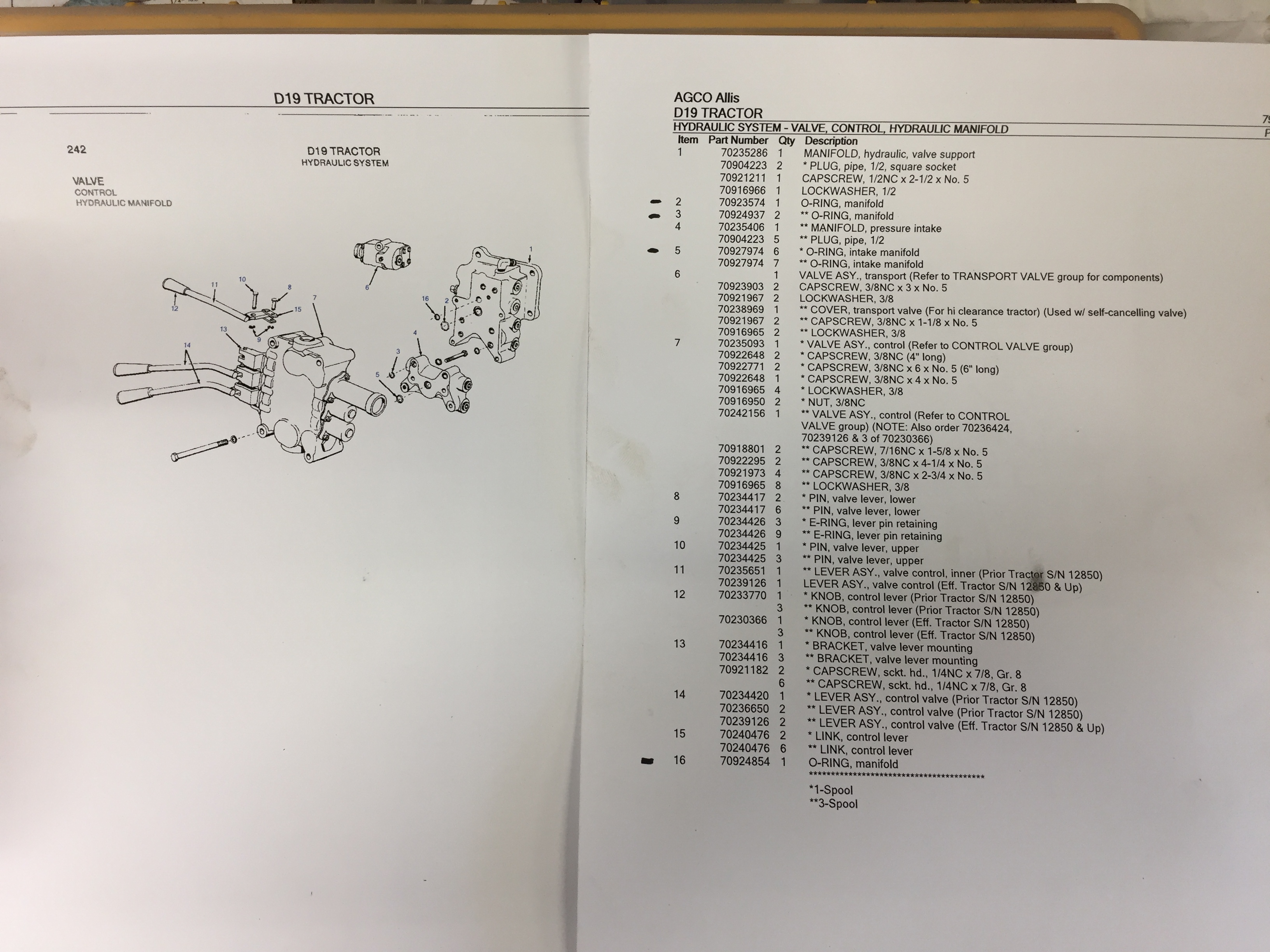

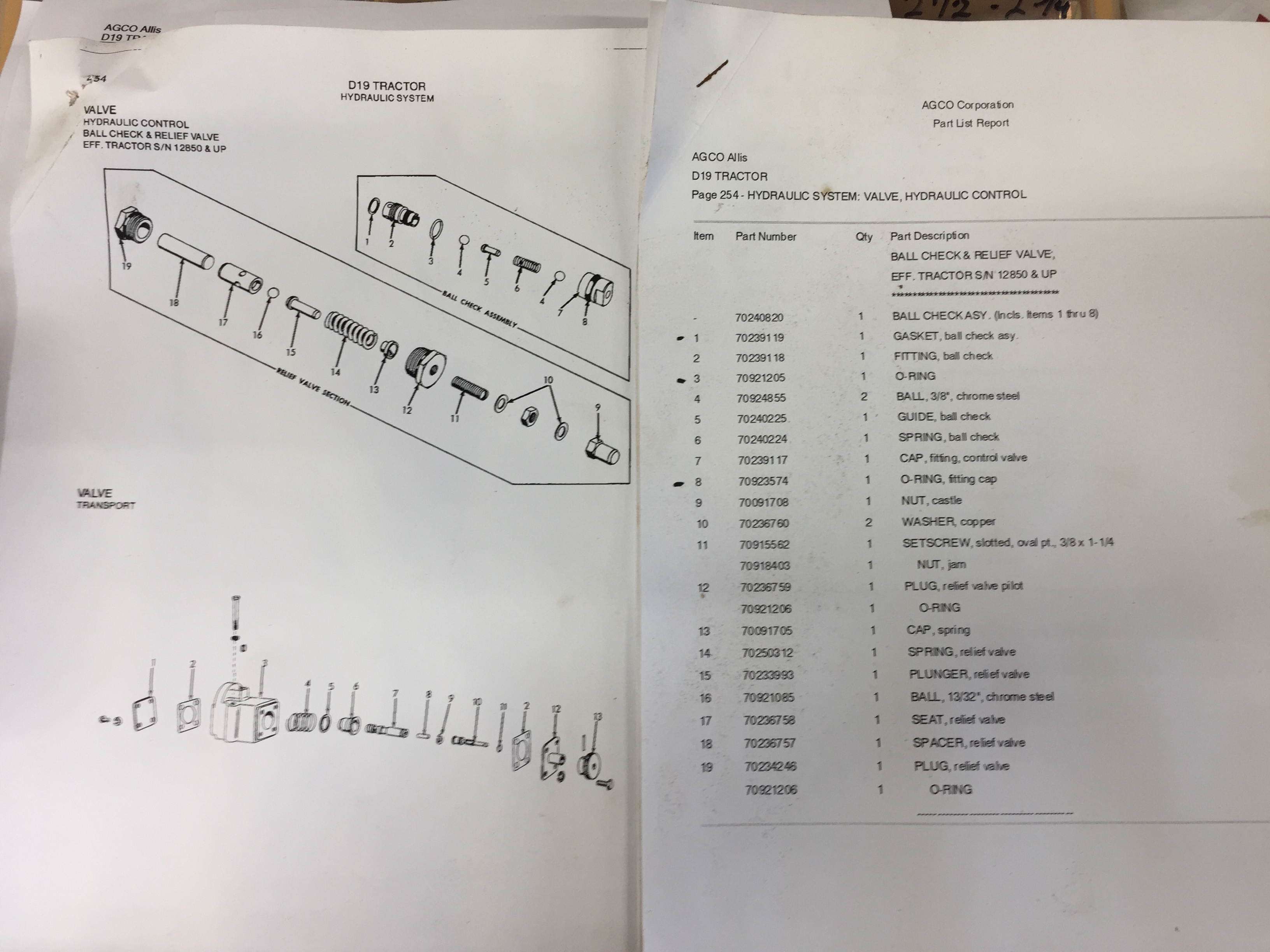

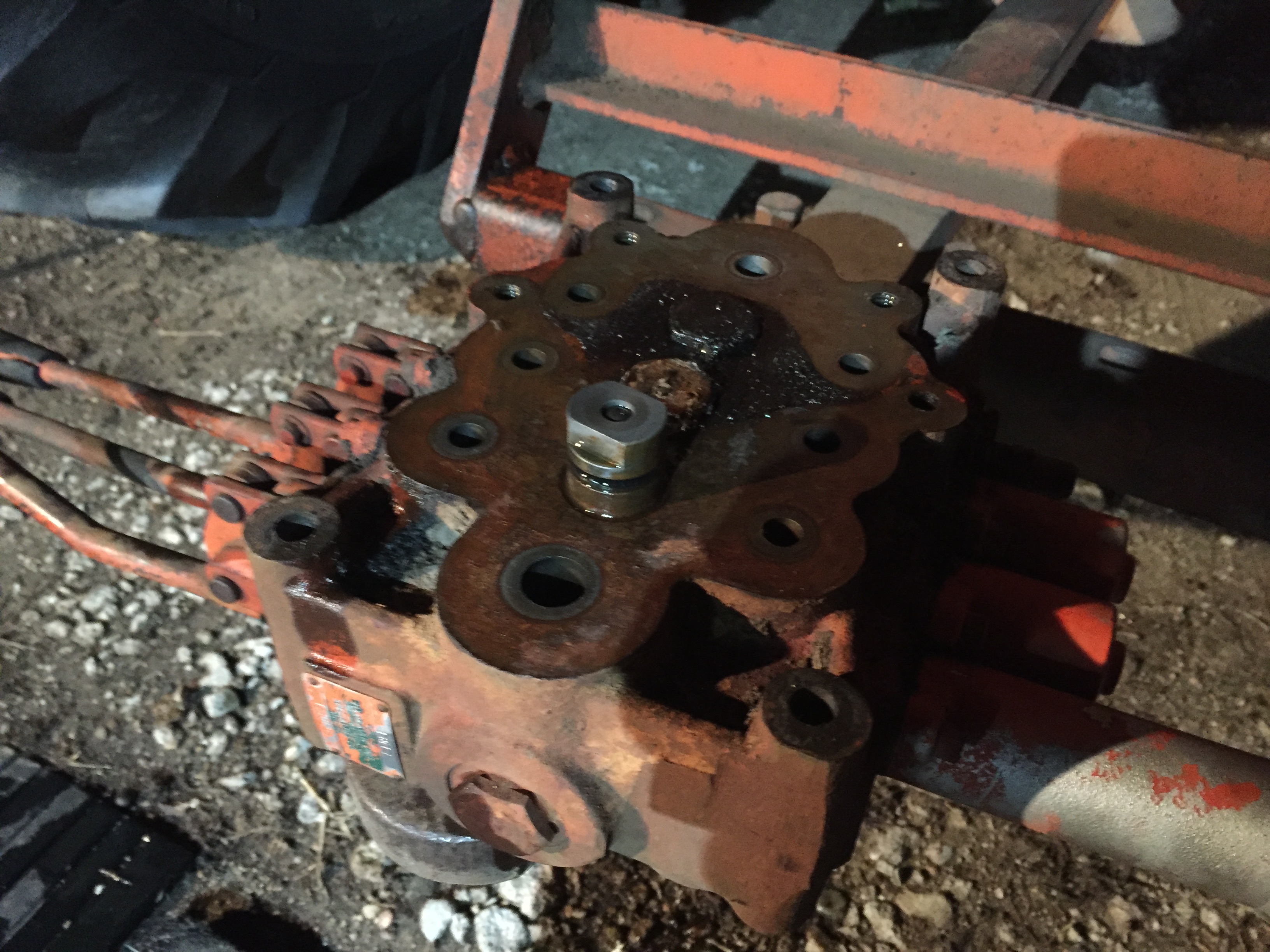

I order the parts from my local AGCO dealer, but I’m sure anyone with an O-ring assortment could match them. I had one apart last night and found the previous person in there cracked the check valve housing. Luckily I have a parts tractor and was able to change it out and now it will actually hold the lift arms with blade up. I’ll attempt to post some pictures. The parts with a dash next to them are what you will need.







Back to Top
Travis(NE) View Drop Down
Silver Level
Silver Level


Joined: 24 Sep 2009
Location: Seward NE
Points: 296 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Travis(NE) Quote  Post ReplyReply Direct Link To This Post Posted: 11 Sep 2018 at 11:44pm
Haven’t figured out how to resize pictures yet... If I have time I will attempt to fix another one of mine that settles tomorrow and can take more pictures if you like...
Back to Top
T-bone_indy View Drop Down
Silver Level
Silver Level
Avatar

Joined: 06 Sep 2018
Location: Indiana
Points: 68 		Post Options Post Options   Thanks (0) Thanks(0)   Quote T-bone_indy Quote  Post ReplyReply Direct Link To This Post Posted: 12 Sep 2018 at 5:42am
Appreciate the info MACK!
I just got the tractor over to my farm yesterday. I drove it 7 mile from it's previous farm. I probably won't have time to tear into until this weekend. Thanks again. I'll try locate the spare parts from AGCO.
D19-AC916-Kubota B2150- Wheel Horse charger 12
Back to Top
Kub47 View Drop Down
Bronze Level
Bronze Level


Joined: 07 Jun 2023
Location: SouthEast MN
Points: 1 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Kub47 Quote  Post ReplyReply Direct Link To This Post Posted: 07 Jun 2023 at 12:21pm
Hey sorry to resurrect an old post but I’ve never really worked on hydraulics before and we have a D19 with the same problem. First Question how do you release pressure in the system. And Secondly is there any suggestions you’d give to someone doing this or working on hydraulics in general and staying safe.

Edited by Kub47 - 07 Jun 2023 at 12:30pm
Back to Top
Model 70 View Drop Down
Bronze Level
Bronze Level


Joined: 09 Jan 2021
Location: Minnesota
Points: 123 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Model 70 Quote  Post ReplyReply Direct Link To This Post Posted: 15 May 2024 at 8:52pm
Hello, I found this old posting and I’m having trouble with my 3 point arms settling also,split the 3 spool valve and removed the check valve mine is a one piece valve and not a 2 piece valve the pictures in the post show both, just curious how you remedy the settling problem with the type of check valve I have. Thanks in advance
