 Topic: Plow ID help
Posted: 06 May 2012 at 7:02am |

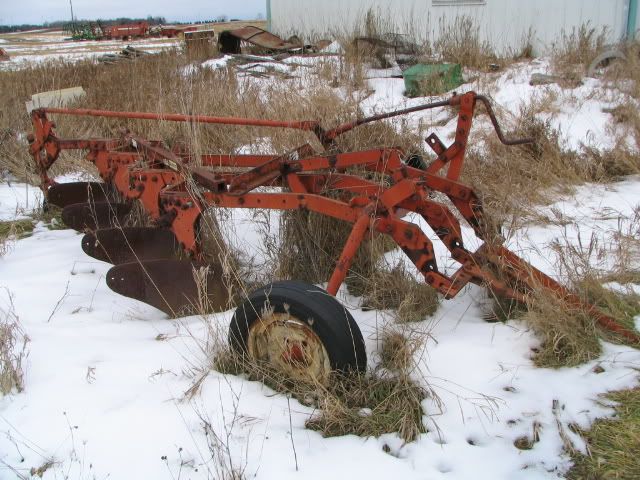

Anyone know what model AC plow this ?
Anyone know what a ballpark price would be for it? Thanks for any input.
|
 |
|
Sponsored Links
|
|
|
DWC17
Bronze Level
Joined: 05 Aug 2010
Location: N.W.Ohio
Points: 52
|
Post Options
Thanks(0)
Quote Reply
Posted: 06 May 2012 at 7:07am |
The reset portion looks like my 80 series snap coupler plow. I can't help you on the price. Dan
|
|
Gerald J.
Orange Level
Joined: 12 Sep 2009
Location: Hamilton Co, IA
Points: 5636
|
Post Options
Thanks(0)
Quote Reply
Posted: 06 May 2012 at 10:14am |
|
Looks like late spring trips, which were late 80 or 9000 in my book. The frame isn't at all like an 80 frame, those angled cross beams are NOT 80 family. Might be a 9000, with pull behind hitch. Hitches seemed to have been sold separately from the frame, just like bottoms.
I can't find my plow frames book this morning, but it can be downloaded from http://www.grandpastractor.com/phpBB3/index.php There are two of interest there, one on plow frames and one on plow bottoms.
Minimum value is the scrap metal value, maximum depends on the number of bidders and how badly one wants it and can pay for it. Pull behind plows don't add load to the tractor axle for better traction so require a heavier or weighted tractor for best performance compared to a three point or semi mounted plow.
Gerald J.
|
|
orange knight
Orange Level
Joined: 28 Apr 2011
Location: Scarville, Ia
Points: 2950
|
Post Options
Thanks(0)
Quote Reply
Posted: 06 May 2012 at 2:39pm |
|
Its a 9000 series 4 bottom plow. I had a friend that had one at pioneer power. Looks just like the 4 bottom 9000 series that I just brought home. They usally run between about $350 to $450 depending on its condition. I would buy it from you if you would be interested in selling it.
Edited by orange knight - 06 May 2012 at 2:43pm
|
|
Specializing in Allis Chalmers Tractor and Equipment Parts
952-290-1063
|
|
Lester
Orange Level
Joined: 08 Jan 2010
Location: Indiana
Points: 521
|
Post Options
Thanks(0)
Quote Reply
Posted: 06 May 2012 at 5:08pm |
|
The plow looks just like picture of in my 80 series wheel type book has. I sold one like that to my nephew except mine is a later one with the bigger bar on top.
|
|
Gerald J.
Orange Level
Joined: 12 Sep 2009
Location: Hamilton Co, IA
Points: 5636
|
Post Options
Thanks(0)
Quote Reply
Posted: 06 May 2012 at 6:51pm |
|
in my plow frames book, the side plates of the spring trip are bent to make a flat flange the the truss tube bolts to. These spring trip side plates are flat like to 80 family spring trips. The spring support is for the later rather than the earlier plow frames.
I see the angled cross members of the wheel hitch, but not the angled pars in the plow frame.
80 or 9000 family plow frames carry the plow bottoms decently and essentially adjust the same. If you can find any number on any plow frame part, it will help identify the plow frame for sure, same thing for plow bottoms which were sold separately from the plow frames.
Gerald J.
|
|
orange knight
Orange Level
Joined: 28 Apr 2011
Location: Scarville, Ia
Points: 2950
|
Post Options
Thanks(0)
Quote Reply
Posted: 06 May 2012 at 7:23pm |
I correct myself. I just looked in the book and it is eather a 9000 or a 80 series wheel type.
|
|
Specializing in Allis Chalmers Tractor and Equipment Parts
952-290-1063
|
|
Gerald J.
Orange Level
Joined: 12 Sep 2009
Location: Hamilton Co, IA
Points: 5636
|
Post Options
Thanks(0)
Quote Reply
Posted: 06 May 2012 at 11:48pm |
|
Without the bent spring trip side plates, it looks more like an 80 than a 9000 from the illustrations in my plow frames manual, but parts don't look like anything in my book, those bars at an angle between the plow beams up by the hitch.
Gerald J.
|
|
Lester
Orange Level
Joined: 08 Jan 2010
Location: Indiana
Points: 521
|
Post Options
Thanks(0)
Quote Reply
Posted: 07 May 2012 at 12:44am |
|
The 80 seres has the top beam bolted on top as a add on and the 9000 the beam is part of the main frame .
|
|
