Know anything about 1960s-1970s GM Big Trucks ?

 Post Reply Post Reply Page  <12
Author
Message
Codger View Drop Down
Orange Level
Orange Level
Avatar

Joined: 23 Dec 2020
Location: Illinois
Points: 1815
Post Options Post Options   Thanks (1) Thanks(1)   Quote Codger Quote  Post ReplyReply Direct Link To This Post Posted: 28 Mar 2023 at 7:48am
The one I drove had round fuel tanks and there was a gap between the tank and wheel arch filled with the battery box, and air tanks on each side. I think the batteries were on the left and side by side mounted air tanks on the right side. Can't say if the cowl were longer for the cab, but the hood certainly was. The passenger side cowl had that "vent" or louvers pressed into it as seen on the white truck in the photo.

Edited by Codger - 28 Mar 2023 at 7:49am
A career built on repairing and improving engineering design deficiencies, shortcomings, and failures over 50 years now.
Back to Top
Sponsored Links


Back to Top
Tbone95 View Drop Down
Orange Level Access
Orange Level Access
Avatar

Joined: 31 Aug 2012
Location: Michigan
Points: 11399
Post Options Post Options   Thanks (0) Thanks(0)   Quote Tbone95 Quote  Post ReplyReply Direct Link To This Post Posted: 28 Mar 2023 at 7:52am
Originally posted by BuckSkin BuckSkin wrote:

Originally posted by Tbone95 Tbone95 wrote:

both links work for me?

That's almost amazing !

I have been using Chrome and  repetitively trying to connect with the top link for days and all I ever get is "This Site Can't be Reached"

I just now tried again a couple times.

The bottom link works fine and takes me to a GMC enthusiasts forum site which I have bookmarked - Thanks.

P.S. I just now tried with Pale Moon browser and got "Site does not Exist"
Weird.  I'll say it took a little longer than typical, but it worked.  Beats me.
Back to Top
BuckSkin View Drop Down
Silver Level
Silver Level


Joined: 12 Sep 2019
Location: Poor Farm
Points: 303
Post Options Post Options   Thanks (0) Thanks(0)   Quote BuckSkin Quote  Post ReplyReply Direct Link To This Post Posted: 28 Mar 2023 at 7:56am
Originally posted by Tbone95 Tbone95 wrote:

Weird.  I'll say it took a little longer than typical, but it worked.  Beats me.

What browser are you using ?

Once you got on the site, could you change pages and navigate around ?
Back to Top
Tbone95 View Drop Down
Orange Level Access
Orange Level Access
Avatar

Joined: 31 Aug 2012
Location: Michigan
Points: 11399
Post Options Post Options   Thanks (1) Thanks(1)   Quote Tbone95 Quote  Post ReplyReply Direct Link To This Post Posted: 28 Mar 2023 at 8:01am
Originally posted by BuckSkin BuckSkin wrote:

Originally posted by Tbone95 Tbone95 wrote:

Weird.  I'll say it took a little longer than typical, but it worked.  Beats me.

What browser are you using ?

Once you got on the site, could you change pages and navigate around ?
Microsoft Edge, and yes, can navigate the page.
Back to Top
fjdrill View Drop Down
Silver Level Access
Silver Level Access


Joined: 13 May 2012
Location: Alabama
Points: 267
Post Options Post Options   Thanks (1) Thanks(1)   Quote fjdrill Quote  Post ReplyReply Direct Link To This Post Posted: 28 Mar 2023 at 8:37am
Auction time. Auction results: Lot#9798-1967 Chevrolet C90. That truck has the 3 back widows.
Back to Top
BuckSkin View Drop Down
Silver Level
Silver Level


Joined: 12 Sep 2019
Location: Poor Farm
Points: 303
Post Options Post Options   Thanks (0) Thanks(0)   Quote BuckSkin Quote  Post ReplyReply Direct Link To This Post Posted: 28 Mar 2023 at 9:02am
Originally posted by fjdrill fjdrill wrote:

Auction time. Auction results: Lot#9798-1967 Chevrolet C90. That truck has the 3 back widows.

THANKS ! Now THAT is a good find !

62 bids and only $2,225; that truck was a steal; I wish I had been there = it would be sitting here at the house now.

I bet that 238 Detroit sounds off.

Whoever typed it up didn't know what they were talking about "two-speed axle"
Back to Top
Ray54 View Drop Down
Orange Level Access
Orange Level Access


Joined: 22 Nov 2009
Location: Paso Robles, Ca
Points: 4370
Post Options Post Options   Thanks (1) Thanks(1)   Quote Ray54 Quote  Post ReplyReply Direct Link To This Post Posted: 28 Mar 2023 at 10:47am
Just for prospective on the west coast single rear axle tractors for pulling double trailers are still very popular. So your asking about if a 9500 could come as I single rear axle, it very well could of.

Definitely some traction limitations with only one drive axle, but on the other hand a set of doubles follows so much easier on a tight turn and does not cheat near as much. Pluses and minces in most things. Just like your talk of Dayton or bud wheels, never been around a Dayton wheel. Just about everything is bud wheels.
Back to Top
PaulB View Drop Down
Orange Level
Orange Level


Joined: 12 Sep 2009
Location: Rocky Ridge Md
Points: 4431
Post Options Post Options   Thanks (1) Thanks(1)   Quote PaulB Quote  Post ReplyReply Direct Link To This Post Posted: 28 Mar 2023 at 1:06pm
The choice of Dayton or Budd is kinda a matter of preference of the original purchaser. At one time in this area Budd were not common on anything and most tire shops had competent help that knew how  properly install the rims on the spokes, today not so much. At today's tire shops any moron can take the air impact and tighten up a Budd wheel to run true, weather or not it is properly torqued.
  Of all the road tractors I've owned only one had Budd wheels and if I'd ordered it instead of getting what was on the lot, it would have also had spoke wheels. I can change a flat on the side of the road with a Dayton wheel and be back going before a road service truck could leave its shop. I also know how to properly tighten a Dayton wheel so that it runs true and doesn't  slip on the spoke and I only use a 4-way lug wrench and I've been doing it for 50+ years
If it was fun to pull in LOW gear, I could have a John Deere.
If you can't make it GO... make it SHINY
Back to Top
BuckSkin View Drop Down
Silver Level
Silver Level


Joined: 12 Sep 2019
Location: Poor Farm
Points: 303
Post Options Post Options   Thanks (0) Thanks(0)   Quote BuckSkin Quote  Post ReplyReply Direct Link To This Post Posted: 28 Mar 2023 at 2:29pm
Properly installed, the spoke/Dayton wheel setup is strongest.

Besides the wheels wobbling as you already mentioned, the main thing I saw the most of with Daytons is the rims slipping and shearing off the valve stems.

Also, if you don't know what you are doing and don't loosen the nuts just a bit and knock the wedges loose with a hammer before taking the nuts completely off, those wedges will shoot off there like the projectile from a howitzer and kill you.

The biggest downfall of the lug-centric Budds with the two-piece inner/outer double-nut is one or the other or both wheels would get loose and break out the center around the studs.

We got at least one truck a day that would have the center broken out of a double-nut Budd.
Back to Top
DMiller View Drop Down
Orange Level Access
Orange Level Access


Joined: 14 Sep 2009
Location: Hermann, Mo
Points: 29661
Post Options Post Options   Thanks (0) Thanks(0)   Quote DMiller Quote  Post ReplyReply Direct Link To This Post Posted: 28 Mar 2023 at 4:54pm
Best all round set up Pilot Center single lug nut Aluminum wheels, Outboard Drum Brakes,  Daytons, many of the Budd Styles and current Stupid Air Disc are all Remove hub to replace brakes, with the old wedge brakes gas axe was a necessity.
Back to Top
Codger View Drop Down
Orange Level
Orange Level
Avatar

Joined: 23 Dec 2020
Location: Illinois
Points: 1815
Post Options Post Options   Thanks (0) Thanks(0)   Quote Codger Quote  Post ReplyReply Direct Link To This Post Posted: 28 Mar 2023 at 7:36pm
Nothing wrong with the Dayton, (Chicago Wobblers) style if they are installed correctly and are very strong. Ball seat, or "Budd" style wheels served well also but they tended to crack starting at the lug hole in the rim and were easily "mashed out" at the ball seat with the improper use of an impact. I have one truck with a cracked aluminum rim now from this practice.

I always liked Budd on the steer axle, and spokes on the drives. Steel Budd wheels are just about too heavy to handle alongside the roadway and both aluminum and steel are imbalanced as hell when trying to roll them alongside a highway shoulder to replace due to a flat. This is because of the offset of the rim.

I too like the "unimount" or hub pilot style for it's sheer simplicity of use. I've seen steel rims rust to the hubs and these are a real bitch to get free when needed but they run true when the hub is maintained when the wheel is removed. Of course outboard brake drums, Q, or Q+ brake shoes etc. are leaps ang bounds better than days of old but some technology advancement is good.
A career built on repairing and improving engineering design deficiencies, shortcomings, and failures over 50 years now.
Back to Top
dawntreader74 View Drop Down
Orange Level
Orange Level
Avatar

Joined: 28 Oct 2013
Location: Manteno
Points: 1758
Post Options Post Options   Thanks (1) Thanks(1)   Quote dawntreader74 Quote  Post ReplyReply Direct Link To This Post Posted: 28 Mar 2023 at 7:48pm
have a 68 7500 GMC with the two peace hood was called a JI back in the day big motor strong truck.
Back to Top
BuckSkin View Drop Down
Silver Level
Silver Level


Joined: 12 Sep 2019
Location: Poor Farm
Points: 303
Post Options Post Options   Thanks (0) Thanks(0)   Quote BuckSkin Quote  Post ReplyReply Direct Link To This Post Posted: 28 Mar 2023 at 8:07pm
Originally posted by dawntreader74 dawntreader74 wrote:

have a 68 7500 GMC with the two peace hood was called a JI back in the day big motor strong truck.

Is there any obvious visible difference that says "This is a 7500" or "This is a 9500" ?

If one was sitting in the Walmart parking lot, could a person tell from three lanes over which it was ?
Back to Top
TramwayGuy View Drop Down
Orange Level Access
Orange Level Access


Joined: 19 Jan 2010
Location: Northern NY
Points: 11241
Post Options Post Options   Thanks (0) Thanks(0)   Quote TramwayGuy Quote  Post ReplyReply Direct Link To This Post Posted: 28 Mar 2023 at 9:01pm
Isn’t there a VIN plate on it? That should tell you what it is.
Back to Top
BuckSkin View Drop Down
Silver Level
Silver Level


Joined: 12 Sep 2019
Location: Poor Farm
Points: 303
Post Options Post Options   Thanks (0) Thanks(0)   Quote BuckSkin Quote  Post ReplyReply Direct Link To This Post Posted: 28 Mar 2023 at 10:23pm
Originally posted by TramwayGuy TramwayGuy wrote:

Isn’t there a VIN plate on it? That should tell you what it is.

I didn't get the option to open the door and look.

That thing was sitting in our road across the end of our driveway, loading a W20C Case loader, and there was a pink-sweatered text-messaging lipstick queen in the passenger seat who may have poked a pistol in my face had I opened the door.
Back to Top
shameless dude View Drop Down
Orange Level
Orange Level
Avatar

Joined: 10 Apr 2017
Location: east NE
Points: 13611
Post Options Post Options   Thanks (0) Thanks(0)   Quote shameless dude Quote  Post ReplyReply Direct Link To This Post Posted: 29 Mar 2023 at 10:31pm
A friend of mine is restoring an old....I think Brigader semi tractor, will hafta look again to see, also forgot what year it is. he has the interior done and the cab exterior done, all new tires. he did modify some of it. re-did all the drive train...sweet sounding bugger!
Back to Top
DMiller View Drop Down
Orange Level Access
Orange Level Access


Joined: 14 Sep 2009
Location: Hermann, Mo
Points: 29661
Post Options Post Options   Thanks (0) Thanks(0)   Quote DMiller Quote  Post ReplyReply Direct Link To This Post Posted: 30 Mar 2023 at 3:45am
Big concern on dayton hubs is inspecting the ears on the spokes. Many ignore until that day wheels pop over the Inside edge and lose both or end up in a ditch. Hammering with a inch ugga ugga gun stresses studs and that rear ear that keeps the rims on. Cracks and spin cuts do them in.

GM called them H or J and JI but the numeric system was the best and easiest way to remember them. As to VIN tag all it had was VIN and usually the GVWR ratings, GM enjoyed burying the cab ID code labels all over the firewalls. Same for the autos.
Back to Top
BuckSkin View Drop Down
Silver Level
Silver Level


Joined: 12 Sep 2019
Location: Poor Farm
Points: 303
Post Options Post Options   Thanks (0) Thanks(0)   Quote BuckSkin Quote  Post ReplyReply Direct Link To This Post Posted: 30 Mar 2023 at 12:46pm
Originally posted by DMiller DMiller wrote:

Hammering with a inch ugga ugga gun stresses studs .

The mechanical and tire world is full of idiots with impacts.

I have probably put more wheels on, big truck or little car, than any man alive; and, I only ever resort to an impact wrench when it is the last resort.

I never allow anyone else to remove or install wheels on anything of mine because they think they are at the Indy 500 on a pit crew and will hammer them on with a big impact until Goliath himself could never get them off, warping wheels, hubs, and rotors, and stretching/stressing studs, not to mention cross-threading the studs/nuts such that, when the next poor guy that comes along tries to remove the nuts they spin on the stripped portion and will never come out over the larger wadded up portion, causing one to have to bring out the cold chisel and hammer or torch or both.

The huge problem with being in the tire business is you have to come along behind these idiots with impacts and try to remove the wheels without the studs twisting off or the threads stripping, often on these stupid pot-metal(Aluminum Alloy) wheels where the nut is two inches deep down in a hole where a thin-wall socket won't fit, let alone a  big cold chisel.

In all honesty, it is worth ten dollars a wheel to the tire shop owner when the customer brings in the wheels and leaves the car/truck at home.
Back to Top
BuckSkin View Drop Down
Silver Level
Silver Level


Joined: 12 Sep 2019
Location: Poor Farm
Points: 303
Post Options Post Options   Thanks (0) Thanks(0)   Quote BuckSkin Quote  Post ReplyReply Direct Link To This Post Posted: 30 Mar 2023 at 12:59pm
Originally posted by DMiller DMiller wrote:

 As to VIN tag all it had was VIN and usually the GVWR ratings

Way back in the good old common-sense days, so-called VIN numbers were manufacturer specific and could contain as many or as few letter/number characters as the manufacturer so chose.

The best ones were very lengthy, with letters/numbers designating everything from date of manufacture to whether the engine had a single or double row timing chain.

For the last thirty or more years, VIN numbers are standard across all manufacturers and tell very little; they only contain something like eight characters and tell none of the specifics about the vehicle.

I don't even think that modern VIN numbers are unique to the vehicle; you would need a serial number to determine that.
Back to Top
DMiller View Drop Down
Orange Level Access
Orange Level Access


Joined: 14 Sep 2009
Location: Hermann, Mo
Points: 29661
Post Options Post Options   Thanks (0) Thanks(0)   Quote DMiller Quote  Post ReplyReply Direct Link To This Post Posted: 30 Mar 2023 at 6:06pm
What is rather funny is my KW On the truck is Paper Printed and adhesive applied Body Numbers for Licensing purpose.  For KW, all they need is the Model Year and Type and the last six on the VIN.  On the truck ID there is a requirement for DOT to display the Last Eight.  The Prefix has nothing to do with the Truck VIN.  Only Six stamped into Frame and a single metal tag Huck Fastener'd to the Cab, Both Six Digit.  To validate was not stolen MO had a DOR Tag(dept of Revenue) made and State employee Riveted to door frame as the original Paper tags were Sheit.

S/n is 5J088496 the ONLY hard numbers KW installed was 088496  MO number is seriously LONGER.  Had we opted to license this RV, the Title would have changed from Road Tractor to RV and the VIN would have been Changed to reflect that.  Would never have been allowed to return to Road Tractor ever again.

As to the OP, I do NOT Miss the 5500, 7500 or 9500 series.


Edited by DMiller - 30 Mar 2023 at 6:08pm
Back to Top
Calvin Schmidt View Drop Down
Orange Level
Orange Level
Avatar

Joined: 11 Sep 2009
Location: Ontario Can.
Points: 4515
Post Options Post Options   Thanks (1) Thanks(1)   Quote Calvin Schmidt Quote  Post ReplyReply Direct Link To This Post Posted: 30 Mar 2023 at 7:39pm
I wouldn't get too hug up on the butterfly hoods. They were likely an option where there was front mounted equipment such as snow plows, or hydraulic pumps for ready mix trucks that made tilting hoods not possible. Likely a lot more GMC's than Chev's . Gas engines were likely 401 or 478 V-6 or 6-71 Detroit's. Short hood models with the headlights mounted lower likely had 8V71 power. I'd love a long hood version with a 12V71. I owned a 65 GMC 72" tilt cab highway tractor with a 702 V-12 gas.
Nothing is impossible if it is properly financed
Back to Top
BuckSkin View Drop Down
Silver Level
Silver Level


Joined: 12 Sep 2019
Location: Poor Farm
Points: 303
Post Options Post Options   Thanks (0) Thanks(0)   Quote BuckSkin Quote  Post ReplyReply Direct Link To This Post Posted: 30 Mar 2023 at 8:03pm
Originally posted by Calvin Schmidt Calvin Schmidt wrote:

I owned a 65 GMC 72" tilt cab highway tractor with a 702 V-12 gas.

The V-12 gas-burners I have seen are two V-6 connected end-to-end; is that how your's was ?

I own a 1964 GMC 1-1/2-ton with Gas V-6 and 4-speed w/single-speed axle.

After my dead-beat crooked lawyer brother took everything my father had, unfortunately, the truck was sitting on my father's property; all I have to show for it is the title.

He put up big posts and hung locked cables across the drive before they got the casket lid closed.

I should report it stolen.
Back to Top
BuckSkin View Drop Down
Silver Level
Silver Level


Joined: 12 Sep 2019
Location: Poor Farm
Points: 303
Post Options Post Options   Thanks (0) Thanks(0)   Quote BuckSkin Quote  Post ReplyReply Direct Link To This Post Posted: 30 Mar 2023 at 8:17pm

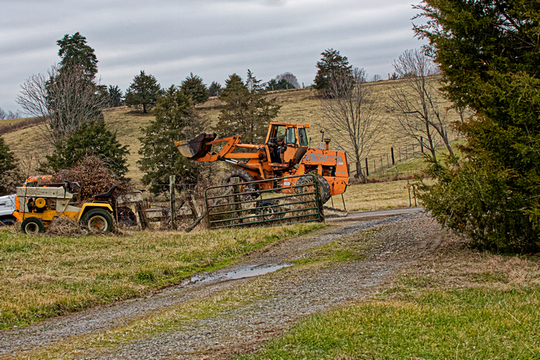

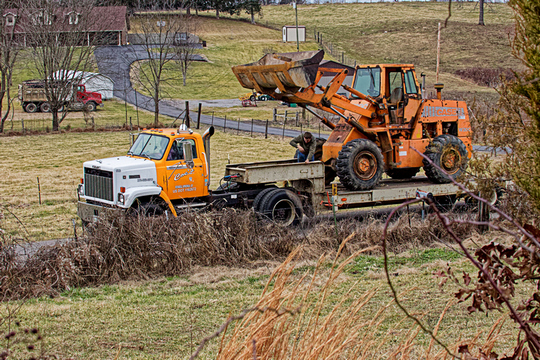

Here is the rest of the truck - same time as the first two pictures were taken.

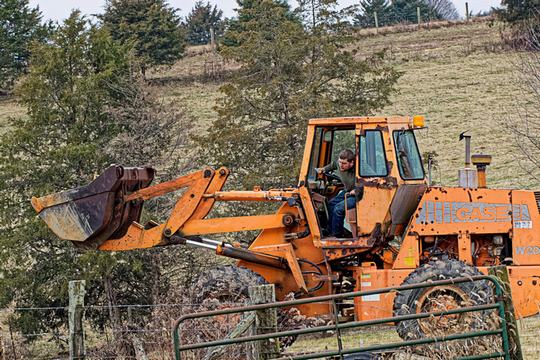

That is a W20C Case loader; the neighbor has three of them.

Not his truck, though; else, I would just walk across the road and investigate it thoroughly.(the red International in the distance is his).






Back to Top
Calvin Schmidt View Drop Down
Orange Level
Orange Level
Avatar

Joined: 11 Sep 2009
Location: Ontario Can.
Points: 4515
Post Options Post Options   Thanks (1) Thanks(1)   Quote Calvin Schmidt Quote  Post ReplyReply Direct Link To This Post Posted: 30 Mar 2023 at 8:23pm
Originally posted by BuckSkin BuckSkin wrote:

Originally posted by Calvin Schmidt Calvin Schmidt wrote:

I owned a 65 GMC 72" tilt cab highway tractor with a 702 V-12 gas.

The V-12 gas-burners I have seen are two V-6 connected end-to-end; is that how your's was ?

I own a 1964 GMC 1-1/2-ton with Gas V-6 and 4-speed w/single-speed axle.

After my dead-beat crooked lawyer brother took everything my father had, unfortunately, the truck was sitting on my father's property; all I have to show for it is the title.

He put up big posts and hung locked cables across the drive before they got the casket lid closed.

I should report it stolen.

Yes the V-12 was essentially two 351 V-6's on one block and crank. Four heads, four exhaust manifolds, two intakes with a carb one each and a twin head (two caps) distributer
Nothing is impossible if it is properly financed
Back to Top
DaveKamp View Drop Down
Orange Level Access
Orange Level Access
Avatar

Joined: 12 Apr 2010
Location: LeClaire, Ia
Points: 5642
Post Options Post Options   Thanks (0) Thanks(0)   Quote DaveKamp Quote  Post ReplyReply Direct Link To This Post Posted: 30 Mar 2023 at 10:44pm
Originally posted by BuckSkin BuckSkin wrote:

I don't even think that modern VIN numbers are unique to the vehicle; you would need a serial number to determine that.


Modern VINs are unique to that specific vehicle.  They contain a certain amount of basic information that can be decoded to reveal quite a few important things, but are serialized and traceable in every possible way.  Typically, the last seven digits finalizes the unit's unique identity.
Ten Amendments, Ten Commandments, and one Golden Rule solve most every problem. Citrus hand-cleaner with Pumice does the rest.
Back to Top
DaveKamp View Drop Down
Orange Level Access
Orange Level Access
Avatar

Joined: 12 Apr 2010
Location: LeClaire, Ia
Points: 5642
Post Options Post Options   Thanks (1) Thanks(1)   Quote DaveKamp Quote  Post ReplyReply Direct Link To This Post Posted: 31 Mar 2023 at 7:21am
BTW...
Hi, My name is Dave, and I have a 478 V6, a Clark 5 speed, and a 4-speed Spicer auxiliary in my driveway waiting for it's turn for attention... LOL

(but if someone had a 702 twin-six they wanted to trade... I'd be tempted to do so, and bore and stroke it to 956...  and find a way to mid-engine it into a long-bed pickup Confused)

https://i.pinimg.com/originals/97/69/ad/9769adbd06bdc119df585952a39f7942.jpg


Edited by DaveKamp - 31 Mar 2023 at 7:28am
Ten Amendments, Ten Commandments, and one Golden Rule solve most every problem. Citrus hand-cleaner with Pumice does the rest.
Back to Top
BuckSkin View Drop Down
Silver Level
Silver Level


Joined: 12 Sep 2019
Location: Poor Farm
Points: 303
Post Options Post Options   Thanks (0) Thanks(0)   Quote BuckSkin Quote  Post ReplyReply Direct Link To This Post Posted: 31 Mar 2023 at 7:28am
Originally posted by DaveKamp DaveKamp wrote:

and a 4-speed Spicer auxiliary ... LOL

I also have a 4-speed Spicer auxilliary; 6041 if my memory is correct; Double-Under, Under, Direct, and Over.

I have the ratios figured out and written down somewhere.

Intentions for the last thirty years have been to mount it under my 1985 F350 6BT Cummins behind the existing 5-speed.

I need to quit procrastinating and get it done.
Back to Top
DaveKamp View Drop Down
Orange Level Access
Orange Level Access
Avatar

Joined: 12 Apr 2010
Location: LeClaire, Ia
Points: 5642
Post Options Post Options   Thanks (1) Thanks(1)   Quote DaveKamp Quote  Post ReplyReply Direct Link To This Post Posted: 02 Apr 2023 at 1:11am
Yep, Mine is the 7041.   2.31, 1.21, 1, 0.86


Edited by DaveKamp - 02 Apr 2023 at 1:12am
Ten Amendments, Ten Commandments, and one Golden Rule solve most every problem. Citrus hand-cleaner with Pumice does the rest.
Back to Top
tractorboy View Drop Down
Silver Level
Silver Level


Joined: 03 Oct 2009
Location: southern Va
Points: 448
Post Options Post Options   Thanks (1) Thanks(1)   Quote tractorboy Quote  Post ReplyReply Direct Link To This Post Posted: 02 Apr 2023 at 1:23am
Reminds me of the first big truck I ever drove ,it was a ex- yellow freight truck just like that . Also had a chevrolet Titan 90!  keith so.va.
Back to Top
fjdrill View Drop Down
Silver Level Access
Silver Level Access


Joined: 13 May 2012
Location: Alabama
Points: 267
Post Options Post Options   Thanks (0) Thanks(0)   Quote fjdrill Quote  Post ReplyReply Direct Link To This Post Posted: 02 Apr 2023 at 8:18am
Anybody interested in Aux Trannies? Know were some are coming up for sale.
Back to Top
 Post Reply Post Reply Page  <12
  Share Topic

Forum Jump Forum Permissions View Drop Down

Forum Software by Web Wiz Forums® version 11.10
Copyright ©2001-2017 Web Wiz Ltd.

This page was generated in 0.063 seconds.


Help Support the
Unofficial Allis Forum
