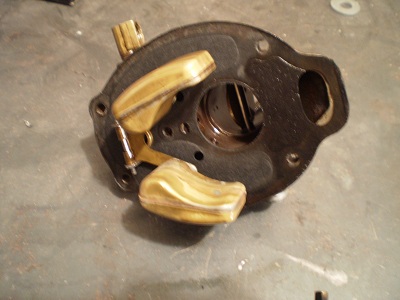

 Topic: Guess what is missing in this picture
Posted: 23 May 2012 at 8:49pm |
|
|
|
35WC on steel, B with belly mower, D17 puller, D15 Series II puller, D15 Series II with loader, 608 Lawn Tractor
|
 |
|
Sponsored Links
|
|
|
CTuckerNWIL
Orange Level
Joined: 11 Sep 2009
Location: NW Illinois
Points: 22825
|
Post Options
Thanks(0)
Quote Reply
Posted: 23 May 2012 at 8:59pm |
|
I only see 3 of the 4 bolts that hold the 2 halves together. Is there a needle under the float?
|
|
|
|
Larry Miller
Orange Level
Joined: 21 Nov 2009
Location: NWIL
Points: 909
|
Post Options
Thanks(0)
Quote Reply
Posted: 23 May 2012 at 9:06pm |
|
THE TRACTOR !! sorry, I am going to bed now.
|
|
I used to be young and stupid, now I am not young anymore.
|
|
AC WD45
Orange Level
Joined: 28 Sep 2009
Location: Mid Michigan
Points: 2060
|
Post Options
Thanks(0)
Quote Reply
Posted: 23 May 2012 at 9:09pm |
|
GAS!!!!
|
|
German Shepherd dad
1957 Allis Chalmers WD45
#WD234847
1951 Allis Chalmers WD
#WD88193
|
|
JC-WI
Orange Level Access
Joined: 11 Sep 2009
Location: wisconsin
Points: 34306
|
Post Options
Thanks(0)
Quote Reply
Posted: 23 May 2012 at 9:09pm |
The rest of the tractor .
Are yea saying you got troubles with carb flooding?
Doesn't look like that theres the finger to press against the needle..
Edited by JC(WI) - 23 May 2012 at 9:11pm
|
|
CAdon
Orange Level
Joined: 14 Mar 2012
Location: southern CA
Points: 1019
|
Post Options
Thanks(0)
Quote Reply
Posted: 23 May 2012 at 9:10pm |
|
and brian, too, apparently. zzzzzzzzz.
|
|
52 CA, 41 B and a little B1 oh, yeah... and an 8N ford snuck in there, too.
|
|
Steve in NJ
Orange Level Access
Joined: 12 Sep 2009
Location: Andover, NJ
Points: 11992
|
Post Options
Thanks(0)
Quote Reply
Posted: 23 May 2012 at 9:15pm |
|
I can't see the picture that well without ma' glasses, but the glassbeader, cause' that carb needs a good blasting to clean the rust and debris outta' fuel bowl and the rest of the unit...
Steve@B&B
|
|
BrianC,Ont
Orange Level
Joined: 11 Sep 2009
Location: Belleville Ont
Points: 903
|
Post Options
Thanks(0)
Quote Reply
Posted: 23 May 2012 at 9:20pm |
Whats missing is the carb that belongs to that plastic venturi. I put together a carb for the D17 for a pull on May 12, and this is why it didnt run that good but still pulled 297 ft.  This is what it looked like when I took it apart  And this is what it should have looked like.  So I guess a M/S carb will run without a venturi.
|
|
35WC on steel, B with belly mower, D17 puller, D15 Series II puller, D15 Series II with loader, 608 Lawn Tractor
|
|
R.W
Orange Level
Joined: 31 Dec 2010
Location: Swanton, OH
Points: 2975
|
Post Options
Thanks(0)
Quote Reply
Posted: 23 May 2012 at 9:43pm |
That carb is for a D17? I have the same one on my little 18hp MI John Deere!
|
|
Lonn
Orange Level
Joined: 16 Sep 2009
Location: Назарово,Russia
Points: 29805
|
Post Options
Thanks(0)
Quote Reply
Posted: 24 May 2012 at 6:35am |
|
Doesn't the first pic show a brass venturi? The pic in your initial post that is.
Edited by Lonn - 24 May 2012 at 6:36am
|
|
-- --- .... .- -- -- .- -.. / .-- .- ... / .- / -- ..- .-. -.. . .-. .. -. --. / -.-. .... .. .-.. -.. / .-. .- .--. .. ... -
Wink
I am a Russian Bot
|
|
MikeinLcoMo
Orange Level
Joined: 12 Sep 2009
Location: west plains mo
Points: 620
|
Post Options
Thanks(0)
Quote Reply
Posted: 24 May 2012 at 6:39am |
|
It's been awhile since I rebuilt a Allis carb. Where do you get plastic venturies at ? Are they for pullers ?
|
|
B26240
Orange Level
Joined: 21 Nov 2009
Location: mn
Points: 3865
|
Post Options
Thanks(0)
Quote Reply
Posted: 24 May 2012 at 7:41am |
|
I also would like to know about the plastic venturi ??
|
|
BrianC,Ont
Orange Level
Joined: 11 Sep 2009
Location: Belleville Ont
Points: 903
|
Post Options
Thanks(0)
Quote Reply
Posted: 24 May 2012 at 4:46pm |
|
Lonn; Ya the first pic shows the brass venturi in the parts carb. I got the plastic venturi from Barney Taylor, they were used in the 175 gas.
|
|
35WC on steel, B with belly mower, D17 puller, D15 Series II puller, D15 Series II with loader, 608 Lawn Tractor
|
|
Steve in NJ
Orange Level Access
Joined: 12 Sep 2009
Location: Andover, NJ
Points: 11992
|
Post Options
Thanks(0)
Quote Reply
Posted: 25 May 2012 at 7:12am |
They will run without the venturi in them. Not good, but they'll run! Yeah, that first pic threw me also (from what I could see without my glasses) cause the venturi is in the carb. Polish up that stock venturi and it'll move some air. Clean them fuel bowls up and get rid of the crud. That'll make it stop!
|
|
