 Topic: non identifiable parts
Posted: 12 Nov 2016 at 6:05pm |

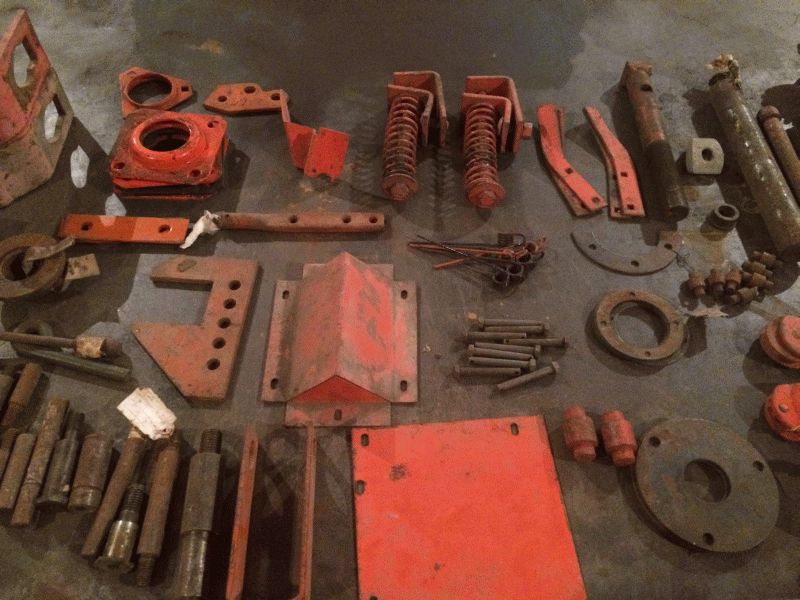

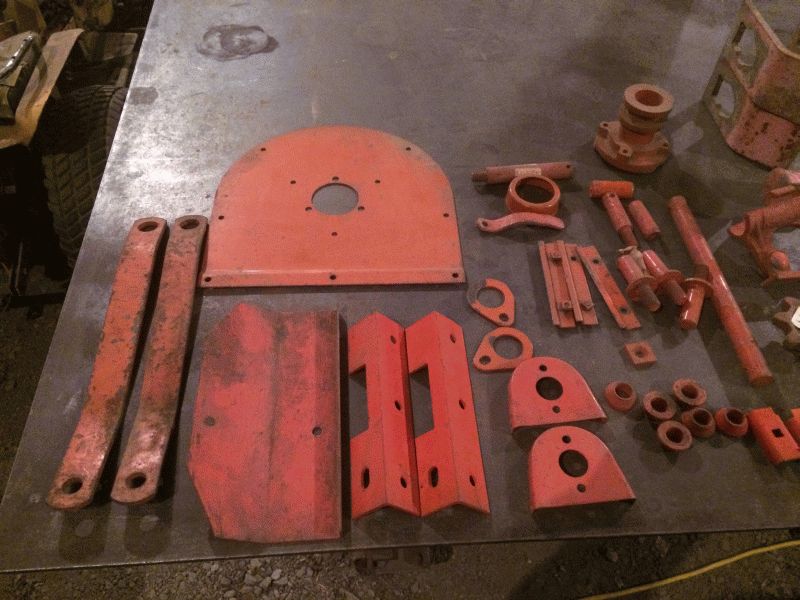

I have some parts here that I cant identify. There is no numbers on them, I cant find them by looking in books or on equipment we have. If you can identify any of the parts in the picture please let me know. If there is anything you see that you need let me know as I will sell them cheap. Thanks Matt
|
|
Owner of Matt Scott LLC
Specializing in NOS and used Allis Chalmers tractor & implement parts & liturature and Magneto Repair
http://www.mattscottllc.com/
|
 |
|
Sponsored Links
|
|
|
CrestonM
Orange Level
Joined: 08 Sep 2014
Location: Oklahoma
Points: 8457
|
Post Options
Thanks(0)
Quote Reply
Posted: 12 Nov 2016 at 6:32pm |
Ok...I can't help much, but here are some photos...I saw a couple All-Crop parts.

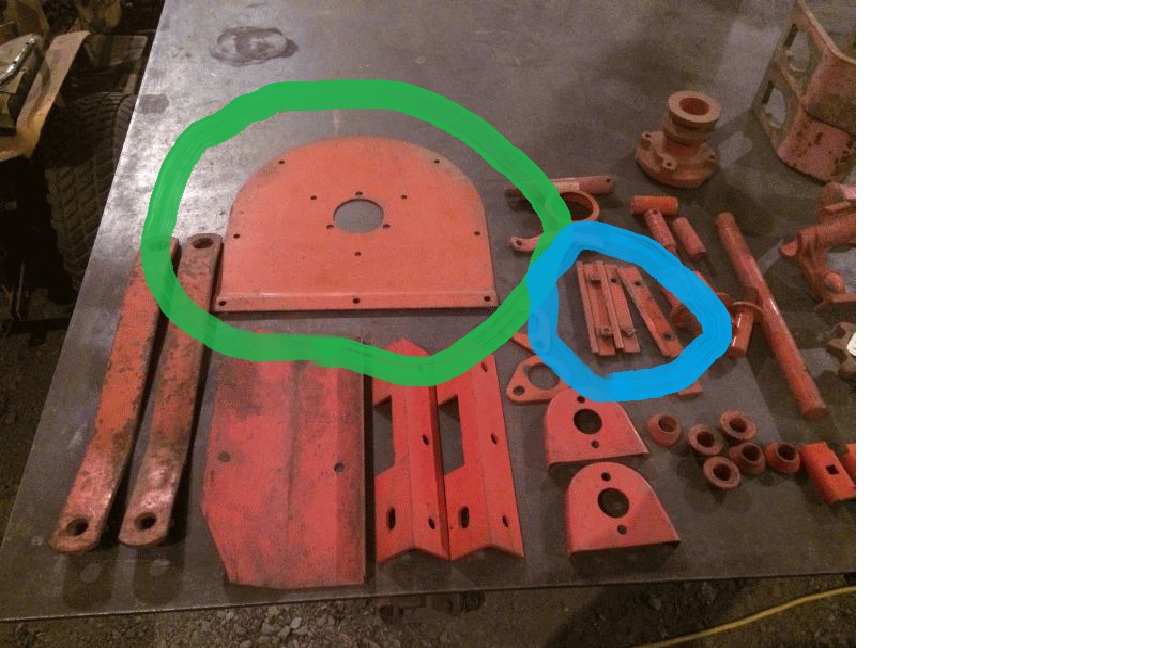

In this one, the thing in the green circle goes on an All-Crop 66 straw hood. There are 2 per combine. The straw spreader retainers and bearings go through the hole in the middle. Speaking of which, in your 3rd photo, the triangle shaped bearing retainers probably go on said straw spreader.

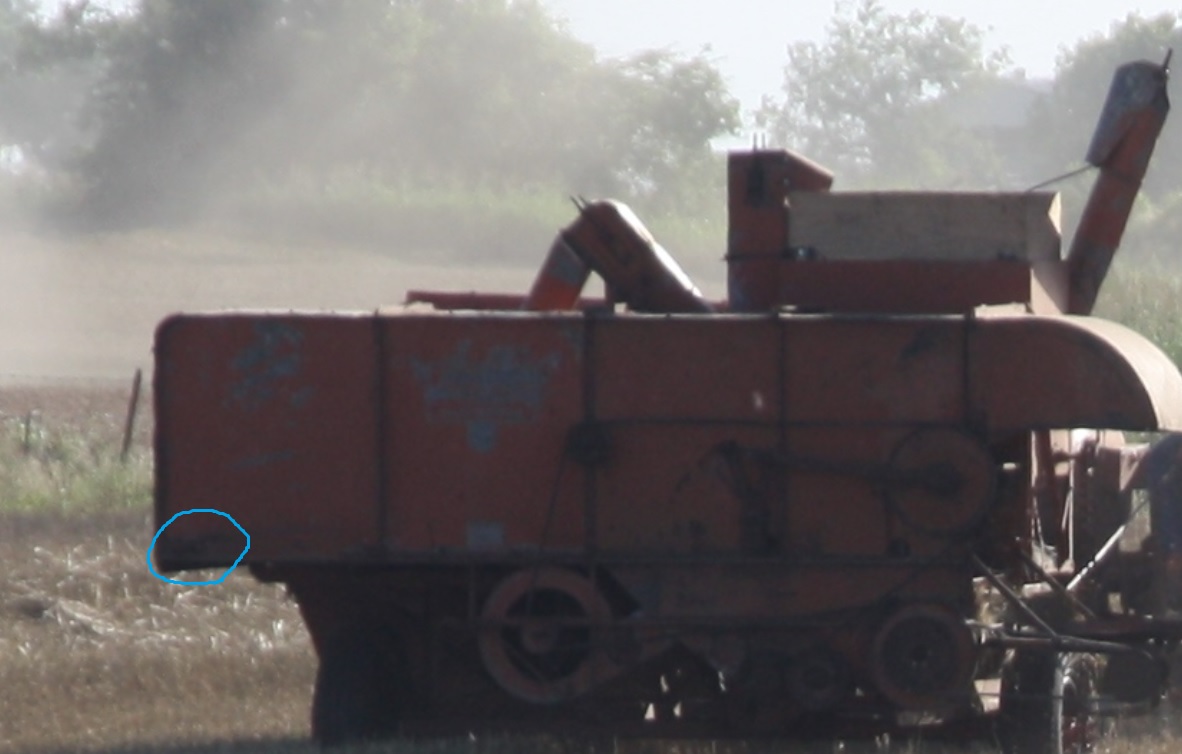

In the blue circle...well...I'm not sure what they are called, but they are on the 60/66 and probably 72, etc. They are retainers for the sliding grain drag shaft behind the cylinder. 4 per combine. Here's a not-so-good photo. The blue circle is where they go.
Edited by CrestonM - 12 Nov 2016 at 6:37pm
|
|
Auntwayne
Orange Level
Joined: 23 Apr 2011
Location: Edwardsville Il
Points: 1589
|
Post Options
Thanks(0)
Quote Reply
Posted: 12 Nov 2016 at 7:23pm |
|
The two on the lower left of Creston's green are "beam to long landside angle brackets" for 60 series plows......may fit 70 series also ???
|
|
Dad always said," If you have one boy, you have a man. If you have two boys, you have two boys". "ALLIS EXPRESS"
|
|
shameless (ne)
Orange Level
Joined: 08 Jul 2016
Location: nebraska
Points: 7463
|
Post Options
Thanks(0)
Quote Reply
Posted: 12 Nov 2016 at 9:54pm |
|
some are corn head parts
|
|
LeonR2013
Orange Level
Joined: 01 Jan 2013
Location: Fulton, Mo
Points: 3500
|
Post Options
Thanks(0)
Quote Reply
Posted: 12 Nov 2016 at 10:57pm |
|
The rollers in couple of the pics. are the anchor pins and S cam rollers for air brake systems.
|
|
1939Dodge
Orange Level
Joined: 18 Jan 2014
Location: Pa.
Points: 554
|
Post Options
Thanks(0)
Quote Reply
Posted: 12 Nov 2016 at 11:35pm |
|
Looks like my leftover pile after the last engine rebuild....
|
|
CrestonM
Orange Level
Joined: 08 Sep 2014
Location: Oklahoma
Points: 8457
|
Post Options
Thanks(0)
Quote Reply
Posted: 12 Nov 2016 at 11:52pm |
 1939Dodge wrote:
Looks like my leftover pile after the last engine rebuild.... |
Lol!!! I lucked out on the 8N. I didn't have any engine parts leftover. (Key word "Engine")
On the B I had 1 bolt left over that I could've swore was a pan bolt, but all the bolts are on the pan?? Mysteries!
One thing I have found, when overhauling engines, a good way to deal with bolts is to get an old pizza box (or other flat cardboard) and draw a rough picture of what you're working on (ie-cylinder head) First you sketch the head out (just a rectangle), then indicate which end is the front. Then punch holes along the border of the rectangle and put the corresponding bolts in! Then when you reassemble it's like a road map! Tells you where everything goes!
|
|
jaybmiller
Orange Level Access
Joined: 12 Sep 2009
Location: Greensville,Ont
Points: 24774
|
Post Options
Thanks(0)
Quote Reply
Posted: 13 Nov 2016 at 6:21am |
|
re:On the B I had 1 bolt left over that I could've swore was a pan bolt, but all the bolts are on the pan?? Mysteries!
not a mystery, THAT was the bolt that was INSIDE the pan....... lol.....
What really amazes me is thet you guys can identify 'weird,oddball' parts and KNOW what and where they fit !!
I just have 7 big coffee cans of 'misc' stuff to deal with...one day, maybe....
Also found out taking pictures BEFORE you start turning wrenches helps....
LOTS of pictures... take MORE.... but don't ask me HOW I know...
Jay
|
|
3 D-14s,A-C forklift, B-112
Kubota BX23S lil' TOOT( The Other Orange Tractor)
Never burn your bridges, unless you can walk on water
|
|
DiyDave
Orange Level Access
Joined: 11 Sep 2009
Location: Gambrills, MD
Points: 54394
|
Post Options
Thanks(0)
Quote Reply
Posted: 13 Nov 2016 at 6:38am |
Best way to get rid of them ufo's is to put them in a buddy's parts bucket, when he is cleaning, and painting, and watch the head scratching commence...
|
|
Auntwayne
Orange Level
Joined: 23 Apr 2011
Location: Edwardsville Il
Points: 1589
|
Post Options
Thanks(0)
Quote Reply
Posted: 13 Nov 2016 at 7:20pm |
|
In the 3rd and 4th picture, 3 of the threaded pins in the center appear to be category "one" lifts ?
|
|
Dad always said," If you have one boy, you have a man. If you have two boys, you have two boys". "ALLIS EXPRESS"
|
|
