ACG transmission fluid fill
 Post Reply Post Reply
Author
Message
  Topic Search Topic Search  Topic Options Topic Options
roundrightfarm View Drop Down
Bronze Level
Bronze Level


Joined: 06 Apr 2017
Location: WV
Points: 5 		Post Options Post Options   Thanks (0) Thanks(0)   Quote roundrightfarm Quote  Post ReplyReply Direct Link To This Post Topic: ACG transmission fluid fill
    Posted: 06 Apr 2017 at 10:26am
Greetings,
I'm repairing some shifter linkages and I have my model G split right in front of the transmission, between the main gear housing and the small frame piece that holds the operators seat.  There are two separate compartments that contain transmission gears.  The forward compartment has a drain plug, but I can not figure out where to add transmission oil.  I can not see how oil putting oil in the only fill port adds oil to the forward compartment.  Am i missing something, or are there special fill procedures for this small forward compartment?
Back to Top
Sponsored Links


Back to Top
Gerald J. View Drop Down
Orange Level
Orange Level


Joined: 12 Sep 2009
Location: Hamilton Co, IA
Points: 5636 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Gerald J. Quote  Post ReplyReply Direct Link To This Post Posted: 06 Apr 2017 at 10:31am
Should be covered in the operator's manual or shop manual.
http://www.geraldj.networkiowa.com/Trees/Allis%20Chalmers%20G%20Owners%20Manual%20(TM-4A)0001.pdf

http://www.geraldj.networkiowa.com/Trees/Allis-Chalmers-G-B-C-CA-Service.pdf

Gerald J.
Back to Top
roundrightfarm View Drop Down
Bronze Level
Bronze Level


Joined: 06 Apr 2017
Location: WV
Points: 5 		Post Options Post Options   Thanks (0) Thanks(0)   Quote roundrightfarm Quote  Post ReplyReply Direct Link To This Post Posted: 06 Apr 2017 at 10:51am
Thanks so much, its great to have a manual!

The manual does not mention anything other than to use the main fill port.  Still, the front compartment does not appear to have any connection to the main section.  Perhaps as the gears pick up oil, some will get transferred forward along the shaft.  Or perhaps I am just missing an obvious detail.  I will have to leave the front drain plug off as I refill to see if any comes out.
Back to Top
JoeM(GA) View Drop Down
Orange Level
Orange Level
Avatar

Joined: 12 Sep 2009
Location: Cumming,GA
Points: 4857 		Post Options Post Options   Thanks (0) Thanks(0)   Quote JoeM(GA) Quote  Post ReplyReply Direct Link To This Post Posted: 06 Apr 2017 at 1:45pm
It will fill no problem, just fill at the main plug by the pedal, then give a while for the oil to flow and level out.
Allis Express North Georgia
41 WC,48 UC Cane,7-G's,
Ford 345C TLB
Back to Top
orange-is-power View Drop Down
Silver Level
Silver Level
Avatar

Joined: 04 Dec 2011
Location: Kentucky
Points: 364 		Post Options Post Options   Thanks (0) Thanks(0)   Quote orange-is-power Quote  Post ReplyReply Direct Link To This Post Posted: 06 Apr 2017 at 5:30pm

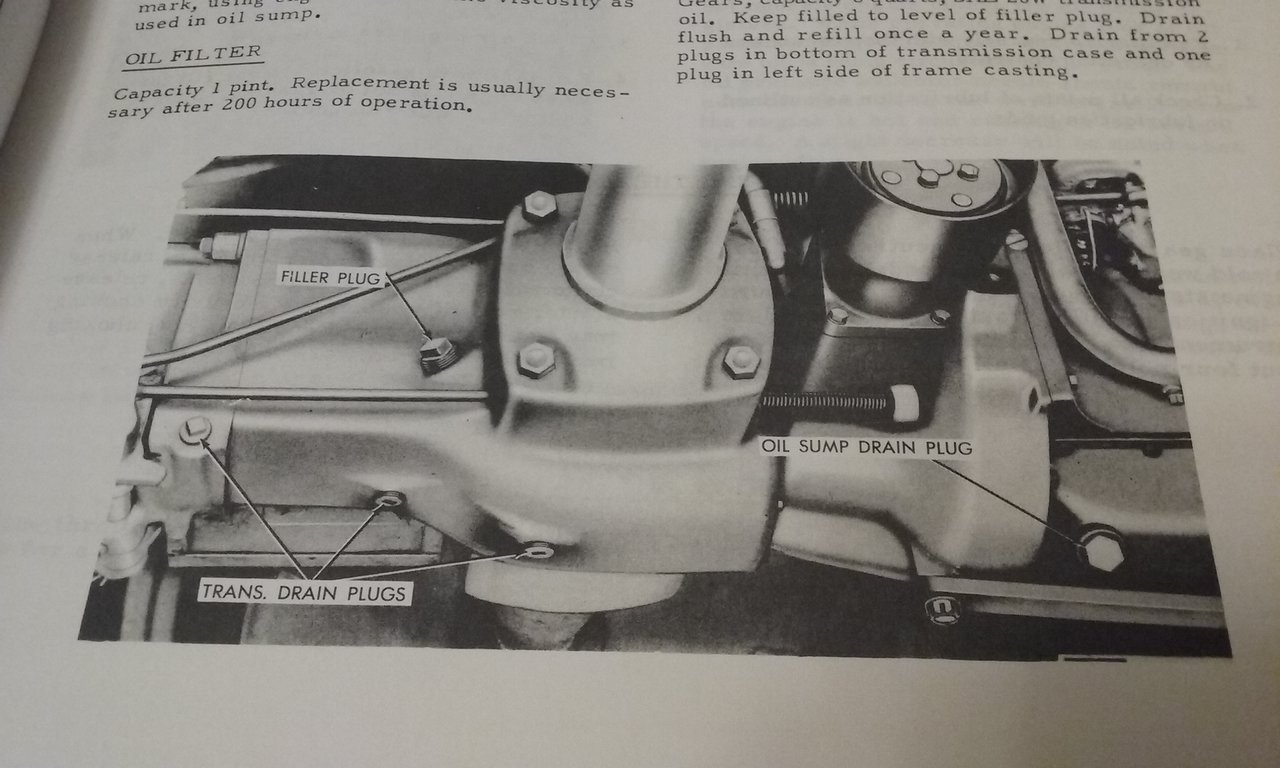

Manual says transmission/differential has 3 drain plugs and 1fill plug. Capacity 8 quarts.
Back to Top
Dusty MI View Drop Down
Orange Level
Orange Level
Avatar

Joined: 13 Sep 2009
Location: Charlotte, Mi
Points: 5060 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Dusty MI Quote  Post ReplyReply Direct Link To This Post Posted: 06 Apr 2017 at 6:53pm
The transmission in the G is the same as in the B & C.

Dusty
917 H, '48 G, '65 D-10 series III "Allis Express"
