wd 45 DIESEL battery hook up
 Post Reply Post Reply
Author
Message
  Topic Search Topic Search  Topic Options Topic Options
rodnil View Drop Down
Silver Level
Silver Level
Avatar

Joined: 15 Sep 2009
Location: illinois
Points: 241 		Post Options Post Options   Thanks (0) Thanks(0)   Quote rodnil Quote  Post ReplyReply Direct Link To This Post Topic: wd 45 DIESEL battery hook up
    Posted: 28 Jun 2022 at 10:49pm
I have a WD 4 diesel with two 6 volt batteries and I'm not sure they are hooked correct. Need some help on this. Thanks
Back to Top
Sponsored Links


Back to Top
steve(ill) View Drop Down
Orange Level Access
Orange Level Access
Avatar

Joined: 11 Sep 2009
Location: illinois
Points: 77567 		Post Options Post Options   Thanks (0) Thanks(0)   Quote steve(ill) Quote  Post ReplyReply Direct Link To This Post Posted: 28 Jun 2022 at 11:06pm

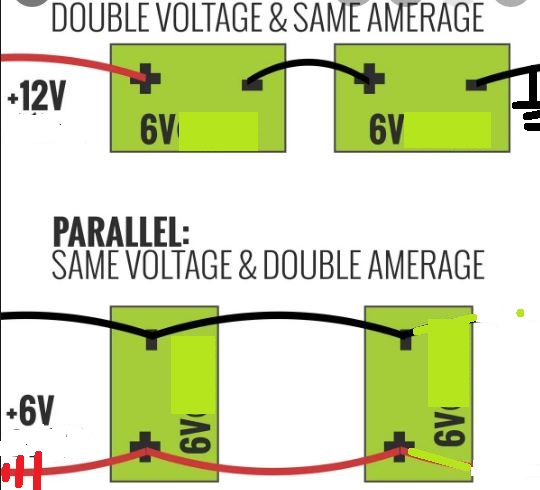

If you want to have 6 volts with DOUBLE the CURRENT, then you connect the two POSITIVE terminals together and ground them.. You connect the two NEGATIVE terminals together and run that to the starter..  ( 6 volt positive ground system). ( parallel connection)

If the batteries were connected to form 12 volts ( negative ground system)... then you GROUND one negative terminal on battery #1... you run the POSITIVE terminal of #1 to the NEGATIVE terminal on #2 battery.... you run the POSITIVE terminal on battery #2 to the starter..   (series connection)




Edited by steve(ill) - 28 Jun 2022 at 11:18pm
Like them all, but love the "B"s.
Back to Top
TomMN View Drop Down
Orange Level
Orange Level
Avatar

Joined: 13 Sep 2009
Location: Elbow Lake, MN
Points: 858 		Post Options Post Options   Thanks (0) Thanks(0)   Quote TomMN Quote  Post ReplyReply Direct Link To This Post Posted: 30 Jun 2022 at 7:20am

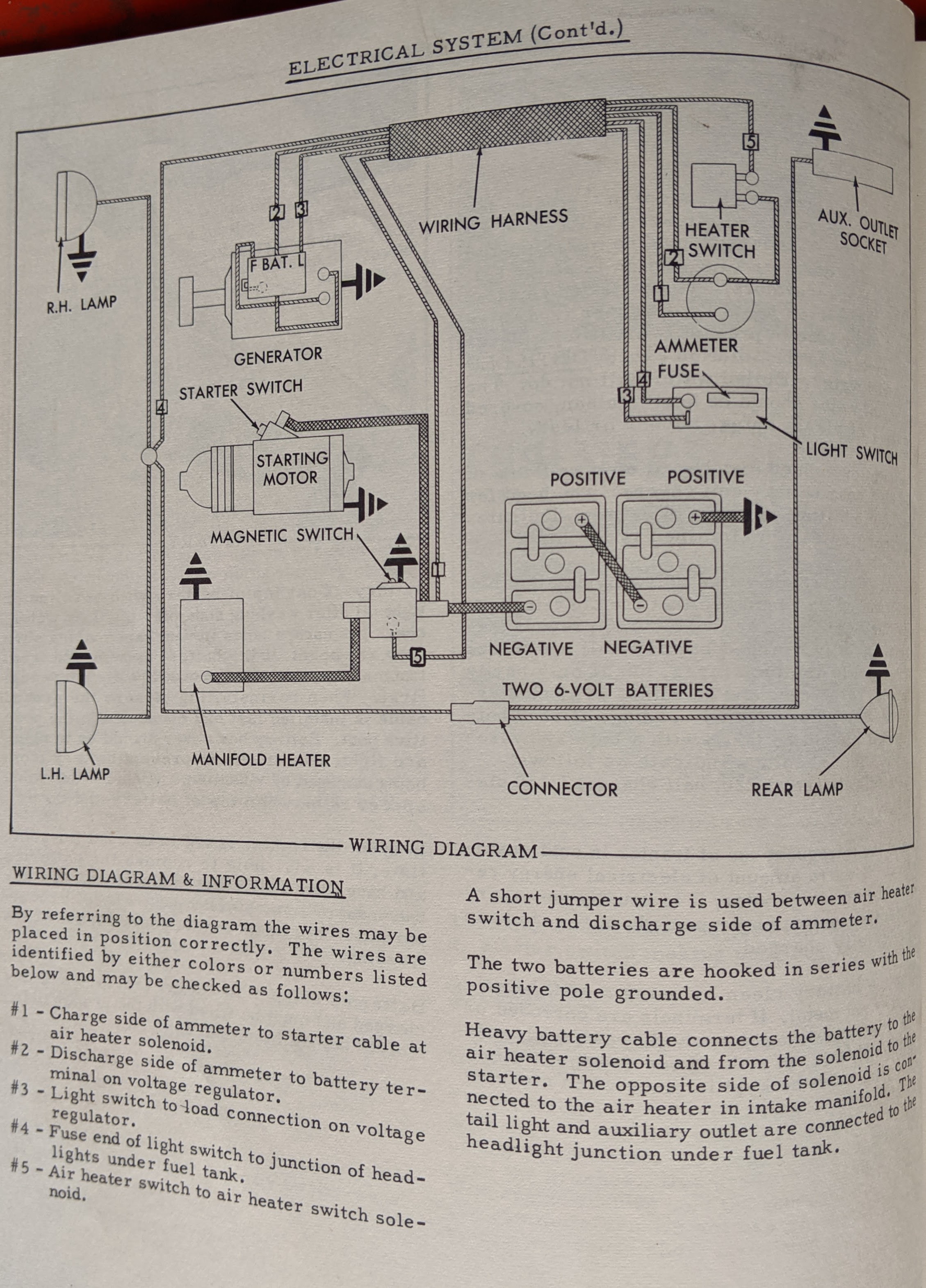

This is from the original WD45D operators manual.
Back to Top
steve(ill) View Drop Down
Orange Level Access
Orange Level Access
Avatar

Joined: 11 Sep 2009
Location: illinois
Points: 77567 		Post Options Post Options   Thanks (0) Thanks(0)   Quote steve(ill) Quote  Post ReplyReply Direct Link To This Post Posted: 30 Jun 2022 at 12:28pm
so original was two 6 volt in series , or 12 VOLT.... but still Positive Ground..
Like them all, but love the "B"s.
Back to Top
TomMN View Drop Down
Orange Level
Orange Level
Avatar

Joined: 13 Sep 2009
Location: Elbow Lake, MN
Points: 858 		Post Options Post Options   Thanks (0) Thanks(0)   Quote TomMN Quote  Post ReplyReply Direct Link To This Post Posted: 30 Jun 2022 at 1:04pm
Yes, positive ground and 12 volts. The D17 Diesel is that way too, two 6 volt batteries in series with positive ground.
Back to Top
rodnil View Drop Down
Silver Level
Silver Level
Avatar

Joined: 15 Sep 2009
Location: illinois
Points: 241 		Post Options Post Options   Thanks (0) Thanks(0)   Quote rodnil Quote  Post ReplyReply Direct Link To This Post Posted: 01 Jul 2022 at 9:47pm
Thanks guys for your input. My fears that my WD 45 diesel batteries were hooked up wrong was incorrect. they are just like the info you provided. Thanks, Rodney.
