Topic: D15 Power Director
Posted By: WeisAC2
Subject: D15 Power Director
Date Posted: 10 Oct 2021 at 3:11pm

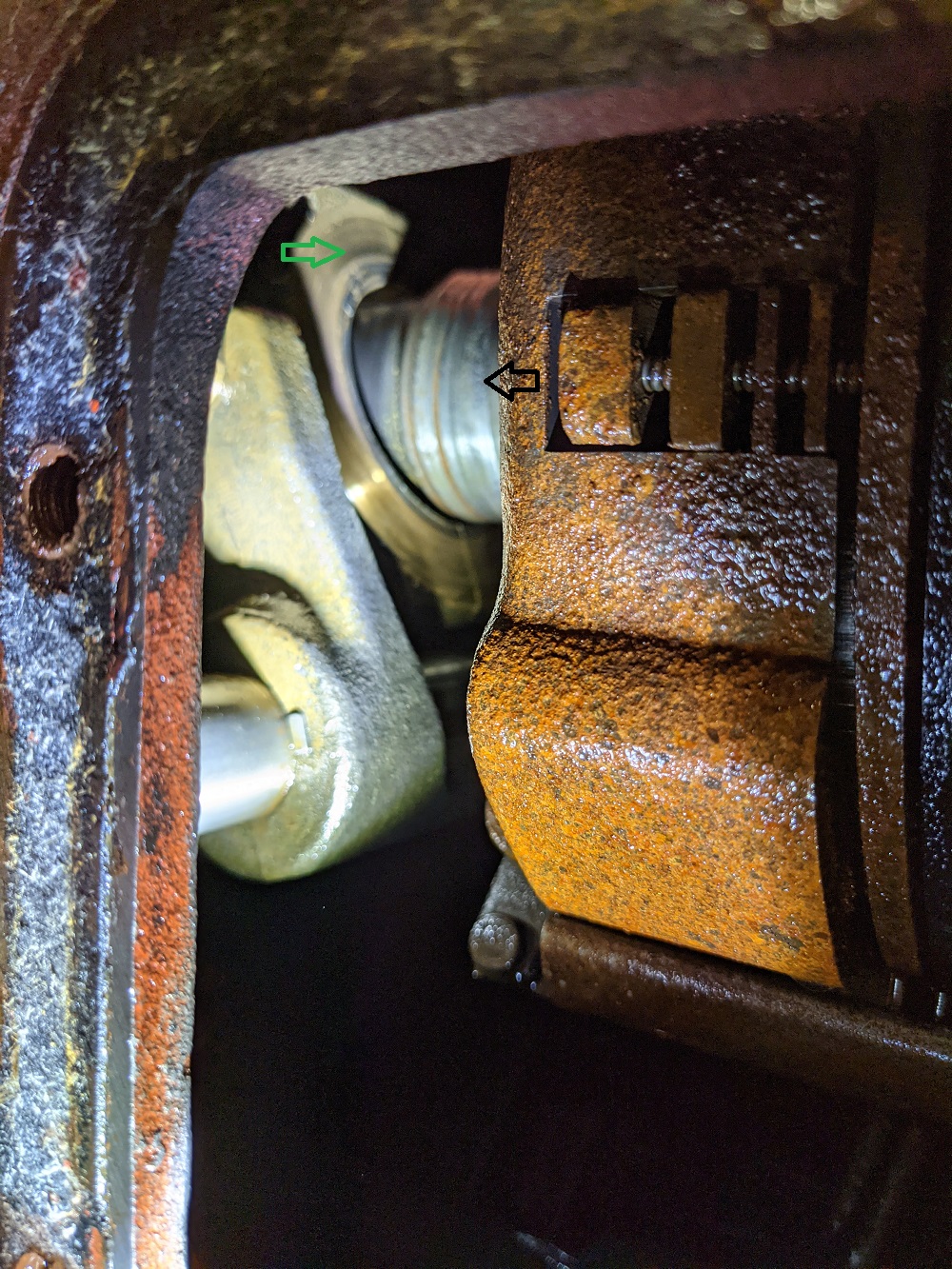

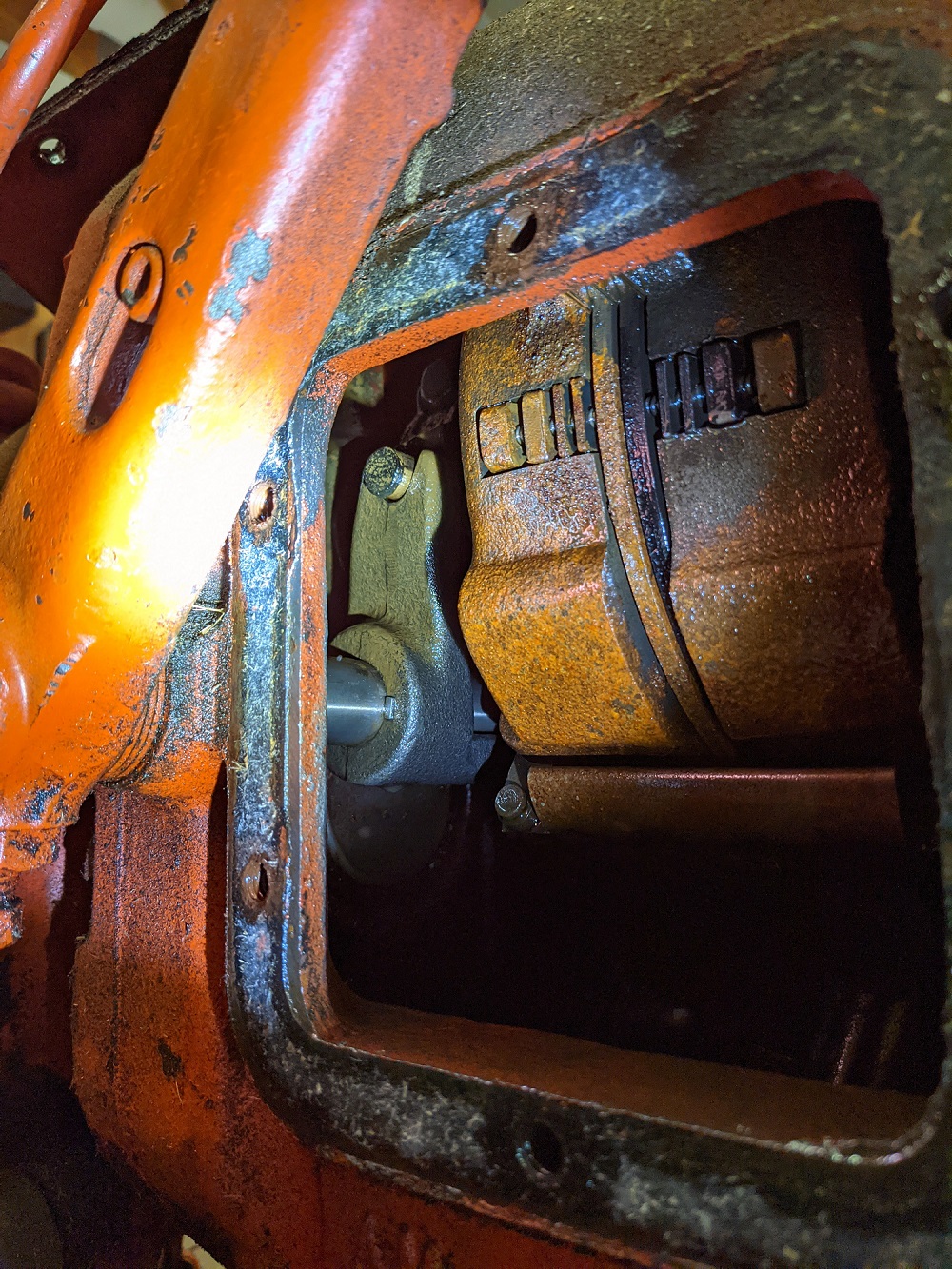

I'm in the process of addressing several issues within the torque tube of my D15 Diesel (1961, Series 1). One problem is that the power director has never worked. The tractor has been in the family since the 80's and we've always only had high range. The power director lever just feels loose as you move it front to back. The set screw at the base of the lever has been checked but that's all we've ever done. This winter I've decided to finally get this fixed (as well as replacing seals and bearings within torque tube, and PTO lever o-ring). I thought I would start off by looking in the power director access panel to see what I can find out. It appears that the brass collar is broken/loose. It's kind of hard to see but I wanted to see if you guys can tell anything... Green arrow is to the collar that just flops around while lever is moved front to back. The black arrow is where I suppose it should be seated???  |
Replies:
Posted By: John m
Date Posted: 10 Oct 2021 at 3:56pm
| Why does the clutch pack look rusty. My 190 is oil filled I believe. Do they run dry clutches? |
Posted By: WeisAC2
Date Posted: 10 Oct 2021 at 4:18pm
| The tractor gets less than 10 hours of use per year. It's stored inside but still very humid here. There was oil in the power director compartment. I'm not sure how wet the clutch pack is supposed to stay. |
Posted By: DrAllis
Date Posted: 10 Oct 2021 at 5:35pm
| A badly worn out brass bearing and shifter collar usually is caused by very low oil levels at sometime in its past service life. Nothing a split and new parts can't fix. 2 1/2 gallons of oil when completed. |
Posted By: WeisAC2
Date Posted: 10 Oct 2021 at 5:41pm
| Thanks for the info. I'll post some pictures of her split in the next day or so. Will keep you guys updated with my progress. Appreciate the help! |
Posted By: WeisAC2
Date Posted: 11 Oct 2021 at 2:02pm
    |

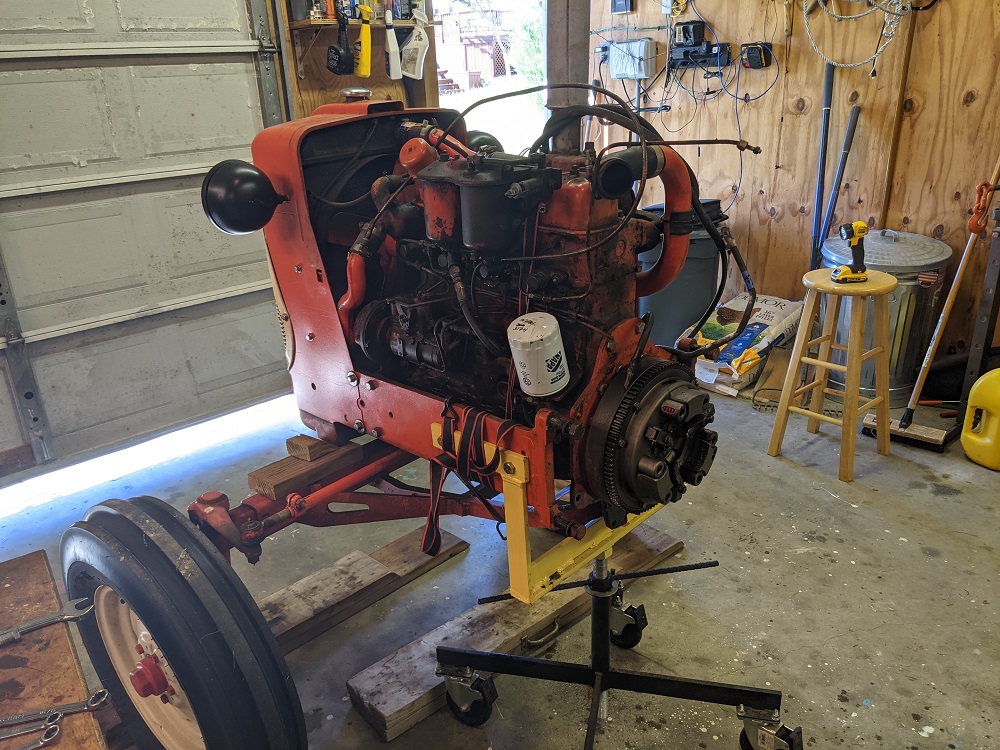

Posted By: DonDittmar
Date Posted: 11 Oct 2021 at 7:57pm
|

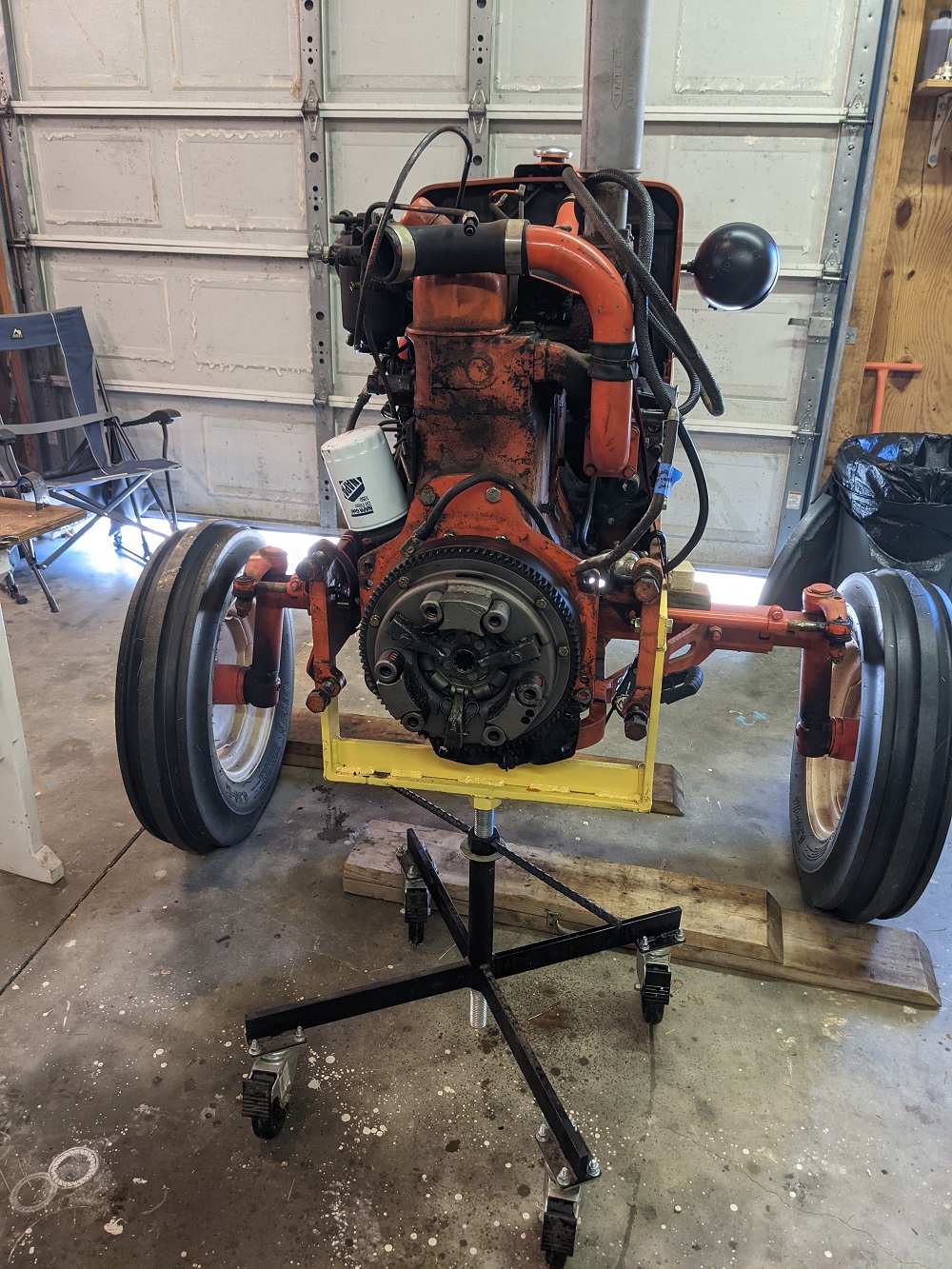

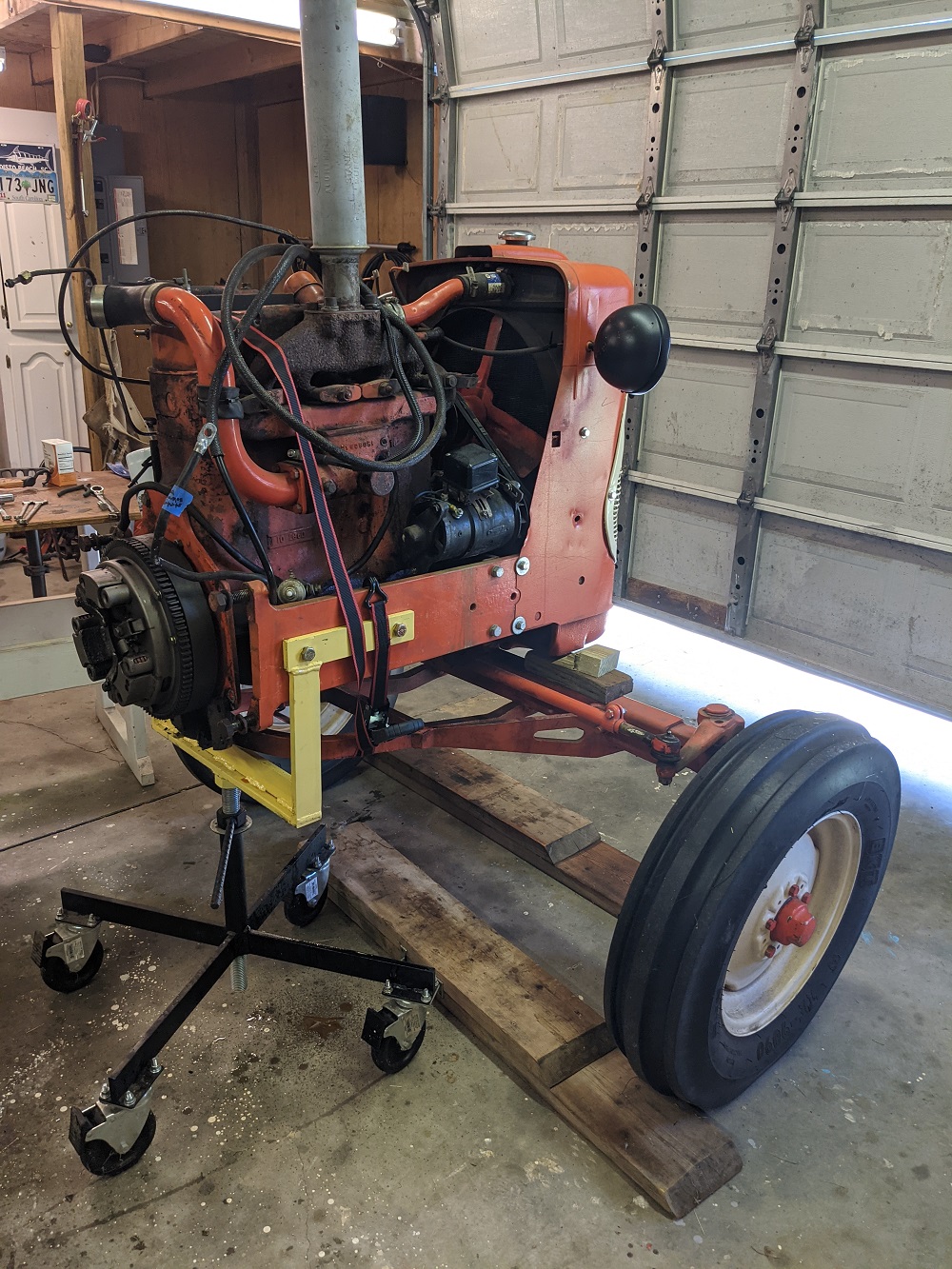

nice stand. ------------- Experience is a fancy name for past mistakes. "Great moments are born from great opportunity" 1968 D15D,1962 D19D Also 1965 Cub Loboy and 1958 JD 720 Diesel Pony Start |
Posted By: AC720Man
Date Posted: 11 Oct 2021 at 8:46pm
|
I will second the nice stand, that would have worked great on my 160 rebuild 2 months ago. Nice, its a diesel. Defiantly been low on oil for a good while it appears. ------------- 1968 B-208, 1976 720 (2 of them)Danco brush hog, single bottom plow,52" snow thrower, belly mower,rear tine tiller, rear blade, front blade, 57"sickle bar,1983 917 hydro, 1968 7hp sno-bee, 1968 190XTD |
Posted By: WeisAC2
Date Posted: 13 Oct 2021 at 12:28pm

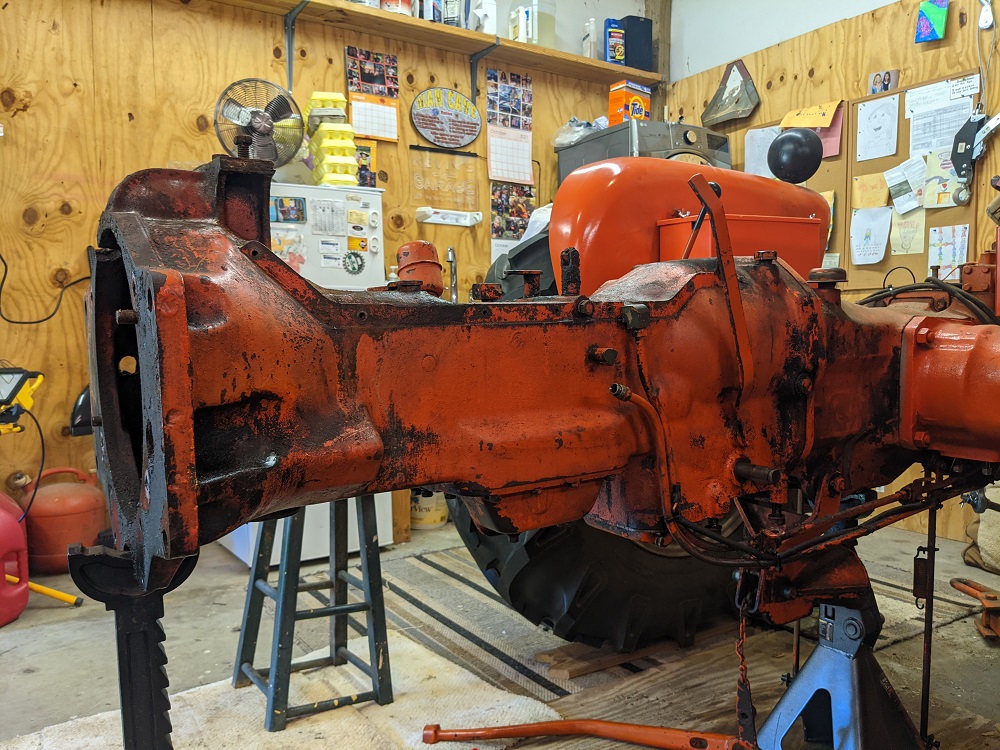

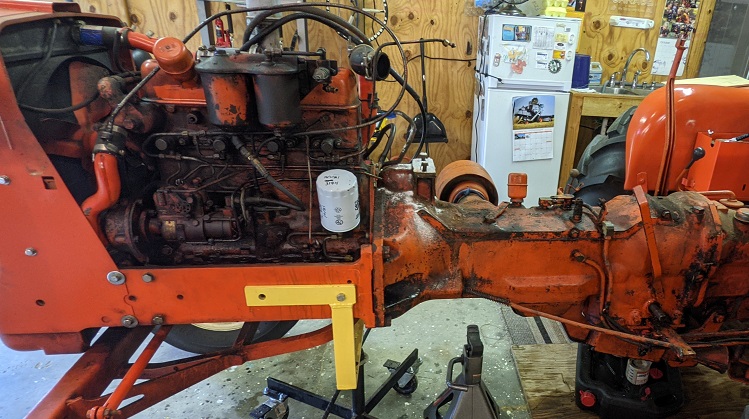

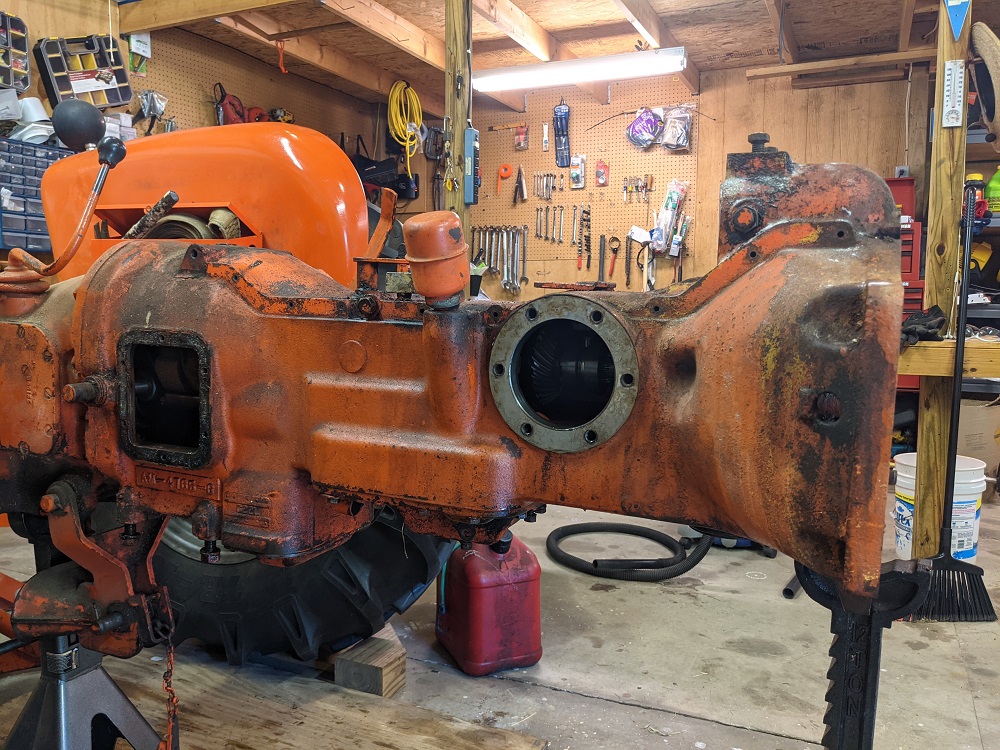

Been making steady progress with getting the torque tube ready for removal. I think all I have left to do is to remove the dip sticks and the power director shaft that the fork mounts to.   |
Posted By: ACinSC
Date Posted: 13 Oct 2021 at 2:46pm
| Power director lever in the floor was my contribution today . Try to help my fav son out , but we're getting in uncharted waters . THANKS !! |
Posted By: John m
Date Posted: 13 Oct 2021 at 4:43pm
| Nice. Headed down that road shortly with my 190. I'm actually quite anxious to do it. Keep us updated, I will surely be watching for the updates. |
Posted By: Alex09(WI)
Date Posted: 14 Oct 2021 at 9:30pm
|
Doing well so far! I went through a d15 torque tube this year to install shuttle clutch gears. There are some pics at this link that may help: https://www.facebook.com/awtractorrepair/posts/1367701396958709" rel="nofollow - https://www.facebook.com/awtractorrepair/posts/1367701396958709 ------------- www.awtractor.com A&W TRACTOR 920-598-1287 KEEPING ALLIS-CHALMERS IN THE FIELDS THROUGH THE 21ST CENTURY |
Posted By: Alex09(WI)
Date Posted: 14 Oct 2021 at 9:32pm
|
And make sure to remove the power director oil dipstick! Otherwise you'll split it 1" apart and you'll wonder why it wont go any further ------------- www.awtractor.com A&W TRACTOR 920-598-1287 KEEPING ALLIS-CHALMERS IN THE FIELDS THROUGH THE 21ST CENTURY |
Posted By: WeisAC2
Date Posted: 16 Oct 2021 at 8:21am
|
Thanks for the pictures Alex! I was trying to find some to reference and really appreciate the link you sent. I'll start another thread when I get to rebuilding the torque tube. I've gotten all the bolts out and the dip stick removed but struggling to get the torque tube to separate from the transmission. It's stuck on there pretty good. Guess that makes sense since it been since '61. May have to get a porta power to "break the seal"... |
Posted By: WeisAC2
Date Posted: 16 Oct 2021 at 7:57pm
|

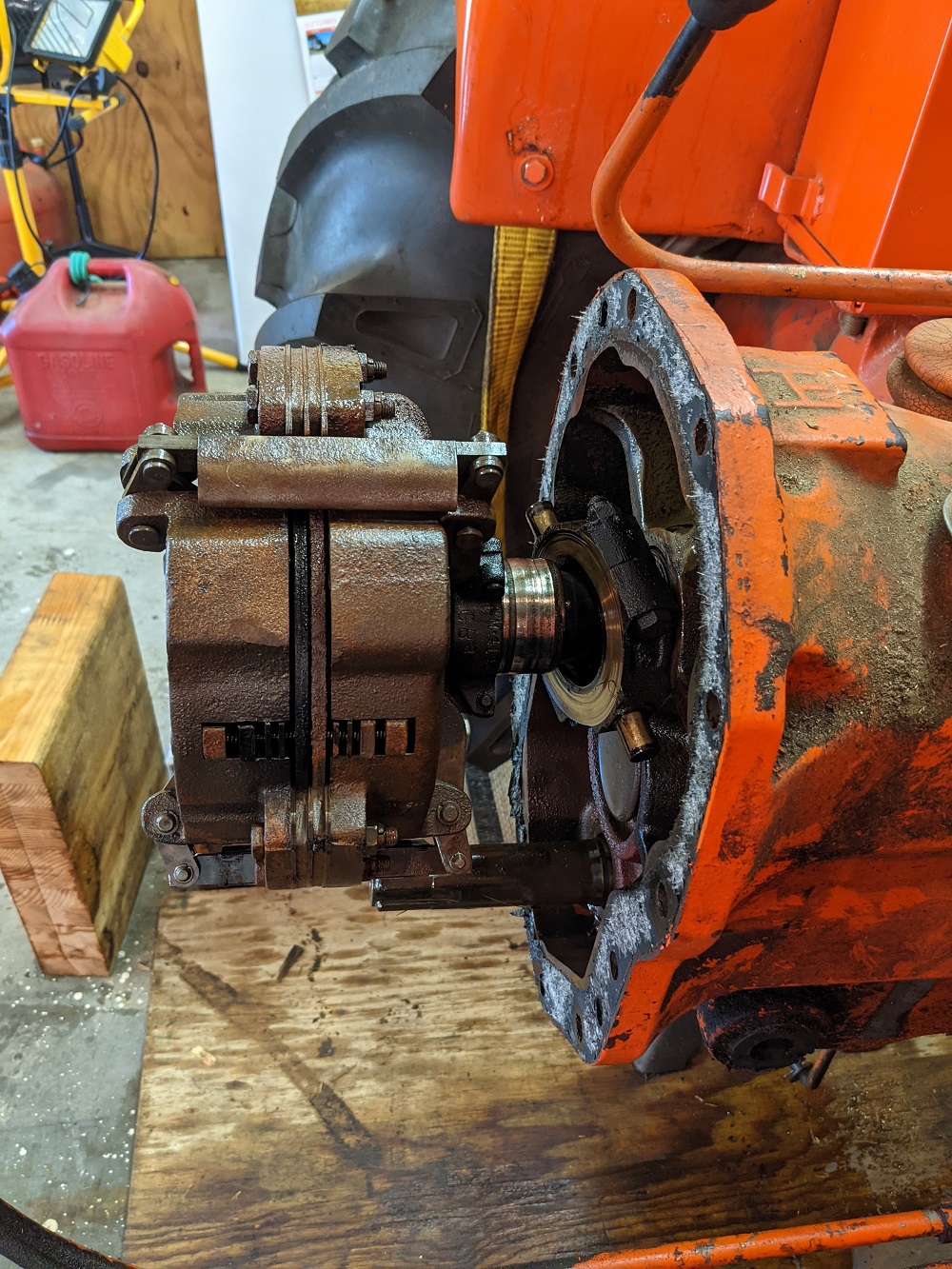

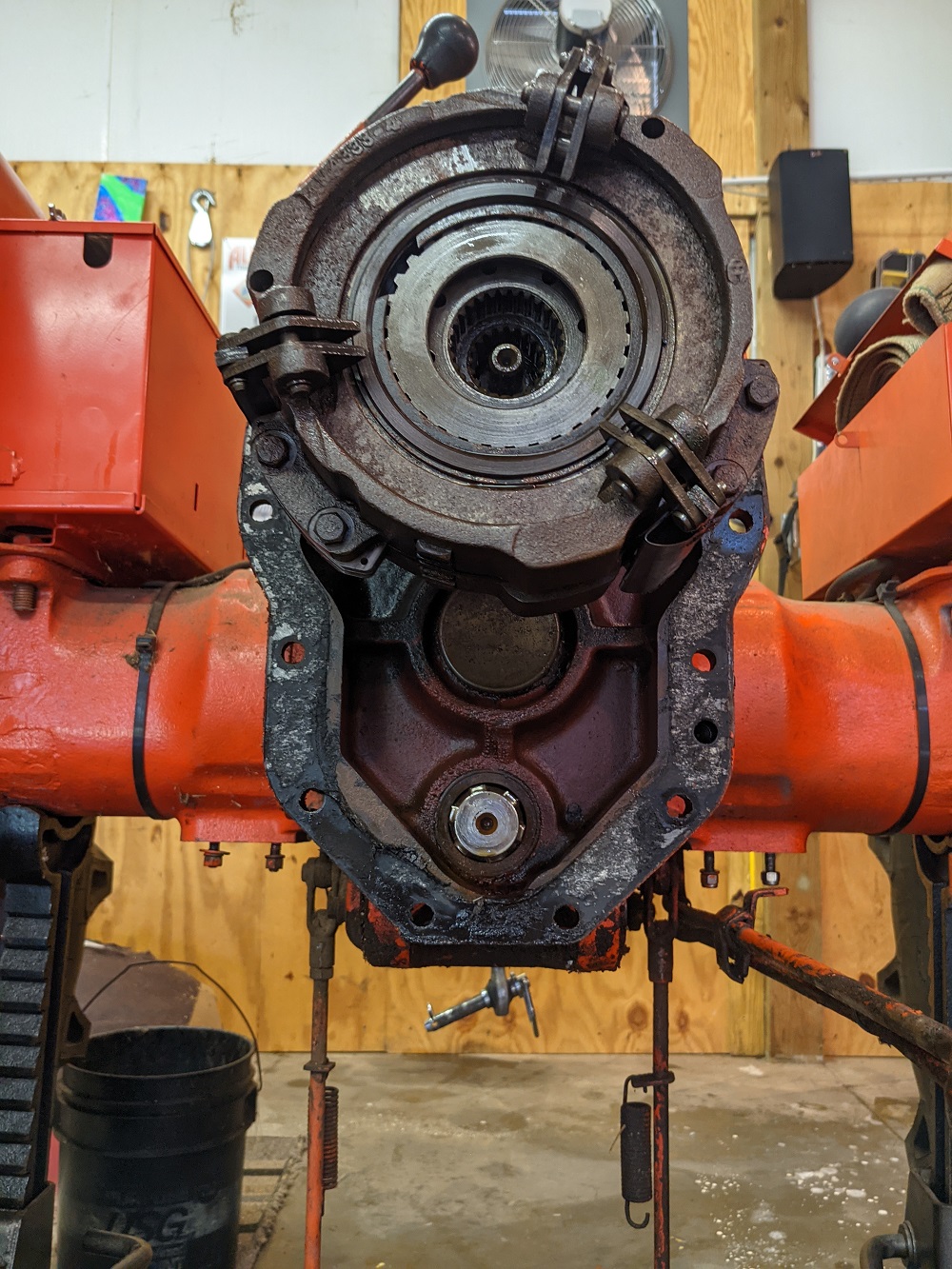

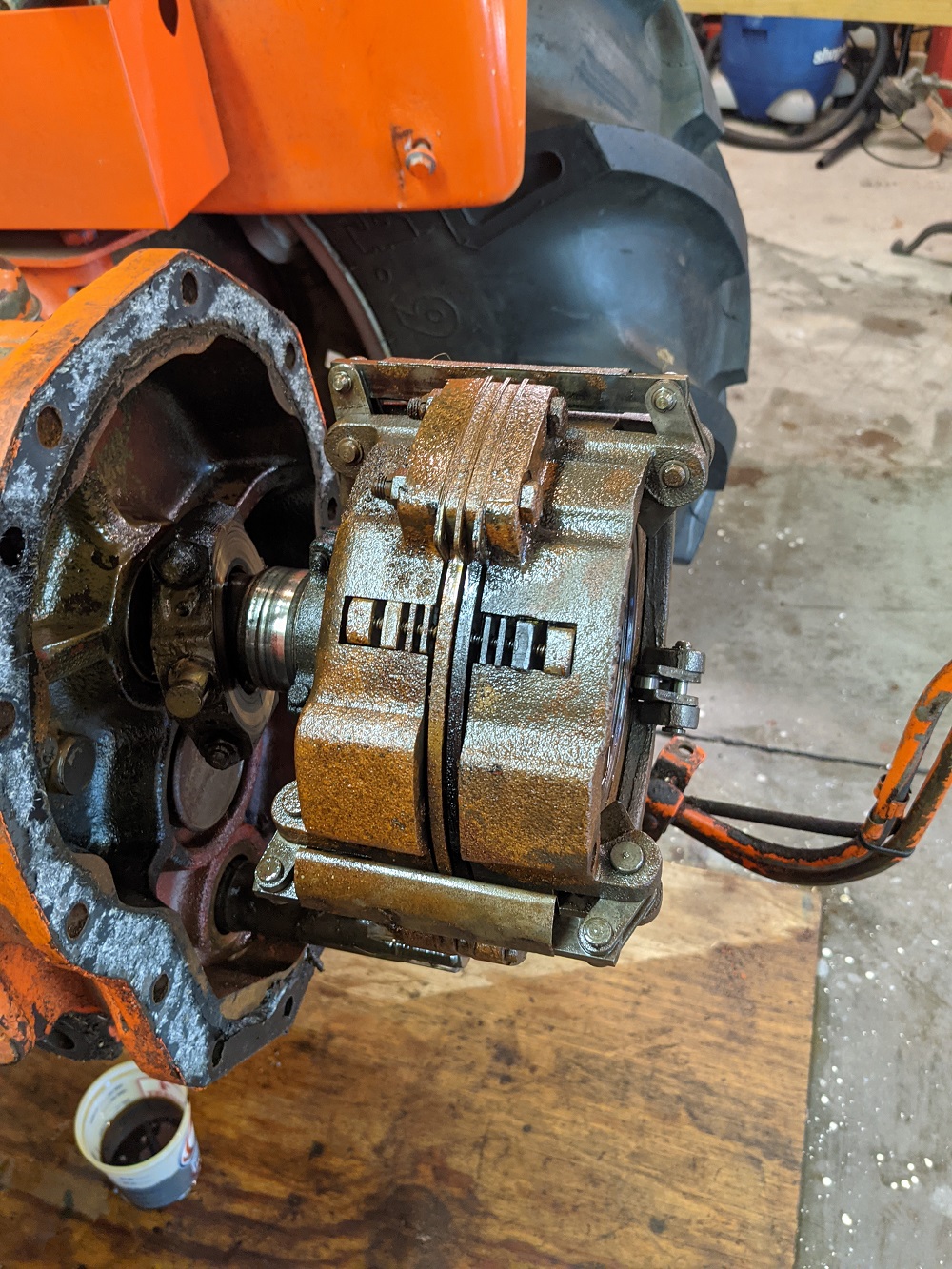

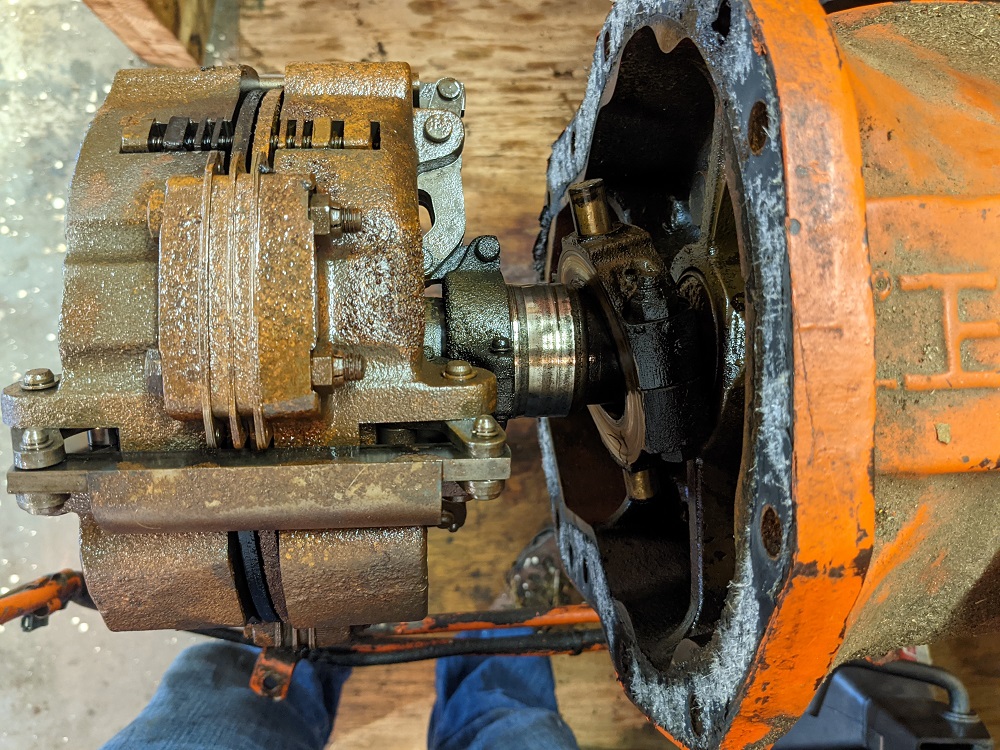

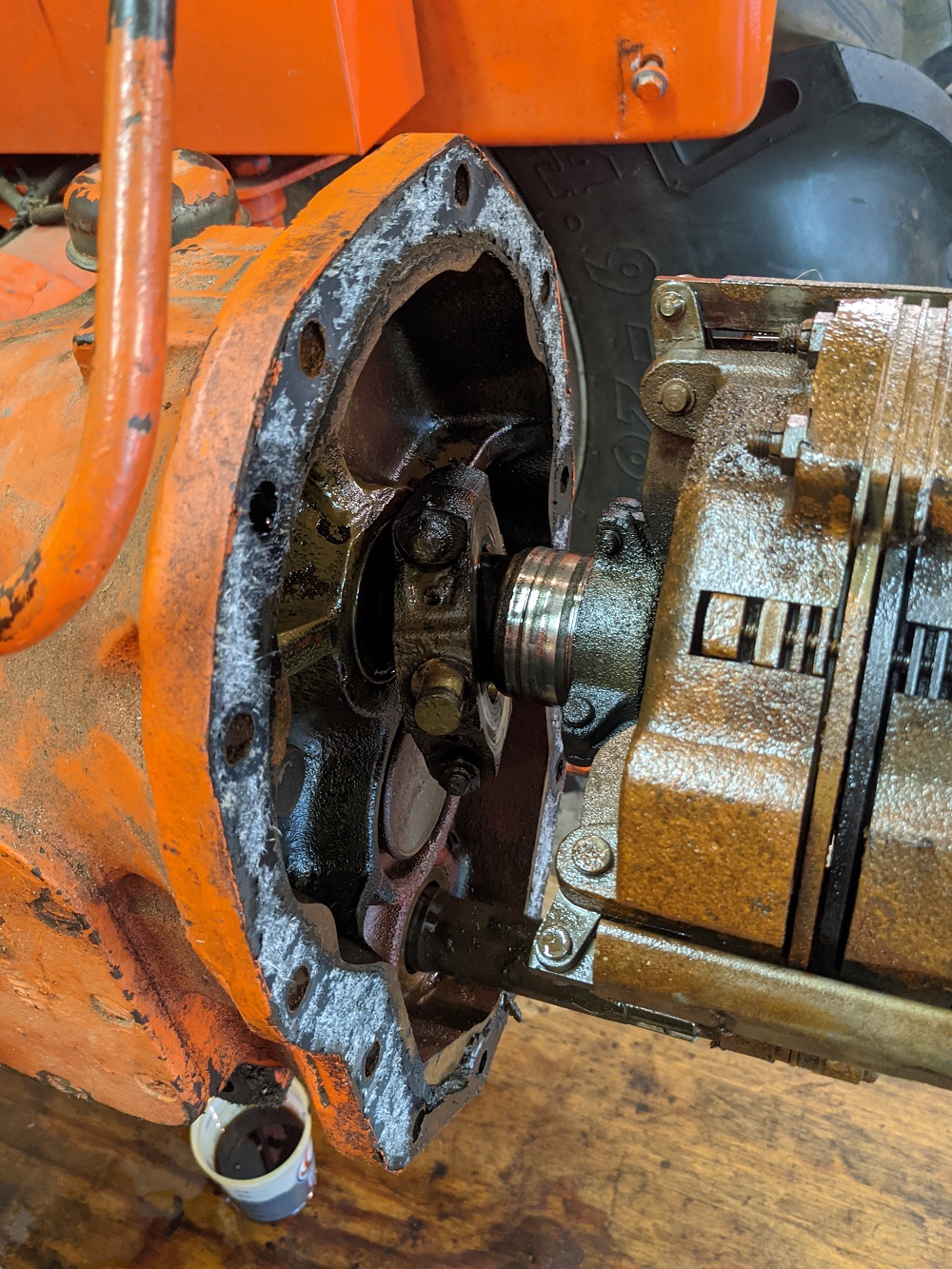

I was able to get the torque tube separated from the transmission today. Thought I would include a few pictures for you guys. I think I see the source of the rattling when the tractor was at a low idle...
    |
Posted By: Mikez
Date Posted: 16 Oct 2021 at 8:04pm
| interesting. Could you post some pictures of the torque tube |
Posted By: John m
Date Posted: 16 Oct 2021 at 9:17pm
| What are you thinking is the source of the rattle? |
Posted By: John m
Date Posted: 16 Oct 2021 at 9:27pm
| Looking at the pictures it kinda looks like some black sludge in the front of power director and some of the other pieces. Maybe got hot at one time. Just guessing about that. Keep us updated, looking good. |
Posted By: AC720Man
Date Posted: 16 Oct 2021 at 9:56pm
|
Lots of rust, low fluid level and a moisture issue. Did this tractor sit outside? At least you know what’s wrong at this point. I would rebuild the power director after seeing the damage. ------------- 1968 B-208, 1976 720 (2 of them)Danco brush hog, single bottom plow,52" snow thrower, belly mower,rear tine tiller, rear blade, front blade, 57"sickle bar,1983 917 hydro, 1968 7hp sno-bee, 1968 190XTD |
Posted By: Alex09(WI)
Date Posted: 17 Oct 2021 at 1:33pm
|
rATTLE MAY HAVE BEEN the brass collar loose on the clutch shifter collar. Here is a video on how to remove the power director clutch: https://www.facebook.com/awtractorrepair/videos/441882556738688" rel="nofollow - https://www.facebook.com/awtractorrepair/videos/441882556738688 If you need replacement parts, we can help you ------------- www.awtractor.com A&W TRACTOR 920-598-1287 KEEPING ALLIS-CHALMERS IN THE FIELDS THROUGH THE 21ST CENTURY |
Posted By: WeisAC2
Date Posted: 17 Oct 2021 at 7:10pm
|
Tractor sat outside for many years prior to me getting it. Since then it is stored in a shop. The tractor developed a rattle from the torque tube when idling in neutral with foot clutch out. It would go away if you bumped up the RPMs a little. Foot clutch was rebuilt a couple years back. I was assuming I also had a bad bearing in the torque tube, but it may have been the brass collar. I'll post pictures of the torque tube soon. Need to decide where it will live while I take it apart. Will probably do another thread on it too. Alex, thanks for the video! Very helpful. Yes the power director will be rebuilt. |
Posted By: WeisAC2
Date Posted: 17 Oct 2021 at 7:15pm
| Yes the black sludge has a hint of metallic grit to it. Good catch John. |
Posted By: WeisAC2
Date Posted: 21 Oct 2021 at 8:22am
|

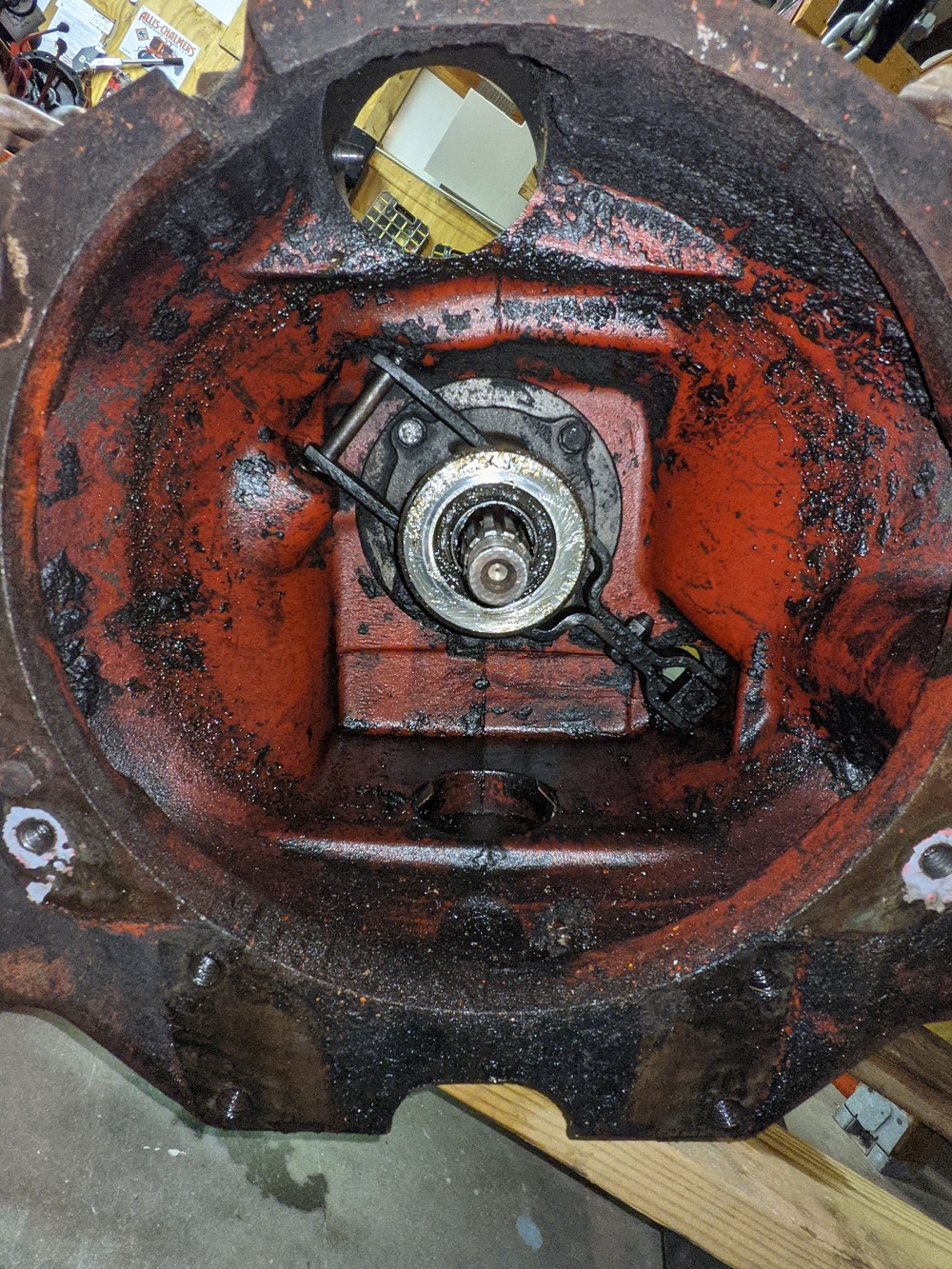

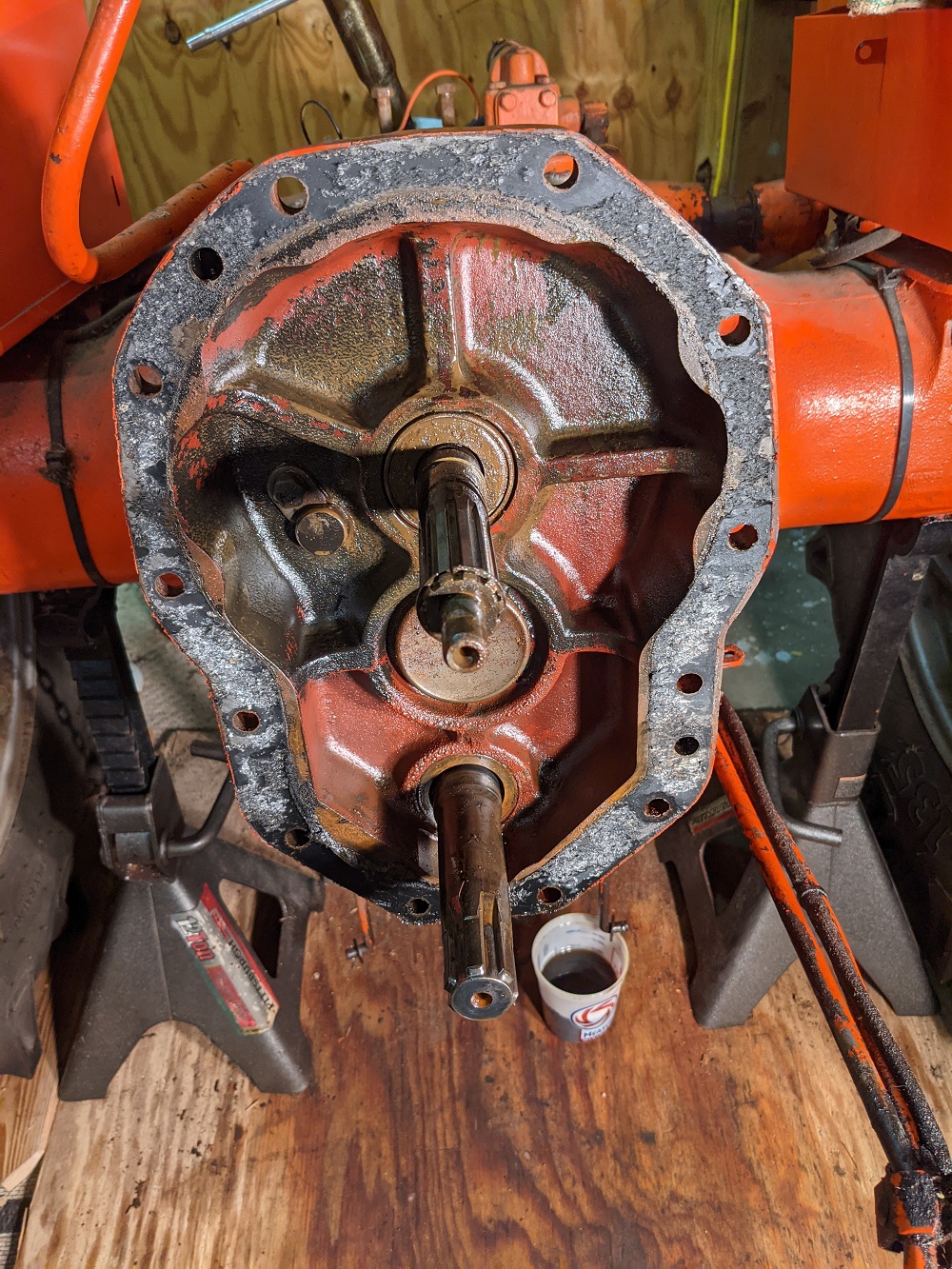

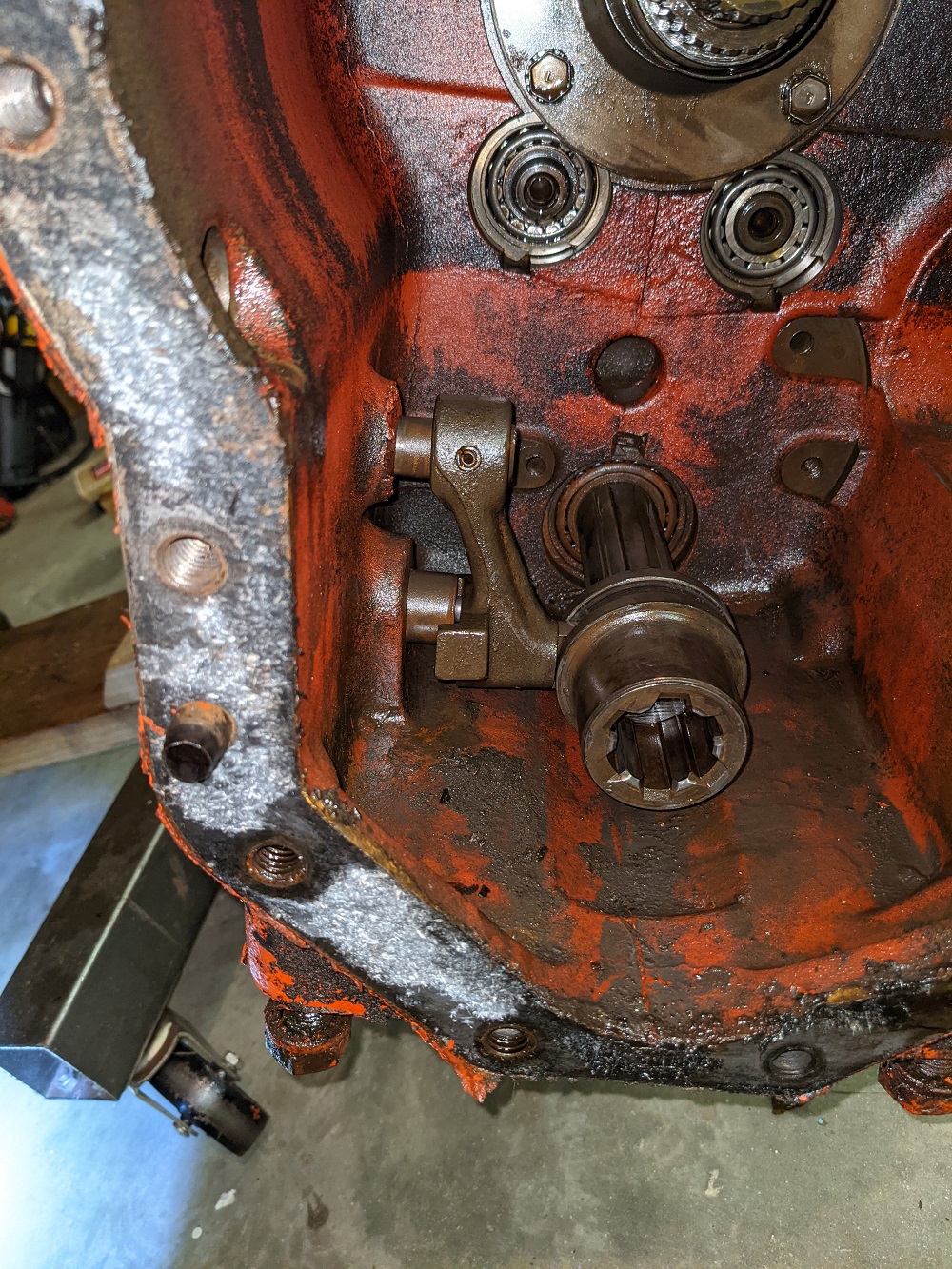

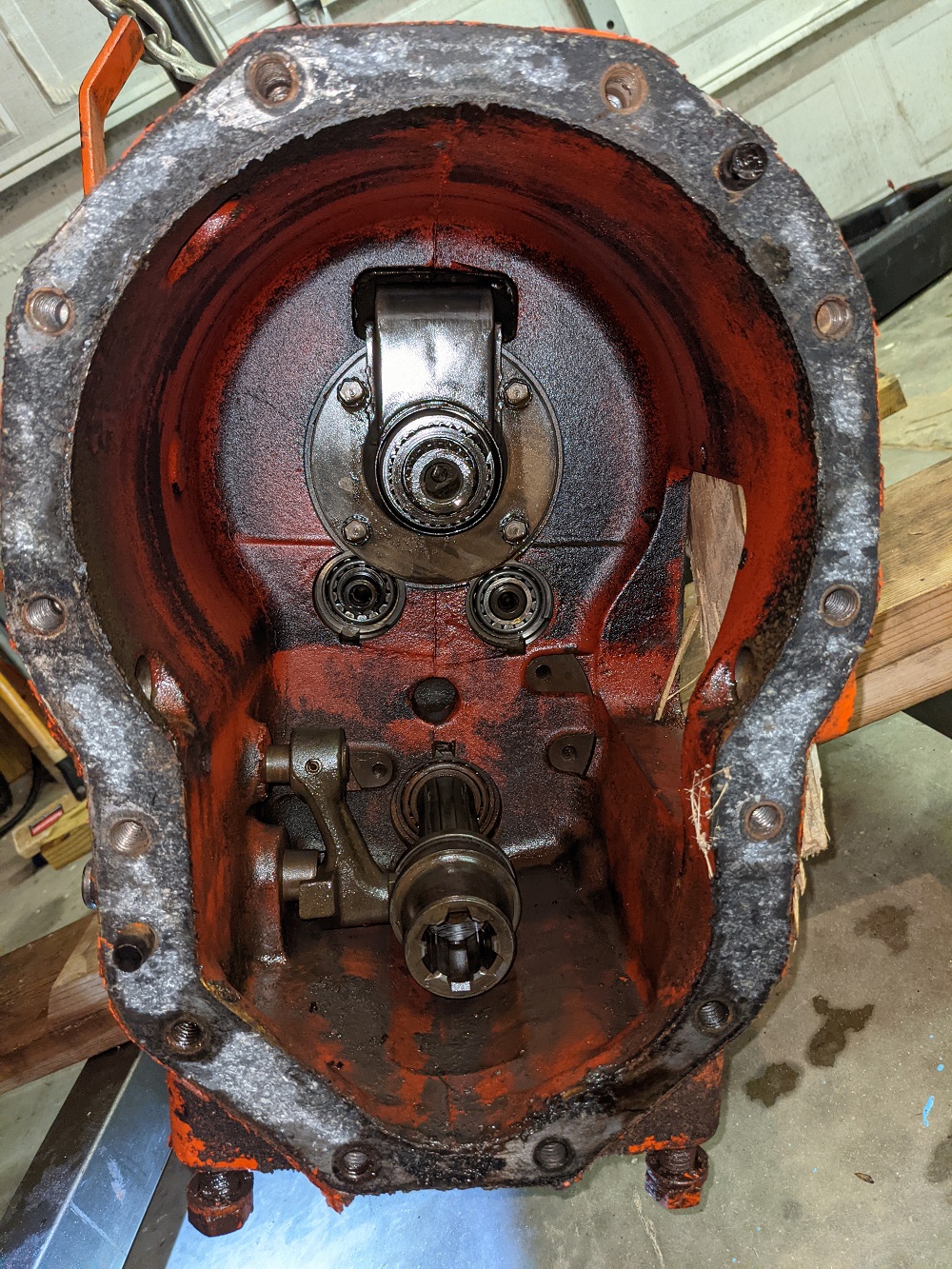

I had a little time last night to get the power director off. Thanks again Alex as the video helped. Definitely having it in low range made things easier! The power director clutch pack will be rebuilt. I also have a few pictures of the torque tube below for you guys. Somehow... the PTO collar or shaft or detent ball has become warped and the PTO will periodically get stuck engaged. It's stuck at the moment and will not disengage or move back. I also need to figure that one out while all of this is apart.
    |
Posted By: polarbear
Date Posted: 21 Oct 2021 at 10:31am
|
WOW great and informative pictures just absolutely a good job THANK YOU EVERYONE |
Posted By: WeisAC2
Date Posted: 21 Oct 2021 at 12:49pm
| Thanks polarbear. I'm just learning as I go. Using this forum and my service manual as a resource. Taking pictures anyway so thought I would post them on the forum for others to see. Somebody may spot a problem that I would have missed! |
Posted By: polarbear
Date Posted: 26 Oct 2021 at 8:05am
| I'M WAITING TO SEE SOMEONE DO A TRANSMISSION AND SHOW PICTURES |
Posted By: WeisAC2
Date Posted: 21 Dec 2021 at 1:07pm

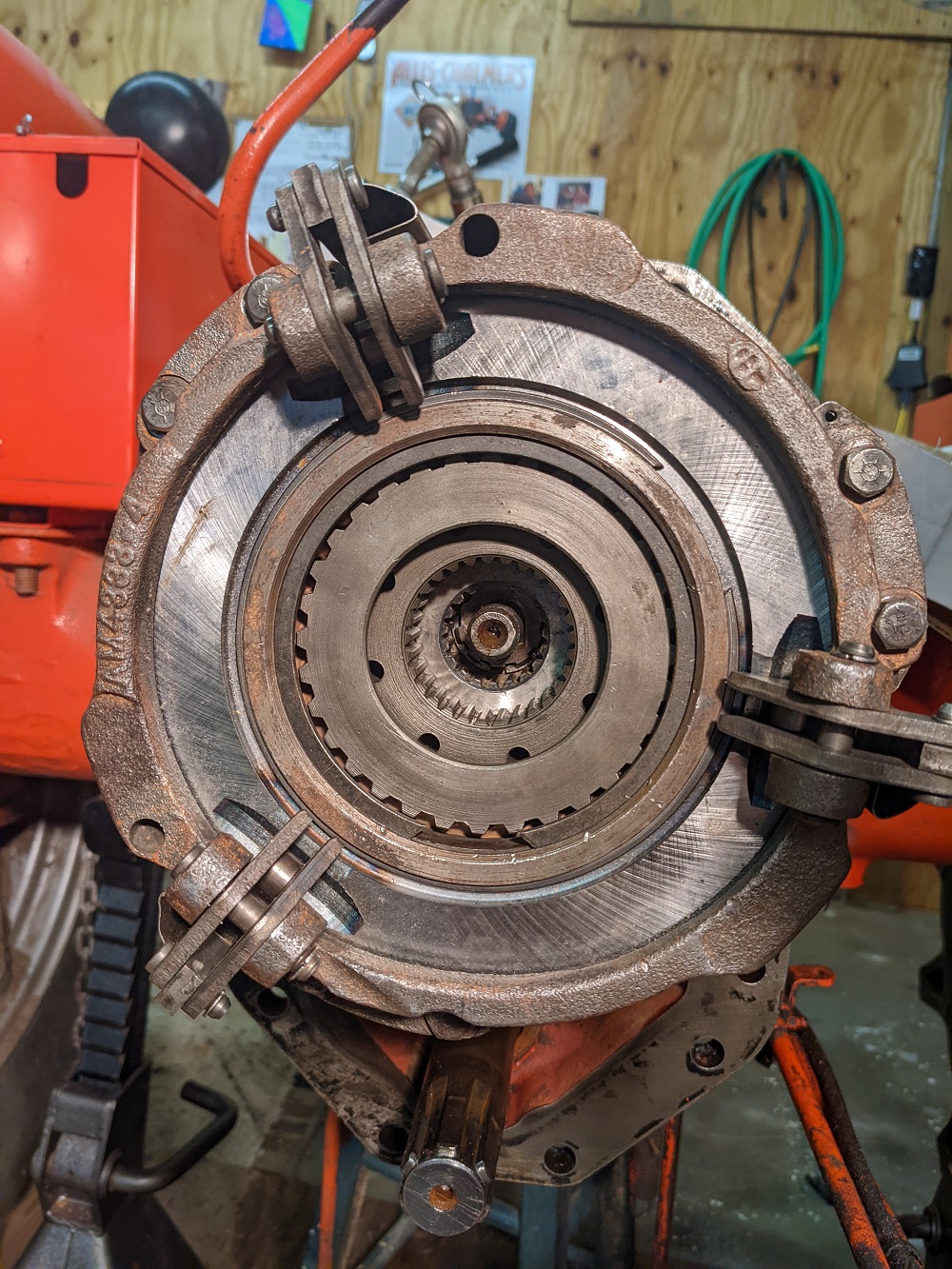

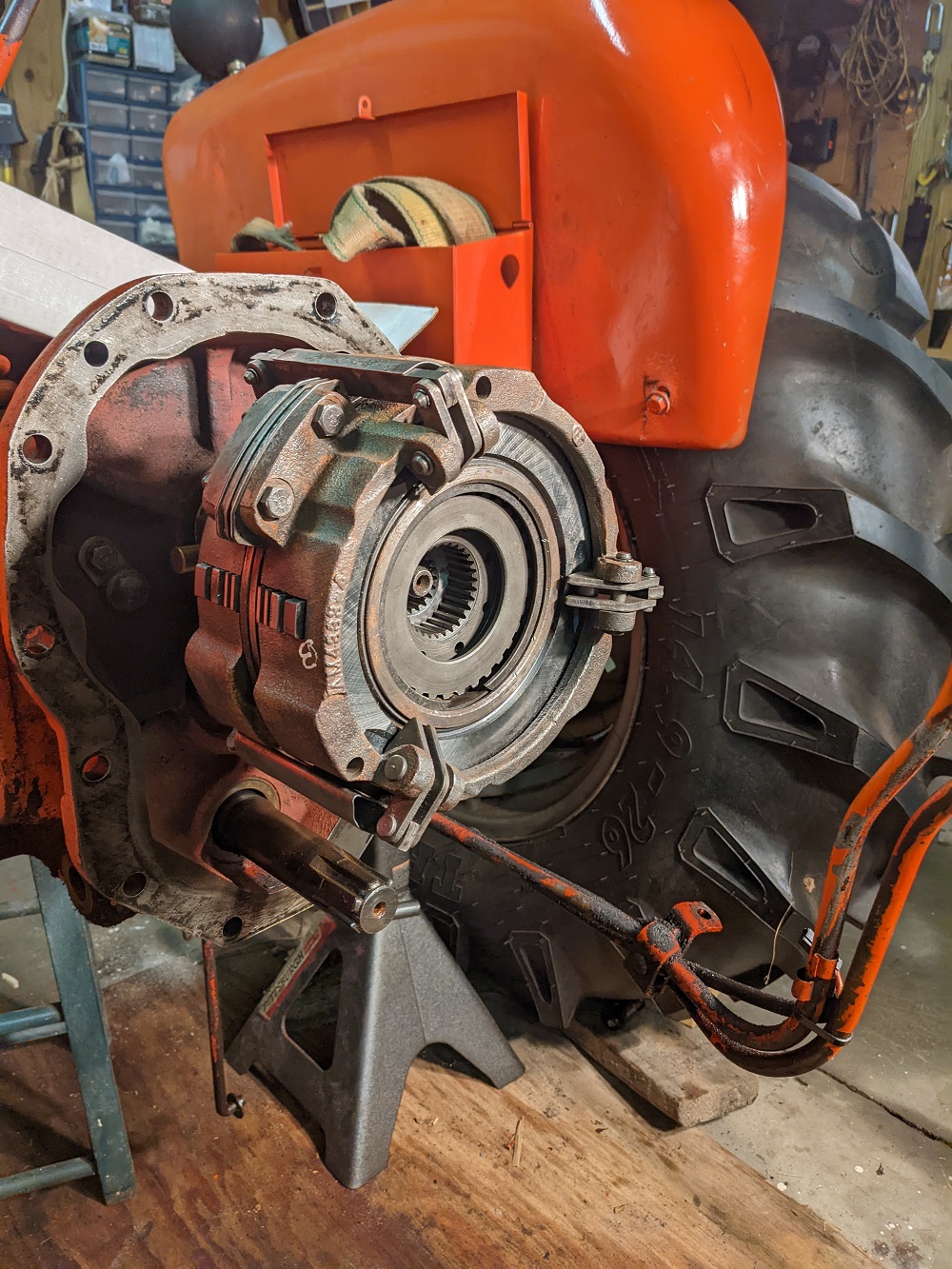

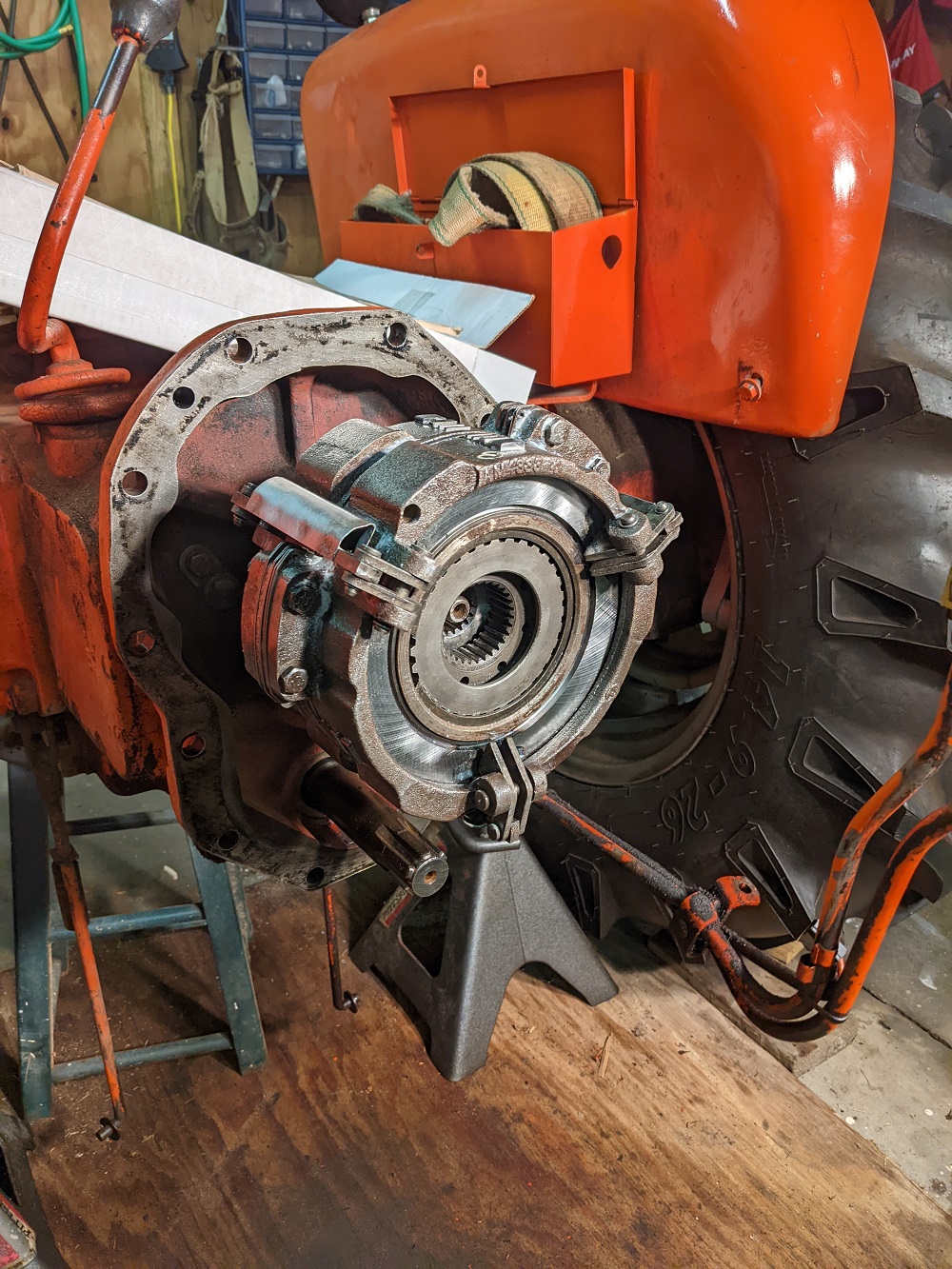

Well's it's been a group effort, but I got the rebuilt power director reinstalled. Thought I would post some pic's for you guys. I'm ready to put this to use! I still got a little ways to go on the torque tube.    |
Posted By: tbran
Date Posted: 21 Dec 2021 at 6:36pm
|
The issue I fear is why did the shifter collar wear like that... make sure the thrust plate ramps and roller allow the clutch to 'snap' in . Some cut notches in the neutral locator plate where the button has to be pressed to shift to low or high to hold the clutch in and not have it pop out - this will wear out the brass collars and locating ridge on the shifter. ------------- When told "it's not the money,it's the principle", remember, it's always the money.. |
Posted By: WeisAC2
Date Posted: 22 Dec 2021 at 7:41am
| Thanks tbran. The thrust plates were replaced along with all new clutch discs. This tractor came with the power director broken. I'm thinking that it was run low on oil which is what caused the problem. |
Posted By: ac160
Date Posted: 22 Dec 2021 at 9:57am
| Where did you get a stand like that? Or is it homemade? |
Posted By: WeisAC2
Date Posted: 22 Dec 2021 at 10:25am
| I had a local guy make it. I sent him the dimensions and he took it from there. We only have 2 D15's so I didn't need it to fit multiple tractor types. I have to say it's worked out very well. I like being able to roll the front end toward and away from the transmission to save space in my shop. I did block up the back of the engine as I didn't like the way it was hanging on the front mounting brackets. |
Posted By: WeisAC2

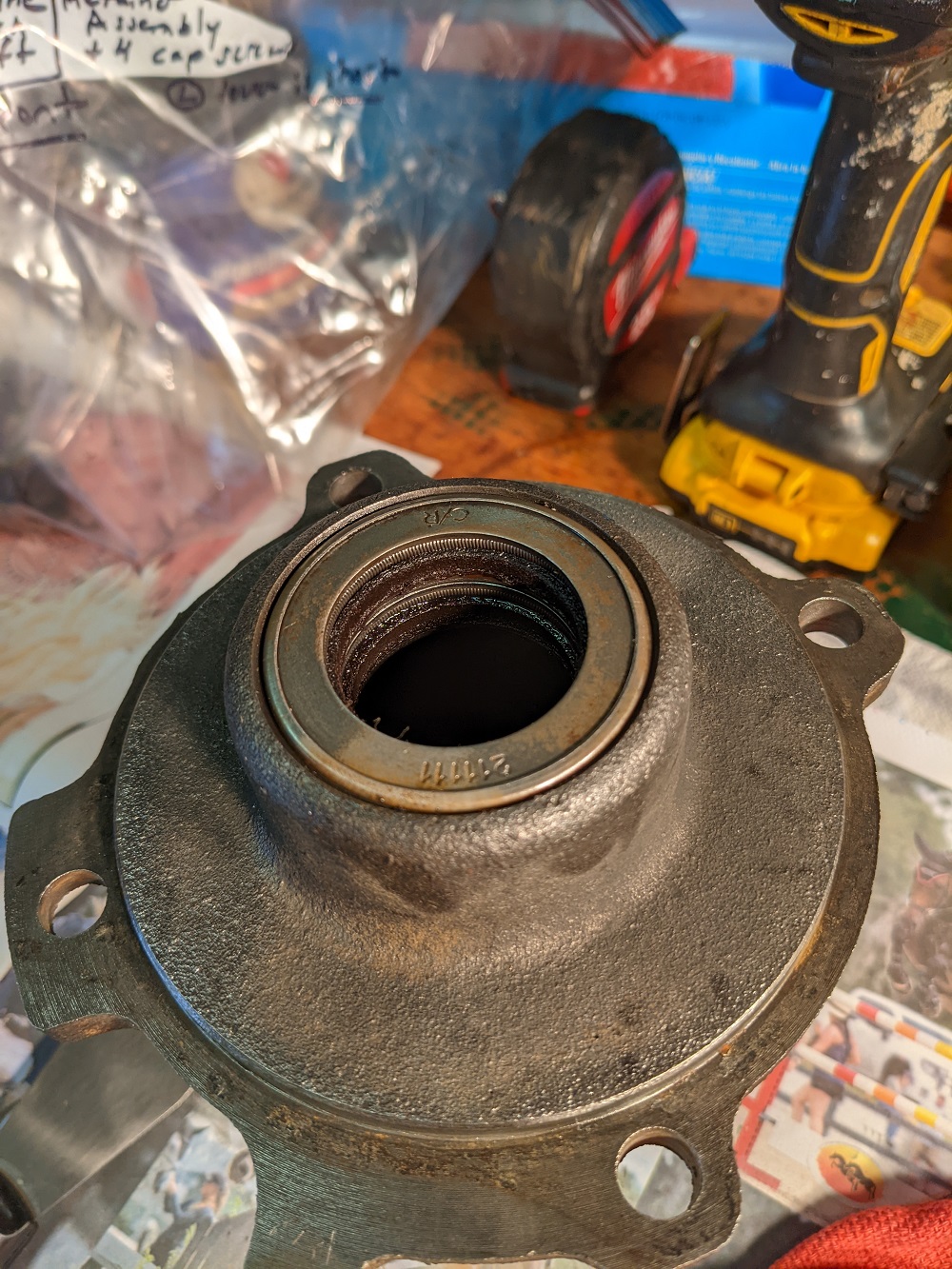

Date Posted: 22 Dec 2021 at 10:45am
This would be the reason for all the oil in my bellhousing... I replaced these seals and put in another gasket at the base of clutch retainer assembly.  |
