Topic: D19 PS Lines
Posted By: KenBWisc
Subject: D19 PS Lines
Date Posted: 11 May 2021 at 4:11pm
After waiting on my machine shop to get my motor back to me for 3 1/2 months, my recollection of the routing for the PS lines has waned. According to the shop manual I have the front and rear Control Valve Assembly lines in the correct holes. However, when I route the rear line through the hole in the right front motor mount the connection doesn’t line up and is too far to the rear of the Steering Ram
I have photos but so far have not been able to upload them as they are too large.
My memory says the splicer hose of the Suction Oil Line was routed through the large hole in the front motor mount.Is this correct? If it is would someone please provide a photo of the correct routing of the rear CVA line to the Steering Ram?



-------------
'34 WC #629, '49 G, '49 B, '49 WD, '62 D-19, '38 All Crop 60 and still hunting!



Replies:
Posted By: DSeries4
Date Posted: 11 May 2021 at 9:53pm
AGCO parts book website might be able to help you to see how they go.  I study those pages when I am working on something in particular.


-------------
'49 G, '54 WD45, '55 CA, '56 WD45D, '57 WD45, '58 D14, '59 D14, '60 D14, '61 D15D, '66 D15II, '66 D21II, '67 D17IV, '67 D17IVD, '67 190XTD, '73 620, '76 185, '77 175, '84 8030, '85 6080


Posted By: KenBWisc
Date Posted: 12 May 2021 at 7:40am
Yah, checked the parts book on-line, no help!

-------------
'34 WC #629, '49 G, '49 B, '49 WD, '62 D-19, '38 All Crop 60 and still hunting!


Posted By: Alberta Phil
Date Posted: 12 May 2021 at 9:57am

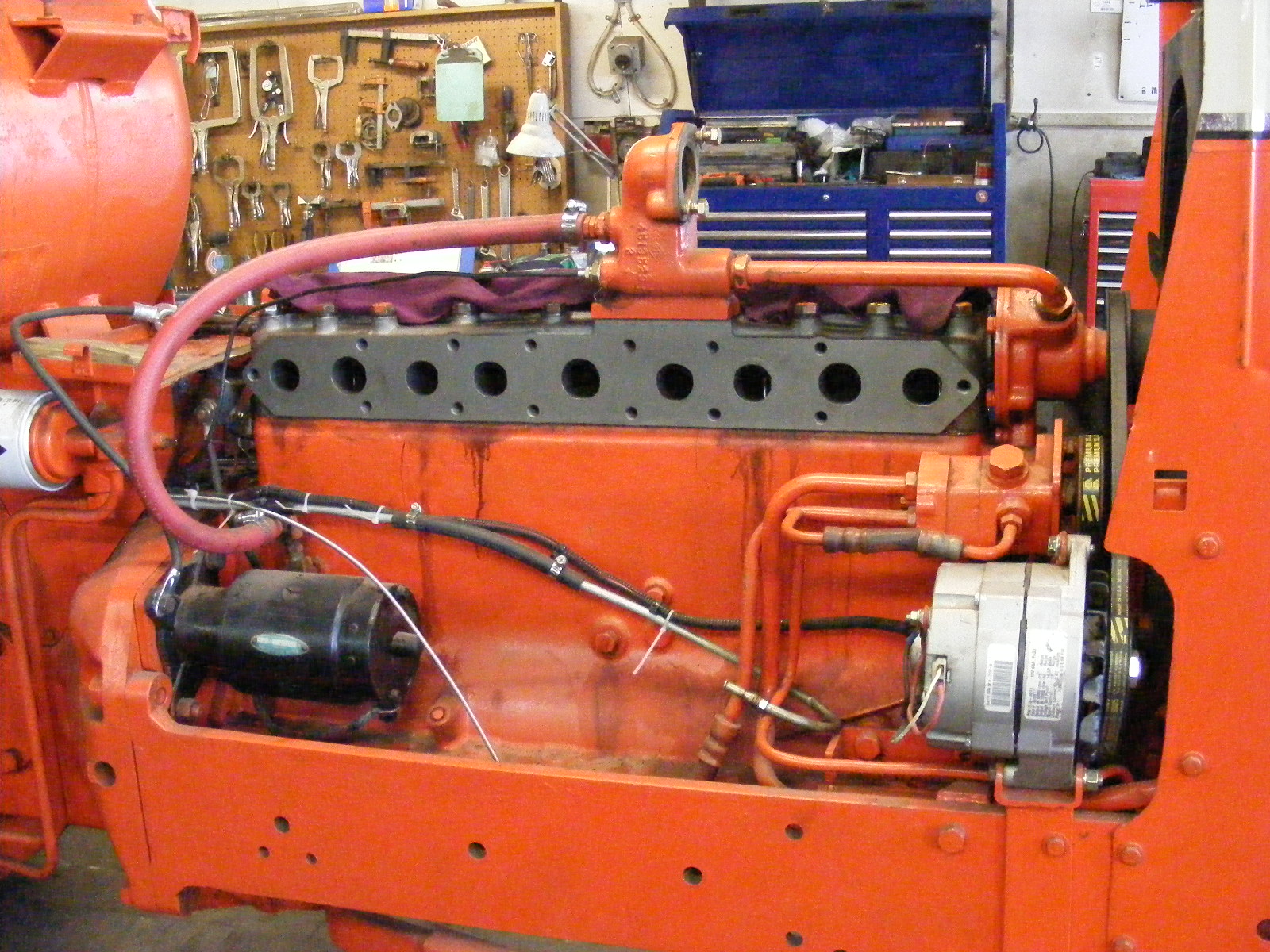

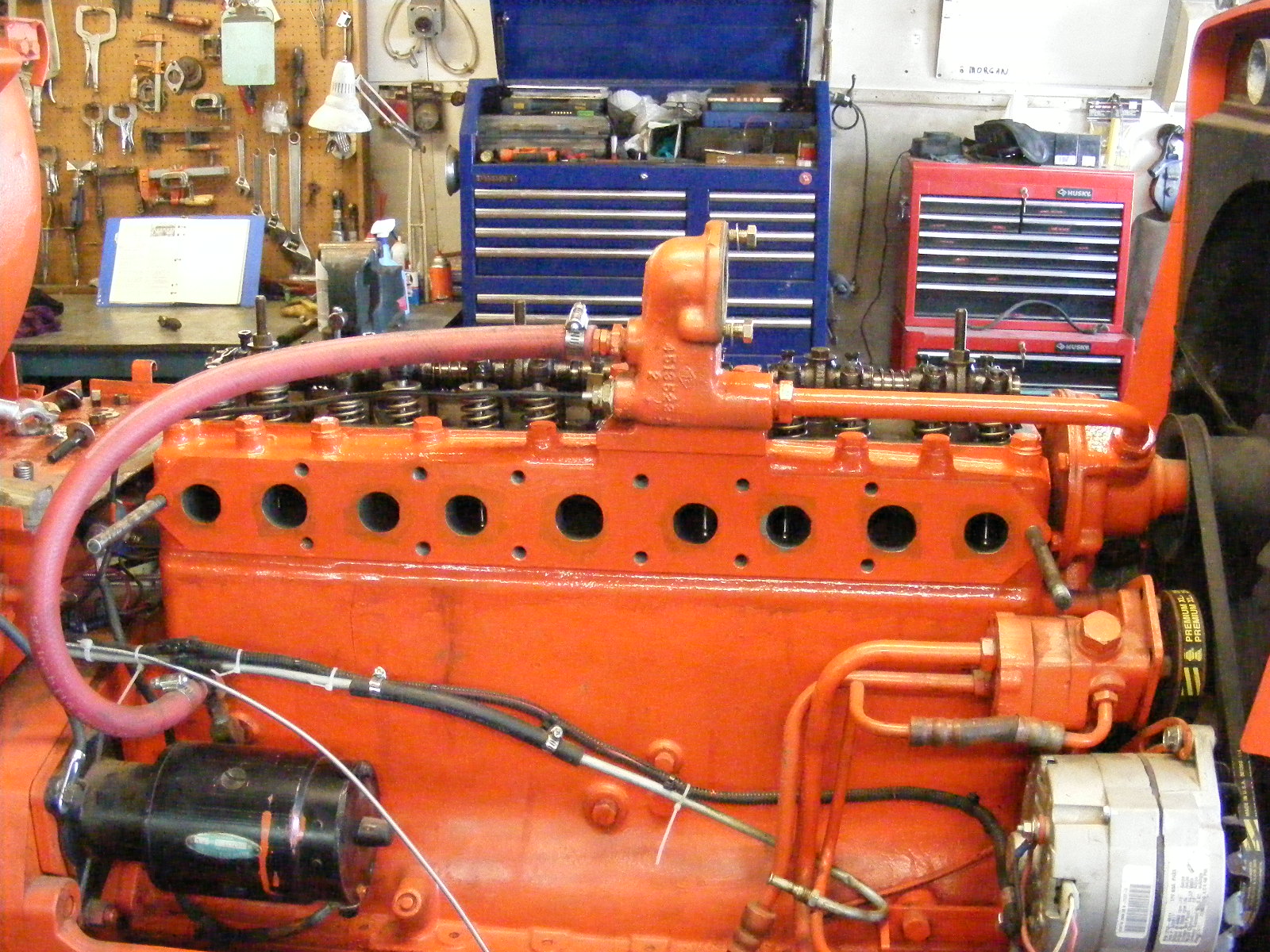

Will these help??


Posted By: KenBWisc
Date Posted: 12 May 2021 at 12:14pm
I appreciate it Phil but it’s the lower line I’m having trouble with. It’s the one with the reverse goose neck connection into the slave cylinder behind the right hand rail and below the the generator. Alternator in your case.


-------------
'34 WC #629, '49 G, '49 B, '49 WD, '62 D-19, '38 All Crop 60 and still hunting!


Posted By: plummerscarin
Date Posted: 12 May 2021 at 12:23pm
Which manual are you using? I have an Allis manual with a photo but there is a caption covering the area where the line passes through the support


Posted By: Alberta Phil
Date Posted: 12 May 2021 at 6:25pm

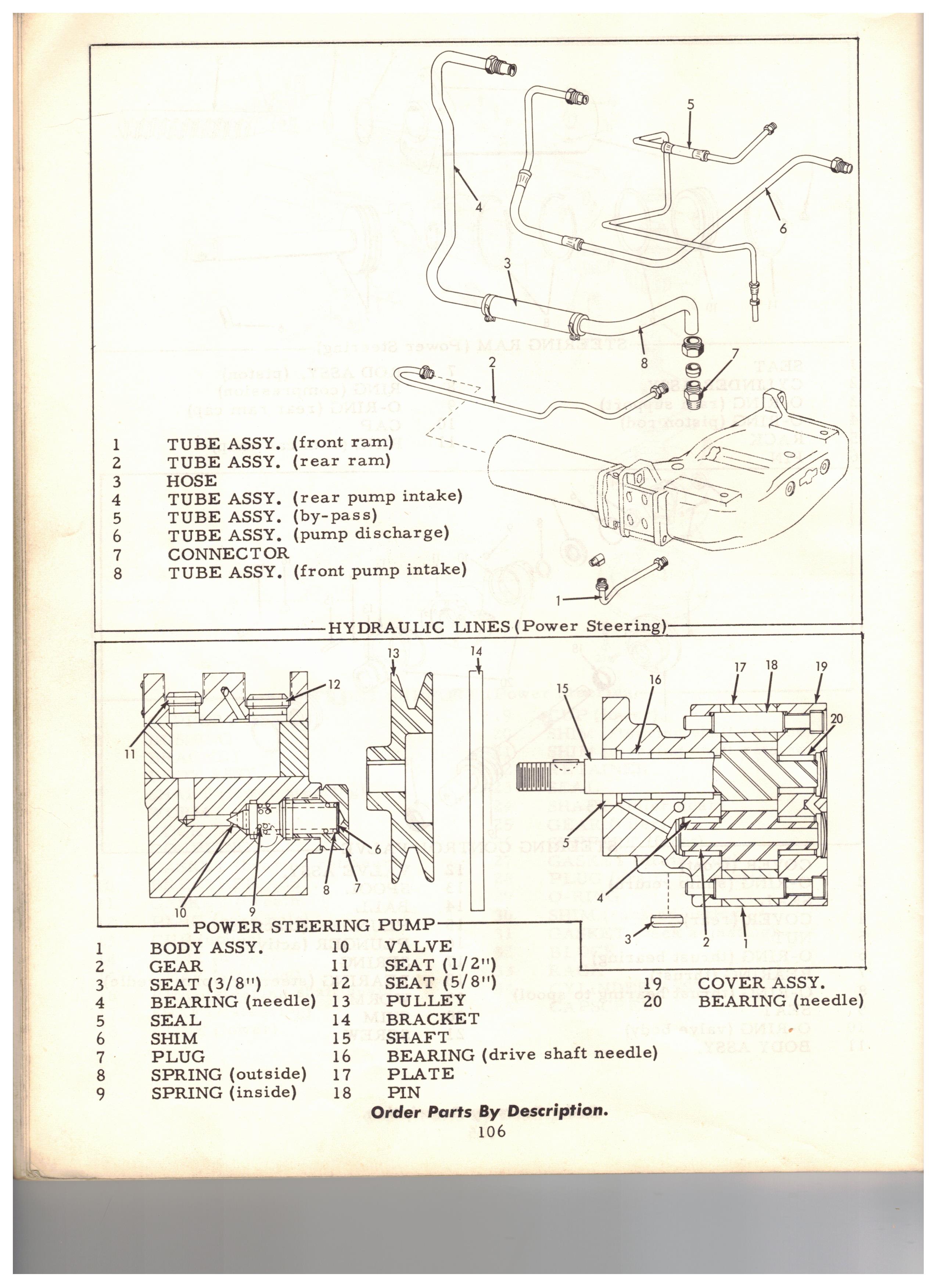

Here is a scan of the lines from the factory manual.  I don't know if it will help.


Posted By: Joe(TX)
Date Posted: 12 May 2021 at 7:42pm
I looked at my D19. It's hard to see much though. The suction hose dose run through the upper hole in the engine mount. I cannot see the the connection to the valve of the ram lines

-------------
1970 190XT, 1973 200, 1962 D-19 Diesel, 1979 7010, 1957 WD45, 1950 WD, 1961 D17, Speed Patrol, D14, All crop 66 big bin, 180 diesel, 1970 170 diesel, FP80 forklift. Gleaner A


Posted By: KenBWisc
Date Posted: 12 May 2021 at 7:43pm
Thanks again! I found the diagram of the lines in an old I&T Manual. If I interpret it correctly, the short Control Valve to ram (front) tube connects to the front hole in the Steering Control Valve and the long Control Valve to ram (rear) connects to the rear hole in the SCV. ??
However, the long line is 1 1/2” behind the ram connection.
Is this routing or orientation (twist) issue?
I also questioned if I mounted the SCV wrong but don’t know that this is possible and the pump to control valve line seems to mount well.

-------------
'34 WC #629, '49 G, '49 B, '49 WD, '62 D-19, '38 All Crop 60 and still hunting!


Posted By: Joe(TX)
Date Posted: 12 May 2021 at 10:41pm
If the lines from the valve to the ram are switched, you will find out real fast when you turn the steering wheel.

-------------
1970 190XT, 1973 200, 1962 D-19 Diesel, 1979 7010, 1957 WD45, 1950 WD, 1961 D17, Speed Patrol, D14, All crop 66 big bin, 180 diesel, 1970 170 diesel, FP80 forklift. Gleaner A


Posted By: KenBWisc
Date Posted: 19 May 2021 at 9:21am
Well, I got it figured out with the advise of a local former AC mechanic. Here are the key points.
1. Although all but the line I was having problems with can be installed with the booster bolted up to the tractor, the short line is most easily connected with the front end removed.
2. To realize success with the offending line;
a. The front end must be slid forward 3-4” and;
b. The line routed through the further most right hand hole in the right front motor mount. This a small hole as apposed to the larger, center hole. You’ll need a bit of patience to work the fitting through the hole and direct the line towards the left rear of the holster.
c. It still isn’t necessarily straight forward routing due to the multiple bends in the line you must turn and twist to reach the connection but it can be done.
c. The rest of the lines can be fairly easily attached once the front end is bolted up to the frame.
d. Even though I found photos in two shop manuals showing the largest line with the rubber splicer hose mounted above the front, right hand motor mount behind the generator, my recollection of my hose being routed through the large, center hole seemed to be confirmed. That’s the way it wanted to fit and that’s where it is!




-------------
'34 WC #629, '49 G, '49 B, '49 WD, '62 D-19, '38 All Crop 60 and still hunting!
