Topic: Hd9
Posted By: WDman1951
Subject: Hd9
Date Posted: 09 Apr 2017 at 9:25am
Looking at buying an hd9 maybe. Don't know a whole lot about Crawlers so this is new turf for me. Has a 471 Detroit in it ran a couple years ago but that doesn't mean much. The steering brakes are froze up too haven't looked at the under carriage yet. Any help would be appreciated he wants about two k or best offer. http://s346.photobucket.com/user/Cody_Wangen/media/Mobile%20Uploads/received_1831145950473006_zpst9qkctjn.jpeg.html" rel="nofollow"> . http://s346.photobucket.com/user/Cody_Wangen/media/Mobile%20Uploads/received_1831145950473006_zpst9qkctjn.jpeg.html" rel="nofollow"> . http://s346.photobucket.com/user/Cody_Wangen/media/Mobile%20Uploads/received_1831145937139674_zpsisnzxlik.jpeg.html" rel="nofollow"> . http://s346.photobucket.com/user/Cody_Wangen/media/Mobile%20Uploads/received_1831145907139677_zpsma28fie9.jpeg.html" rel="nofollow"> http://s346.photobucket.com/user/Cody_Wangen/media/Mobile%20Uploads/received_1831145940473007_zpskjf7xnju.jpeg.html" rel="nofollow"> http://s346.photobucket.com/user/Cody_Wangen/media/Mobile%20Uploads/received_1831145920473009_zpsxlxjxxqp.jpeg.html" rel="nofollow"> http://s346.photobucket.com/user/Cody_Wangen/media/Mobile%20Uploads/received_1831145923806342_zpsyjfhmzyl.jpeg.html" rel="nofollow"> ------------- 1951 WD 1945 C 1936 WC |
Replies:
Posted By: DMiller
Date Posted: 09 Apr 2017 at 2:21pm
| Typical aftermarket blade for the old girl, probably a dealer attachment. If the stack has been covered and the engine will hand pull thru a bit over easily I would pull the valve cover check the racks, pull the intake stack at the blower look for mouse nests, debris, verify the emergency stop is not dropped, check for coolant in the oil and that has coolant in it. Rails by casual glance do not look too rough, this would be a project tractor not a continuous use tractor due to age and low availability for repair parts. Most of the shields and covers still on it, seat and battery box look to be missing but not big items. |
Posted By: AC Mel
Date Posted: 09 Apr 2017 at 10:55pm
Ok, Yes, I'm 100% on board with Dave's recommendations. It appears to be a nice specimen too. We would have a lot of interest in it for our collection if it was in California. The other recommendation I would have is to check the intermediate pinion caps for broken bolts. You will need to remove the sprocket guard cover to get a good visual. HD9s and early HD11s that were in logging and heavy construction were prone to having problems there. AC made changes to 11s in the late 50s to solve the problem. Farm tractors usually didn't have a problem. Looking at your pictures it looks like this tractor hasn't been abused, so it's probably ok. That being said, it's a must that you check these for condition. (you don't want to work on these,it's a deal breaker).  This is a picture from a post several years ago. This is an HD11 that was in very poor condition. It became a"DONOR TRACTOR" in our recent restoration project because of the pinion caps. It usually breaks the case too. The HD11 farm tractor that we used for our restoration project was ok,that's why we started with it. So if you can get that cover off and look at the bolts that are holding the pinion cap on and check them,life will be good. Post some pictures if you have questions. They started with 1/2'' SAE bolts and later changed them to 5/8" SAE. If they haven't been changed or are not loose or appear to have worked loose, there probably ok. It's hard to tell from this picture that there is a problem here, it's more of a reference for where to look. We'll expect a report back(LOL) |
Posted By: Dozer
Date Posted: 10 Apr 2017 at 7:36am
|
Check the engine oil level. Remove the pan guard or access cover, carefully loosen the oil pan plug checking for water. I always try to pre-oil a motor that has been sitting. I use a porta-power with motor oil and break into the oiling system. The most accessible place is at the oil pressure gage. Check the final drives before moving it. Tow it backwards with transmission in neutral to see that both tracks are turning. Drain water out of the fuel system before trying to start it. Good luck |
Posted By: gemdozer
Date Posted: 11 Apr 2017 at 10:11am
| The HD9 use the same stering cluch,brake,chaine,sprocket,roller,idler,transmission and master cluch than HD11 and motor parts are easy to found DETROIT 471. |
Posted By: cariboo4x4
Date Posted: 21 Dec 2018 at 7:35pm
| Hellow gemdozer. Are you saying the HD9 uses same engine clutch components as HD11? |
Posted By: gemdozer
Date Posted: 22 Dec 2018 at 6:01am
| The Hd9 and HD11 use the same cluch |
Posted By: cariboo4x4
Date Posted: 22 Dec 2018 at 10:38pm
|
thank you |
Posted By: Tad Wicks
Date Posted: 26 Dec 2018 at 11:24am
|
Be sure that the emergency stop functions or take the precleaner off the intake so that you can choke it down if it runs away, also remove the valve cover and put a pair of vice grips on the the rack shaft and make sure it is free and leave it there till after the initial start just in case |
Posted By: shameless dude
Date Posted: 27 Dec 2018 at 8:35am
| then your bride can drive this one to Walmart! |
Posted By: cariboo4x4
Date Posted: 31 Dec 2018 at 10:33am

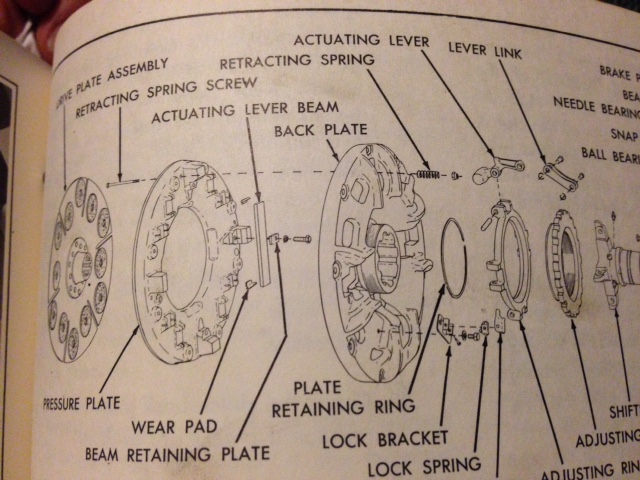

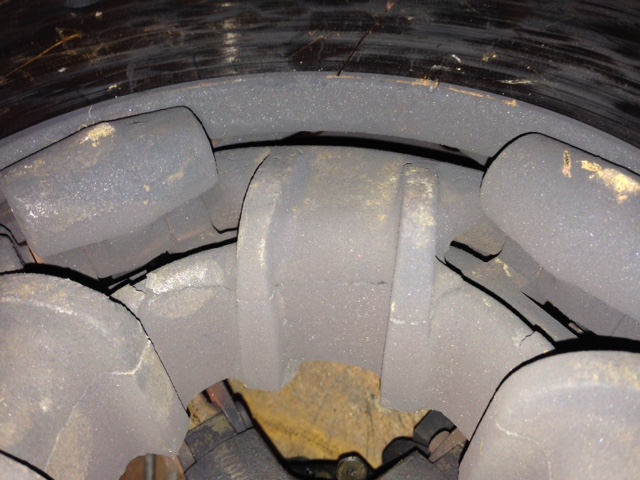

Thank you gemdozer. I took clutch pressure plate assembly apart and Back Plate is cracked. There is a casting number on it CL-8303. I have a clutch place I can call in Vancouver BC, yet do you have any leads on where I could find a good used back plate? I'm thinking it could be welded yet I'm thinking its a part that is under tension when clutch is engaged. Neighbor could only adjust hand clutch lever to 15 pounds on his spring scale so I'm thinking the Back Plate cracks were definitely part of the problem.  |
Posted By: gemdozer
Date Posted: 31 Dec 2018 at 11:55am
| HI I check wednesday if am still have some but not sure and if you weld yours she gone recrack again. |
Posted By: cariboo4x4
Date Posted: 03 Jan 2019 at 11:13pm
| Thank you. Happen to find anything gemdozer? |
Posted By: gemdozer
Date Posted: 04 Jan 2019 at 6:07am
| I am sorry found anyting yet about master cluch |
Posted By: cariboo4x4
Date Posted: 04 Jan 2019 at 2:45pm
| Thankyou gemdozer |
Posted By: cariboo4x4
Date Posted: 21 Jan 2019 at 10:38am
|
Hi gemdozer. I located a good used part in Australia of all places. They describe themselves as the biggest dismantler in the southern hemisphere. They have a few HD11's in stock for parts. I may have found something else in the US if I searched more yet after many hours of searching and sending out emails I found this part in Australia. So good used back plate is coming in as airmail. Philhuntparts.com.au
|
Posted By: gemdozer
Date Posted: 21 Jan 2019 at 12:30pm
| I am glad for you and if I can help let me know |
Posted By: jerbob
Date Posted: 21 Jan 2019 at 3:03pm
I have messaged Phil Hunt as well on some parts. You are right,, he has a huge inventory. Pretty costly to get it back to the US however. Another site that has a lot of AC inventory is Fresno Tractor. they have a large yard but cannot find the contact number. You can google it for sure. ------------- HD16DC, Bobcat 863 Turbo, Oliver 1855, John Deere 855, |
cariboo4x4 wrote:Posted By: Mactractor
Date Posted: 22 Jan 2019 at 3:32am
|
General Gear and Machine (tractorparts.com), Boise ID a lot nearer you than Australia |
Posted By: cariboo4x4
Date Posted: 27 Jan 2019 at 12:26am
|
Thank you for all the contacts fellows. Just received good used back plate. I have to put flywheel back on crankshaft and the 9/16" NF bolts (13/16" head) were very tight or just well seized from being attached for many years. We broke them loose and thinking of using blue thread locker upon assembly. The service manual states 95-105 ft lbs for these bolts yet that seems a little low. My generic torque chart shows 110-180 ft lbs depending on grade. The service manual is for the HD11 with the 6 cylinder diesel and this machine is the HD9 yet uses same clutch assembly for the Diesel 471 4 cylinder. Mechanics wire is threaded and twisted through all flywheel to crankshaft when attached and bolts torqued. I was wondering if gemdozer has torque specs for HD9 4 cylinder flywheel and back plate? The back plate uses 1/2" NC bolts (3/4" head) with lock washers. Service manual does not list or have detail on torque spec for these bolts. My generic torque chart is 80-125 ft lbs depending on grade of bolt. Will use blue thread locker also on these. Old back plate was cracked at one of these hole on perimeter of back plate so I expect previous owner possibly tightened them too much. They were either very tight too or just siezed with rust. |
Posted By: gemdozer
Date Posted: 27 Jan 2019 at 1:21pm
|
Sorry have no torque specs for HD9 DETROIT for flywell and backplate. |
Posted By: cariboo4x4
Date Posted: 27 Jan 2019 at 7:11pm
