Topic: Need advice on model c restoration.
Posted By: saele
Subject: Need advice on model c restoration.
Date Posted: 03 Dec 2016 at 9:01pm
|
I am restoring a 1944 C with mag and lights my first Allis tractor. I have taken lots of pictures but I guess not of the right thing or I am getting too old for this game. I can't figure out just where to route the new wire harness after it comes out of the casting at the rear of the engine. I took the old harness off a year ago and can't remember how it was routed. As I search internet it appears. To be on the left side behind the air cleaner and above the generator. I even found 1 picture with it routed over the top of the valve cover. Also confused as to route of wire's to the lights up front,is there a block mounted some where on the radiator. Then today I was going to bolt on the carburetor and can't figure out how to fasten the light spring that keeps the throttle from vibrating. If you guys can help me I promise I will come back with more questions. Will post a picture if I can figure out how. I can't figure that one out so will figure it out later. |
Replies:
Posted By: sparky
Date Posted: 03 Dec 2016 at 9:11pm
|
Hooks at the carb lever and throttle rod then hook the other end to a manifold bolt.
------------- It's the color tractor my grandpa had! |
Posted By: saele
Date Posted: 03 Dec 2016 at 9:25pm
| I though that might be the way it was meant to be setup, then decide to wait till I put the aircleaner in place. Thought maybe it connected to that. Thanks |
Posted By: sparky
Date Posted: 03 Dec 2016 at 9:28pm
|
You are welcome.
We would like to see her when you finish.
------------- It's the color tractor my grandpa had! |
Posted By: AJ
Date Posted: 03 Dec 2016 at 9:29pm
|
What pictures would you like? I can take pictures for ya of my C I recently restored. ------------- Can't fix stupid |
Posted By: saele
Date Posted: 03 Dec 2016 at 9:36pm
|
If you can show me the main wire harness coming from the back of the engine to the front and where you ran the wires up to the head lights. That would be great. Trying to figure out how you post a picture right now. I am new to this except for one post a year ago. Thanks |
Posted By: saele
Date Posted: 04 Dec 2016 at 7:10am
Just reviewed some of my pictures from the past and found one that shows the harness routed behind the air cleaner and then over the top of generator bracket. I am still unclear as to how they route the front light wires so they are out of the way. I did post some pictures in my profile this morning, now I have to figure out how one views them. also found it interesting reading the post from last night. It was stated that the Model C never had a C decal on it. Was glad to read that before I go and plaster decals all over.
|
saele wrote:Posted By: Steve in NJ
Date Posted: 04 Dec 2016 at 7:36am
|
Ducking out from under the gas tank area the front the wiring harness ran behind the air cleaner, behind the Carburetor, along side the block behind the Generator to the cutout relay. From there, the headlight circuit branched off from the cutout relay to the Headlight junction stud on the fan shroud. The Mag kill wire (if equipped) went around the front of the valve cover to the side of the Magneto where the "kill tab" is located. The headlight circuitry went over the top of the fan shroud to the right headlight, (sitting on the Tractor) and of coarse the left headlight got fed right off the junction. If you need some pics, I might have some that I took years ago of my B. HTH Steve@B&B ------------- 39'RC, 43'WC, 48'B, 49'G, 50'WF, 65 Big 10, 67'B-110, 75'716H, 2-620's, & a Motorhead wife |
Posted By: saele
Date Posted: 04 Dec 2016 at 7:47am
|
There must have been a insulated block that mounted to the fan shroud that the light wires terminated on? U am now going to look at wiring schematics again.
Then heding out for the day. Thanks
|
Posted By: AJ
Date Posted: 04 Dec 2016 at 8:52am
|
Mine dont have lights currently on it. ------------- Can't fix stupid |
Posted By: steve(ill)
Date Posted: 04 Dec 2016 at 9:10am
|
There must have been a insulated block that mounted to the fan shroud that the light wires terminated on? U am now going to look at wiring schematics again. Then heding out for the day.
Thanks
-
--no block...I put a spade connector 4 inches from the radiator on the light wires so I can remove when needed.... there is a rubber grommet/tube in the radiator shroud to keep the wire from rubbing. ------------- Like them all, but love the "B"s. |
Posted By: saele
Date Posted: 04 Dec 2016 at 1:22pm
| thanks Steve, sounds like its time I start using my imagination. |
Posted By: Ted J
Date Posted: 04 Dec 2016 at 6:27pm
|
Harris, here is a post that I made a long time ago about posting pics. Hope this helps you http://www.allischalmers.com/forum/forum_posts.asp?TID=115700&title=posting-pictures-on-the-forum" rel="nofollow - Posting Pictures on the Forum It is in the "Forum Support - No Tractor Questions" We still need a "How To" section Daren ------------- "Allis-Express" 19?? WC / 1941 C / 1952 CA / 1956 WD45 / 1957 WD45 / 1958 D-17 |
Posted By: saele
Date Posted: 05 Dec 2016 at 7:10am
| Thank you Ted, I will look at that it should help me, if you see pictures later today you will know it did. |
Posted By: saele
Date Posted: 06 Dec 2016 at 10:31am
First attempted to post a few pictures. http://s1266.photobucket.com/user/cassidy40/media/Allis%20Chalmers/Allas20Chalmers20Model20C20all20pictures_zpsu5ewfg8z.jpg.html" rel="nofollow">
 " src="uploads/13049/101_1249_1.jpg" border="0"> |
Posted By: saele
Date Posted: 06 Dec 2016 at 11:36am
http://s1266.photobucket.com/user/cassidy40/media/Allis%20Chalmers/8ff88c0b-4a8f-416f-9031-374fe4e483dc_zpsolqmfapd.jpg.html" rel="nofollow">
|
Posted By: saele
Date Posted: 06 Dec 2016 at 3:41pm
|
Posted By: 1939Dodge
Date Posted: 06 Dec 2016 at 7:35pm
| B&B Custom Circuits has the light terminal in stock for a few bucks. Works like a charm. |
Posted By: Ted J
Date Posted: 06 Dec 2016 at 8:18pm
|
Looks GREAT!!! NICE work so far. NICE PICS!! Just the right size too. ------------- "Allis-Express" 19?? WC / 1941 C / 1952 CA / 1956 WD45 / 1957 WD45 / 1958 D-17 |
Posted By: Chalmersbob
Date Posted: 06 Dec 2016 at 9:05pm
|
The light wires attached to an insulated stud on the left side of the radiator shroud. All 3 wires attached to the same stud. Bob ------------- 4 B's, 1 C's,3 CA's, 2 G's WD, D14, D15, B-1, B10, B12, 712S, |
Posted By: saele
Date Posted: 07 Dec 2016 at 5:05pm
| Thank you I will up them up. |
Posted By: saele
Date Posted: 07 Dec 2016 at 5:09pm
| Thanks Ted, two years in the making so far and now winter is here so it slows me down, we are in the second day of a full snowstorm right now. |
Posted By: Crewchief
Date Posted: 07 Dec 2016 at 5:27pm

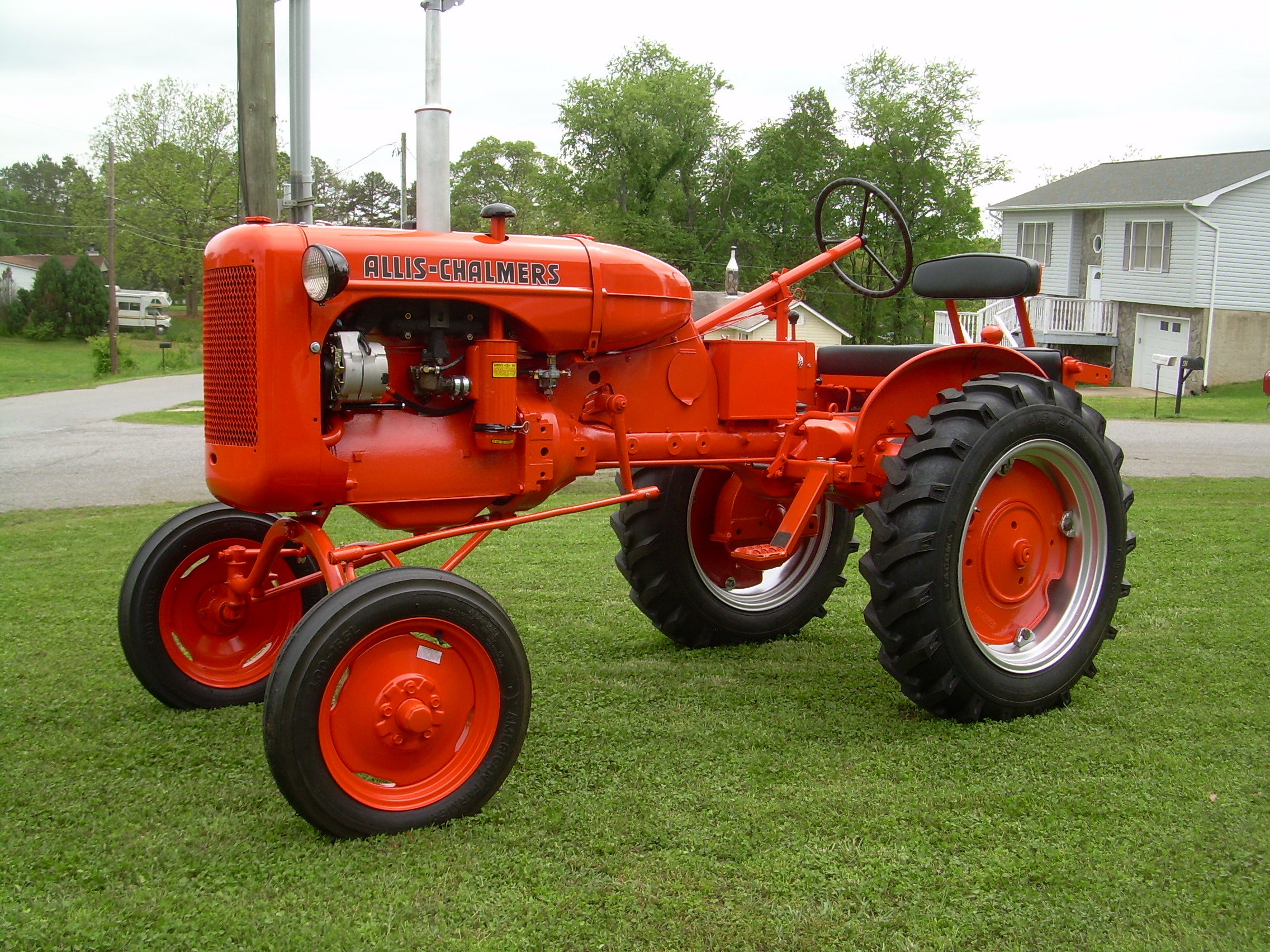

Not a C but I'm sure same as my B. U can c where it comes from behind the air cleaner. There is a wire that comes out of the harness that goes in front of the valve cover to the distributor/ or mag. Hope this helps ------------- 1952 B 1950 Ferguson TO-2O |
Posted By: Bill Long
Date Posted: 07 Dec 2016 at 8:06pm
|
Nice looking tractors gentlemen. I cannot tell you how pleased I am to see my favorite - the B - looking so good and what a great job being done on the C. Hard to believe the age of these units. Looks like you have some a cultivator and plow for the C. Thank you both for what you are doing to keep the name Allis Chalmers Alive. Take good care of my favorite and it's brother the C. Good Luck! Bill Long |
Posted By: saele
Date Posted: 08 Dec 2016 at 5:17am
|
Posted By: saele
Date Posted: 08 Dec 2016 at 5:39am
|
Nice looking Tractor Crewchief, here is how I am planning on routing my harness.
http://s1266.photobucket.com/user/cassidy40/media/20161205_155215_resized_zpsotxmbrkp.jpg.html" rel="nofollow">
 |
Posted By: saele
Date Posted: 08 Dec 2016 at 5:41am
| That didn't turnout quite like I wanted it to, have a lot to learn using this site. Nice tractor Crewchief, what model is the tractor. |
Posted By: Ted J
Date Posted: 08 Dec 2016 at 5:57am
|
Harris, when you want to edit something (
Thank you I will up them up.) Just go up to the right side and you will see "Post Options".... go down to "Edit Post" and click on that. If you were the writer of that missive, ONLY YOU can "Edit" what ever it is that is written. You can change what ever you want or add in that thread. Give it a try, go up and edit the above..... When you add a pic, make sure that the cursor is at the end of where you want to put the picture. Otherwise you get what you did above. What I try to do (if I remember) is to go to the end of the sentence and click enter twice.....then add the pic. Give it a shot. ------------- "Allis-Express" 19?? WC / 1941 C / 1952 CA / 1956 WD45 / 1957 WD45 / 1958 D-17 |
Posted By: saele
Date Posted: 08 Dec 2016 at 6:03am
| Thanks Ted, lets see if I can remember that next time. |
Posted By: saele
Date Posted: 11 Dec 2016 at 2:56pm
|
http://s1266.photobucket.com/user/cassidy40/media/101_2502_zps6dsffk7y.jpg.html" rel="nofollow">
I need help again, There must be some kind of cover that goes over the flywheel on my C. I have been asking around as to where I can find one and what it looks like and how it fastness on and haven't found the answer yet, I bet some of you guys know the answer. Thanks
|
Posted By: Hubnut
Date Posted: 11 Dec 2016 at 3:45pm
|
No cover over that spot. It is correct as shown. Nice restoration there.
------------- 1940 B "Lucy" 1941 B w/ Woods L59 "Flavia" 1942 B w/ finish mower "Dick" 1941 C w/ 3-point "Maggie" 1947 C SFW w/ L306 "Trixie" 1972 314H |
Posted By: saele
Date Posted: 11 Dec 2016 at 8:12pm
| Thank have had a few people tell me that it had to have a cover and just couldn't see how that was possible. |
