D-15 Series I Industrial Hydraulic filter mount
 Post Reply Post Reply
Author
Message
  Topic Search Topic Search  Topic Options Topic Options
JamesG View Drop Down
Bronze Level
Bronze Level


Joined: 27 Jul 2015
Location: NewEngland
Points: 26 		Post Options Post Options   Thanks (0) Thanks(0)   Quote JamesG Quote  Post ReplyReply Direct Link To This Post Topic: D-15 Series I Industrial Hydraulic filter mount
    Posted: 17 Apr 2016 at 11:45am

I have a D-15 Series I industrial tractor with a front bucket and backhoe. I just went to change the Hydraulic oil and filter and it seems like a previous owner may have removed/eliminated the filter and filter mount from the tractor. This has the hyd pump mounted in front of the grill. Any one have a picture of, or know where the hyd filter is supposed to be located? Any replacement/aftermarket part numbers for an appropriate filter mount would be appreciated. Thanks.
Back to Top
Sponsored Links


Back to Top
JamesG View Drop Down
Bronze Level
Bronze Level


Joined: 27 Jul 2015
Location: NewEngland
Points: 26 		Post Options Post Options   Thanks (0) Thanks(0)   Quote JamesG Quote  Post ReplyReply Direct Link To This Post Posted: 19 Apr 2016 at 11:58pm

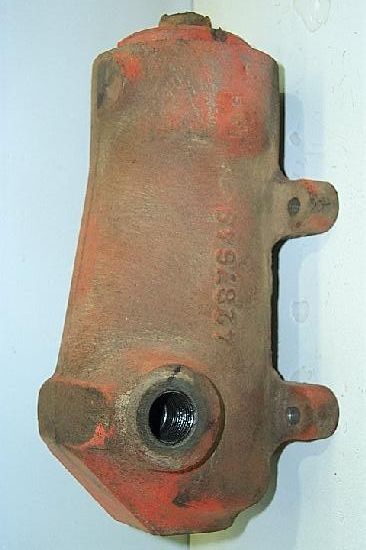

Maybe it was something like this (at least originally)?

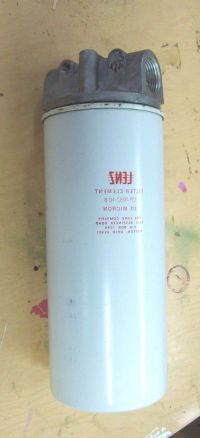

But perhaps I just need to add something like this?
Back to Top
DiyDave View Drop Down
Orange Level Access
Orange Level Access
Avatar

Joined: 11 Sep 2009
Location: Gambrills, MD
Points: 53511 		Post Options Post Options   Thanks (0) Thanks(0)   Quote DiyDave Quote  Post ReplyReply Direct Link To This Post Posted: 20 Apr 2016 at 4:53am
Actually, I don't know if a series 1 had a filter.  might just be a screen, on the intake end of suction line.  I think on farm tractors, series 2 d-15's it's a fram PH8A, below the battery box...
Back to Top
Calvin Schmidt View Drop Down
Orange Level
Orange Level
Avatar

Joined: 11 Sep 2009
Location: Ontario Can.
Points: 4529 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Calvin Schmidt Quote  Post ReplyReply Direct Link To This Post Posted: 20 Apr 2016 at 5:55am

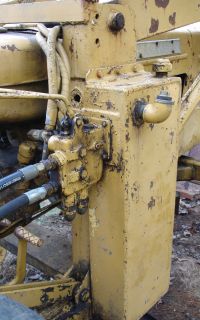

It looks to me like the original oil resivor was in the loader frame and likely started to leak due to a crack. A new oil tank has been added so things are not as they left the factory.
You can add a filter. Looks like the loader that I had on an I-60 which was a later model.
Nothing is impossible if it is properly financed
Back to Top
JamesG View Drop Down
Bronze Level
Bronze Level


Joined: 27 Jul 2015
Location: NewEngland
Points: 26 		Post Options Post Options   Thanks (0) Thanks(0)   Quote JamesG Quote  Post ReplyReply Direct Link To This Post Posted: 20 Apr 2016 at 1:44pm

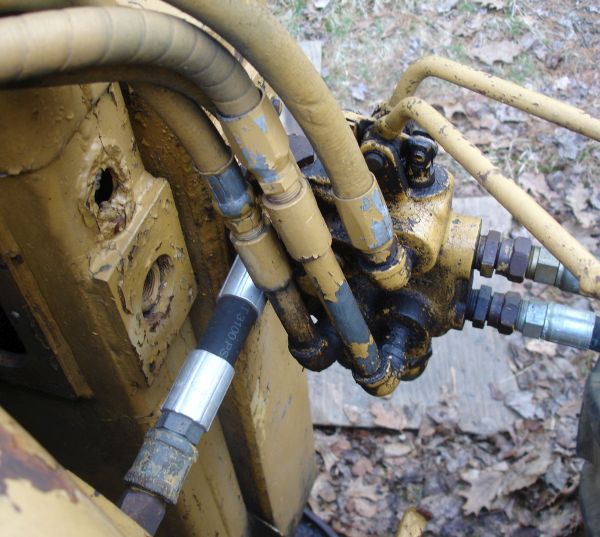

Yes, you are correct, I see where the original reservoir was in the frame. I will just put a filter in the supply line leading to the grill mounted hydraulic pump. Thanks.
Back to Top
JamesG View Drop Down
Bronze Level
Bronze Level


Joined: 27 Jul 2015
Location: NewEngland
Points: 26 		Post Options Post Options   Thanks (0) Thanks(0)   Quote JamesG Quote  Post ReplyReply Direct Link To This Post Posted: 20 Apr 2016 at 5:46pm
I was reading this page: http://dta.eu/hydraulics/hydraulic-filters/
Now I am not sure if the filter should go between the tank and the pump or on the return line before the tank.
Back to Top
DiyDave View Drop Down
Orange Level Access
Orange Level Access
Avatar

Joined: 11 Sep 2009
Location: Gambrills, MD
Points: 53511 		Post Options Post Options   Thanks (0) Thanks(0)   Quote DiyDave Quote  Post ReplyReply Direct Link To This Post Posted: 20 Apr 2016 at 6:14pm
I believe filters go on the return, and suction screens go on the suction line. At least on ag tractors...
Back to Top
JamesG View Drop Down
Bronze Level
Bronze Level


Joined: 27 Jul 2015
Location: NewEngland
Points: 26 		Post Options Post Options   Thanks (0) Thanks(0)   Quote JamesG Quote  Post ReplyReply Direct Link To This Post Posted: 20 Apr 2016 at 6:34pm
Thanks. I will check if I have any kind of screen currently on my suction line and add the filter to the return line.
Back to Top
