 Topic: What are these side shields for?
Posted: 31 May 2014 at 8:27am |
Anyone have a clue to what these shields fit? They measure 31" x 24"
Thanks
|
|
He who says there is no evil has already deceived himself
The truth is the truth, sugar coated or not. Trawler II says, "Remember that."
|
 |
|
Sponsored Links
|
|
|
TedBuiskerN.IL.
Orange Level
Joined: 11 Sep 2009
Location: Davis, IL.
Points: 1959
|
Post Options
Thanks(0)
Quote Reply
Posted: 31 May 2014 at 9:04am |
|
Possibly a power unit of some kind, maybe the UM 40, or a K or M dozer?
|
|
Most problems can be solved with the proper application of high explosives.
|
|
Seth Souerdike
Orange Level
Joined: 22 Nov 2011
Location: Cutler Indiana
Points: 4113
|
Post Options
Thanks(0)
Quote Reply
Posted: 31 May 2014 at 9:05am |
i think those went over the engine of the WD series tractors when they were mounted with a corn picker.  .
Edited by Seth Souerdike - 31 May 2014 at 9:07am
|
|
There are no atheist in foxholes.
|
|
Dave Everett
Orange Level
Joined: 12 Sep 2009
Location: England
Points: 875
|
Post Options
Thanks(0)
Quote Reply
Posted: 31 May 2014 at 9:40am |
|
HD7
|
|
Cen IA John
Orange Level
Joined: 04 Dec 2011
Location: Prairie City
Points: 226
|
Post Options
Thanks(0)
Quote Reply
Posted: 31 May 2014 at 10:06am |
|
I agree with Seth, went on a 33 picker to cover the engine.
|
|
Larry B
Orange Level
Joined: 11 Sep 2009
Location: charter oak Ia
Points: 386
|
Post Options
Thanks(0)
Quote Reply
Posted: 31 May 2014 at 10:12am |
|
they are not for a wd or wd45. might go on older tractors or crawlers.but for sure not picker shields.
|
|
garden_guy
Orange Level
Joined: 05 Jul 2013
Location: Illinois
Points: 1146
|
Post Options
Thanks(0)
Quote Reply
Posted: 31 May 2014 at 10:51am |
 Larry B wrote:
they are not for a wd or wd45. might go on older tractors or crawlers.but for sure not picker shields. |
I concur, picker shields for the WD/WD-45 were always curved edges/contoured, not a perfect rectangle like these.
|
|
JoeO(CMO)
Orange Level
Joined: 11 Sep 2009
Location: Cent Missouri
Points: 2694
|
Post Options
Thanks(0)
Quote Reply
Posted: 31 May 2014 at 2:49pm |
Those shields are for a power unit, they have the u-hooks on the top and have the spring locks on the bottom!
I don't know which power unit but are built the same as a 149 and 160 power unit I have
Edited by JoeO(CMO) - 31 May 2014 at 3:01pm
|
|
|
|
JC-WI
Orange Level Access
Joined: 11 Sep 2009
Location: wisconsin
Points: 34224
|
Post Options
Thanks(0)
Quote Reply
Posted: 23 Jan 2018 at 11:39pm |

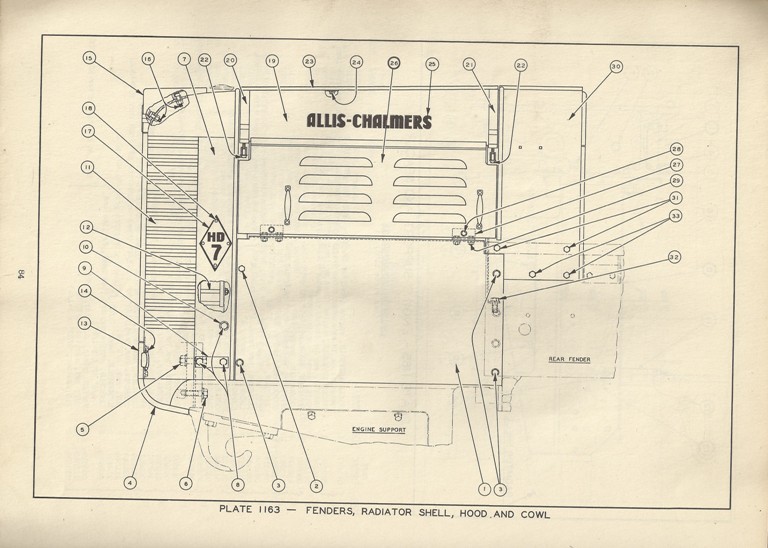

Was doing some search on other shields and ran across my old post of these shields. I still haven't found out what they were used on... But all the shields I have seen on A-C power units did not have the spring loaded hooks at 45 degree angles... Like these are. They were straight down and likewise for most of the crawlers too. Might have been for a Road grader or something different. There is a bump out in the one shield for something. Dave E., my repair parts list book shows the shield was hung and then bolted at the bottom, unless the HD7 were updated... just letting you know...I haven't seen nothing in near 4 years of posting this thread. Thank you to all those that tried to identify these shields. JC
|
|
He who says there is no evil has already deceived himself
The truth is the truth, sugar coated or not. Trawler II says, "Remember that."
|
|
HD6GTOM
Orange Level
Joined: 30 Nov 2009
Location: MADISON CO IA
Points: 6627
|
Post Options
Thanks(0)
Quote Reply
Posted: 24 Jan 2018 at 12:12am |
|
They are too short for picker shields. Are they off the power units used on carnival rides??
|
|
john(MI)
Orange Level
Joined: 12 Sep 2009
Location: SE MI
Points: 9262
|
Post Options
Thanks(0)
Quote Reply
Posted: 24 Jan 2018 at 3:14am |
They cover the sides of the engine to keep it clean and make it safer!  Now as to what they FIT, I have no idea. Did you try one on a D series tractor?
|
|
D14, D17, 5020, 612H, CASE 446
|
|
JC-WI
Orange Level Access
Joined: 11 Sep 2009
Location: wisconsin
Points: 34224
|
Post Options
Thanks(0)
Quote Reply
Posted: 24 Jan 2018 at 10:21am |
|
I have looked through scads of literature on power units and industrial equipment in the A-C line and never ran across the diagonal latches... Starting to wonder if they may have been off some Case or Austin Western or something like that...
|
|
He who says there is no evil has already deceived himself
The truth is the truth, sugar coated or not. Trawler II says, "Remember that."
|
|
DiyDave
Orange Level Access
Joined: 11 Sep 2009
Location: Gambrills, MD
Points: 53414
|
Post Options
Thanks(0)
Quote Reply
Posted: 24 Jan 2018 at 6:01pm |
JC(WI) wrote:
I have looked through scads of literature on power units and industrial equipment in the A-C line and never ran across the diagonal latches... Starting to wonder if they may have been off some Case or Austin Western or something like that...
|
Might be. Don't know if its faded paint, my computer, or my eyes, but the color looks a little off, from PO#1, certainly not PO#2, or corporate orange...
|
|
JC-WI
Orange Level Access
Joined: 11 Sep 2009
Location: wisconsin
Points: 34224
|
Post Options
Thanks(0)
Quote Reply
Posted: 25 Jan 2018 at 12:12am |
Well Dave, I washed one of the shields and seems the paint doesn't look
'clean' in the depths of it, like the painters didn't care and there's
like dark streaks in it too... But the paint sure is close to the 1936 L
crawler's paint. Really makes me wonder what they were for with the upper
attachment being hooked on inside lip under the hood and the diagonal
latches hooking into frame or some other attachment. Here are some more

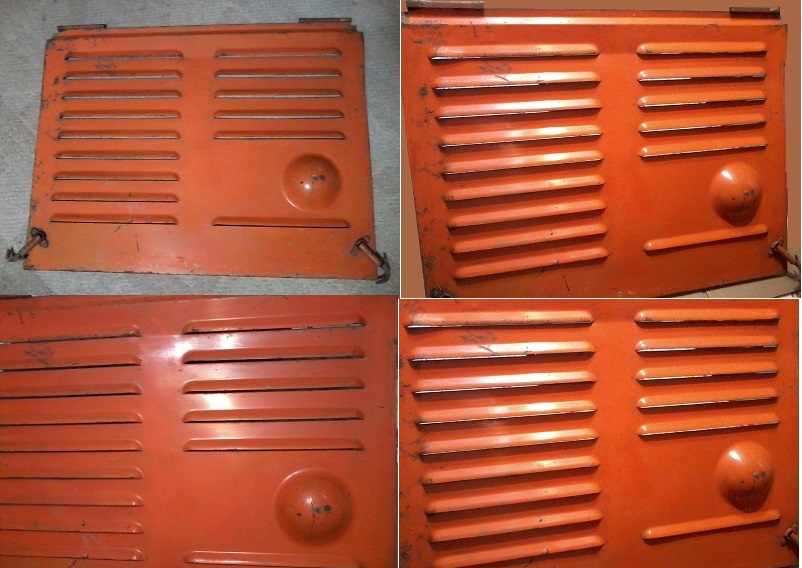

pics under different lights and angles. ... "certainly not PO#2, or corporate orange..." an thats a fact.
|
|
He who says there is no evil has already deceived himself
The truth is the truth, sugar coated or not. Trawler II says, "Remember that."
|
|
Gary
Orange Level Access
Joined: 13 Sep 2009
Location: Peterborough,On
Points: 5889
|
Post Options
Thanks(0)
Quote Reply
Posted: 25 Jan 2018 at 7:52am |
Maybe older Case with 425 or 426 Corn Picker ? Gary https://www.pinterest.com/pin/294282156877138740
|
|
