Topic: CA Pump and Drawbar Control Repairs
Posted By: Dave(inMA)
Subject: CA Pump and Drawbar Control Repairs
Date Posted: 24 Mar 2020 at 7:21pm
|

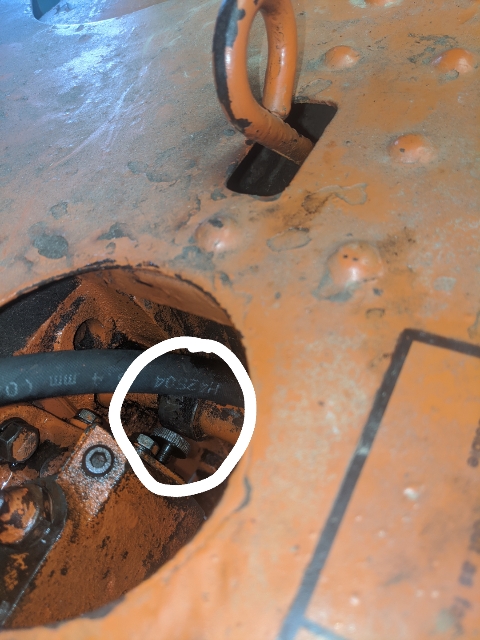

I've updated the title of this thread now that I'm into the hydraulic pump - following Hunt4Allis's footsteps there. Original post follows:  The area circled in yellow shows the oil on the housing shortly after the leak appeared. The metal casing of the seal appears to have been damaged - possibly the cause of the leak? New seal is on order from Sandy Lake. Interesting that oil doesn't leak when the pump is running - finally saw it start after I shut off the tractor. More to come. Dave ------------- WC, CA, D14, WD45 |
Replies:
Posted By: Dave(inMA)
Date Posted: 25 Mar 2020 at 7:58pm
|
Today's project was to remove the Control unit from the tractor. Started by removing the plug from the bottom of the control housing. Nasty glop oozed out into the pail:  I hope the inside of the pump is in better shape! There are two arms attached to the control: the arm that reaches down to the Snap Coupler and the raise/lower arm. Removed the two cotter pins attaching them to the control. There are six bolts that attach the control to the hydraulic pump - 3 pairs - easy to tell each pair apart. The control is attached to the pump via the control valve lever which is secured to an arm from the pump with another cotter pin.  And here's what I found inside the housing:  Had to remove the lockout arm - drove the pin circled in yellow out:  And then this pin in the regulating shaft:  Which allowed me to drive the regulating shaft out of the housing so I could remove the oil seal. Here's a shot of the dinged seal:  With the seal removed, here's the recess in the housing:  Here is a picture of the arm from the pump that engages the control unit. There's no pin holding it in place. Anyone know if/how it comes off or what secures it to the shaft? Maybe a key?  Now waiting for the new seal to arrive from Sandy Lake. Stay tuned! Dave ------------- WC, CA, D14, WD45 |
Posted By: Dave(inMA)
Date Posted: 27 Mar 2020 at 8:50pm
|
New seal arrived today - thanks, Sandy Lake! Here's the parts diagram that I'm referring to below:  I gently drove the new seal (#3) into place, reinstalled the regulating shaft (#4), sliding the regulating lever (#12) on as I did so and pinned it in place. Pinned the lockout arm assembly (#18) onto the other end of the shaft. Reinserted the pivot screw (#15) and the cotter pin that secures the hand control lever (#10) onto the screw. Done....
....until I started to wonder whether I'd installed the regulating lever the right way (orientation to the regulating shaft) or the wrong way - 180 degrees around the shaft. While it's hard to know if it'd actually fit into the housing if installed wrong, this was not a good moment. While I had taken a bunch of pictures, I didn't have one that showed me enough to know that I had the lever installed right. With the excellent help of Hunt4Allis who's rehabbing his CA hydraulic pump and sent me some pictures, I found that I'd installed it correctly. Whew! Decided that I would pull the hydraulic pump and check it out to see why it is so slow to raise the arms first time around in the day. Drained the oil. Ugh. Not as bad as it could be, but I'm seeing evidence of water mixed in there. Here's a picture of a sample after sitting a few hours - you can see the liquids starting to separate at the line about 0.5" below the surface - at the red line. More fun to come!  ------------- WC, CA, D14, WD45 |
Posted By: Sugarmaker
Date Posted: 28 Mar 2020 at 8:10am
|
Dave, Aren't these pumps just fun to work on? :) I would much rather tear into a engine than these pumps. I always think I am going to get them back together wrong too. But each one has worked so far. Good documentation and pictures. Regards, Chris ------------- D17 1958 (NFE), WD45 1954 (NFE), WD 1952 (NFE), WD 1950 (WFE), Allis F-40 forklift, Allis CA, Allis D14, Ford Jubilee, Many IH Cub Cadets, 32 Ford Dump, 65 Comet. |
Posted By: Dave(inMA)
Date Posted: 28 Mar 2020 at 9:58am
Thanks, Chris. I'm going to pull the pump this afternoon. Or maybe tomorrow...not like I have places to go.  I completely get the fear of it not going back together properly - that's what's holding me back, I think. That and the thought of a spring or check ball flinging itself across the shop! Does anyone know whether having water in the oil could cause the sluggish behavior I'm seeing after the tractor has been sitting a while? I've read that water in the oil can increase cavitation, but I'd think that the effect of that would be continuous, and in my case the sluggishness goes away after the arms have been raised once. Just wondering! ------------- WC, CA, D14, WD45 |
Posted By: Hunt4Allis
Date Posted: 28 Mar 2020 at 10:22am
Pretty soon your bench will look like this🤪good luck( lots of pictures and keep everything layed out in order of how it came apart...
|
Posted By: Dave(inMA)
Date Posted: 28 Mar 2020 at 11:33am
Matt - that is impressive! I'll try to be as organized.  I gather that you were able to drive out the cam follower pin?Dave ------------- WC, CA, D14, WD45 |
Posted By: Hunt4Allis
Date Posted: 28 Mar 2020 at 1:19pm
| Yes once I talk to guy at Sandy lake that works on them and he told me that they come out easily it was no big deal, thanks Bill đź‘Ť |
Posted By: Dave(inMA)
Date Posted: 28 Mar 2020 at 5:46pm
Removed the hydraulic pump from the CA today. It went pretty well - here 'tis sitting in an old roasting pan waiting for dissection: Having read Hunt4Allis's posts, I removed the housing cover plate and found that the gasket between the plate and the pump has had a hard life. At least two of the pump openings were partly blocked, and parts of the gasket are gone. I've circled the blocked spots in yellow and the missing material areas in red; the larger area marked in red looks as though oil could get from one opening to another - not sure that this is a serious issue, but it's not supposed to be that way!  The gasket was glued to the pump surface - came off HARD! Here's the surface cleaned up:  I'm thinking that polishing it so the darker "stains" are gone would be good, but then I'll really need to take everything apart to get all the grit out. Here are the plungers before any cleanup. I don't see or feel any scratches or dings, but others may see some!  Here are discharge valve plugs. Anyone know what the small allen screw plug at the left is about? It is in the parts diagram but w/o any description:  Last step today was to dung out the cavity that drives the pump. Actually wasn't too gunky in there. Some carb cleaner, compressed air and a rag helped a lot.  The big question of the day: is the gasket between the housing cover and pump body supposed to be glued in place? Comments and suggestions welcome!! ------------- WC, CA, D14, WD45 |
Posted By: Hunt4Allis
Date Posted: 28 Mar 2020 at 6:02pm
| It's probably better than my gasket which was never installed which is probably why there was so much oil/ crud everywhere at the back of my tractor all the time(I thought I had found the problem when I fixed one of the hydraulic cylinder hoses a while back but now I'm questioning if it was the lack of a gasket the whole time...) |
Posted By: jaybmiller
Date Posted: 28 Mar 2020 at 6:17pm
|
The allan grub plug screw 'might' be a port to install a pressure gauge ? Just a guess, been 15-20 years since I did my CA.....sigh WHERE did the time go ? ------------- 3 D-14s,A-C forklift, B-112 Kubota BX23S lil' TOOT( The Other Orange Tractor) Never burn your bridges, unless you can walk on water |
Posted By: Dave(inMA)
Date Posted: 28 Mar 2020 at 6:53pm
|
Matt, I can see where missing that gasket would lead to a mess. After all, that pump is generating serious PSI. Were you able to order the gasket from Sandy Lake, or are you planning to make one? Jay, your idea sounds likely to me. Thanks. Do you remember whether you glued that gasket to the pump when you rehabbed yours? ------------- WC, CA, D14, WD45 |
Posted By: Hunt4Allis
Date Posted: 28 Mar 2020 at 7:47pm
|
Yes, SL had all the parts I needed( even a used plunger that had broken!) I should get the parts Monday so more info to come after I fix re- install pump... Big thanks to Brenda and Bill at SLđź‘Ť(they both spent time over the phone actually talking/ sending me exploded view of pump/ parts beyond what I expected. Matt |
Posted By: Dave(inMA)
Date Posted: 28 Mar 2020 at 8:12pm
|
Great to hear. I should know by Monday what else I need. Or at least what questions I need answered. And it sounds as though Bill at Sandy Lake might know whether the answers. BTW, there's actually a cover that was used when the hydraulic pump wasn't installed on the CA. Part # 70225195. Dave ------------- WC, CA, D14, WD45 |
Posted By: Gerald J.
Date Posted: 28 Mar 2020 at 8:31pm
|
The shop manual should have some more details of benefit. http://geraldj.networkiowa.com/Trees/Allis-Chalmers-G-B-C-CA-Service.pdf" rel="nofollow - http://geraldj.networkiowa.com/Trees/Allis-Chalmers-G-B-C-CA-Service.pdfg Gerald J. |
Posted By: Hunt4Allis
Date Posted: 28 Mar 2020 at 9:47pm
| Man I'd love to get one of those covers!!! |
Posted By: Dave(inMA)
Date Posted: 28 Mar 2020 at 9:53pm
|
I'll ask when I call SL on Monday. Or maybe someone out there has a parts CA with the cover! ------------- WC, CA, D14, WD45 |
Posted By: Hunt4Allis
Date Posted: 28 Mar 2020 at 10:10pm
| I can make one, not like you need it fancy or even metal for that matter ( just needs to seal off long enough to slosh some oil around in transmission to dislodge any remaining junk so hopefully once pump goes on its not getting contaminated with leftover junk...) |
Posted By: jaybmiller
Date Posted: 29 Mar 2020 at 6:27am
|
Gaskets went on dry as I couldn't find my bottle of 'gasket sealer' until 3-4 days later, abought same time my favorite 1/2" deep, 3/8 drive went missing....sigh. It showed up about 5 years ago for 2-3 days, then, yup, went 'walkabout' IN the garage again.... Jay ------------- 3 D-14s,A-C forklift, B-112 Kubota BX23S lil' TOOT( The Other Orange Tractor) Never burn your bridges, unless you can walk on water |
Posted By: Hunt4Allis
Date Posted: 29 Mar 2020 at 6:44am
| I found what I believe to be copper never sieze between the pump and tractor rear end instead of a gasket🙄? |
Posted By: Dave(inMA)
Date Posted: 29 Mar 2020 at 6:57am
|
Jay - what they say: "necessity is the mother of invention". Maybe that gasket is supposed to be glued on, but it sure makes disassembly a challenge! Matt - that is weird...someone with imagination did that!! ------------- WC, CA, D14, WD45 |
Posted By: Hunt4Allis
Date Posted: 29 Mar 2020 at 7:37am
|
Right, so all gaskets ok to be dry?( No sealer?) My only fear is if another problem arises with pump disassembly would be easier if put in dry... |
Posted By: DrAllis
Date Posted: 29 Mar 2020 at 7:46am
| No sealer on those paper gaskets will insure that you will have oil leaks. If this is OK, go right ahead. |
Posted By: jaybmiller
Date Posted: 29 Mar 2020 at 8:03am
|
The gasgek material I used wasn't 'paper thin', maybe 50-60 thou thick and said 'oil proof'. I can see needing glue if paper thin. I did 'polish' the surfaces real good with fine wire brush in angle grinder. if you have glue, I'd use it though... ------------- 3 D-14s,A-C forklift, B-112 Kubota BX23S lil' TOOT( The Other Orange Tractor) Never burn your bridges, unless you can walk on water |
Posted By: Hunt4Allis
Date Posted: 29 Mar 2020 at 8:40am
|
Dr Allis What is recommended to use as a sealer for all 4 gaskets that are required to rebuild the pump and associated components? Is it readily available at auto parts stores or is it something special... |
Posted By: sparky
Date Posted: 29 Mar 2020 at 11:37am
|
I personally use aviation gasket sealer from Permatex. Won’t use silicone. A guy had me work on his CA pump once when he said it worked fine one day and the next day wouldn’t work. I pulled the pump and found 3 little globs of silicone in the pick up tube. I still have those globs of silicone on the bench as a reminder. ------------- It's the color tractor my grandpa had! |
Posted By: Hunt4Allis
Date Posted: 29 Mar 2020 at 11:43am
 I ended up with this |
Posted By: sparky
Date Posted: 29 Mar 2020 at 11:46am
|
I use the dark brown sealant in a can with a cap brush. ------------- It's the color tractor my grandpa had! |
Posted By: SteveM C/IL
Date Posted: 29 Mar 2020 at 12:54pm
| I understand all the concern about silicon but the biggest problem is everyone uses WAAAAYYY too much. |
Posted By: frnkeore
Date Posted: 29 Mar 2020 at 2:27pm
Yes!!! Although it is hard to not use to much. As a old mechanic, I dislike "sealers" that harden. I only use wheel bearing type grease on gaskets. It seals well and will actually expand a gasket, if it embeds into it. As a machinist, I don't use gaskets to much, unless there are end play issues to be aware of. 2 machined surfaces, that are flat and have a smooth surface (a must), won't leak. They can't leak because there is no space for the fluid to migrate. If the surface has visible machine marks and is still flat, a VERY small amount of silicon will seal the machined surface. It doesn't even have to be gasket type silicon. Run a file over the surface, to make sure that there are no raised spots. Start with a amount of silicon, that you know is NOT enough and add small amounts to it. Spread it as thin as possible. Try to leave a space on the oil side of the part, for it to expand into and completely around any bolt holes. Again, a very thin coat. ------------- Frank 1959 D17 Series I #24001+, '59 D14 '55 & '59 Ford 850 & 861 Ferguson TO 35 Deluxe, Oliver 70 and 5 more. |
SteveM C/IL wrote:Posted By: Dave(inMA)
Date Posted: 29 Mar 2020 at 3:11pm

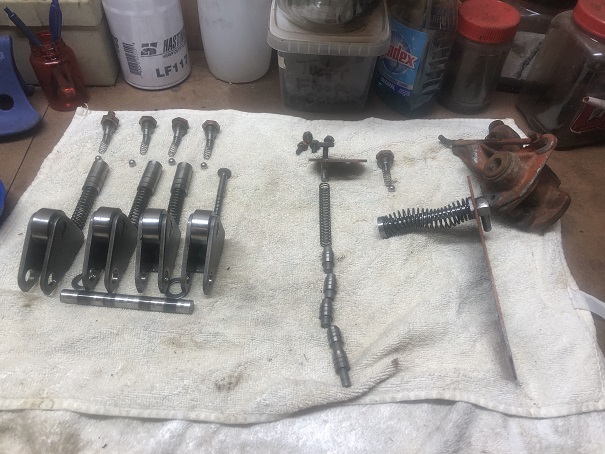

More disassembly this morning. Here's what's out of the pump thus far: I've laid everything out in exactly the order it came out of the pump - no parts have jumped across the shop yet! Couple of things I could use some help with. First, here's the the scene with the control valve cover off and the inner (smaller diameter) parts of the control valve assembly removed. Note the area marked in red:  How is the outer part of the control valve assembly removed? This is the other end of this assembly:  The red arrow is pointing to the outer part of the control valve assembly. And how are the parts inside the bore circled in yellow removed? Hunt4Allis says they all come out......just a little concerned about trying to drive them out. Any hints would be happily accepted! And thanks for your help. Stay well and safe. Dave
------------- WC, CA, D14, WD45 |
Posted By: Dave(inMA)
Date Posted: 30 Mar 2020 at 2:13pm
|
I have ordered the set of gaskets from Sandy Lake. Also talked with Bill in the service area about some of my questions. He thinks that the original problem (slow rising arms on cold start) was being caused by low oil level. I know that I was leaking oil from the drawbar control unit - and likely also from the tranny oil plug. When I drained the tranny, I noticed that oil had been leaking at the drain plug, probably due to a worn crush washer. So the next steps are to put the pump back together once I get the new gaskets and to replace the crush washer. Started reassembling the pump by cleaning up the surface that mates to the drawbar control:  Hopefully this will all go well! Dave
------------- WC, CA, D14, WD45 |
Posted By: Dave(inMA)
Date Posted: 31 Mar 2020 at 3:36pm
|
Thanks to cdsloop's post on Hunt4Allis's CA Hydraulic Pump thread, I located and drained the differential drain plug this afternoon. Needless to say, this is the first time that's been done since I bought this tractor in 2007. The oil that came out was not too ugly! I bought new crush washers at the local NAPA shop and installed all three drain plugs. Not a big deal, though I got to practice my contortionist skills when installing the differential plug. Started cleaning the accumulated oil/dirt/grease that has accumulated all over the SC hitch system over the years. Hopefully I've cured the oil leaks that have fueled the accumulation of the gunk! ------------- WC, CA, D14, WD45 |
Posted By: Hunt4Allis
Date Posted: 31 Mar 2020 at 4:12pm
| Dave I know what you mean, because the rear of my tractor is so covered in oil and junk that I think it would take me an entire day to clean all of it off (which I may get to do depending on how long I'm off work) |
Posted By: Dave(inMA)
Date Posted: 31 Mar 2020 at 6:07pm
Took me 20 minutes to clean up after I came in from the shop! ------------- WC, CA, D14, WD45 |
Posted By: Hunt4Allis
Date Posted: 31 Mar 2020 at 6:19pm
|
Hey Dave once I realized that I was not removing the farthest forward plug I did so and the same milky nasty-looking oil came out! so I think I finally found the reason why I could not clean up my oil... |
Posted By: Dave(inMA)
Date Posted: 31 Mar 2020 at 6:27pm
|
I'm pretty sure that the tranny drain is the lowest of the three, so you might find the worst in there. You should be good to go now that you've drained all three. ------------- WC, CA, D14, WD45 |
Posted By: Hunt4Allis
Date Posted: 31 Mar 2020 at 6:31pm
|
I bet I can get it all cleaned out now, thanks 2 the guy that commented about having three drain plugs removed? I had some thousand grit sandpaper so I'm polishing everything up and making sure nothing looks out of place or damaged in mine and using brake cleaner and an air compressor today to get it all super clean... |
Posted By: Dave(inMA)
Date Posted: 02 Apr 2020 at 4:59pm
|

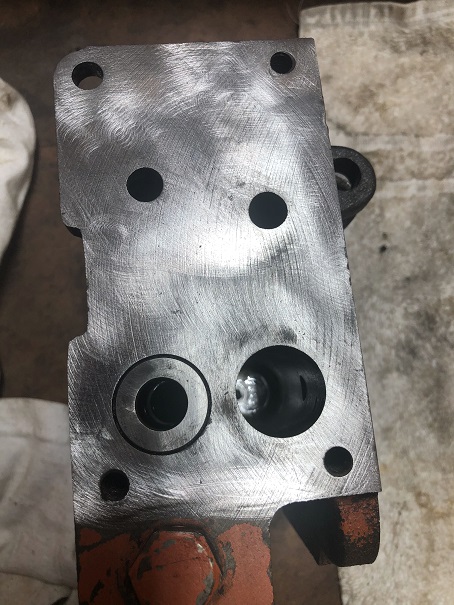

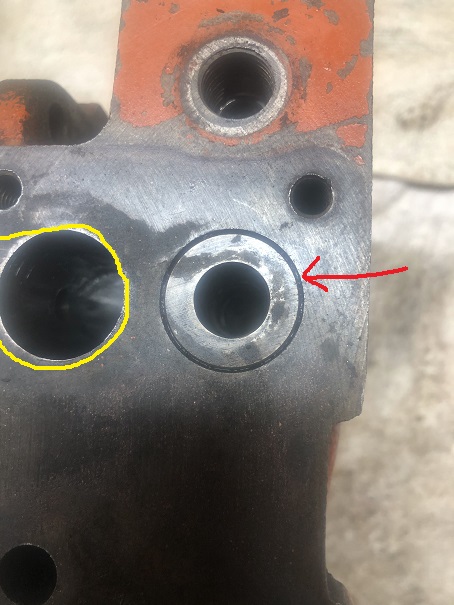

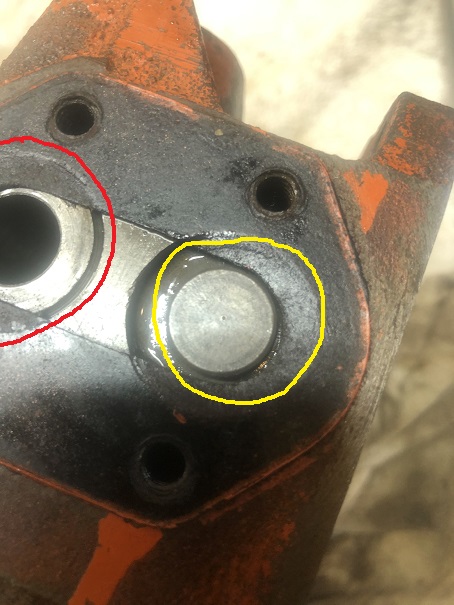

Here's an update. I removed the remaining parts from the two round bores in the pump. Everything looked pristine. Installed the new o-rings that came in the kit from Sandy Lake. Installed three gaskets using high-tack gasket adhesive. The pump is all reassembled - just waiting for a gasket from Sandy Lake, the one that's between the pump and the pto reservoir case. Thanks for all the help thus far. Please keep fingers crossed that there are no leaks when I fire this tractor up. Dave ------------- WC, CA, D14, WD45 |
Posted By: chaskaduo
Date Posted: 02 Apr 2020 at 5:51pm
|
This Help?  ------------- 1938 B, 79 Dynamark 11/36 6spd, 95 Weed-Eater 16hp, 2010 Bolens 14hp |
Posted By: Dave(inMA)
Date Posted: 02 Apr 2020 at 6:05pm
|
Absolutely! ------------- WC, CA, D14, WD45 |
Posted By: Dave(inMA)
Date Posted: 05 Apr 2020 at 11:38am
|
Couple of quick updates: 1. I flushed both lift cylinders today. Cylinder in the vise, hose end in a small container of clean hydraulic oil; worked piston out to suck clean oil in and then pushed it in to "spit" the fluid into another container. Took several cycles to get the fluid to run clean. [In hindsight, I think it'd have been easier to disassemble the cylinders and wash them out!] Interesting: small globs of blue RTV were lurking in one cylinder; I had found some larger chunks when I took the pump apart - just 2-3. Someone has been in here before me! 2. I decided to reset the controls [A,B,C,D] on the pump before reinstalling it. I have an issue with D. The instruction I was following reads: "Screw D out as far as possible." I found that D will thread completely out of the pump....I'm doubting that this is right - certainly not desirable. D is the Control Valve Adjusting Screw [#26 in the parts diagram]. Can anyone confirm that D should not thread all the way out? I plan to find a small nut to thread onto the shaft of D to use as a locking nut so D will not vibrate out. Does that sound like a reasonable approach?
------------- WC, CA, D14, WD45 |
Posted By: Hunt4Allis
Date Posted: 05 Apr 2020 at 12:10pm
| That's weird because my thumb screw that you're talkin about labeled d hits the engage PTO shaft and won't let it come all the way out |
Posted By: Hunt4Allis
Date Posted: 05 Apr 2020 at 12:12pm
 PTO engage shaft circled in white
|
Posted By: Jim.ME
Date Posted: 05 Apr 2020 at 12:27pm
| It sounds like you are adjusting with the pump off the tractor, if so, it doesn't have the PTO control shaft to hit as Hunt4Allis pointed out. |
Posted By: Dave(inMA)
Date Posted: 05 Apr 2020 at 12:52pm
|
Jim wins the prize! Yes, the pump isn't on the tractor. I'm glad to hear that the engage shaft will limit D's travel. ------------- WC, CA, D14, WD45 |
Posted By: Dave(inMA)
Date Posted: 07 Apr 2020 at 5:09pm
|
I am happy to report that the pump is back on the tractor! It works much better than before - no more waiting a minute or two for the first lift of the day to happen. The leak from the drawbar control is no more. In fact, there are no leaks! All that's left is to reinstall the platform and she'll be good to go. Here's a short video: [TUBE]fvh-n2mPneU[/TUBE] I want to thank everyone who lent a hand to help me through this project. I have to say that it was more than a little scary to dig into the pump - way too many ways for something to go wrong. So whether you texted or Pm'd or posted on here or just read the thread, THANKS! And it helped a lot to have Hunt4Allis's thread going at the same time. Stay safe, everyone. Dave ------------- WC, CA, D14, WD45 |
Posted By: Hunt4Allis
Date Posted: 07 Apr 2020 at 5:13pm
| Hey Dave nice video. When you push forward on your pump handle lever to lower the arms do yours go down on their own or are you pushing on them to make them go down? |
Posted By: Dave(inMA)
Date Posted: 07 Apr 2020 at 5:21pm
|
Thanks, Matt. I have to push on them - doesn't take hardly any pressure though. They'd drop like a rock if an implement were on there! ------------- WC, CA, D14, WD45 |
Posted By: Hunt4Allis
Date Posted: 07 Apr 2020 at 5:48pm
| Right, ok |
